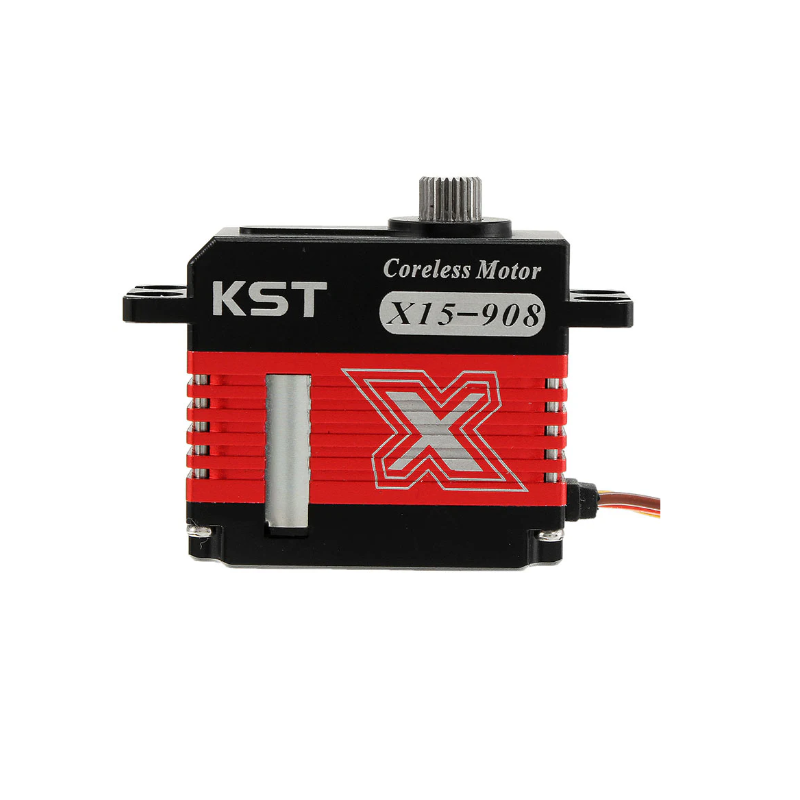

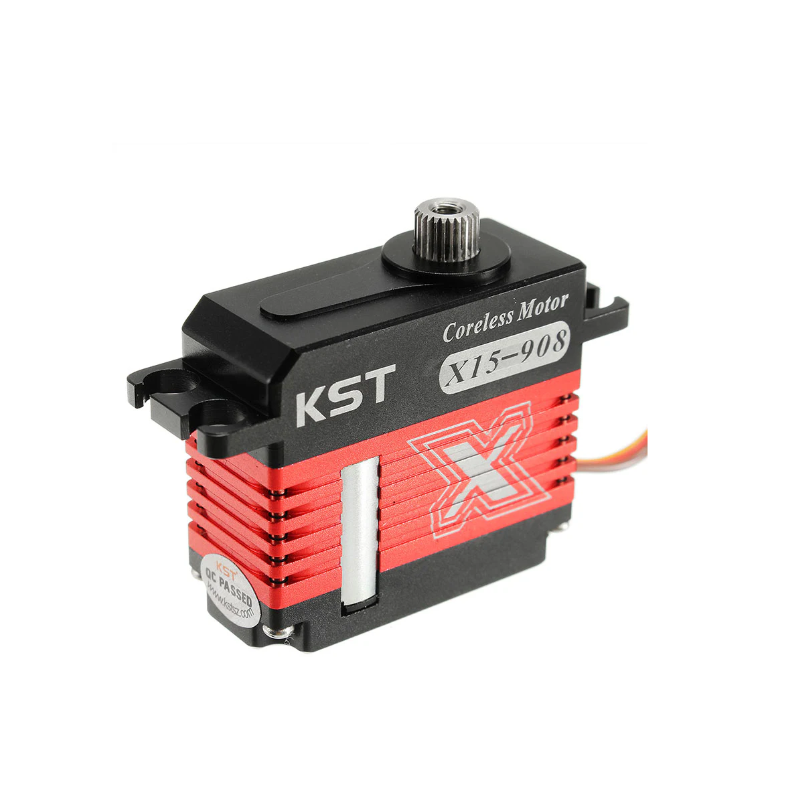

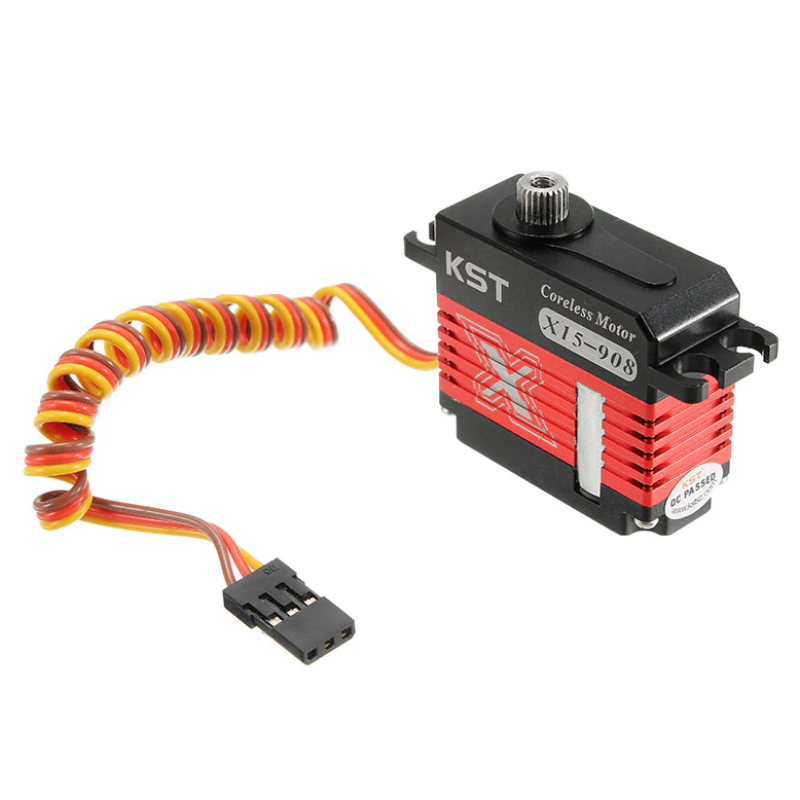

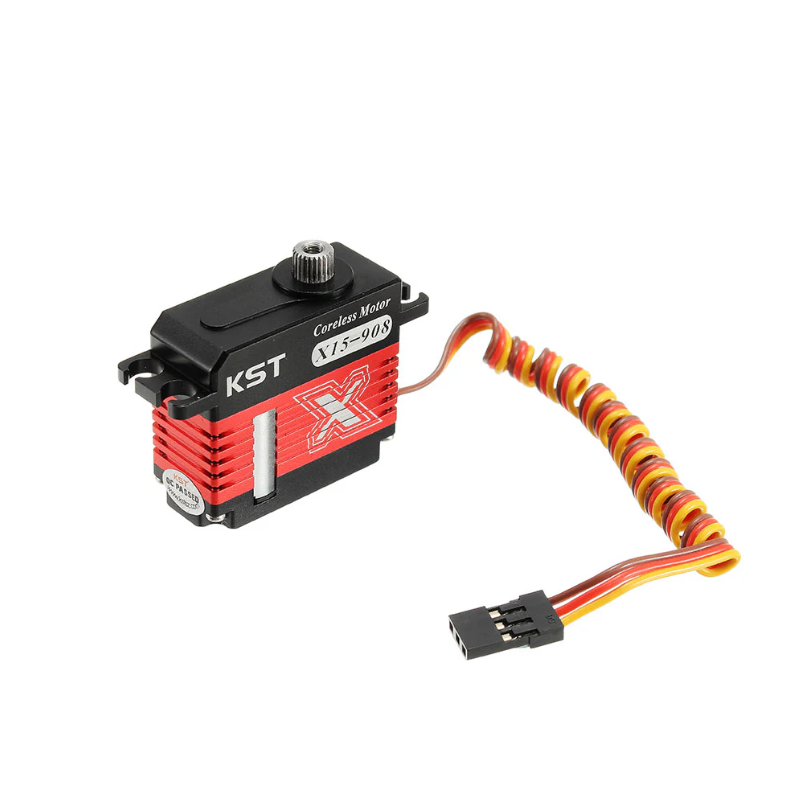

KST X15-908 V8.0 HV Coreless Cyclic Mini Servo 9.2Kgf.cm 0.08sec for RC Helicopters & Airplane & Pancar
Usually ships within 24 hours
Regular price
$82.50
Couldn't load pickup availability
X15-908 is a high performance servo of the 15mm class. Due to its positioning speed of 0.08s/60° and torque of 9.2Kgf.cm at 8.4 Volt, this servo is perfectly suitable for middle-class helicopters, but also for planes, where power and a fast rudder reaction are required. It is perfect for helicopter team- and competition pilots and for use in hard competitions.
The housing is made of high quality aluminium alloy AI7075 with cooling fins and the gear is made of hardened steel. For these reasons, the KST X15-908 is more solid than, for example, the KST DS589MG.
Features
- Hardened Steel Gears
- Programmable
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Two Ball Bearings
Specification
- Item: X15-908 Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque:
6.5Kgf.cm@6.0V
8.0Kgf.cm@7.4V
9.2Kgf.cm@8.4V
- Speed:
0.10sec/60°@6.0V
0.08sec/60°@7.4V
0.07sec/60°@8.4V
- Working Frequency: 1520us/333Hz
- Default Travel Angle: ±50° = 100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
- Weight: 40g±10%
