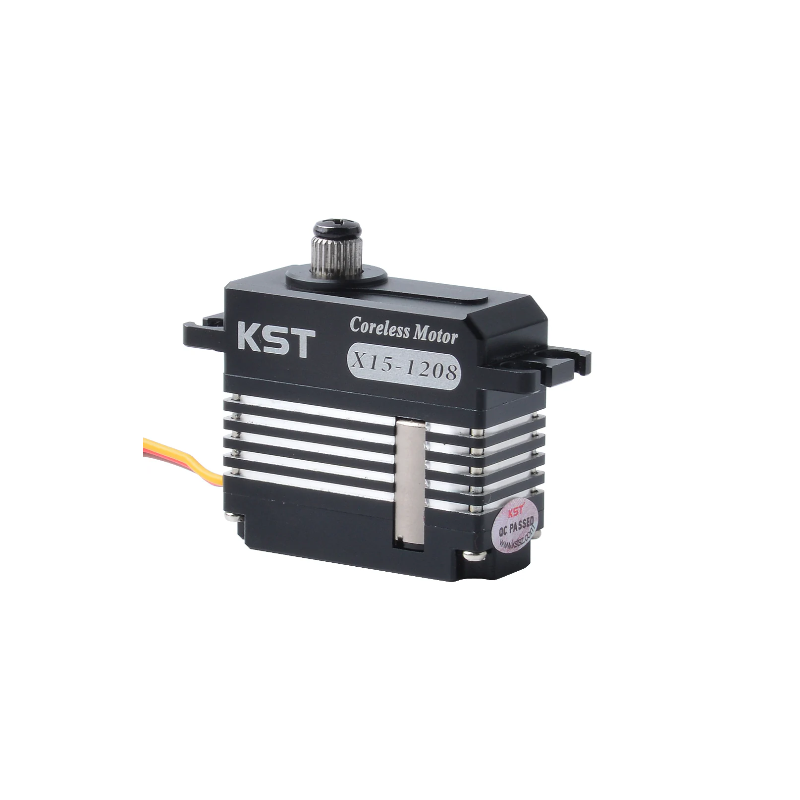

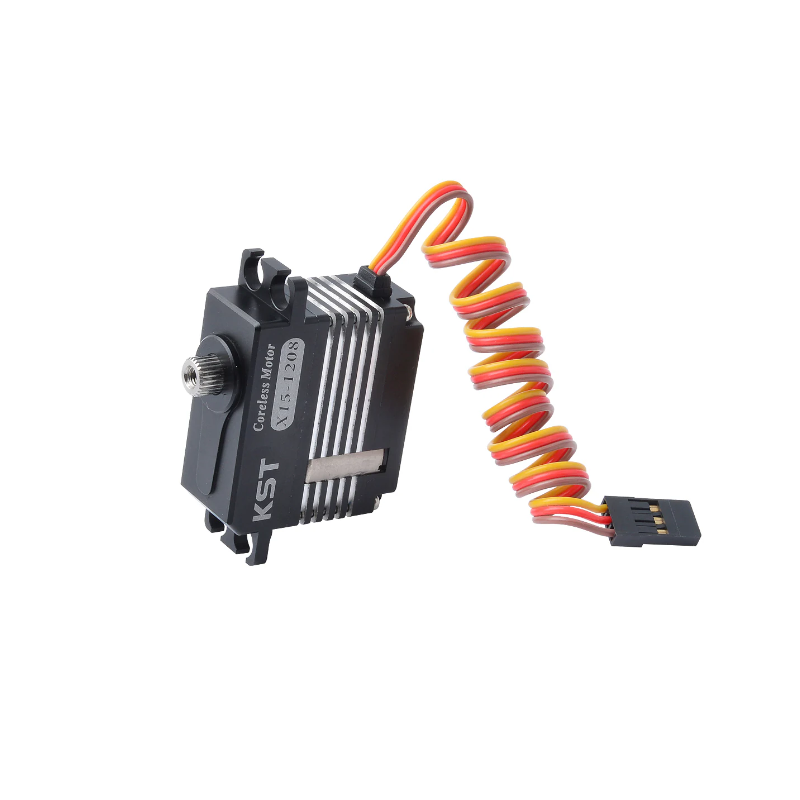

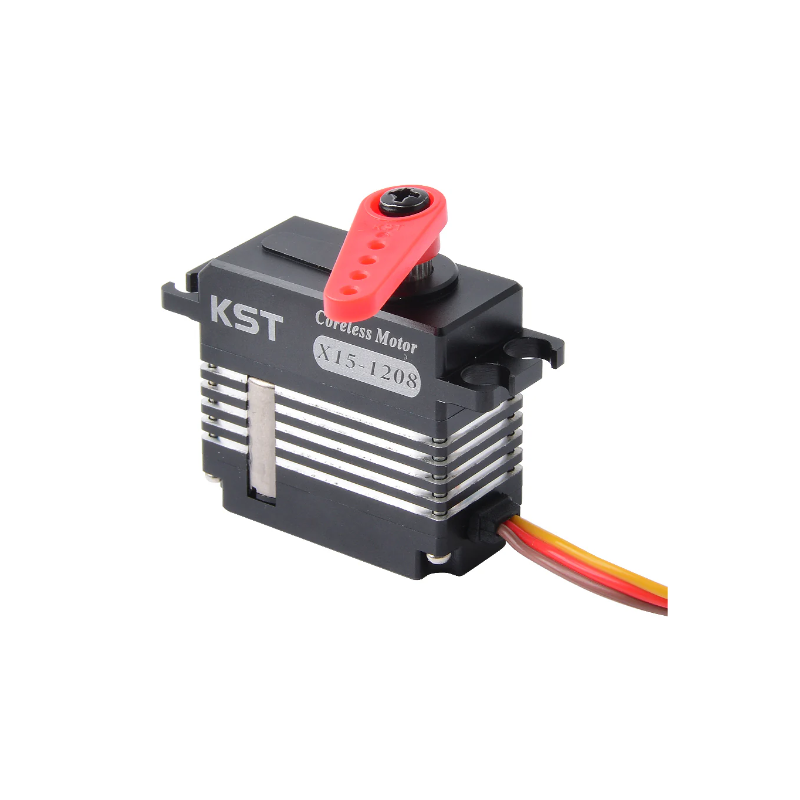

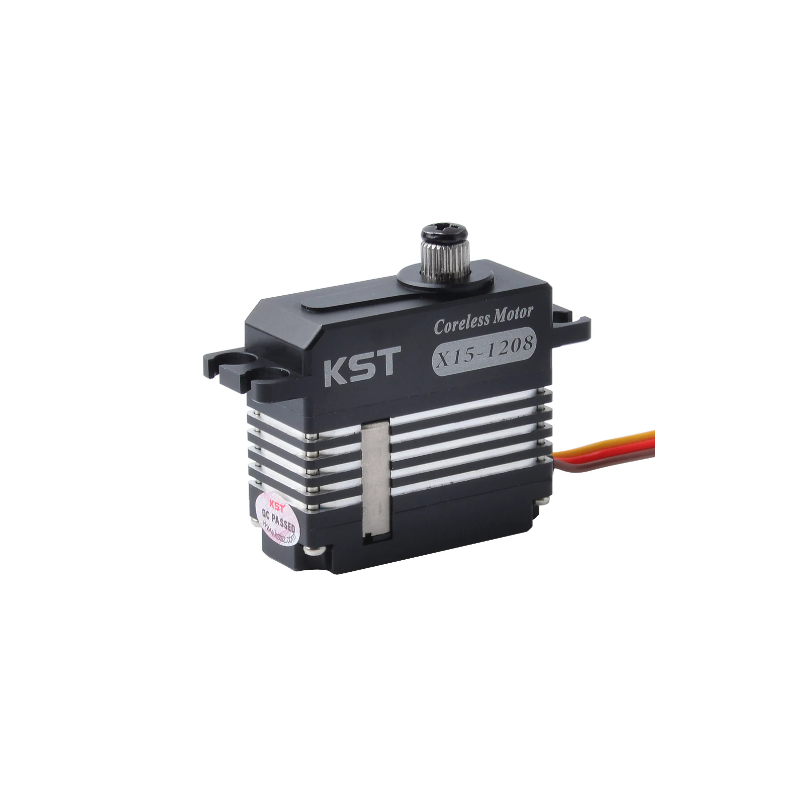

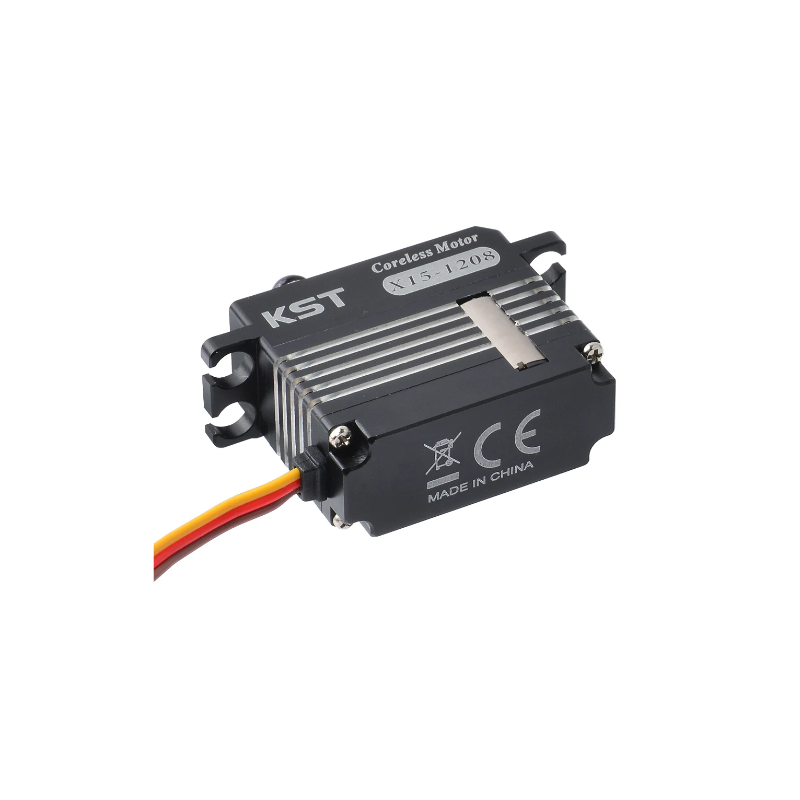

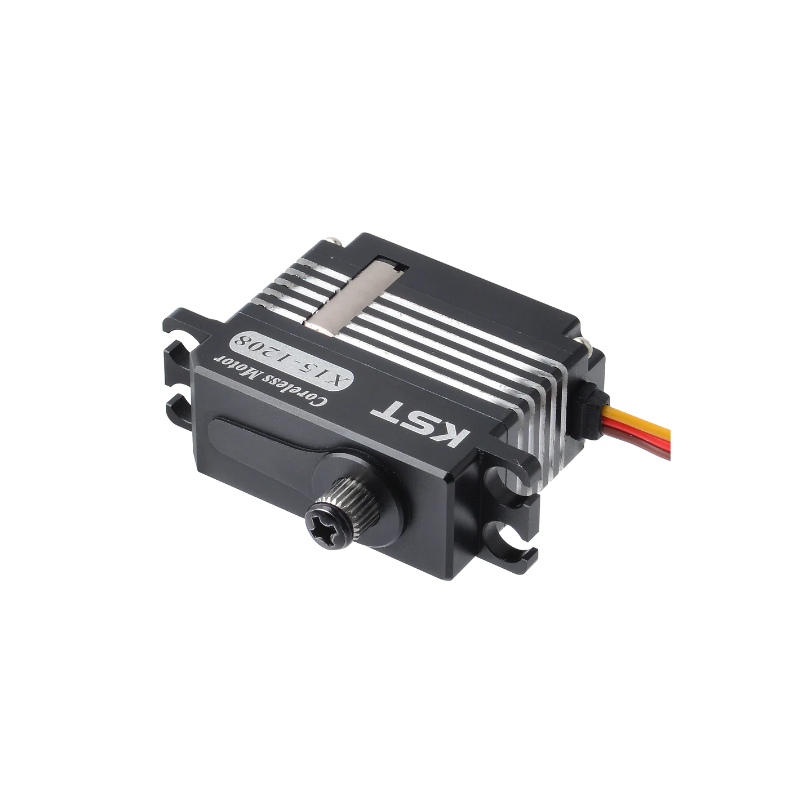

KST X15-1208 Mini Size Digital Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.
Features
- Hardened Steel Gears
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Two Ball Bearings
Specification
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque:
9.8Kgf.cm@6.0V
12.0Kgf.cm@7.4V
13.5Kgf.cm@8.4V
- Speed:
0.10sec/60°@6.0V
0.08sec/60°@7.4V
0.07sec/60°@8.4V
- Working Frequency: 1520us/333Hz
- Default Travel Angle: ±50° = 100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
- Weight: 40g±10%
