KST X10 Mini V8.0 Digital Metal Gear Servo 7.5kg 0.1sec for RC Gliders

A smaller version of the X10 wing servo from KST offers the best performance and definitely the best value servo you can put in your latest sailplane wing. This HV servo has incredible torque and extremely smooth operations rivaling and beating servos twice its price.

The Mini version is lighter and smaller than the regular KST X10, perfect for installations where a small amount of torque can be traded for lighter weight and ease of installation.

Perfect for applications like F3J, F3B, F3F wing and flap installations. You need to see it and feel how smooth it goes... it's just awesome.

Features

• Extreme Torque and Excellent Speed
• Compact and Light Weight Design
• Wide 4S NiMH to 2S LiPo Voltage Range
• Programmable
• Excellent Heat Dissipation
• CNC Aluminum Case
• Hardened Steel Gears

Specification

• Item: X10 Mini V8.0 Servo
• Rated Voltage: DC7.4V
• Voltage Range: 4.8V-8.4V

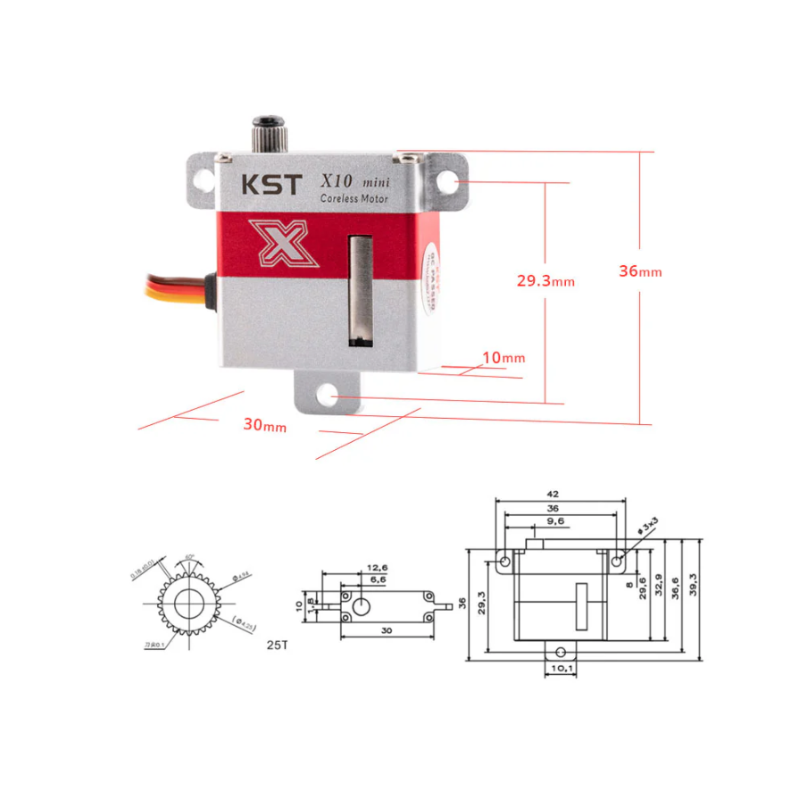

• Dimensions: 30mm*10mm*29.6mm±0.2mm

• Max dimensions：42.0*10.0*39.0mm
• Torque: 4.5Kgf.cm@4.8V, 5.5Kgf.cm@6.0V, 6.8Kgf.cm@7.4V, 7.5Kgf.cm@8.4V
• Speed: 0.16sec/60° @4.8V,  0.14sec/60° @6.0V,  0.12sec/60°@7.4V,  0.10 sec/60°@8.4V

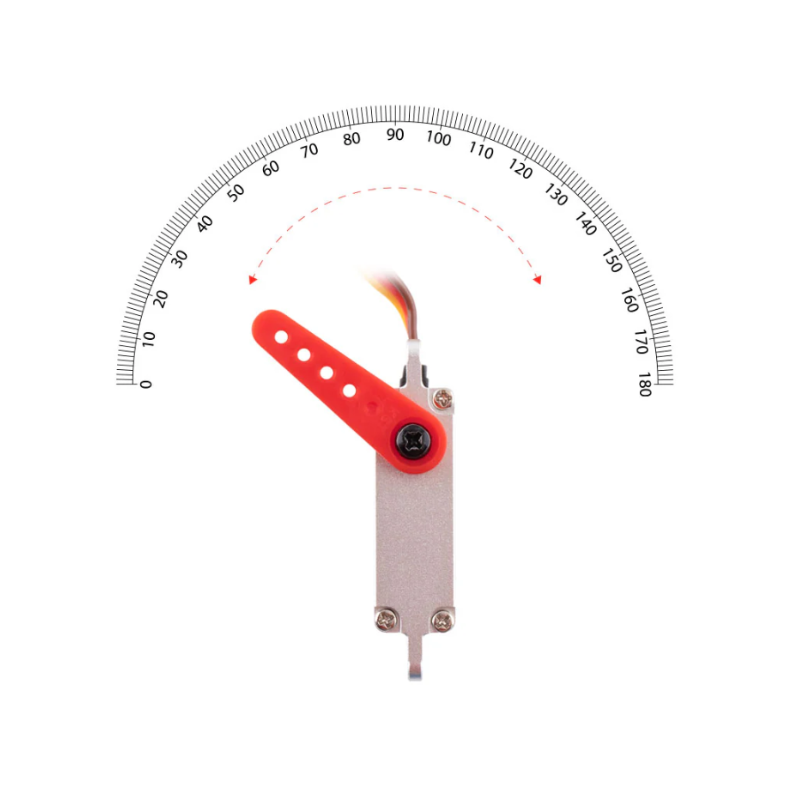

• Travel Angle: ±50°=100° Total
• Operating temperature: -10℃.......+65℃
• Weight: 23g±10%
• Gear material: Hardened Steel

• Motor Type:  Coreless DC Motor

• Case Material: Aluminum Alloy

• Working frequency: 1520µs/333Hz
• Soft Start: Programmable
• Programmable: Yes
• Position feedback: Potentiometer
• Dead band/resolution: 2 µs
• Pulse width for ± 60º 900-2100 µs
• Lead length: 16cm
• Bearing: 2BB
• Optional accessories: Ply Frame for KST X10 Mini, Integrated Drive System/Mono for the KST X10, Frame with bearing for the KST X10
