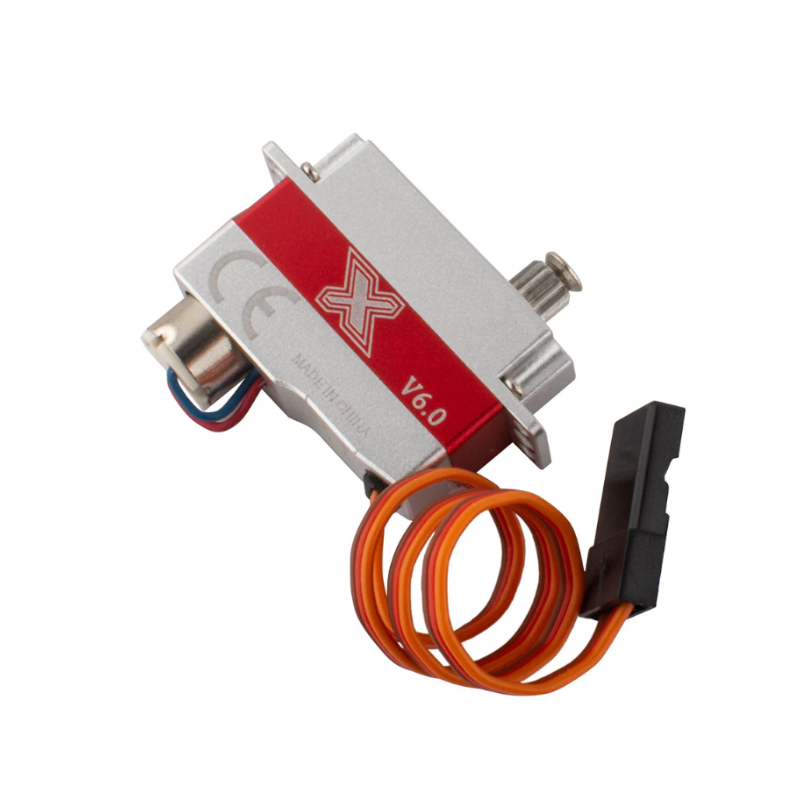

The KST X08 V6.0 have been the DLG servo for the past several years, delivering robust and precise performance at a very attractive price. V6 takes it another step forward by not only further improving the gearset to minimize potential slop, but the servos are now programmable with the KST Tool Card #1/ KST Tool Card #5 (sold separately) to adjust the endpoints, center, and direction for the perfect installations.
KST's continual strive for performance has resulted in the KST X08, with 1us resolution and deadband, the X08 is the most precise servo made by the company. At an incredible 8 mm thickness and very small overall dimensions, this servo will fit in any tight space you want.
To meet the demands of DLG pilots, the KST X08 is designed from the ground up to be 1s and 2s LiPo compatible, making it possible for the pilot to choose any number of battery configurations to suit personal preference.
Features
- Compact and lightweight design
- Excellent torque and speed
- Designed for high-performance RC Gliders
- Excellent heat dissipation
- Programmable
- Support soft start
Specification
- Item: X08 V6.0 Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC3.8V-8.4V
- Torque: 1.4kg.cm@3.8V, 2.2kg.cm@6.0V, 2.8kg.cm@8.4V
- Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.09sec/60°@8.4V
- Working Frequency: 1520μs/333Hz

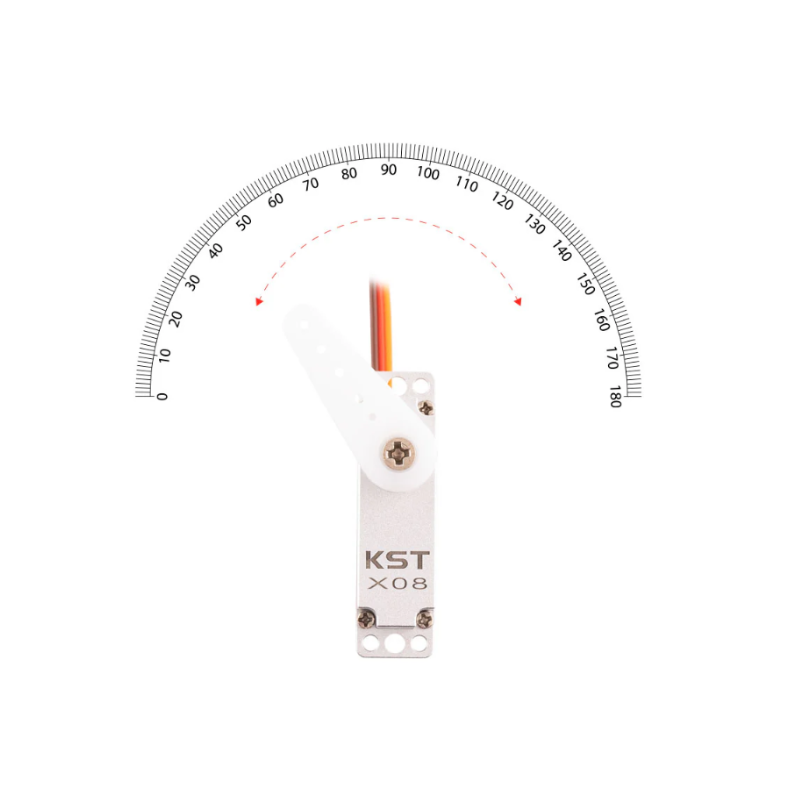

- Default Travel Angle: ±60° = 120° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Yes
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer

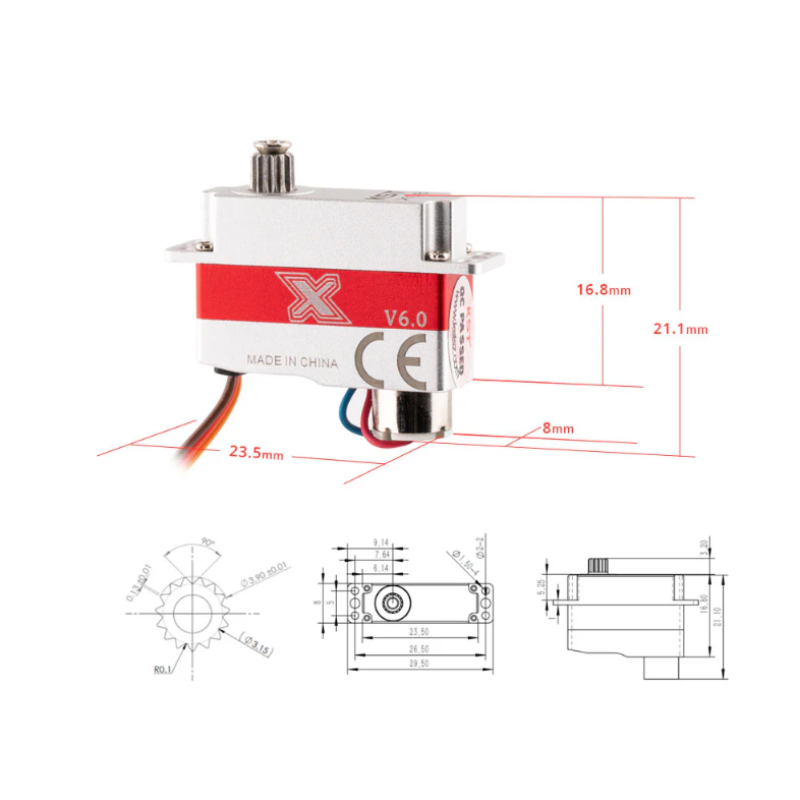

- Case Dimensions: 23.5*8*16.8mm±0.2mm
- Weight: 8g±10%
