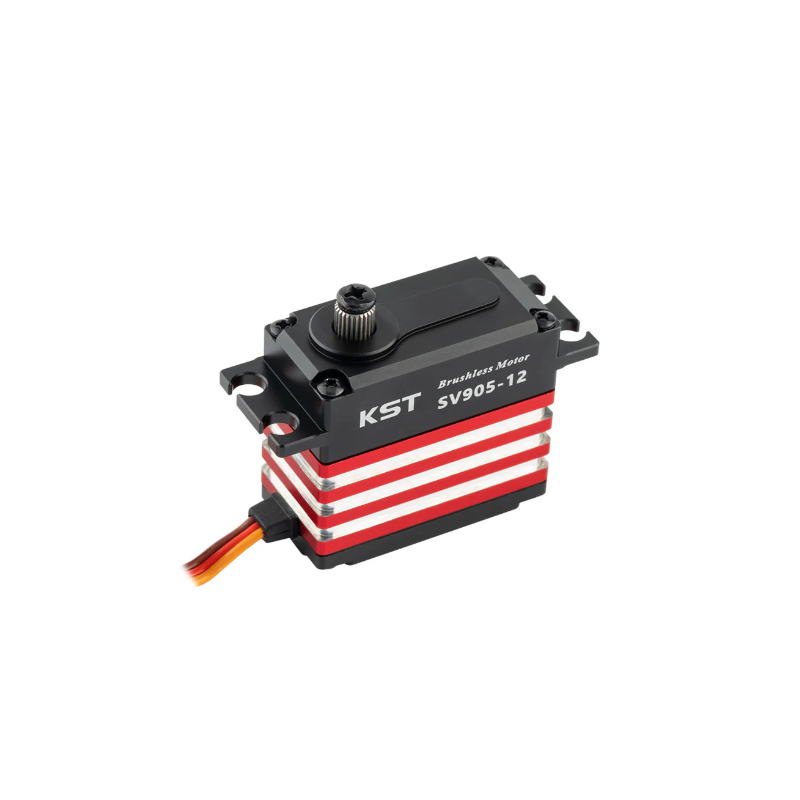

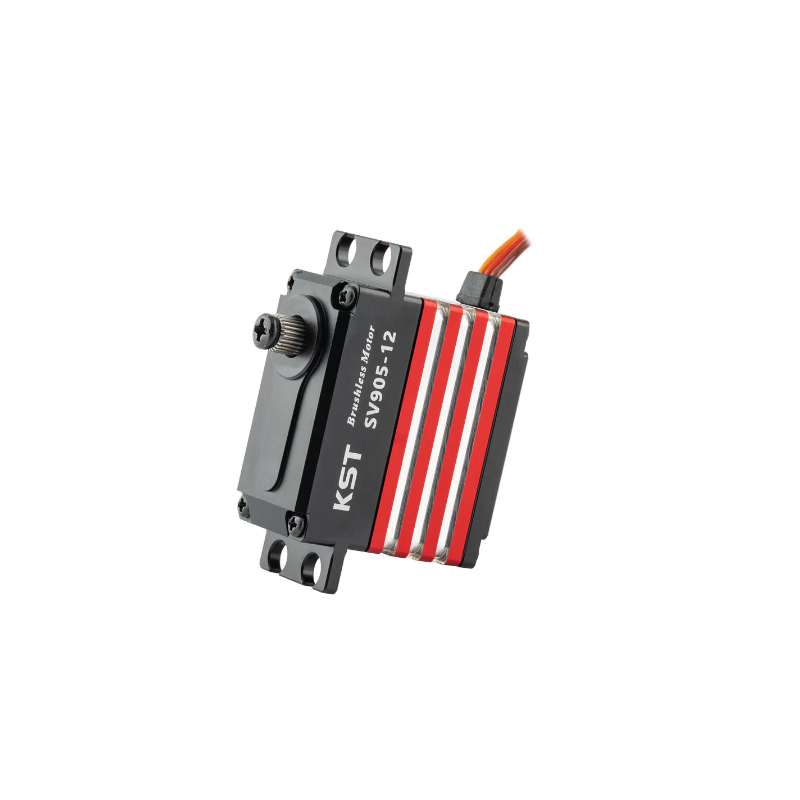

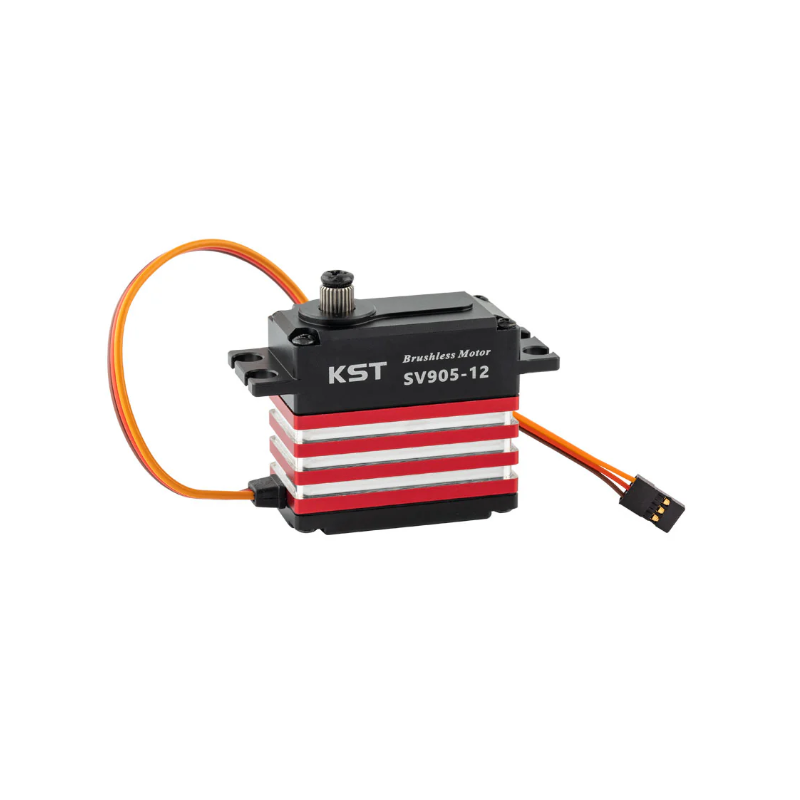

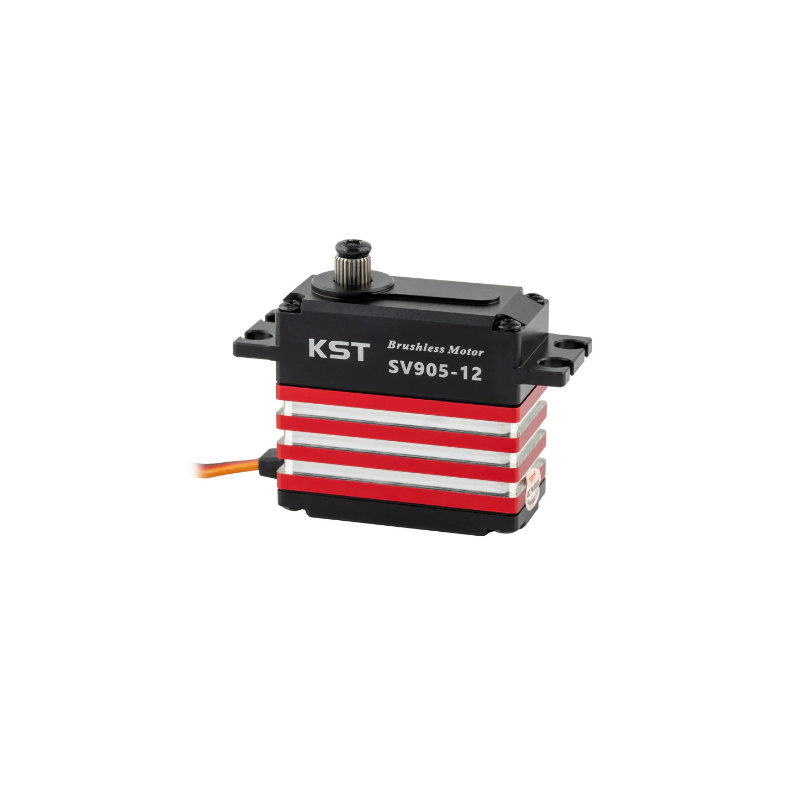

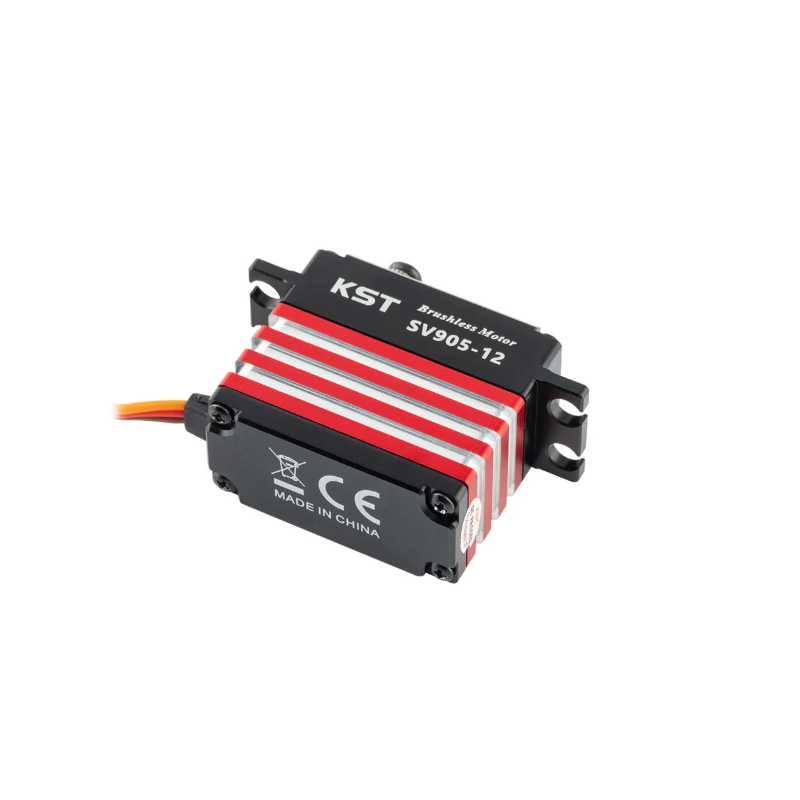

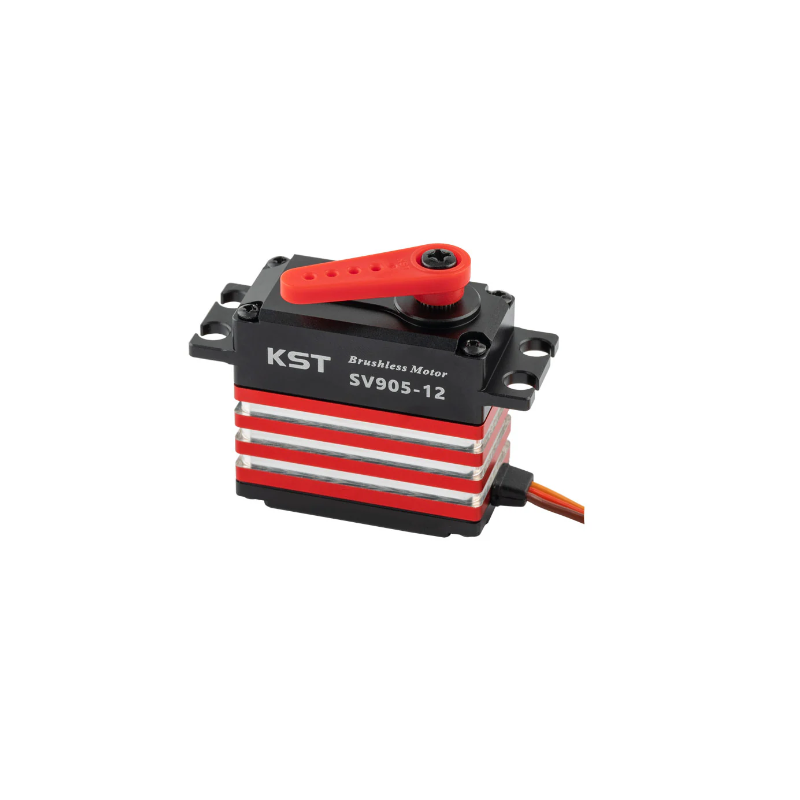

KST SV905-12 HV Brushless Metal Gear 17Kgf.cm 0.04sec Tail Servo for 550-700 Class RC Helicopters

In stock
No reviews
Usually ships within 24 hours
$99.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

Presenting the outstanding value SV905-12 HV brushless tail servo, crafted specifically for enthusiasts of 550-700 class RC helicopters who demand top-tier performance and unwavering reliability. The SV905-12 HV tail servos excel in power delivery, driving an impressive 17Kgf.cm of torque at 13V while maintaining an exceptional 0.04-second speed for lightning-fast responsiveness.

Engineered with an emphasis on 12V LiPo Battery Direct Drive, these servos guarantee steadfast stability and dependable performance under any circumstances. Featuring dual ball bearings, our servos establish a rock-solid gear-train, ensuring seamless and pinpoint-accurate operation.

This high-voltage servo is set to leave a lasting impression, elevating your experience with unprecedented levels of power and precision.

Features

  • DC 12V Rated Voltage
  • Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive
  • High Frequency & Fast Response
  • Ultra High Torque & Excellent Speed
  • Dual Ball Bearings
  • Brushless DC Motor
  • Hardened Steel Gear
  • CNC Aluminium Case
  • Programmable (Please refer to the programming tool manual for correct voltage)
  • Ideal for 550-700 Class RC Helicopters Tail

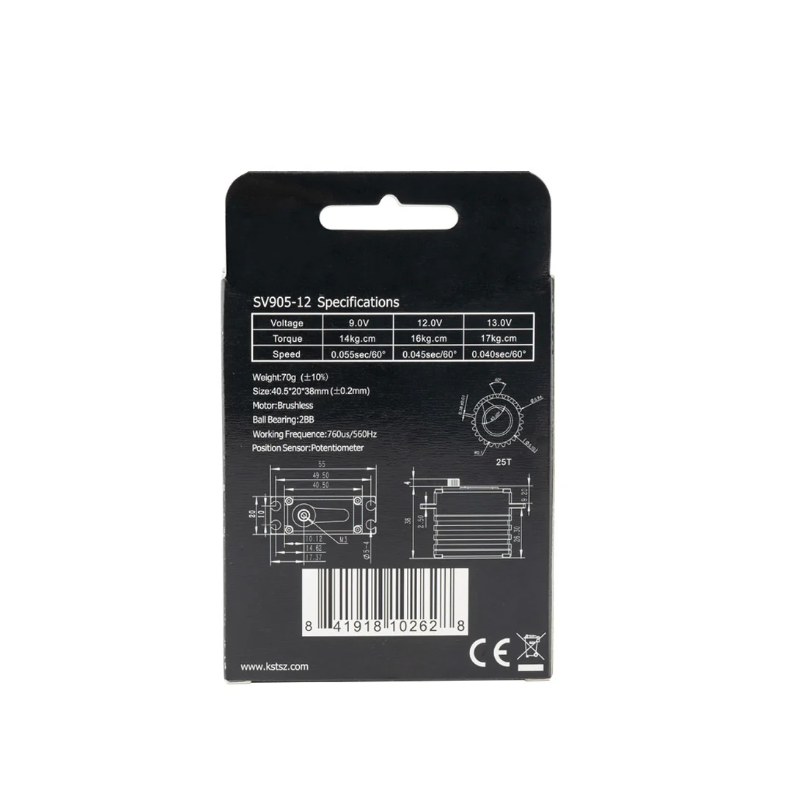

Specification

  • Item: SV905-12 Tail Servo
  • Rated Voltage: DC12V
  • Voltage Range: DC8.0V-13V
  • Torque: 13Kgf.cm@8.4V / 16Kgf.cm@12V / 17Kgf.cm@13V
  • Speed: 0.06sec/60°@8.4V / 0.045sec/60°@12V / 0.040sec/60°@13V
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃.......+65℃
  • Programmable: Yes (Please refer to the Programming tool manual for correct voltage)
  • Case Material: Aluminium Alloy
  • Motor Type: Brushless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Case Dimensions: 40.5mm*20mm*38mm±0.2mm
  • Weight: 70g±10%
  • Ball Bearing: 2BB
