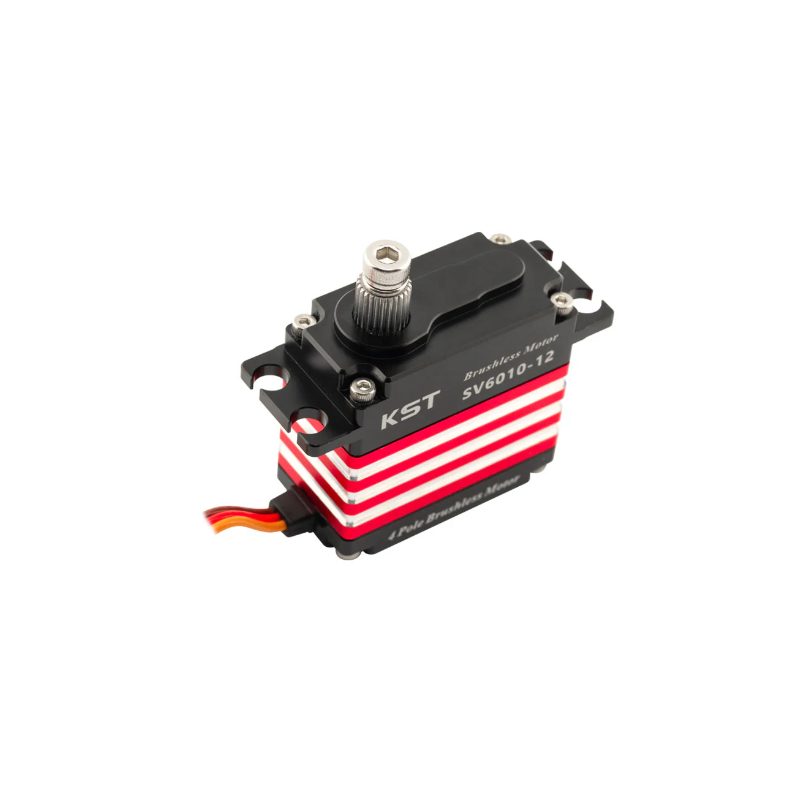

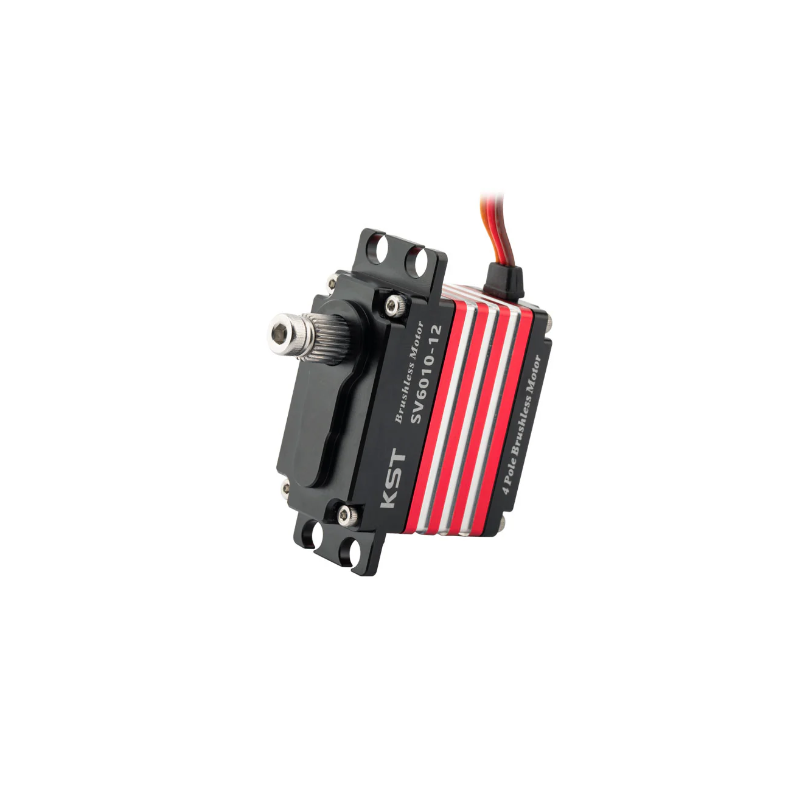

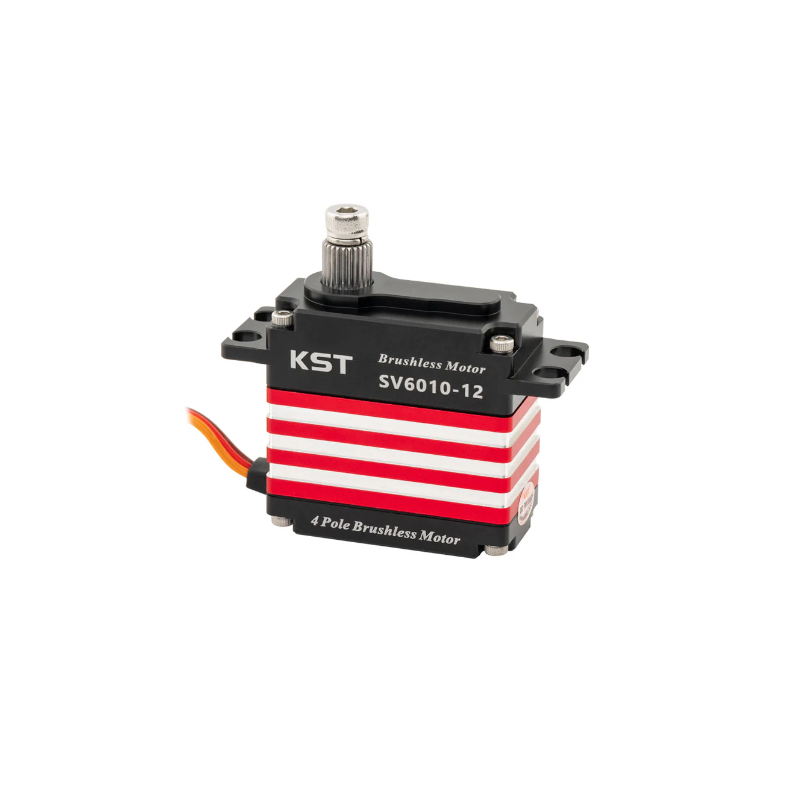

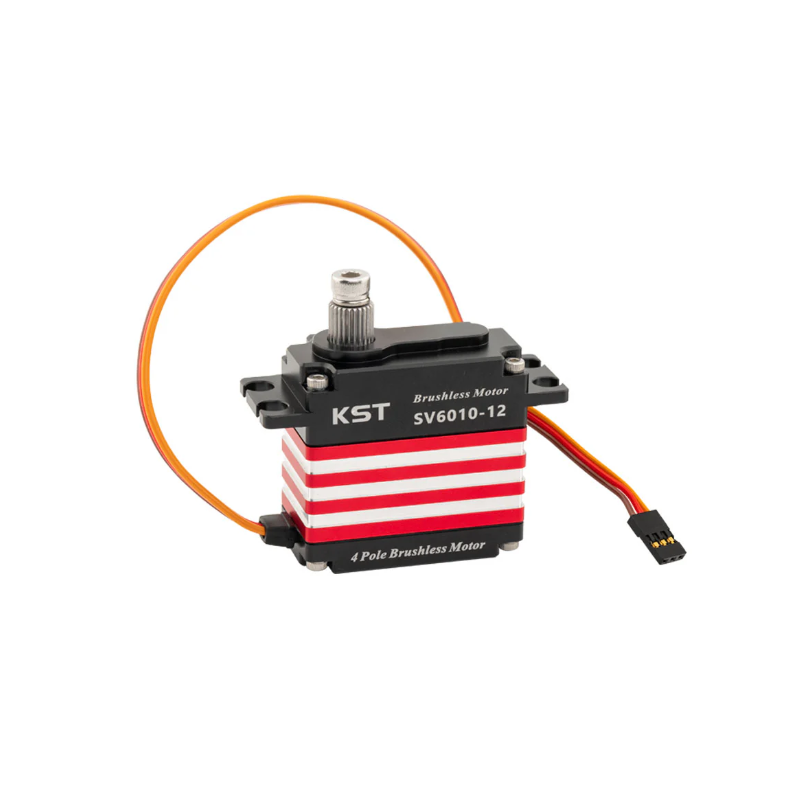

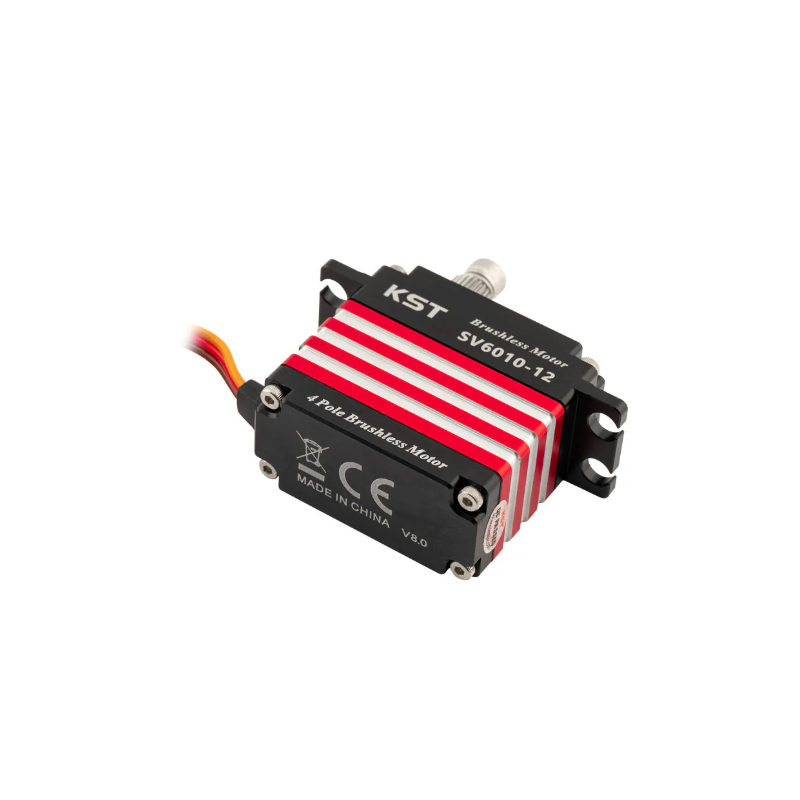

The SV6010-12 is a high-quality standard-sized HV brushless servo built to withstand heavy use and provide an impressive 70Kgf.cm of torque at 13V with a rapid speed of 0.09sec/60°. The SV6010-12 HV brushless servo also features an oversized 8mm spline design for the most secure servo horn mounting in the standard servo category. The SV6010-12 provides unparalleled power, precision, and rugged construction, perfect for large-scale RC cars and planes.
Designed to operate with either 12V (DC) or up to 3S LiPo battery direct drive, the SV6010-12 is reliable and steady in any situation. With contactless magnetic sensors, also known as Hall effect sensors, the SV6010-12 improves accuracy, repeatability, and reliability.
Features
- Rated DC 12V High Voltage or Up to 3S LiPo Battery Direct Drive
- Support 8-13V High Voltage
- Ultra High Torque & Excellent Speed
- Programmable
- 8mm Spline Design
- Dual Ball Bearings
- Brushless DC Motor

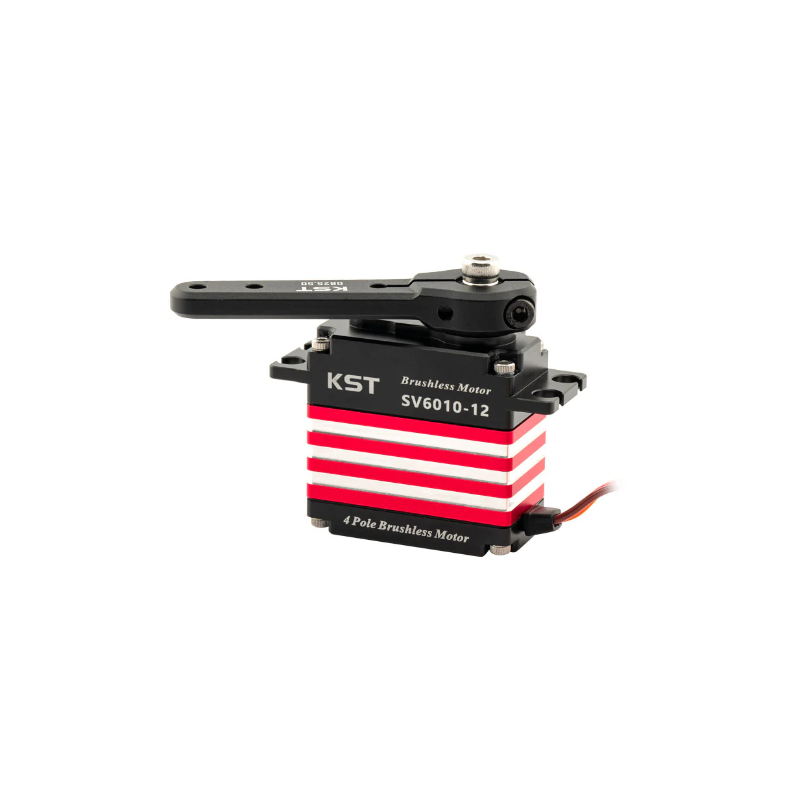

- Aluminium Servo Horn
- Ideal for large-scale RC Cars & RC Planes
Specification
- Item: SV6010-12 Servo
- Rated Voltage: DC12V
- Voltage Range: DC8.0V-13.0V
- Torque: 50Kgf.cm@8.4V / 60Kgf.cm@12V / 70Kgf.cm@13V
- Speed: 0.13sec/60°@8.4V / 0.10sec/60°@12V / 0.09sec/60°@13V
- Working Frequency: 1520μs/333Hz

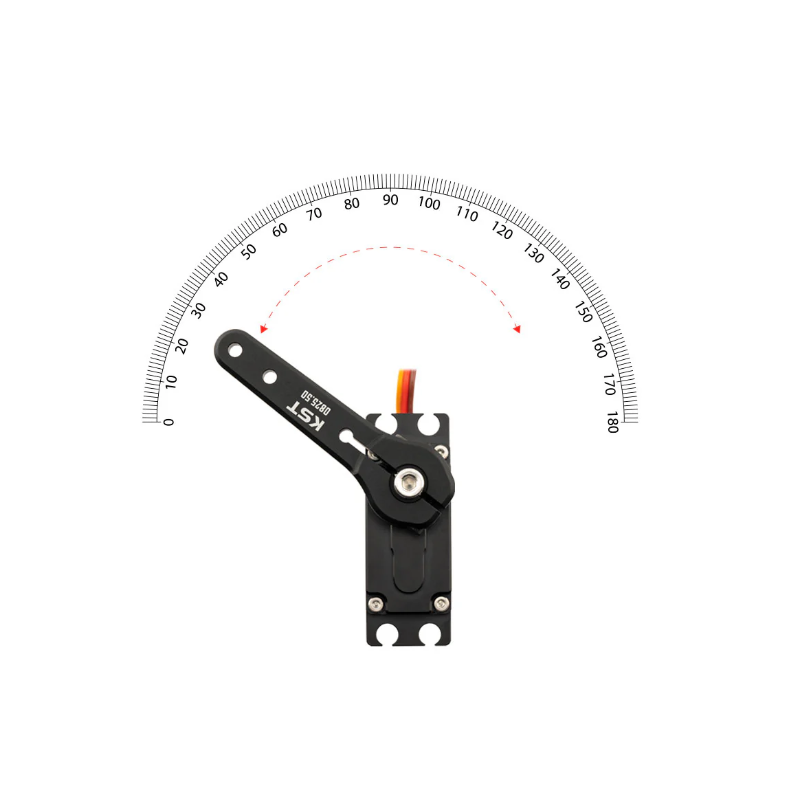

- Default Travel Angle: ±100° =200° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Contactless
- Ball Bearing: 2BB
- Case Dimensions: 40*20*40mm±0.2mm
- Weight: 75g±10%
