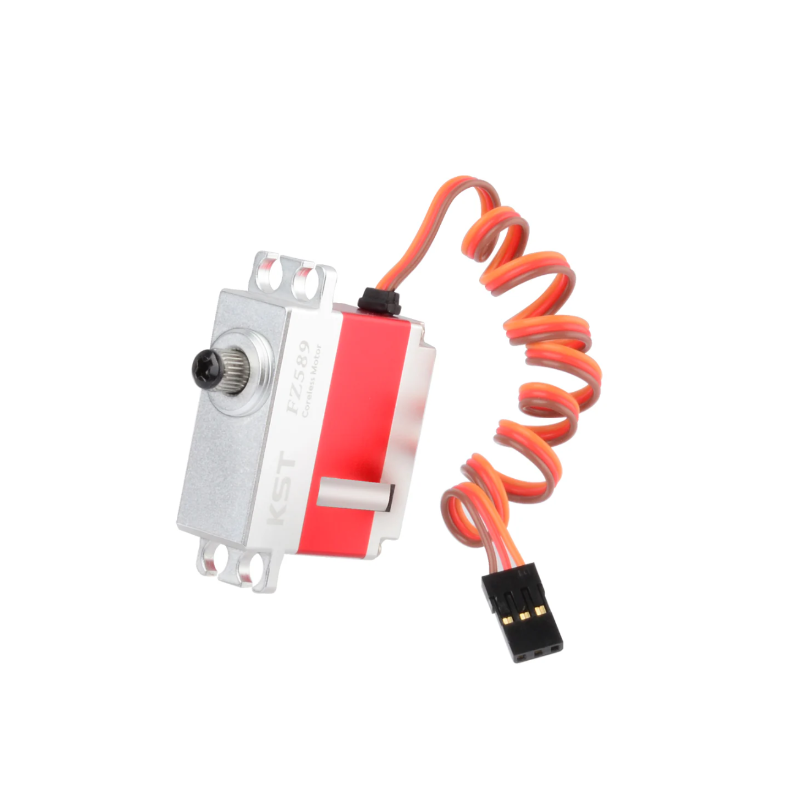

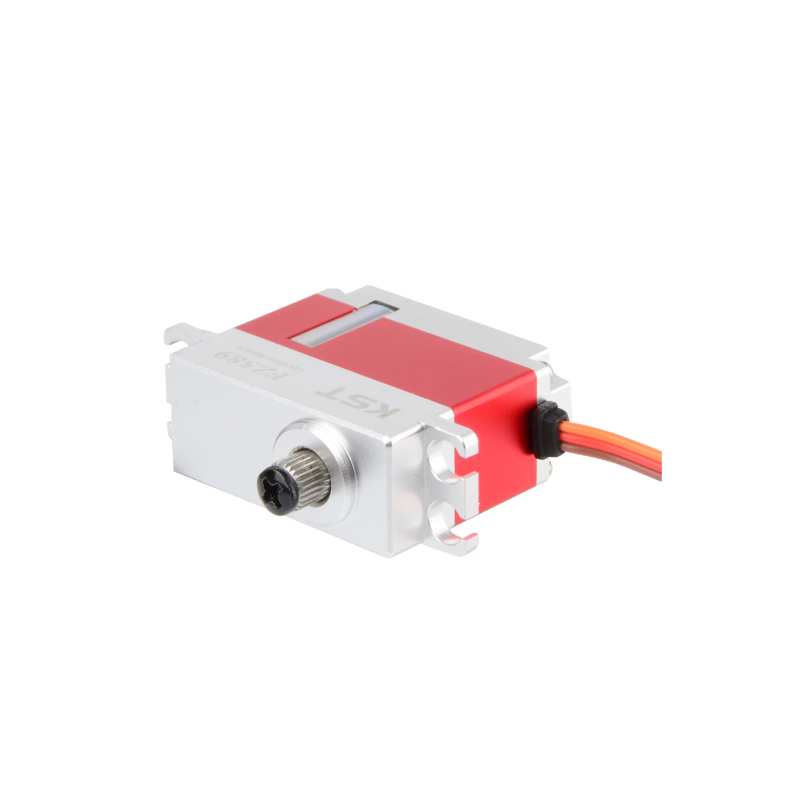

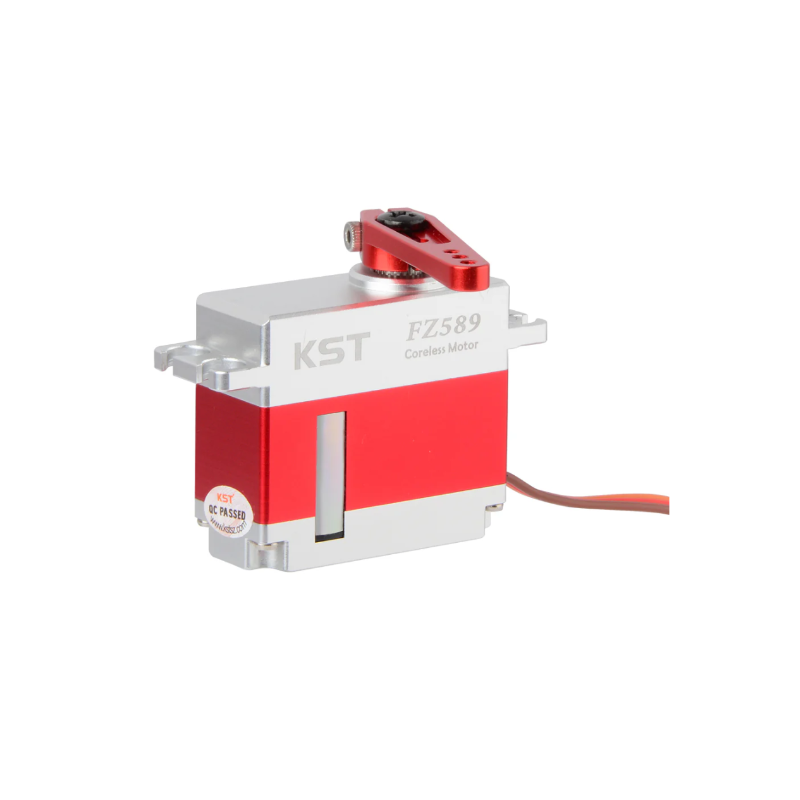

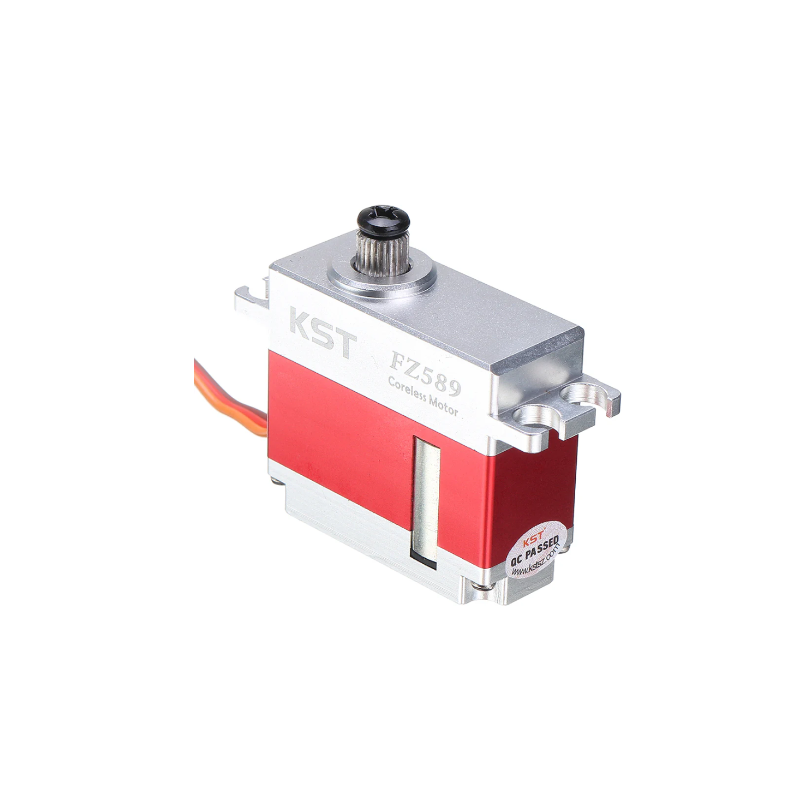

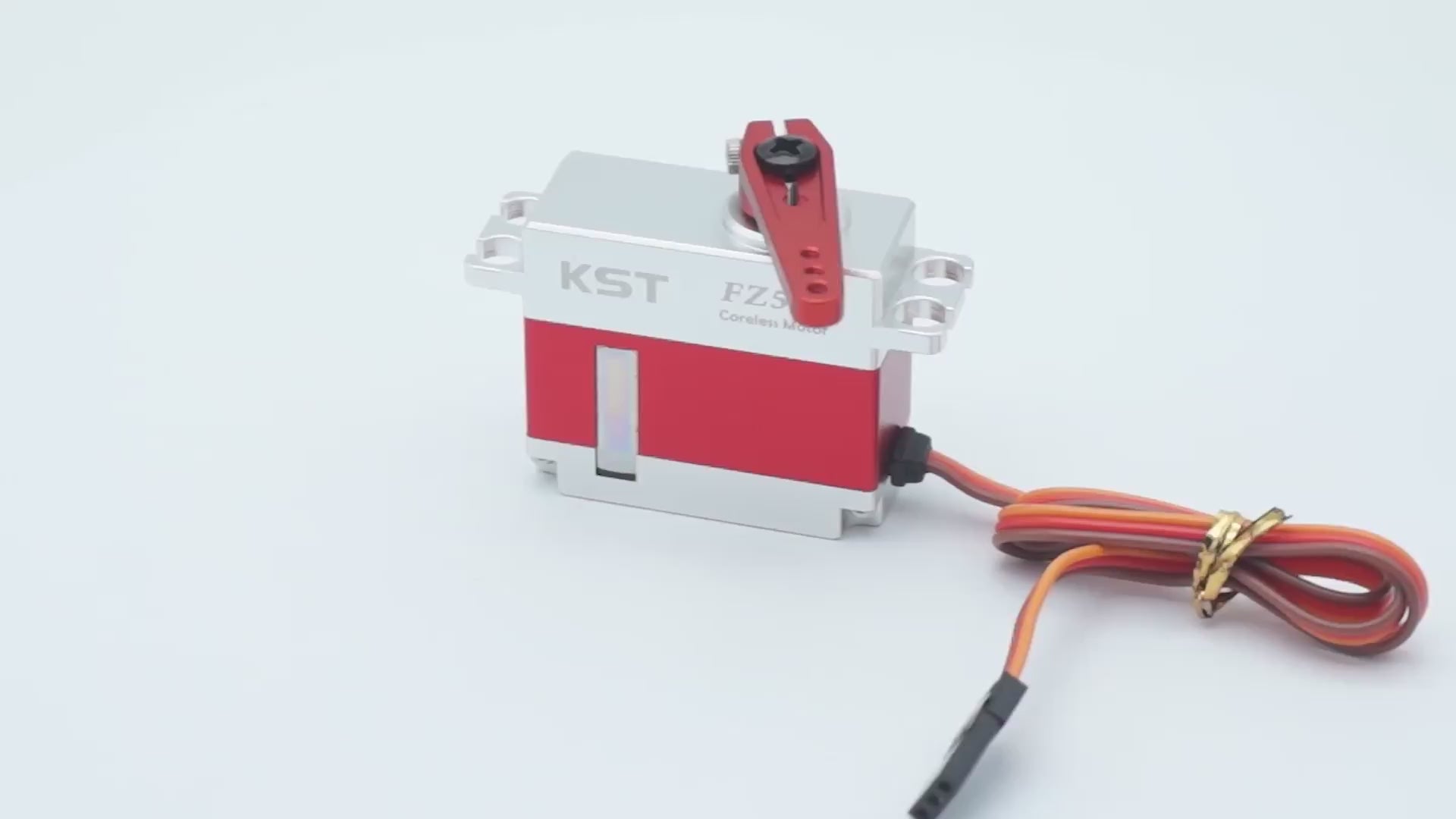

FZ589 is a high-voltage and higher-torque mini servo ideal for RC gliders and helicopters. This is one of the best servos currently available for its applications because of its smooth operation, high torque, and high accuracy.
Features
- Extreme Torque and Excellent Speed
- Two Ball Bearings
- CNC Aluminium Case
- Ideal for RC Gliders and Helicopters
Specification
- Item: FZ589 Mini Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 6Kgf.cm@6.0V, 7Kgf.cm@7.4V, 8Kgf.cm@8.4V
- Speed: 0.12sec/60°@6.0V, 0.11sec/60°@7.4V, 0.10sec/60°@8.4V
- Working Frequency: 1520us/333Hz
- Default Travel Angle: ±45° =90° Total
- Temperature Range: -20℃……+65℃
- Motor Type: Coreless DC Motor
- Gear Set Material: Metal Gear
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Case Dimensions: 35*15*32.5mm ±0.2mm
- Weight: 40g±10%
