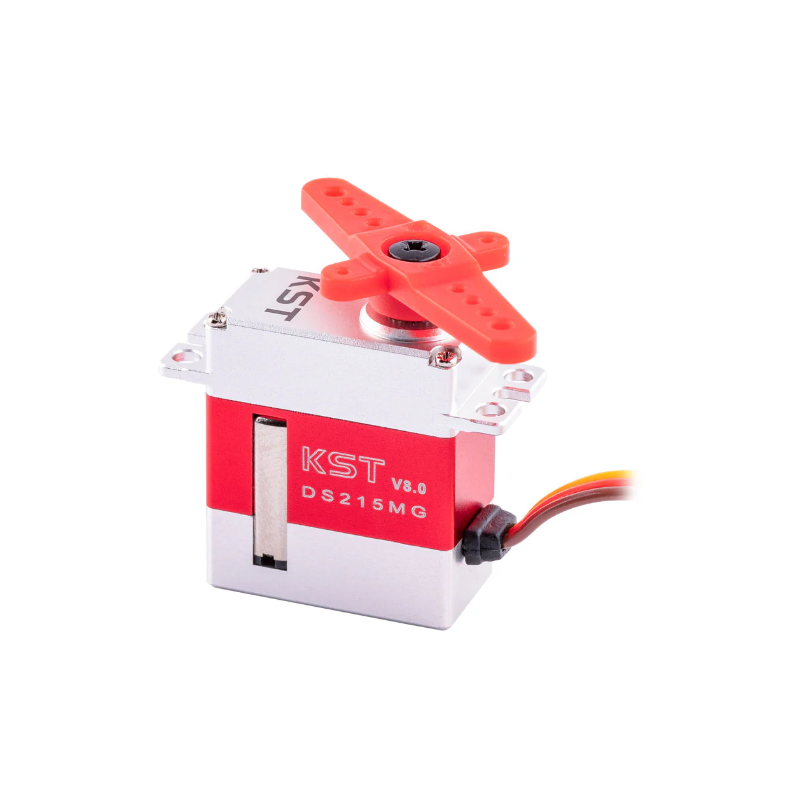

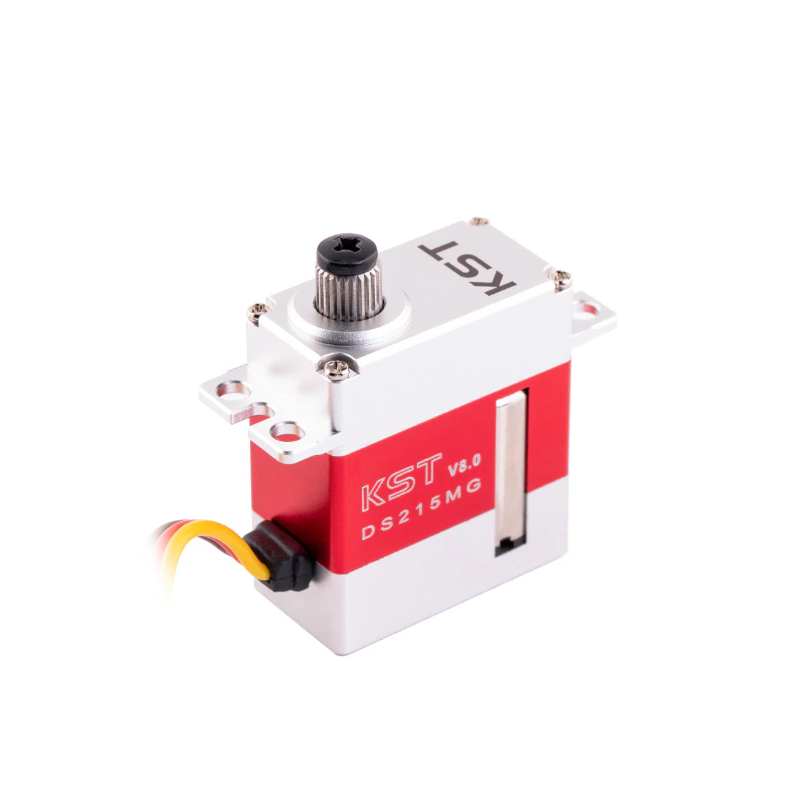

DS215MG HV micro servo is an amazingly powerful and fast metal-cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 4.0 kgf.cm of torque and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and leading speed.
Weighing only 20g it is a great servo for glider elevator & rudder and heli cyclic & tail rotor. Also popular on RC EDF jets. The KST DS215MG HV is designed for use with a 2S LiFe or 2S LiPo battery. Do not use on a 5V supply. It is the high voltage replacement of the acclaimed KST DS115MG servo.
Features
- Compact and Lightweight Design
- Excellent Torque and Speed
- Designed for High Performance RC Gliders
- Excellent Heat Dissipation
- Programmable
- Ideal for RC Glider & Helicopters
Specifications
- Item: DS215MG Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 3.1Kgf.cm@6.0V, 3.7Kgf.cm@7.4V, 4.0Kgf.cm@8.4V
- Speed: 0.060sec/60°@6.0V, 0.055sec/60°@7.4V, 0.050sec/60°@8.4V
- Working Frequency: 1520μs/333Hz

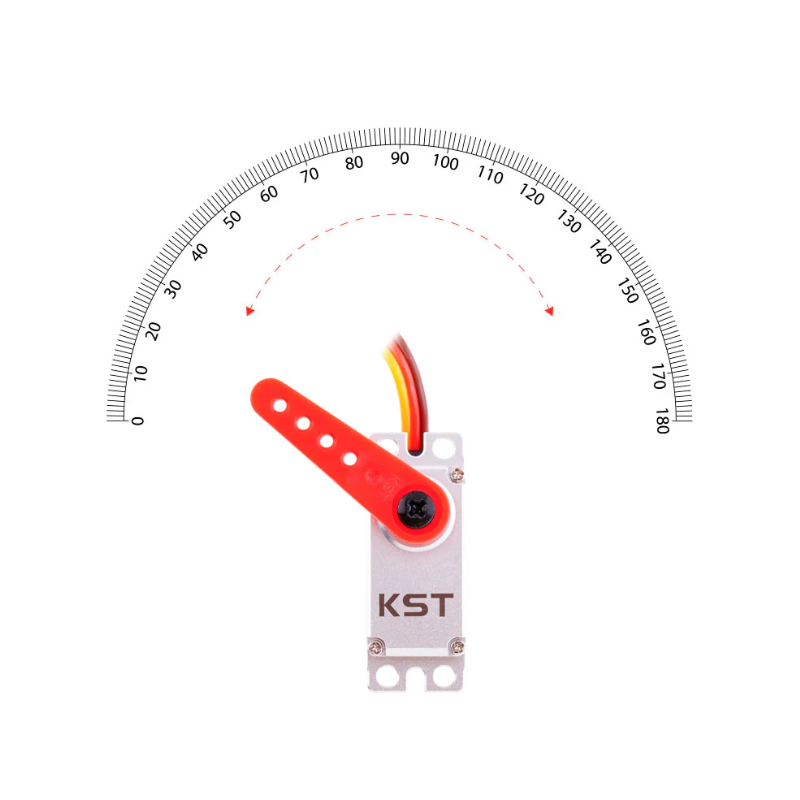

- Default Travel Angle: ±70° = 140° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

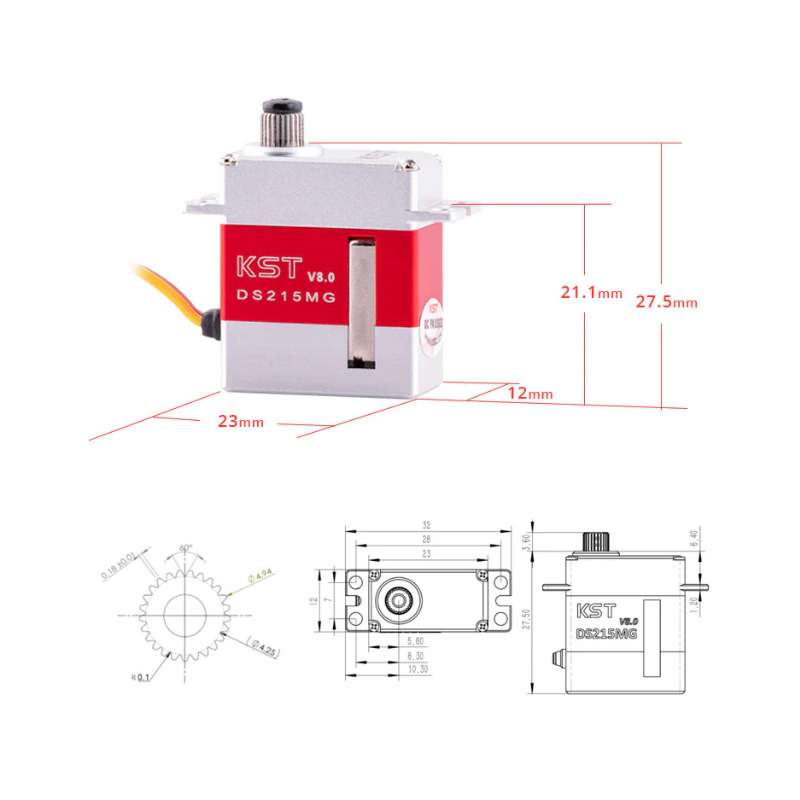

- Case Dimensions: 23mm*12mm*27.5mm±0.2mm
- Weight: 20g±10%

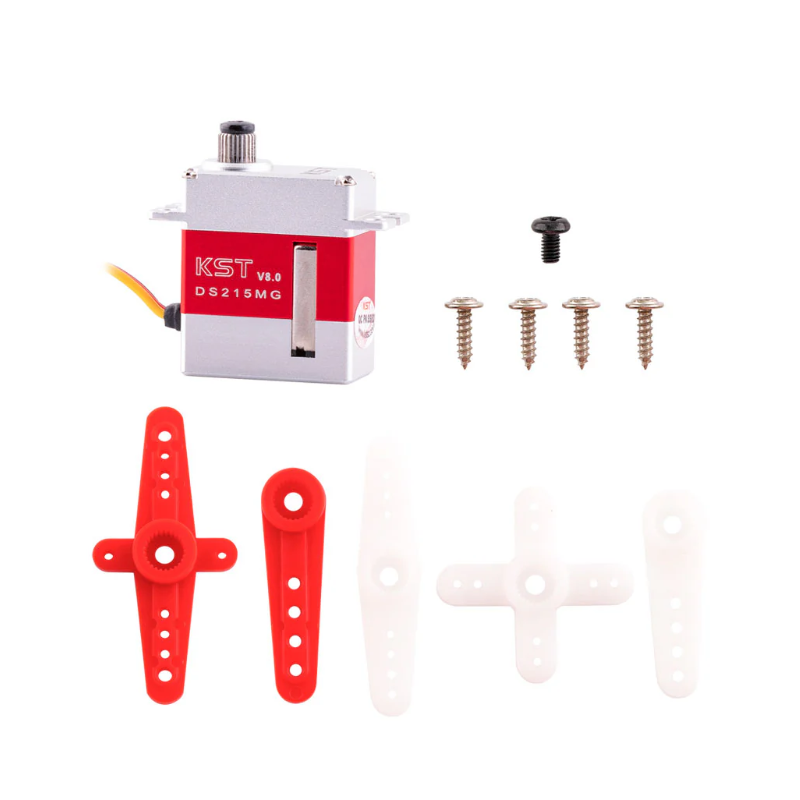

- Accessories: DS215MG Metal Gear Set
