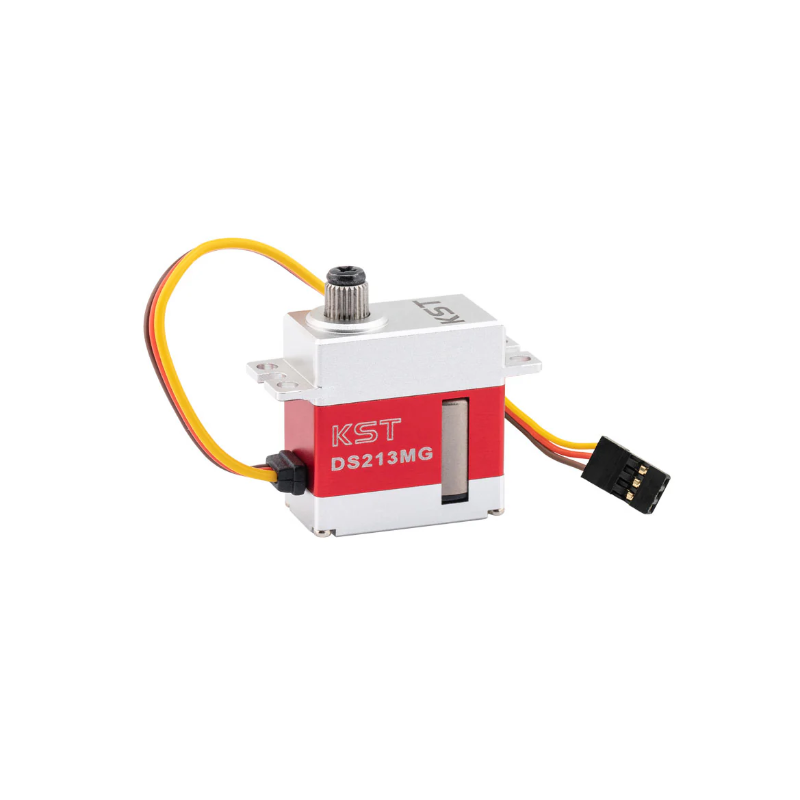

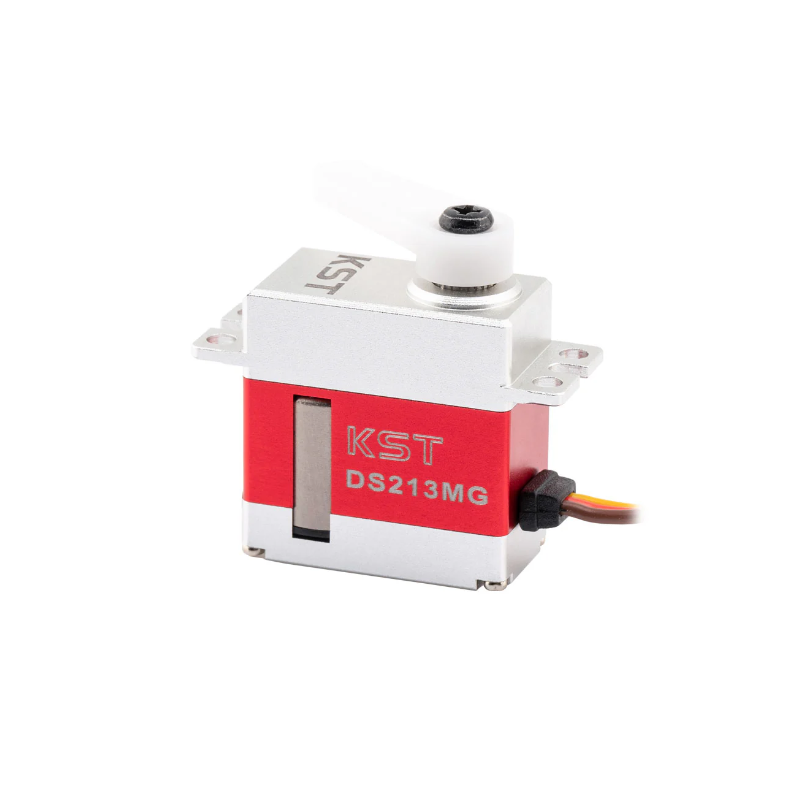

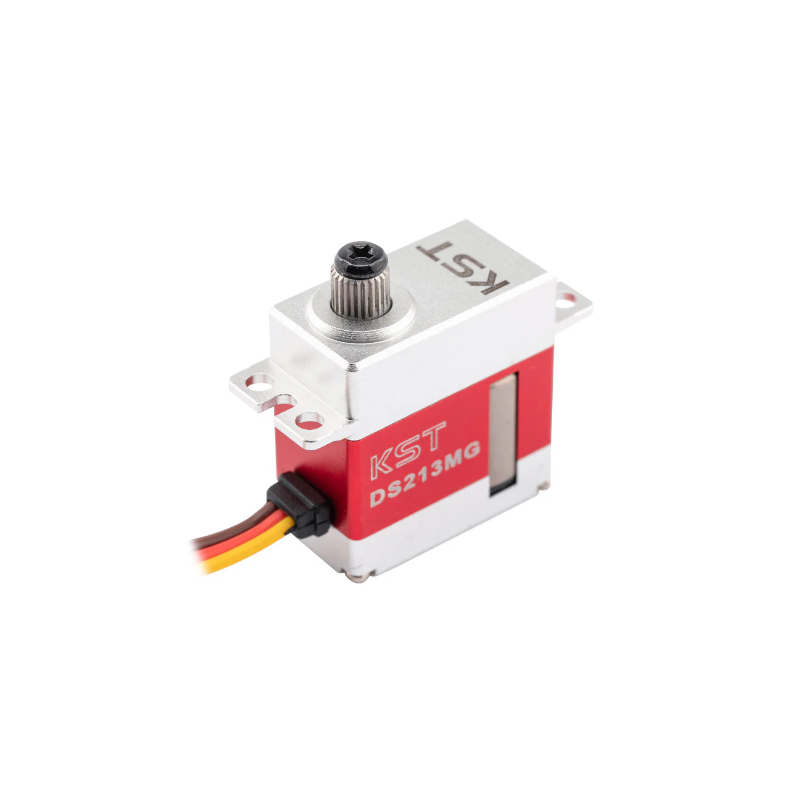

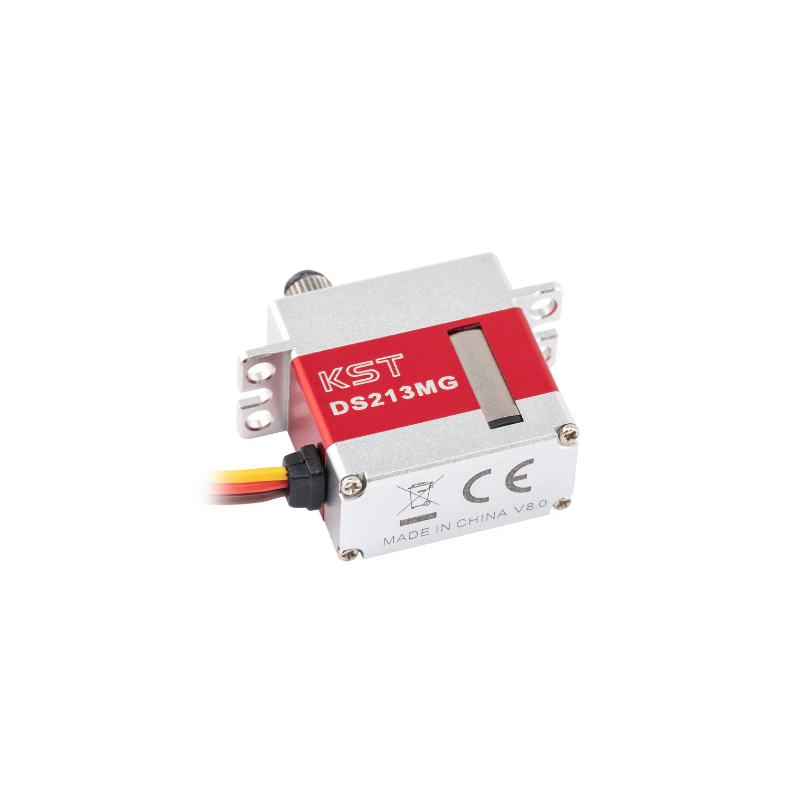

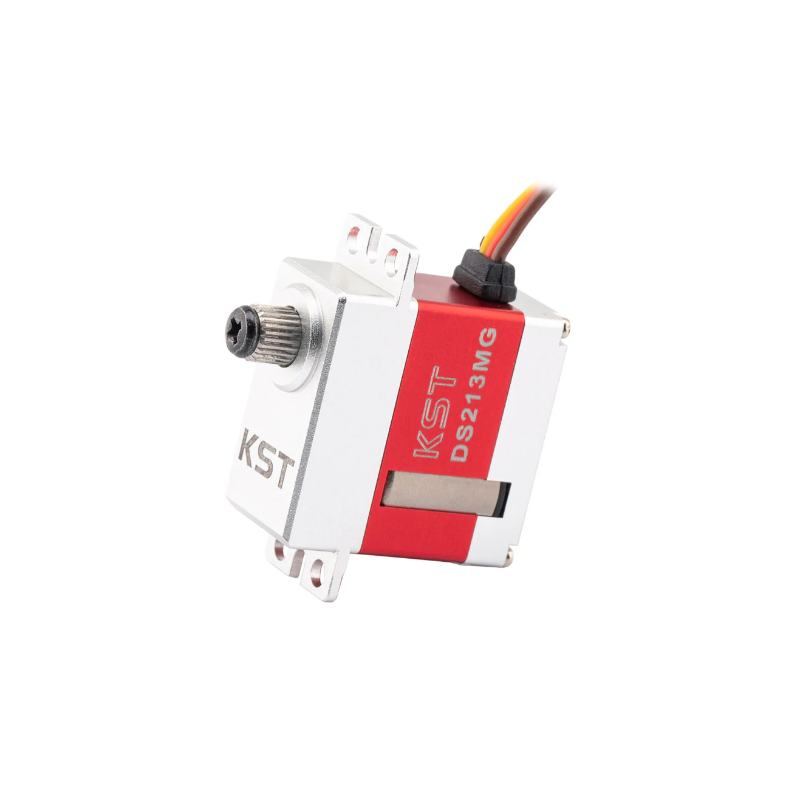

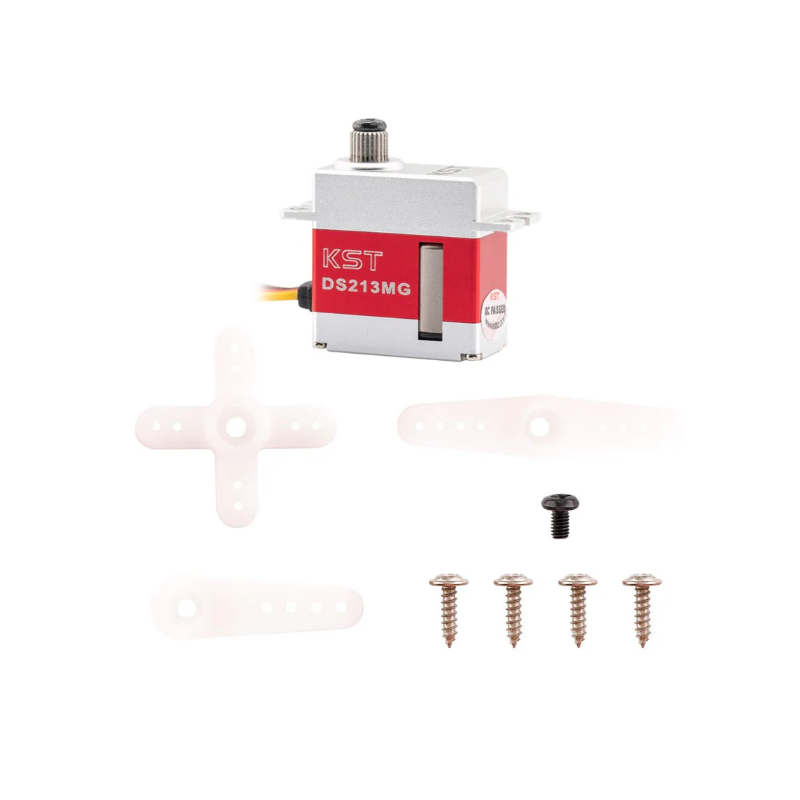

DS213MG servo is an amazingly powerful and fast metal cased micro servo for gliders & small size RC planes. With 3.0 Kgf.cm of torque and an excellent speed of 0.07 sec/60°, it combines exceptional power with great precision and market leading speed. Weighing only 16g it is a great servo for glider elevators & rudders and small size RC planes. You can get a wonderful flight with this small size and powerful servo easily.
Features
- High Torque & Excellent Speed
- Dual Ball Bearings
- Coreless DC Motor
- Ideal for Gliders and Small Size RC Planes
Specification
- Item: DS213MG V8.0 Micro Servo
- Operating Voltage: DC4.8V-6.0V
- Torque: 2.5Kgf.cm@4.8V, 3.0Kgf.cm@6.0V
- Speed: 0.08sec/60°@4.8V, 0.07sec/60°@6.0V

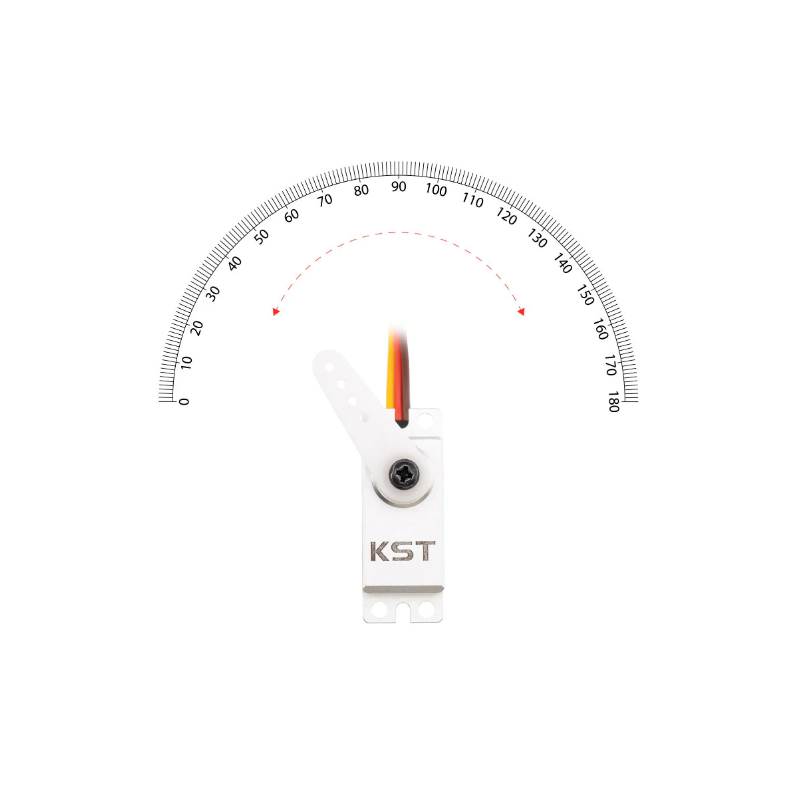

- Working Frequence: 1520μs/333Hz (900μs-2100μs )
- Motor: 12mm Coreless
- Ball Bearing: 2BB

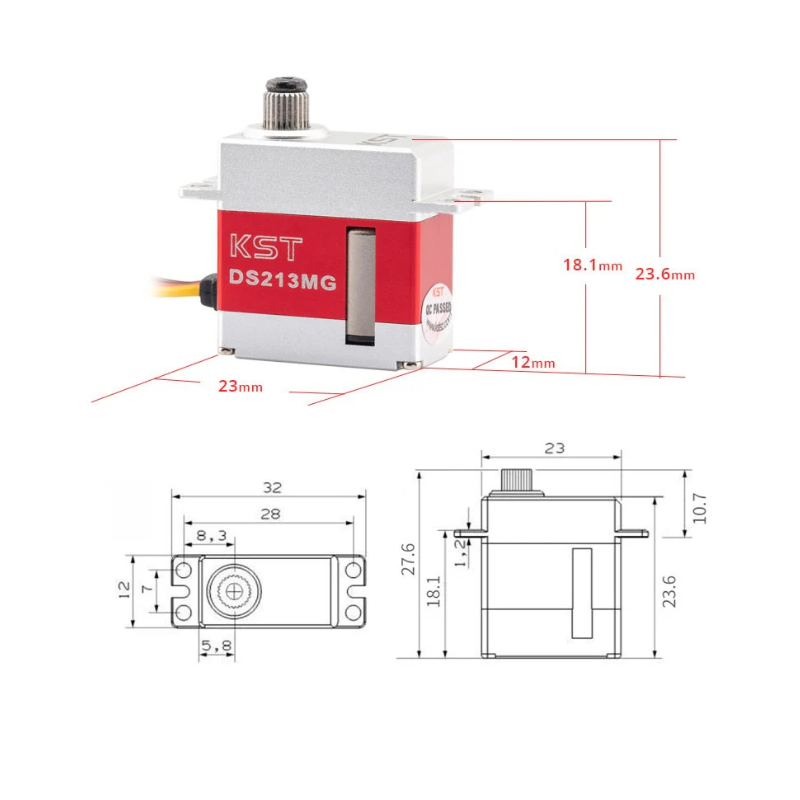

- Size: 23*12*24.5mm
- Weight: 16g±10%
