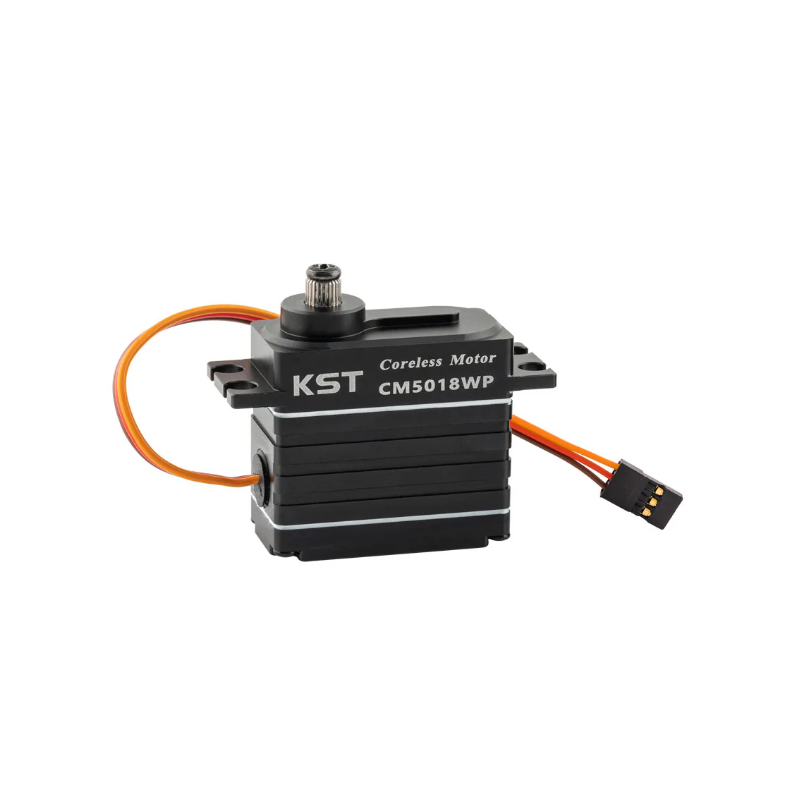

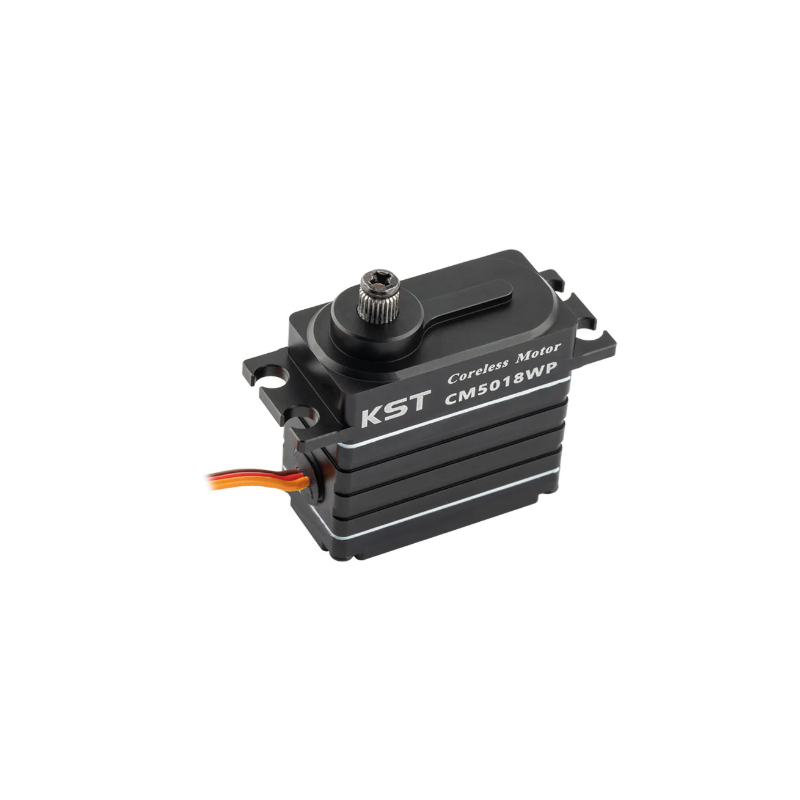

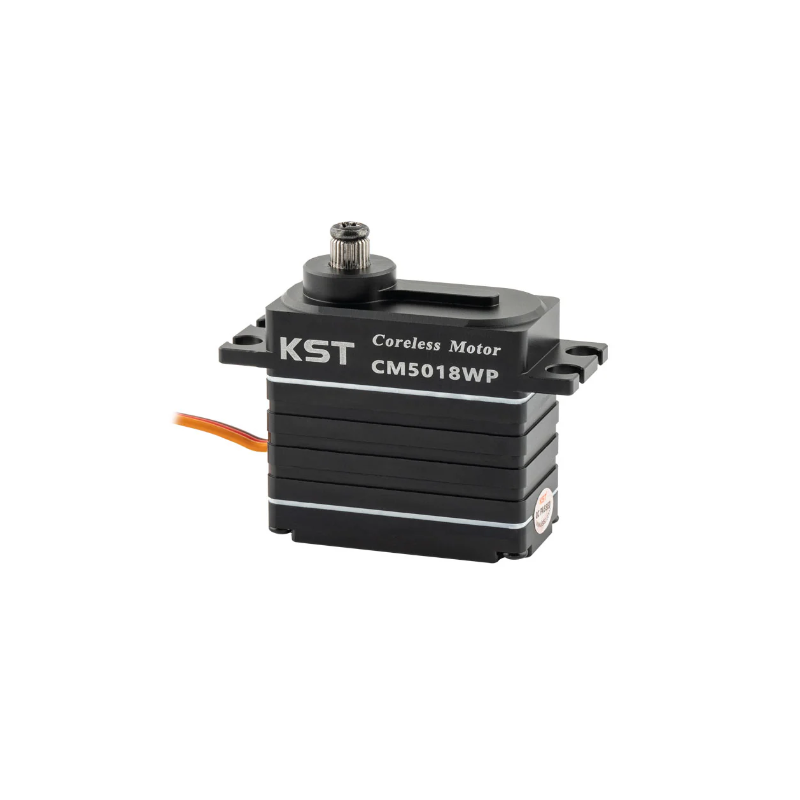

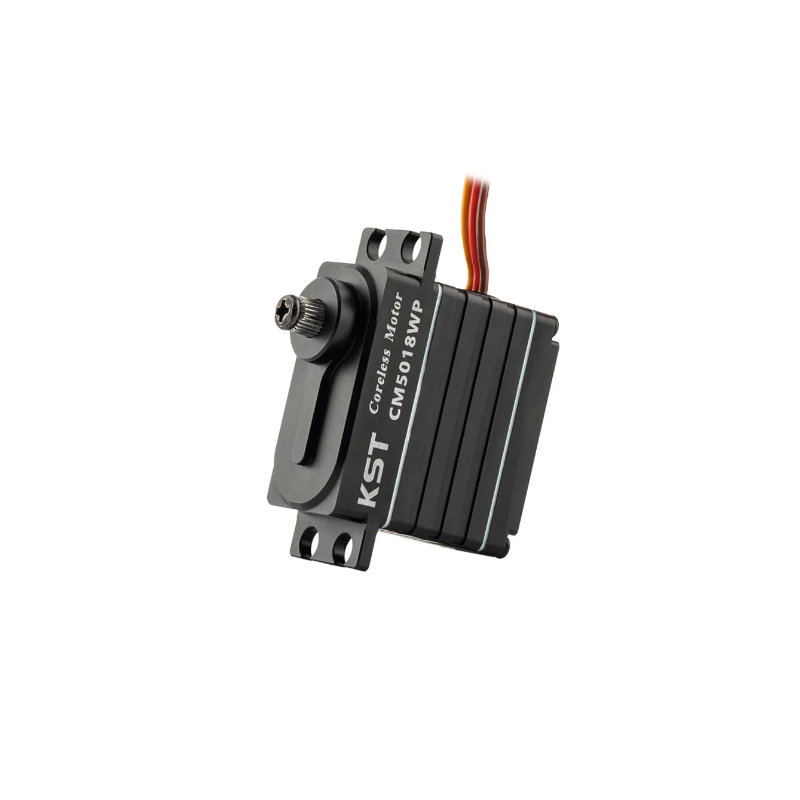

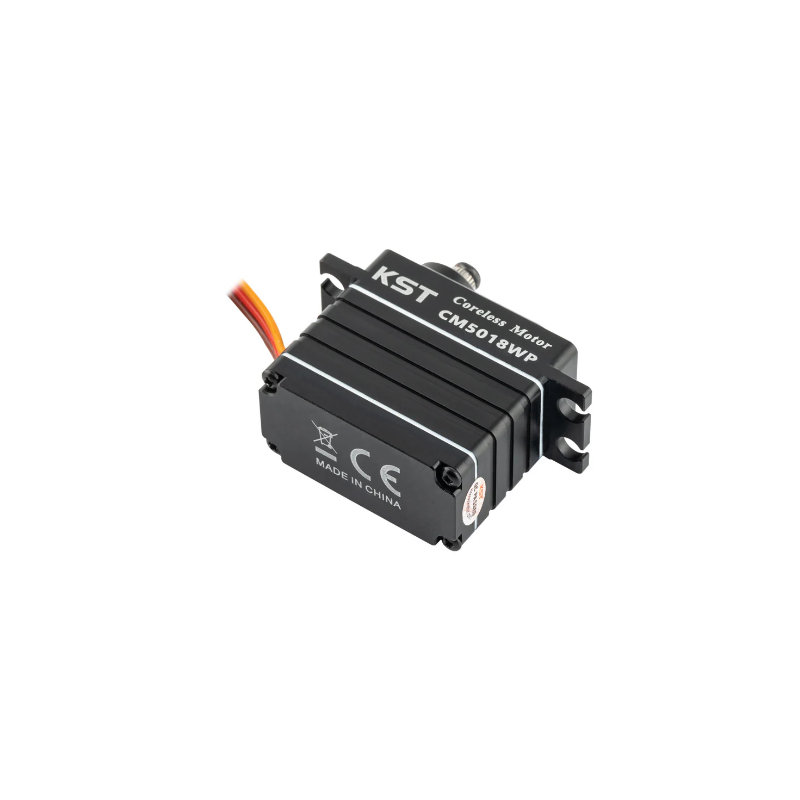

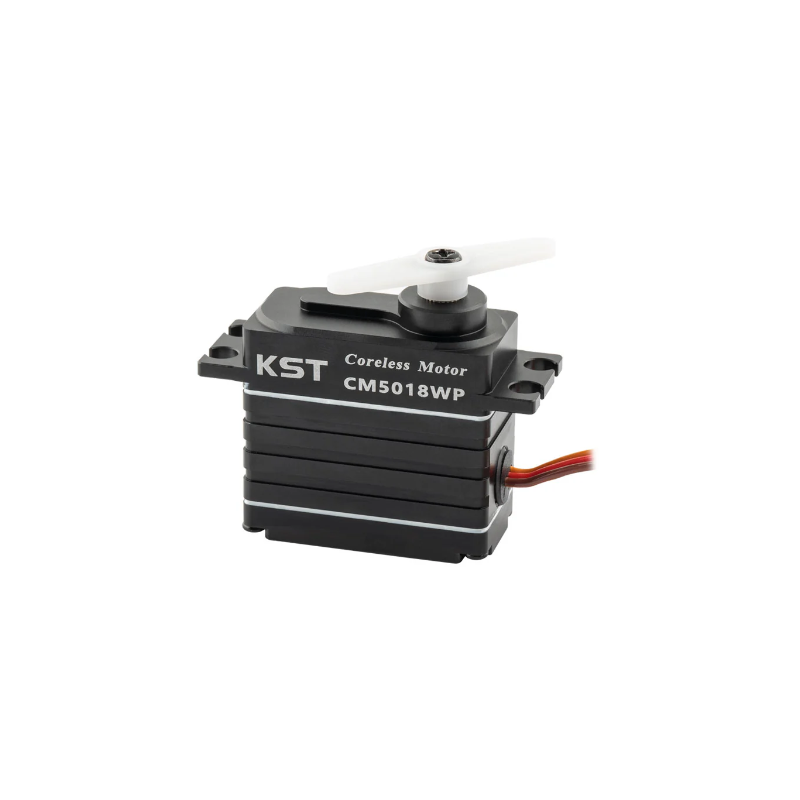

CM5018WP coreless servo with fast response and high efficiency is perfect for 1/10th & 1/8th Scale RC rock crawlers. Featuring a wonderful 50Kgf.cm of torque along with a fast speed of 0.18sec/60°. The IP67 waterproof making it ideal for mud, swamp and other tough conditions. CM5018WP is also programmable, you can adjust the parameters as you demand. It is one of the most powerful servos of its kind.
Features
- Ultra High Torque & Excellent Speed
- IP67 Waterproof
- Programmable
- Dual Ball Bearings
- Coreless DC Motor
- Ideal for 1/10th & 1/8th Scale RC Rock Crawlers
Specification
- Item: CM5018WP Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Torque: 35Kgf.cm@4.8V / 40Kgf.cm@6.0V / 45Kgf.cm@7.4V / 50Kgf.cm@8.4V
- Speed: 0.25sec/60°@4.8V / 0.23sec/60°@6.0V / 0.20sec/60°@7.4V / 0.18sec/60°@8.4V
- Start Current: 4.68A@4.8V / 5.70A@6.0V / 7.25A@7.4V / 8.15A@8.4V
- Working Frequency: 1520μs/333Hz

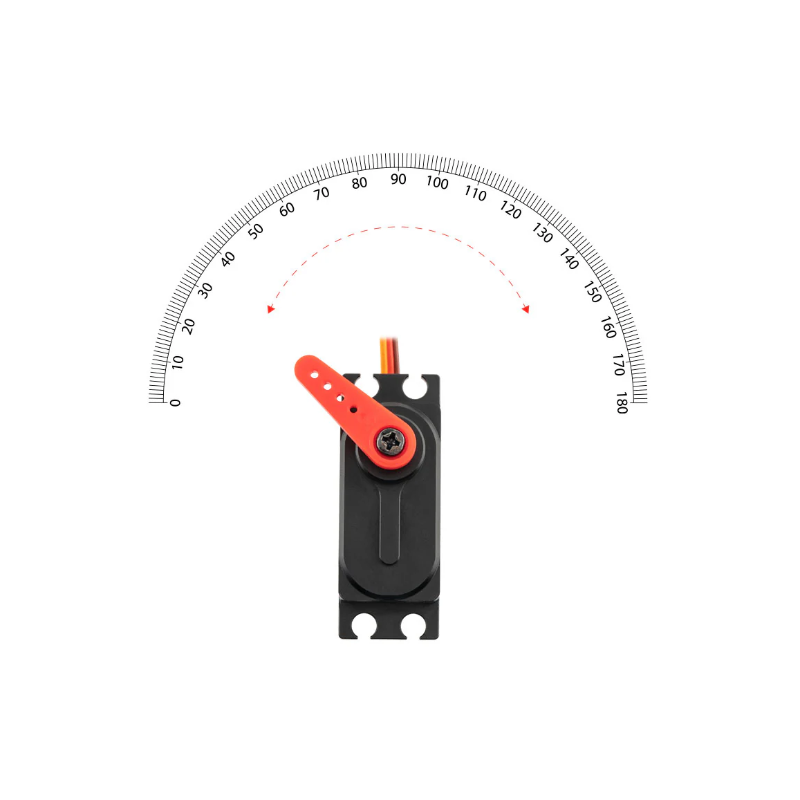

- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel Gear
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Waterproof: IP67
- Case Dimensions: 40.5mm*20.5mm*41.3mm ±0.2mm
- Weight: 80g±10%
