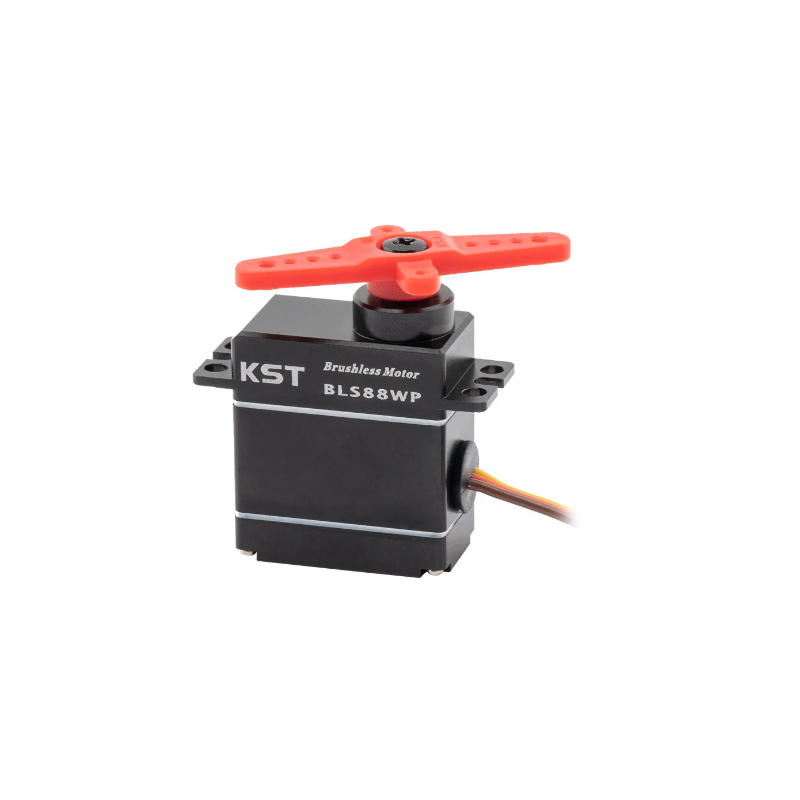

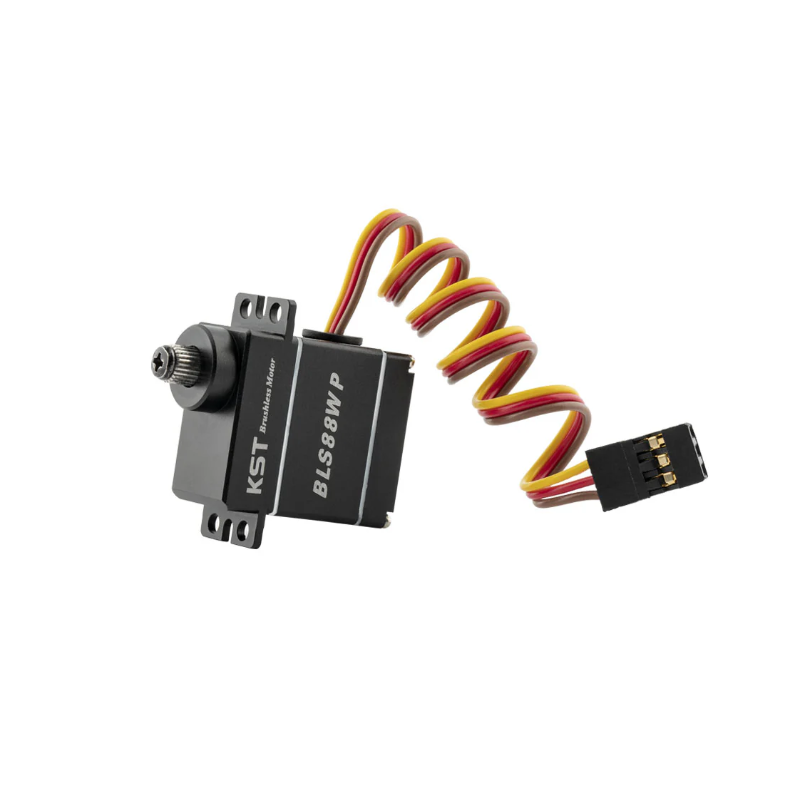

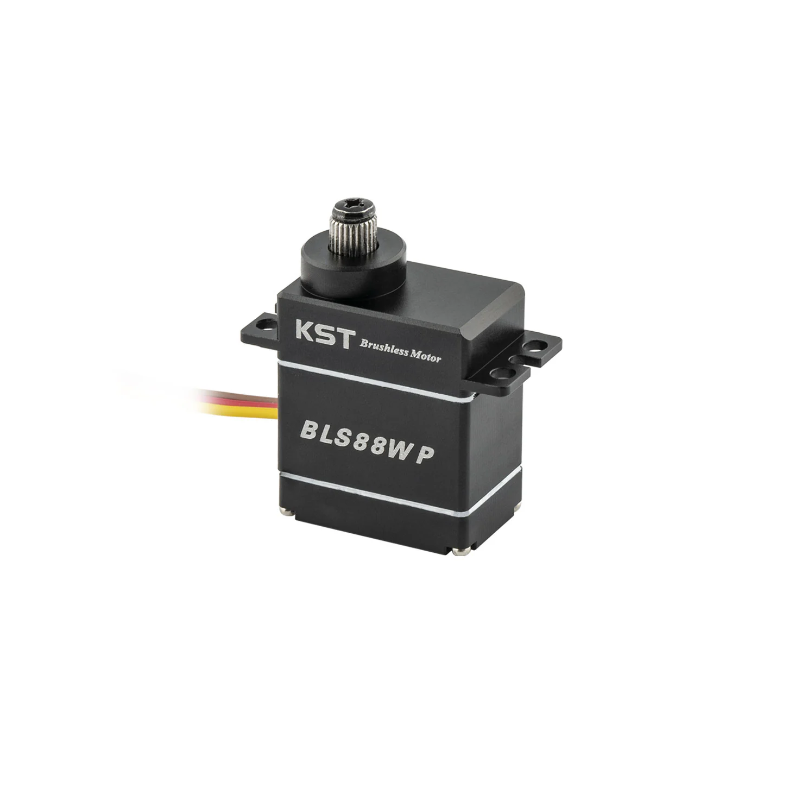

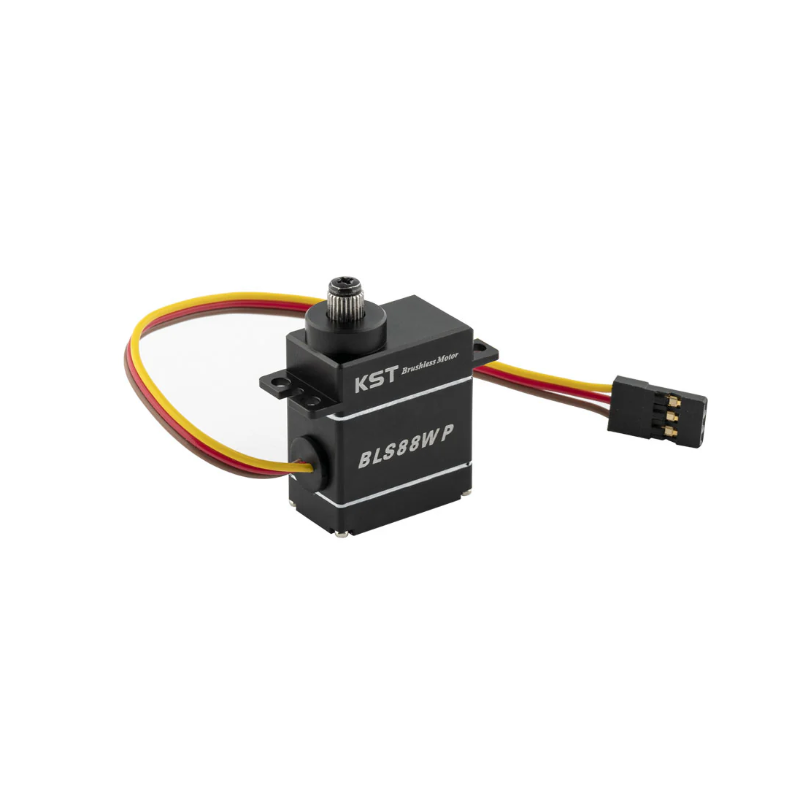

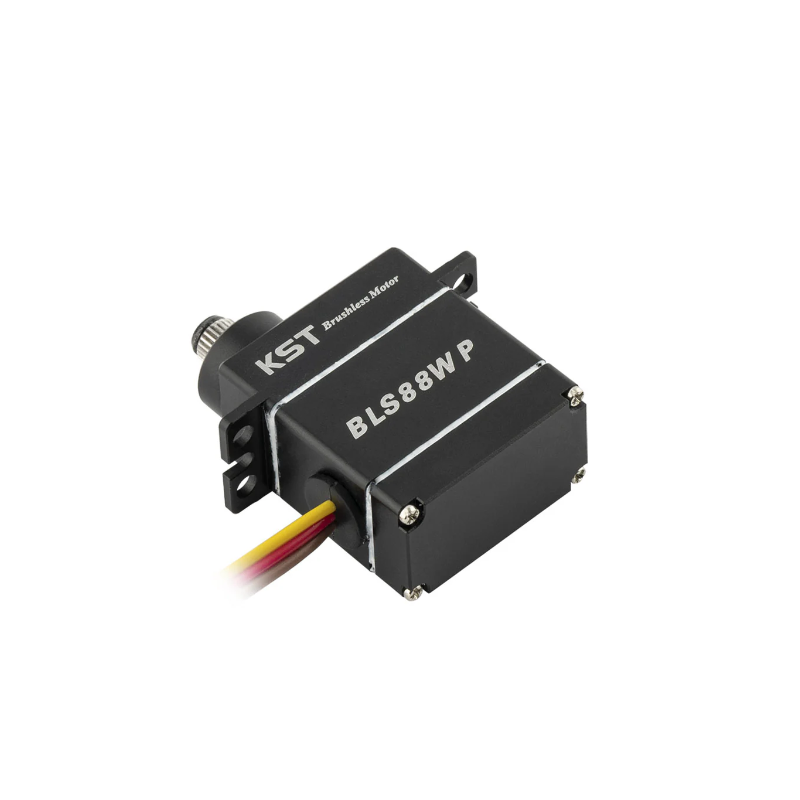

BLS88WP brushless micro servo - A high-performance servo perfect for 1/12 pan car, 1/16 & 1/18 crawler, RC boat, and RC seaplane. Featuring ultra-high torque 8.5Kgfcm, excellent speed 0.07sec/60° and IP67 waterproof, BLS88WP is one of the best servos on the market right now for its applications.
Features
- Ultra High Torque & Excellent Speed
- IP67 Waterproof
- Programmable
- Soft Start
- Brushless DC Motor with Micro Size
- CNC Aluminum Case
- Double Ball Bearings
- Ideal for 1/12 Pan Car, 1/16 & 1/18 Crawler, RC Boat and RC Seaplane
Specification
- Item: BLS88WP Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 7.5Kgf.cm@6.0V , 8.0Kgf.cm@7.4V , 8.5Kgfcm@8.4V
- Speed: 0.09sec/60°@6.0V , 0.08sec/60°@7.4V , 0.07sec/60°@8.4V
- Working Frequency: 1520μs/333Hz

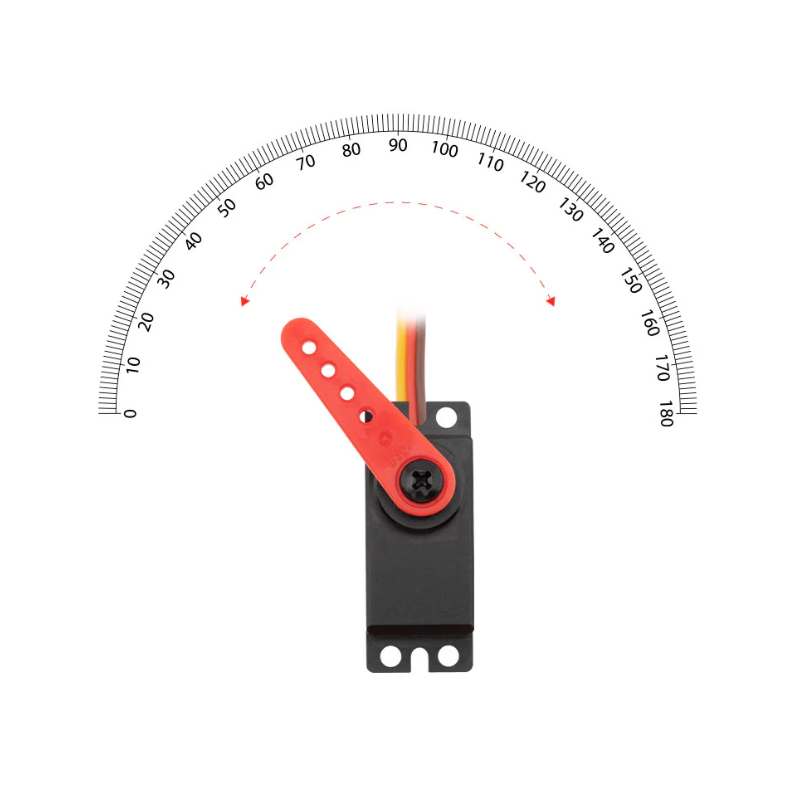

- Default Travel Angle: ±50°= 100°Total
- Temperature Range: -20°C.....+65C
- Soft Start: Programable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer

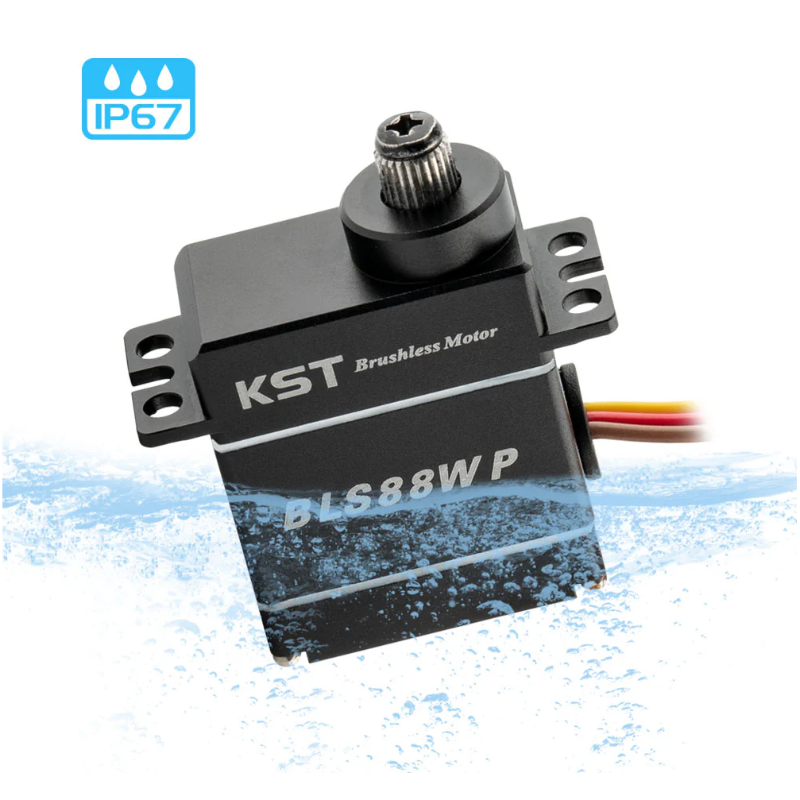

- Waterproof: IP67
- Case Dimensions: 24mm*13mm*30mm±0.2mm
-
Weight: 21g±10%
