KST A20-4515 Brushless HV Phosphor Bronze & Hardened Steel Gear Servo 50Kgf.cm 0.13sec/60degree
In stock
Usually ships within 24 hours
Regular price
$107.80
Couldn't load pickup availability
Product details
- Vendor Unmanned RC
Do you have questions about this product?
The A20-4515 V8 (pre-programmed without soft start) brushless HV servo is very well suited for large "big scale" surface models of all kinds. The motor of the fast and extremely powerful KST servo can be loaded with up to Kgf.cm. The high-quality, all-aluminum housing can be mounted precisely and ensures good heat dissipation.

Features
- Brushless DC motor
- Hardened Steel Gears
- Extreme torque and Excellent speed
- CNC aluminium case
Specification
- Item: A20-4515 Brushless HV Servo
-
Operation Voltage(rated): DC7.4V
- Operation Voltage Range: DC6.0V-8.4V
-
Torque: 36Kgf.cm@6.0V, 45Kgf.cm@7.4V, 50Kgf.cm@8.4V
-
Speed: 0.19sec/60°@6.0V, 0.15sec/60°@7.4V, 0.13sec/60°@8.4V
- Operating Temperature Range: -20℃ to +65℃
- Case Material: Aluminum Alloy
- Motor Type: Brushless
- Gear Set Material: Phosphor Bronze & Hardened Steel
- Shielded Connecting Cable: 22AWG

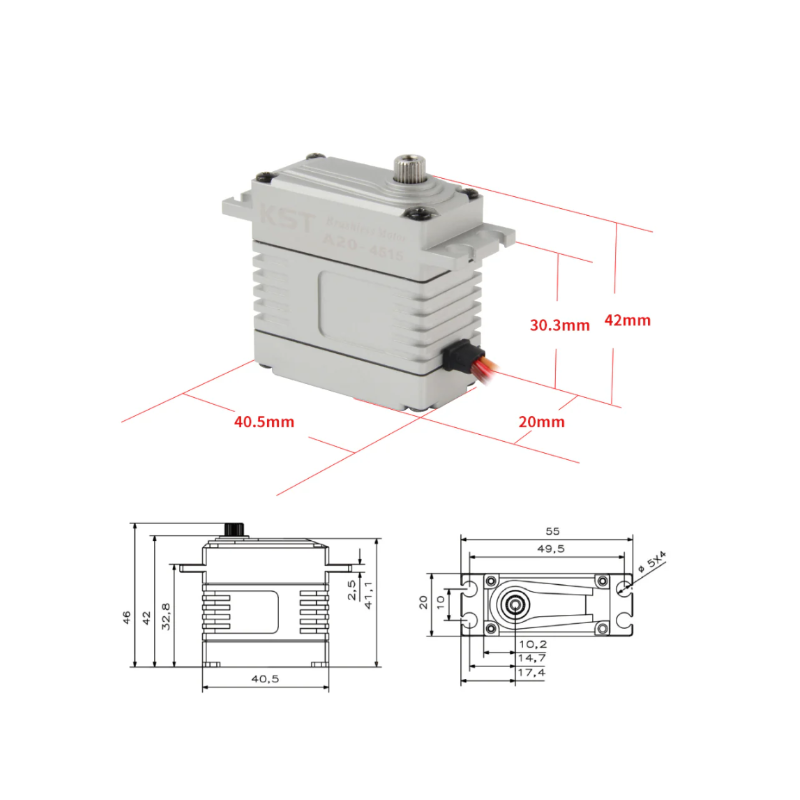

- Case Dimensions: 40.5mm*20mm*42mm
- Weight: 80g
