A15-1812 brushless servo has arriced to meet the high demand. The new design provides a strong, faster, and more efficient servo. This makes it possible to reach torque of up to 20 kg.cm and speed down to 0.18 sec/60deg.
Suitable for high performance middle size RC gliders.
Features
- Mini Servo
- Hardened Steel Gear
- Extreme torque and Excellent speed
- CNC aluminum case
Specification
- Item: A15-1812 Mini Servo

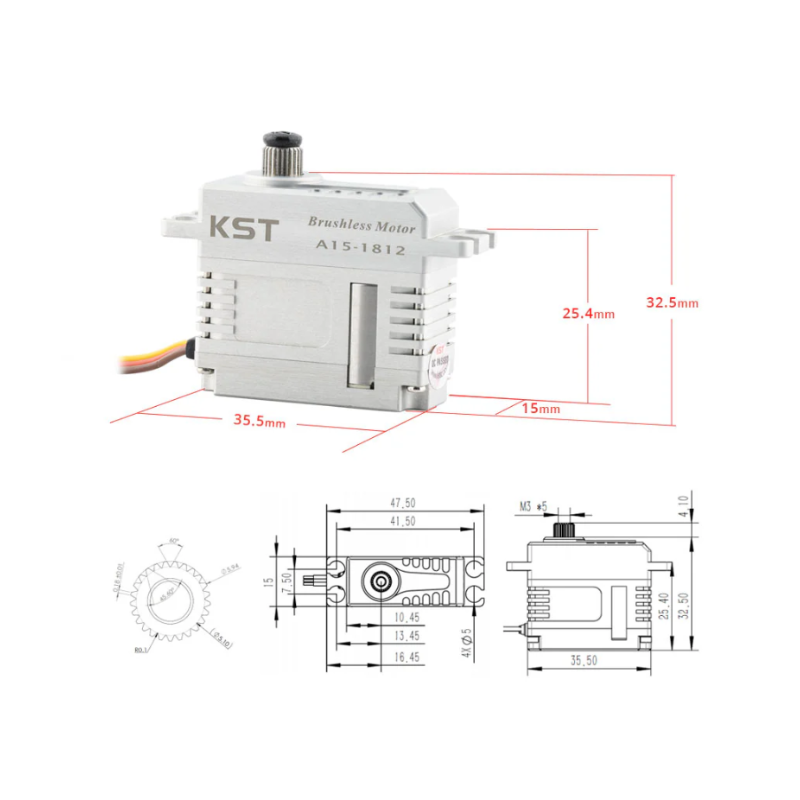

- Case Dimensions: 35.5.mm x 15mm x 32.5mm ±0.2mm
- Weight: 42g ±10%
- Operation Voltage (Rated): DC7.4V
- Operation Voltage Range: DC6.0V - 8.4V
- Rated Torque: 0.5N.m @ 7.4V
- Stalling Torque: 1.8N.m @ 7.4V
- No-Load Speed: 0.12sec/60° @ 7.4V
- Rated Speed: 0.18sec/60° @ 7.4V

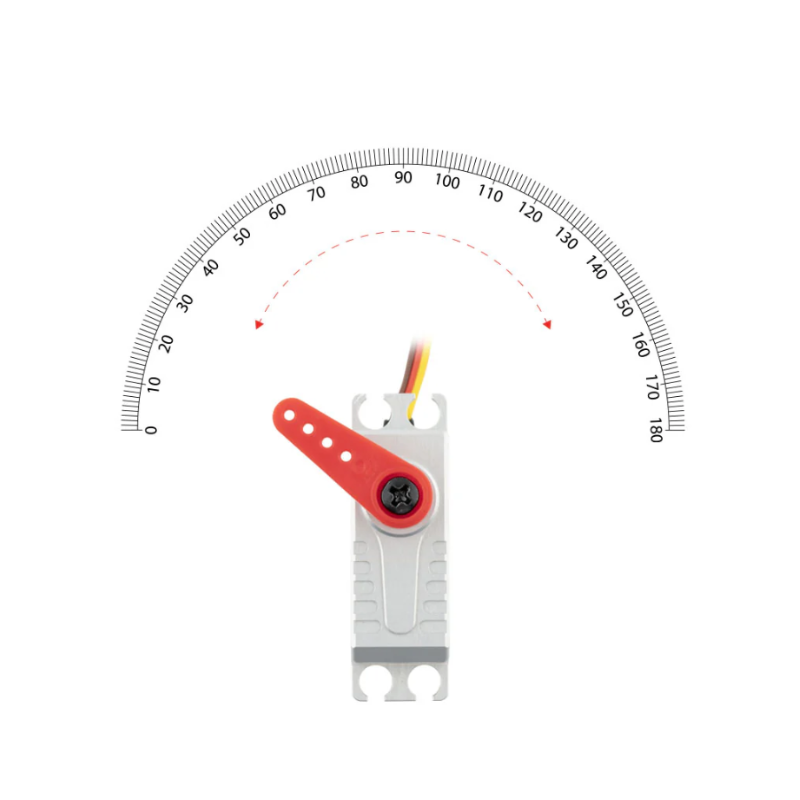

- Travel Angle: ±50° when 1,000 - 2,000us / ±100° when 500 - 2,500us
- Operating Temperature Range: -20°C to 65°C
