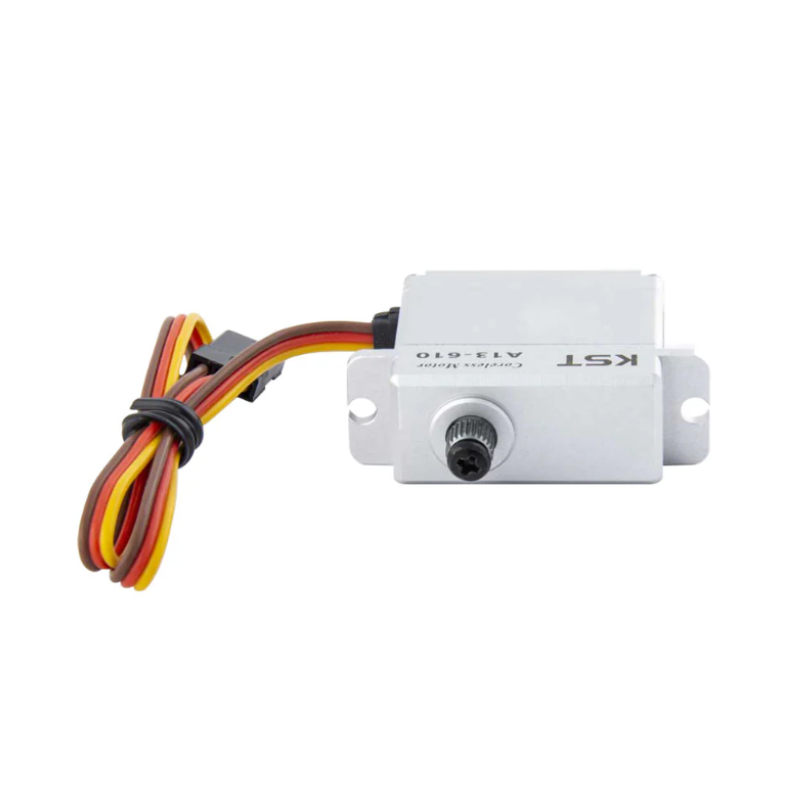

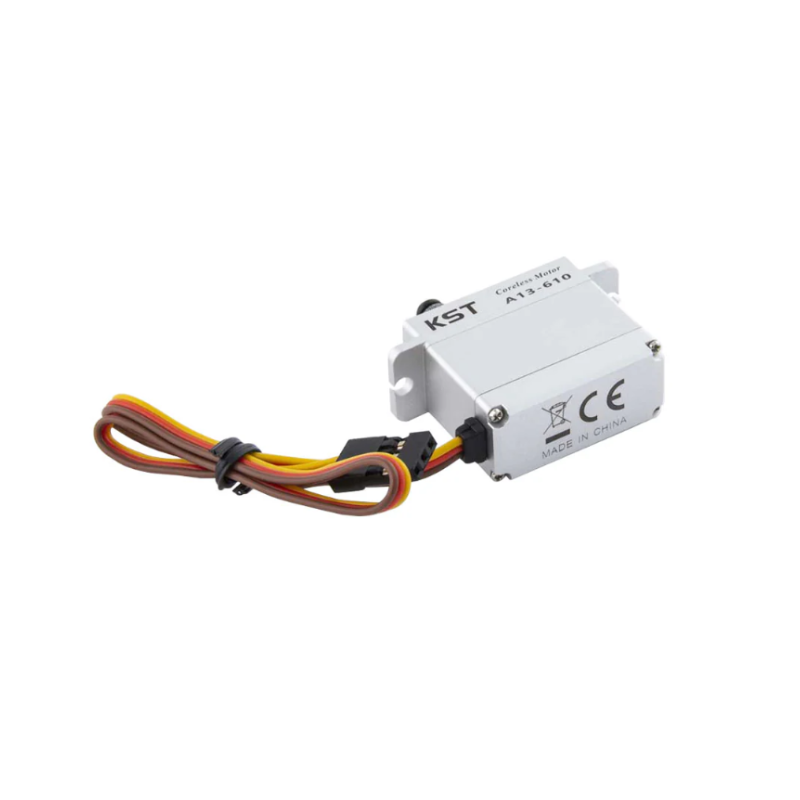

KST A13-610 Coreless Metal Gear HV Mini Servo 9kg.cm 0.10sec for Glider Wing
Usually ships within 24 hours
Regular price
$52.80
Couldn't load pickup availability
A13-610 is a medium to high voltage range metal cased servo with excellent speed and torque specifications. The KST A13-610 has a hardened steel drive train and a coreless motor capable of running all the way from 4.8V to 8.4V (4S NiMH to 2S LiPo) making these servos ideal for electric powered models (most ESCs output 5.5V) as well as most gliders.
Features
-
Compact and lightweight design
-
Excellent torque and speed
-
Designed for high-performance RC Gliders
-
Excellent heat dissipation
- Ultra-slim 13mm body
Specification
- Item: A13-610 Coreless Metal Gear HV Servo
-
Operation Voltage(rated): DC7.4V
-
Operation Voltage Range: DC6.0V-8.4V
-
Torque: 6.5Kg.cm@6.0V / 8.0Kg.cm@7.4V / 9Kg.cm@8.4V
-
Speed: 0.12sec/60°@6.0V / 0.11sec/60°@7.4V / 0.10sec/60°@8.4V
-

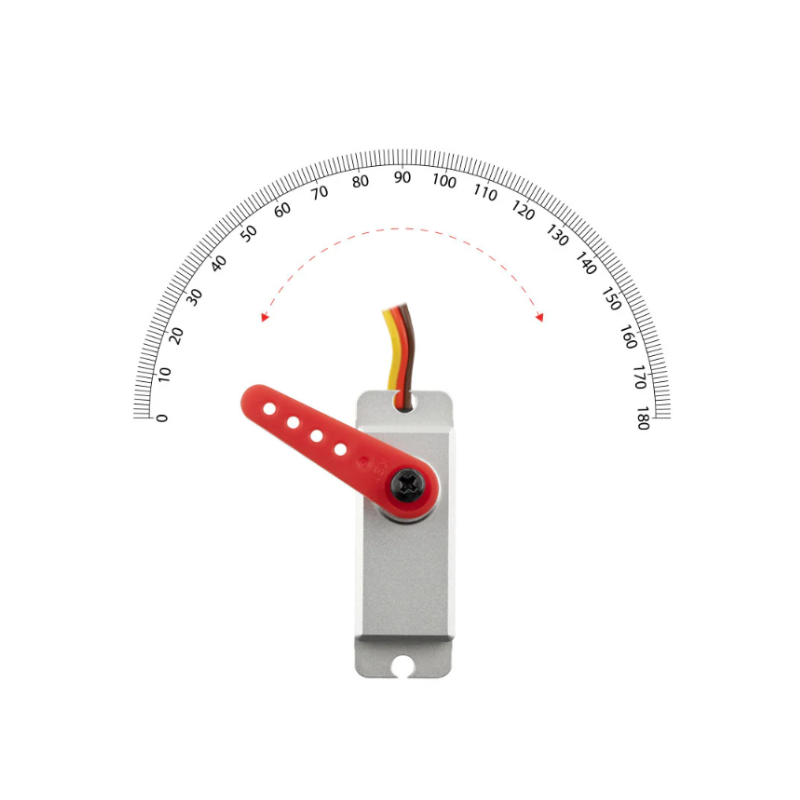

Travel Angle: ±50°when 1000-2000us
-
Operating Temperature Range: -10℃ to +55℃
-
Motor Type: Coreless
-
Gear Set Material: Hardened Steel
-
Shielded Connecting Cable 26AWG
-

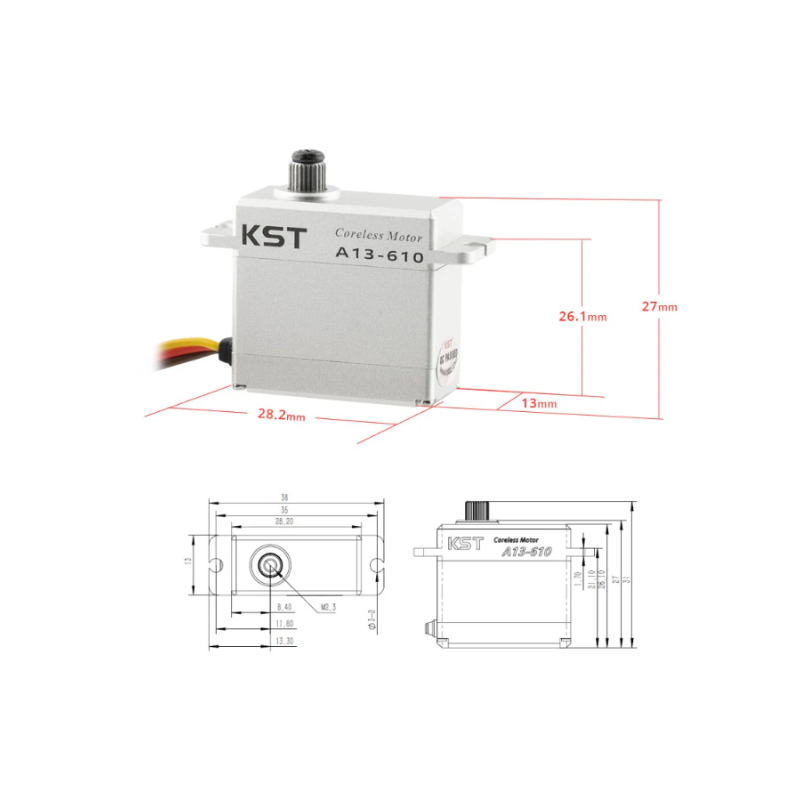

Case Dimensions: 28.2*13*27mm
- Weight: 24g
