KST A12-610 V8.0 HV Mini Servo 9kg 0.10sec/60degree with Soft Start for Glider Wing

Name: KST A12-610 V8.0 HV Mini Servo 9kg 0.10sec/60degree with Soft Start for Glider Wing
Brand: Unmanned RC
Price: 39.60 USD
Availability: InStock

In stock

No reviews

Usually ships within 24 hours

$39.60

Product details

Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

The A12-610 HV servo is well-suited for gliders and small fixed-wing models. It’s an upgrade of the X12-508 servos, with even more torque (8.0 Kgf.cm@7.4V) and a nice soft start function. The high-quality, all-aluminum housing can be mounted precisely and ensures good heat dissipation.

Please note the servo recommendations of the respective model manufacturer when selecting your servos.

Features

Hardened Steel Gears
Extreme Torque and Excellent Speed
CNC Aluminum Case
Ideal for Glider Wing

Specification

Item: A12-610 Mini Glider Wing Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque:

5.5Kgf.cm@4.8V
6.5Kgf.cm@6.0V
8.0Kgf.cm@7.4V
9.0Kgf.cm@8.4V

Speed:

0.13sec/60°@4.8V
0.12sec60°@6.0V
0.11sec/60°@7.4V
0.10sec/60°@8.4V

Working Frequency: 1520us/333Hz

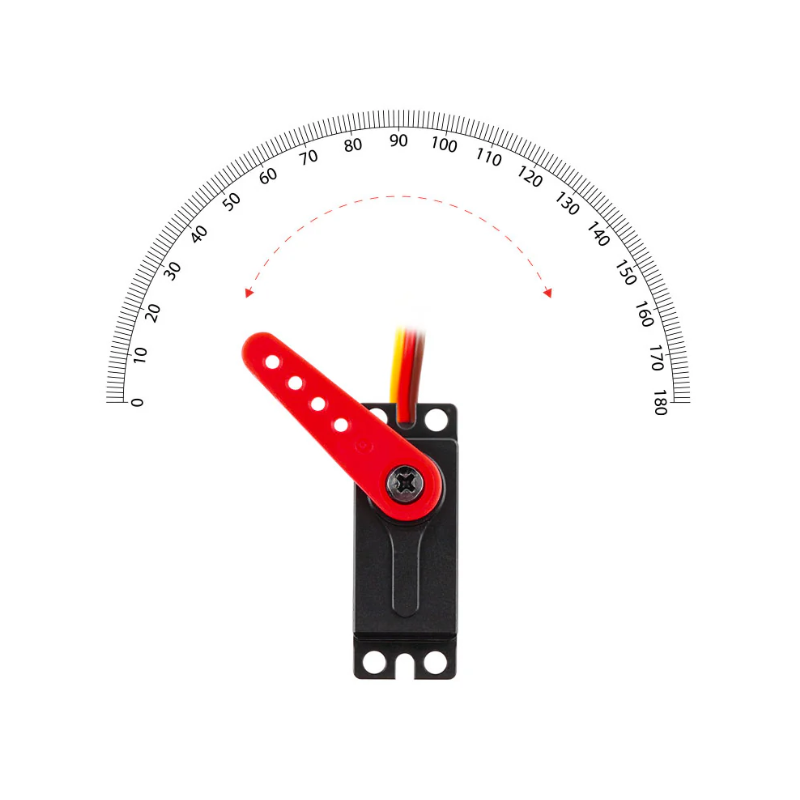

Default Travel Angle: ±50°= 100° Total
Temperature Range: -10'C .....+65°C
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 23mm*12mm*27mm±0.2mm
Weight: 20g±10%

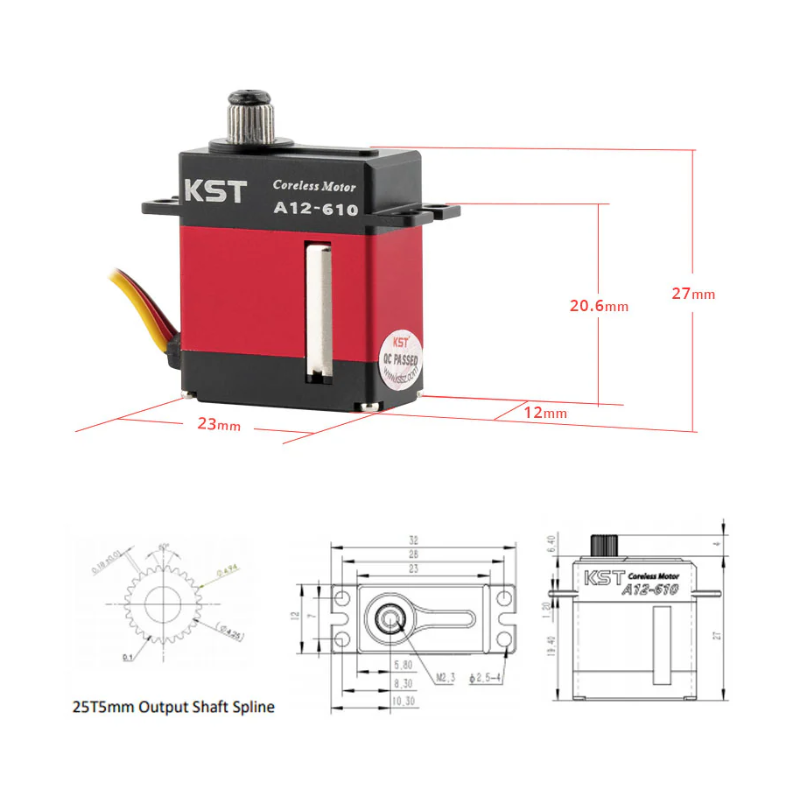

Size

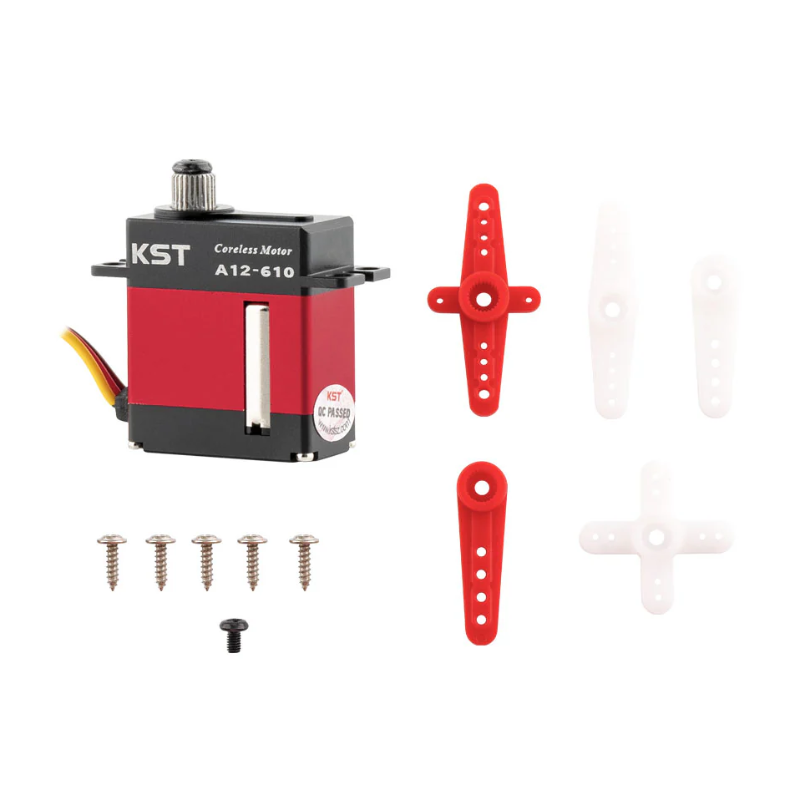

Package Including

1 * A12-610 V8.0 HV Mini Servo
5 * Plastic Servo Horn
1 * Servo Horn Screw
5 * Mounting Screw
