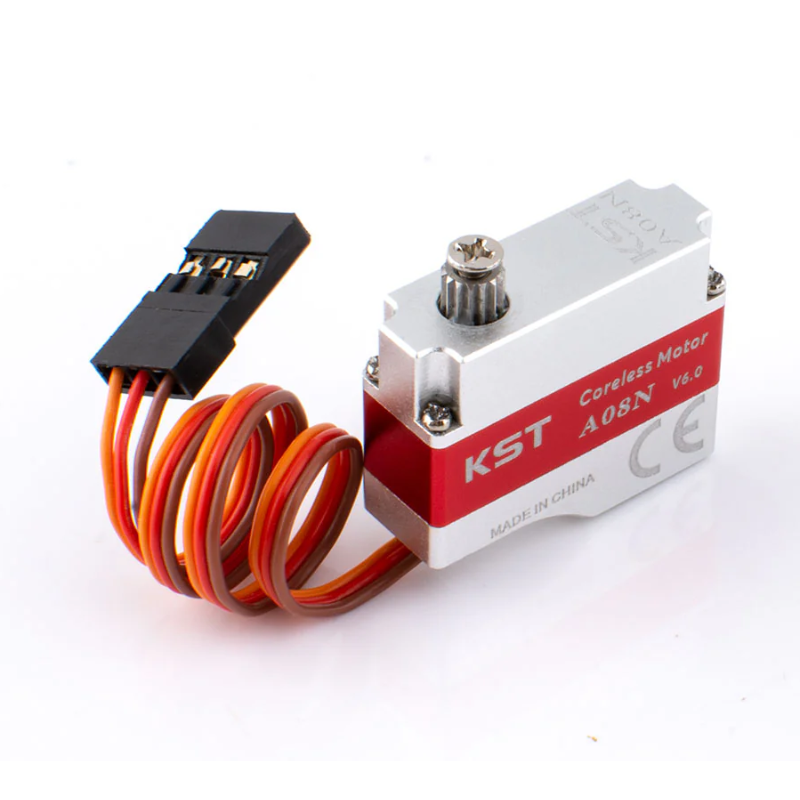

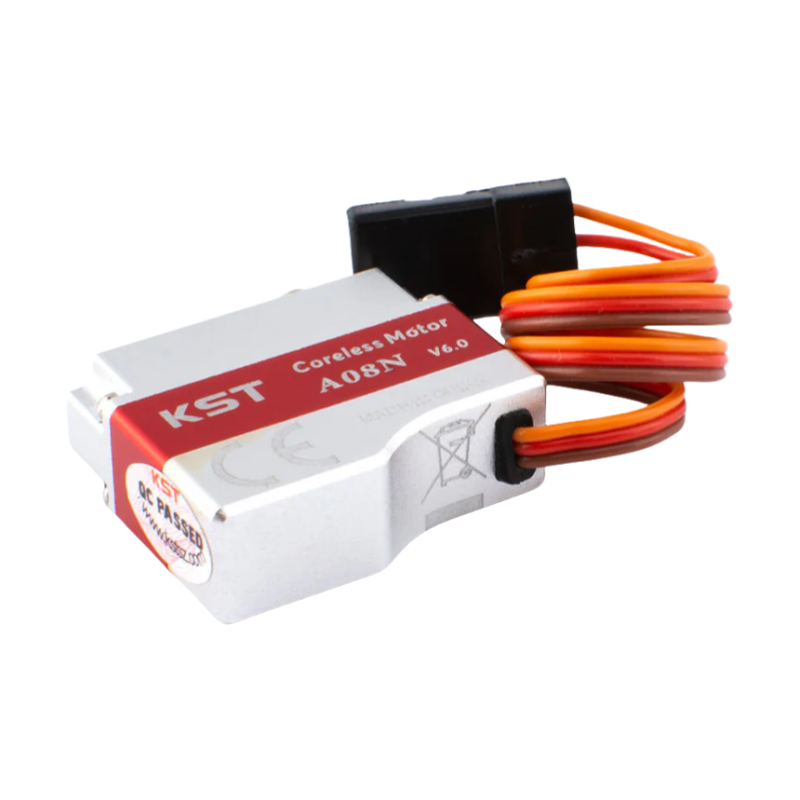

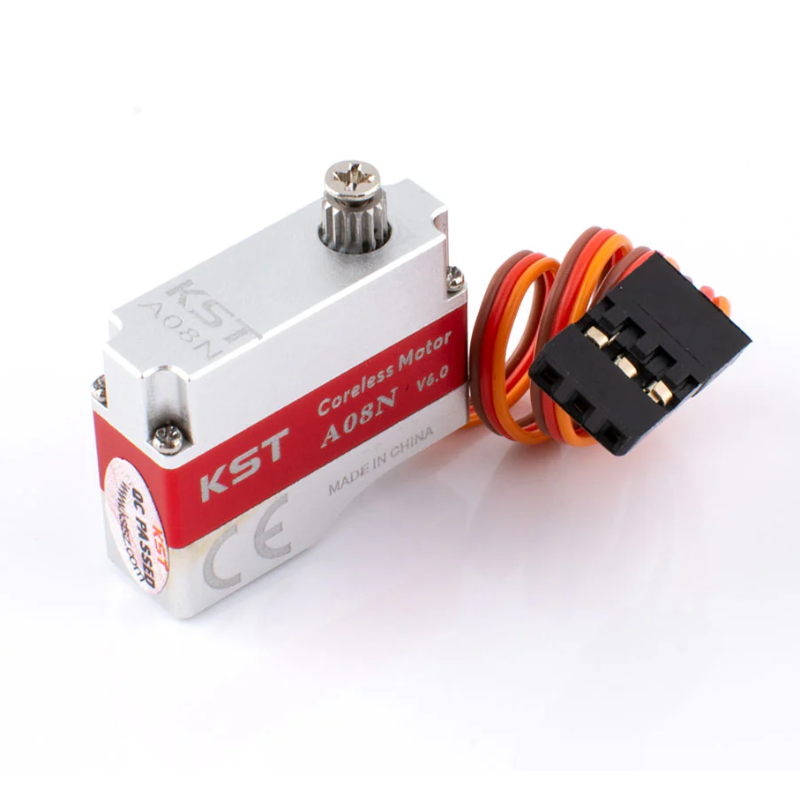

KST A08N V6.0 Coreless Metal Gear HV Micro Servo 3.2Kgf.cm 0.09sec for Glider DLG

The new KST A08N V6 is the luggless version (no mounting tabs) of the KST A08. It is a great low/medium/high voltage fully metal cased servo weighing only 8g (0.3 oz). Unlike the X08N, the A08N incorporates a complete case that covers the motor, making the servos much tougher and less susceptible to handling and crash damage. Despite this, the A08N servo is actually lighter and has more torque than the X08N. The A08N is also slightly smaller than the X08N, making it suitable for very tight installations.

The KST A08N's high torque, good speed, and 8mm thinness make it suitable for many high performance gliders, pylon racers and EDF applications. With up to 3.2kg.cm torque the KST A08N is appropriate for F3K, F5D, F5J, many types of high performance models. The accessories include three strong nylon output arms, two double sided, and one single sided, one of which is low profile. This means that when the servos are mounted one in front of the other the control rod of the front one won't foul the rear one.

The KST A08N V6.0 version is fully programmable using KST Tool Card #1/ KST Tool Card #5.

The extreme reliability and performance of these servos also make them very suitable for use in film and motion picture industry special effects departments. They are also used in robotics, RC models, and other highly demanding applications.

Features

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC Gliders
• Excellent heat dissipation
• Programmable

Specification

• Item: A08N V6.0 Micro Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC3.8V-8.4V
• Torque: 1.4Kgf.cm@3.8V / 2.2Kgf.cm@6.0V / 2.8Kgf.cm@7.4V / 3.2Kgf.cm@8.4V
• Speed: 0.20sec/60°@3.8V / 0.13sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V
• Working Frequency: 1520μs/333Hz

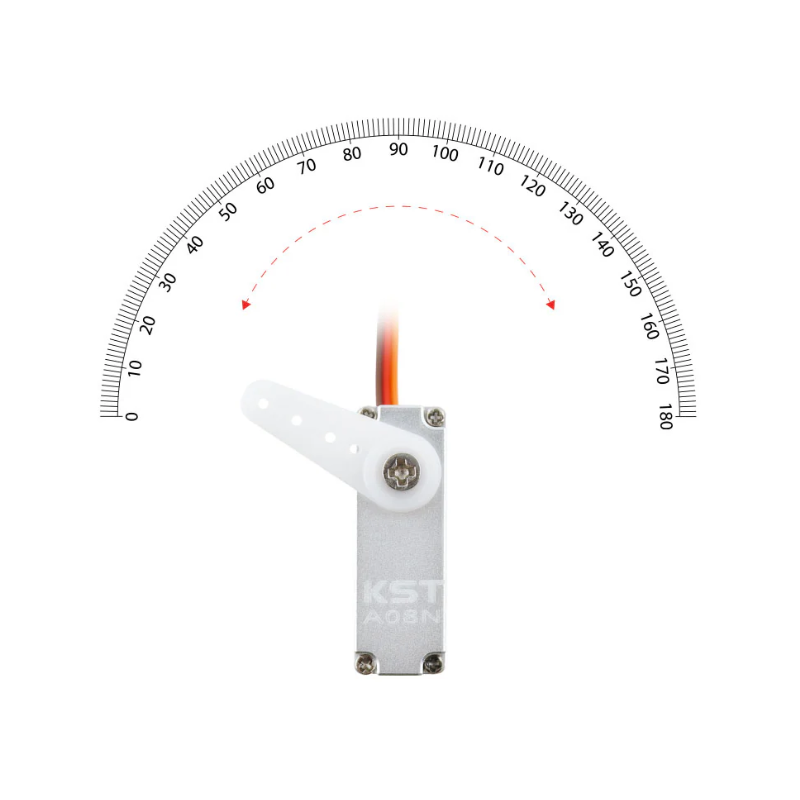

• Default Travel Angle: ±60° =120° Total
• Temperature Range: -10℃.......+65℃
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 23.5mm*8mm*19mm±0.2mm
• Weight: 7g±10%

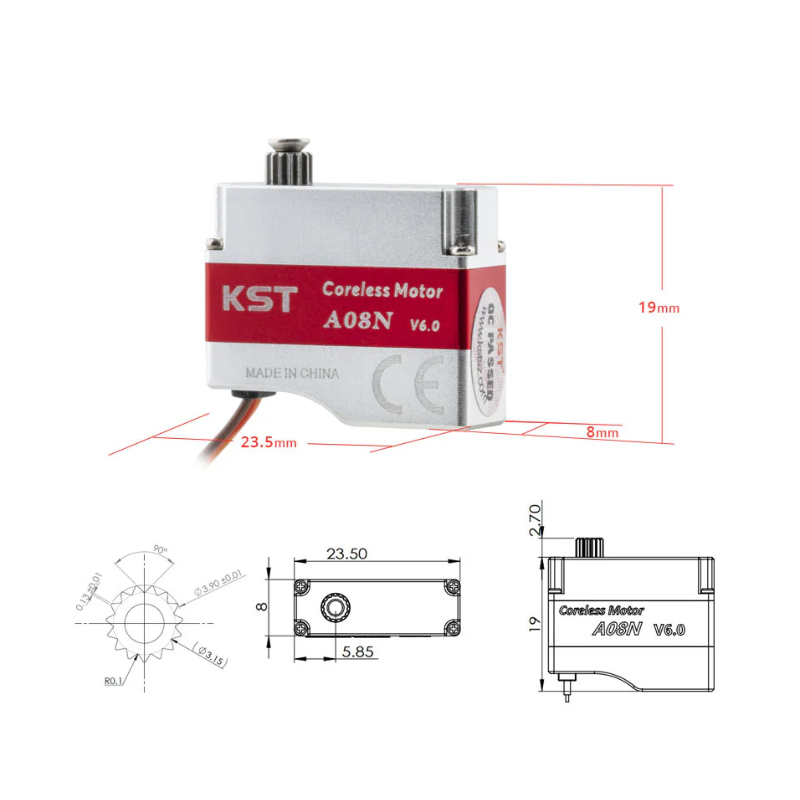

Size

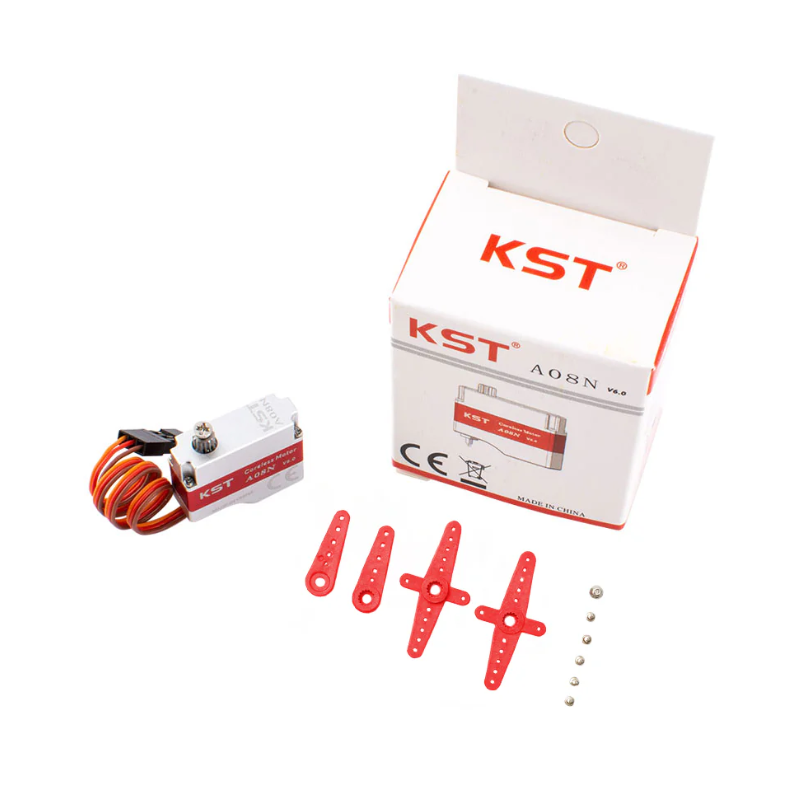

Package Including

• 1 * A08N V6.0 Micro Servo
• 4 * Plastic Servo Horn
• 4 * Mounting Screw
• 1 * Servo Horn Screw
