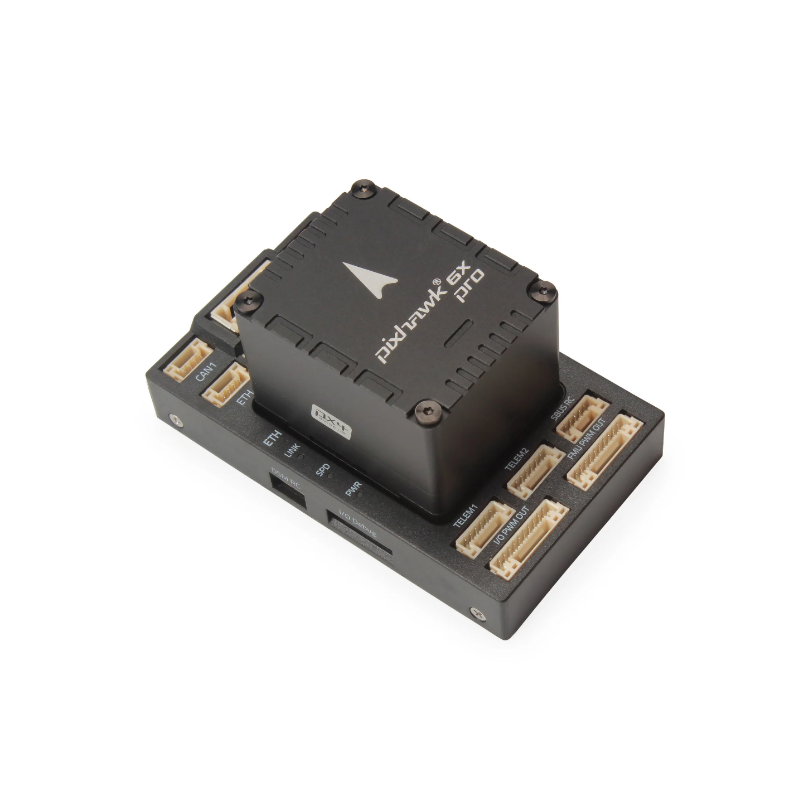

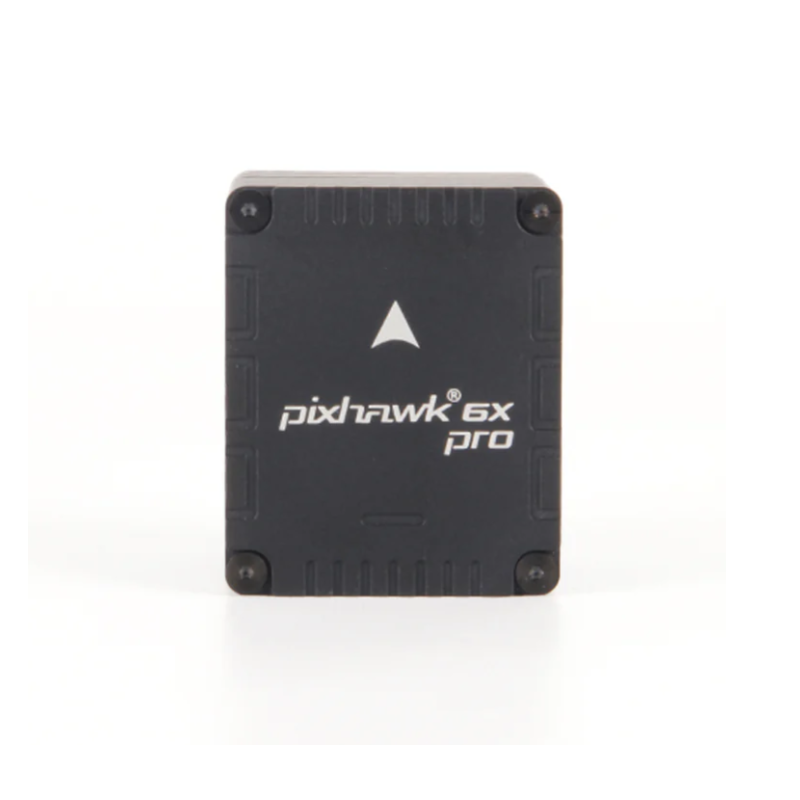

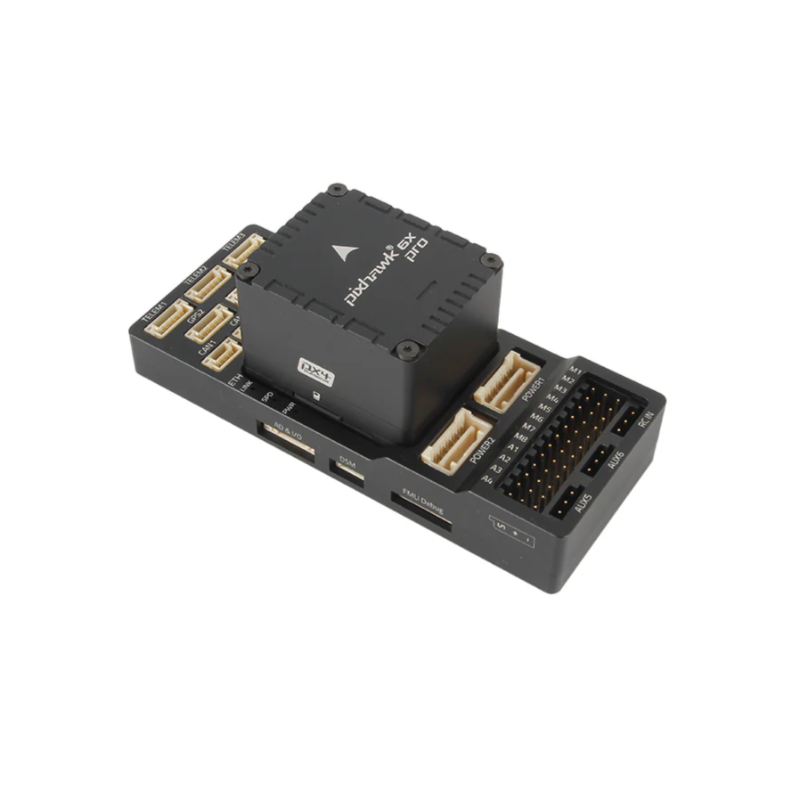

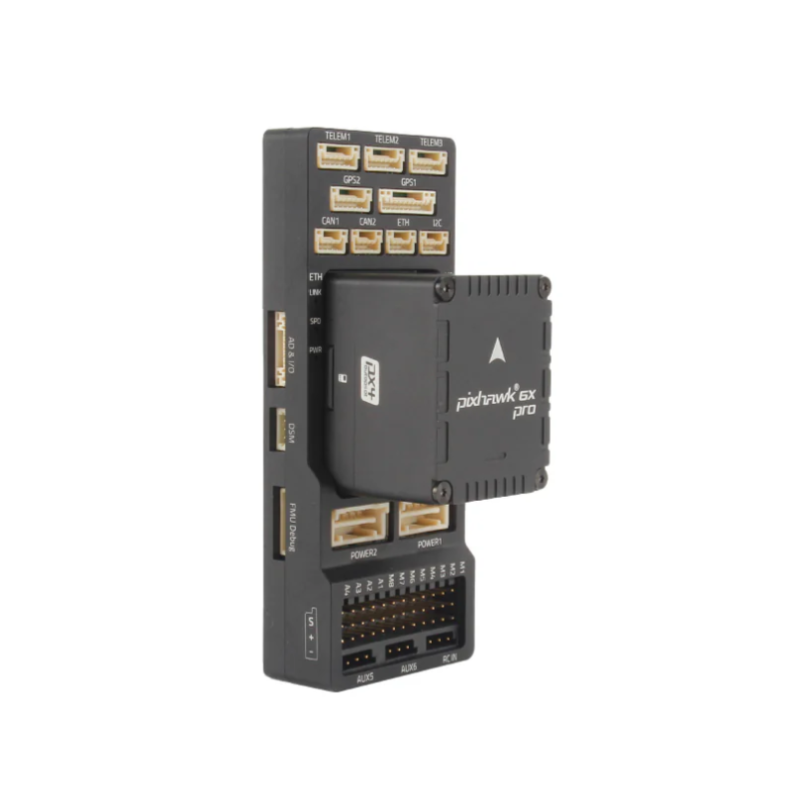

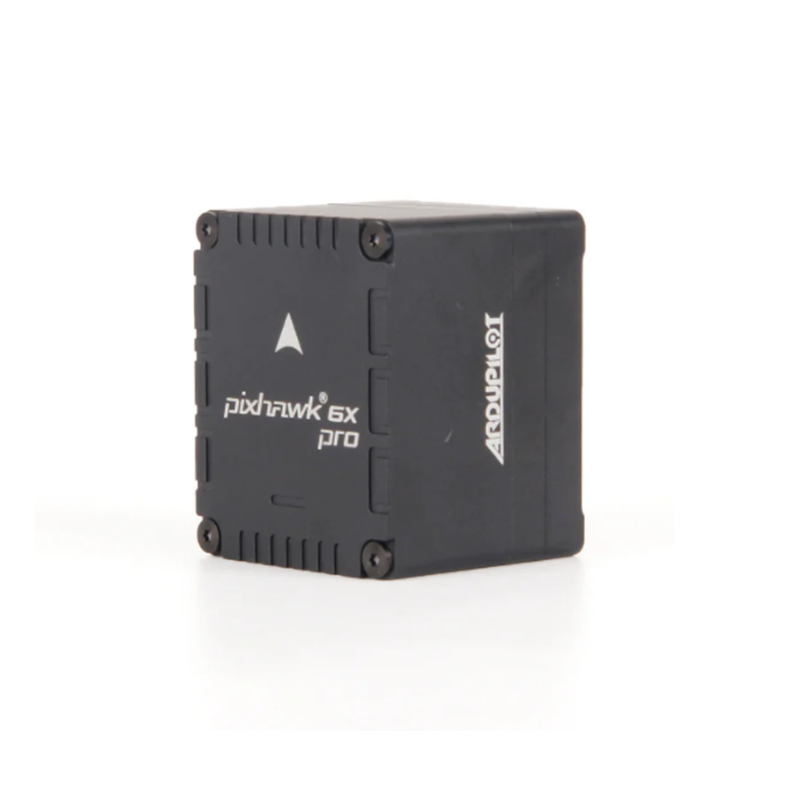

Holybro Pixhawk 6X Pro Autopilot Flight Controllers

$759.00

Tax included. Shipping calculated at checkout

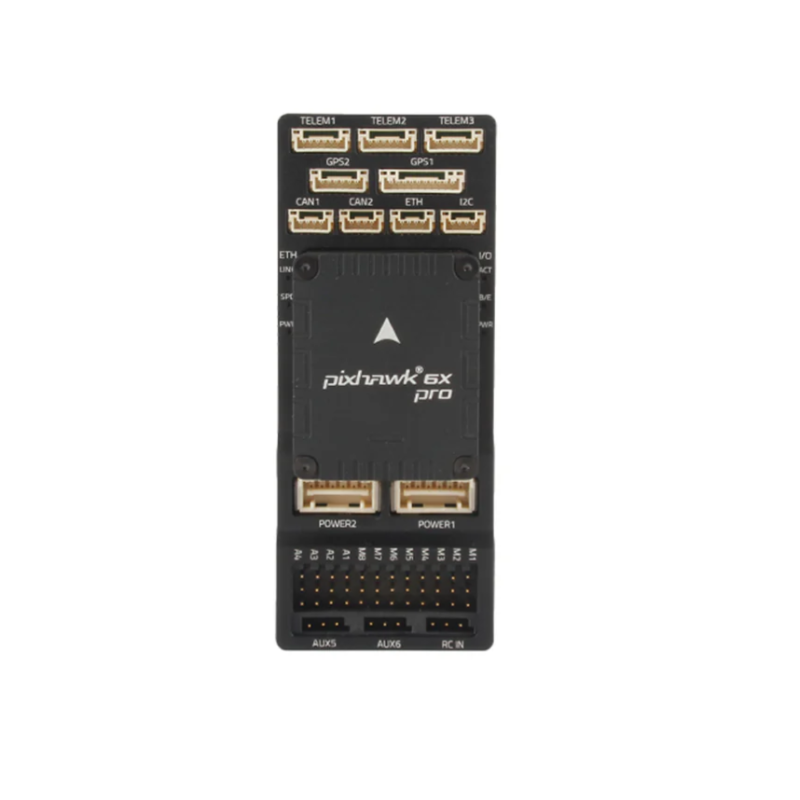

Select pixhawk baseboard version

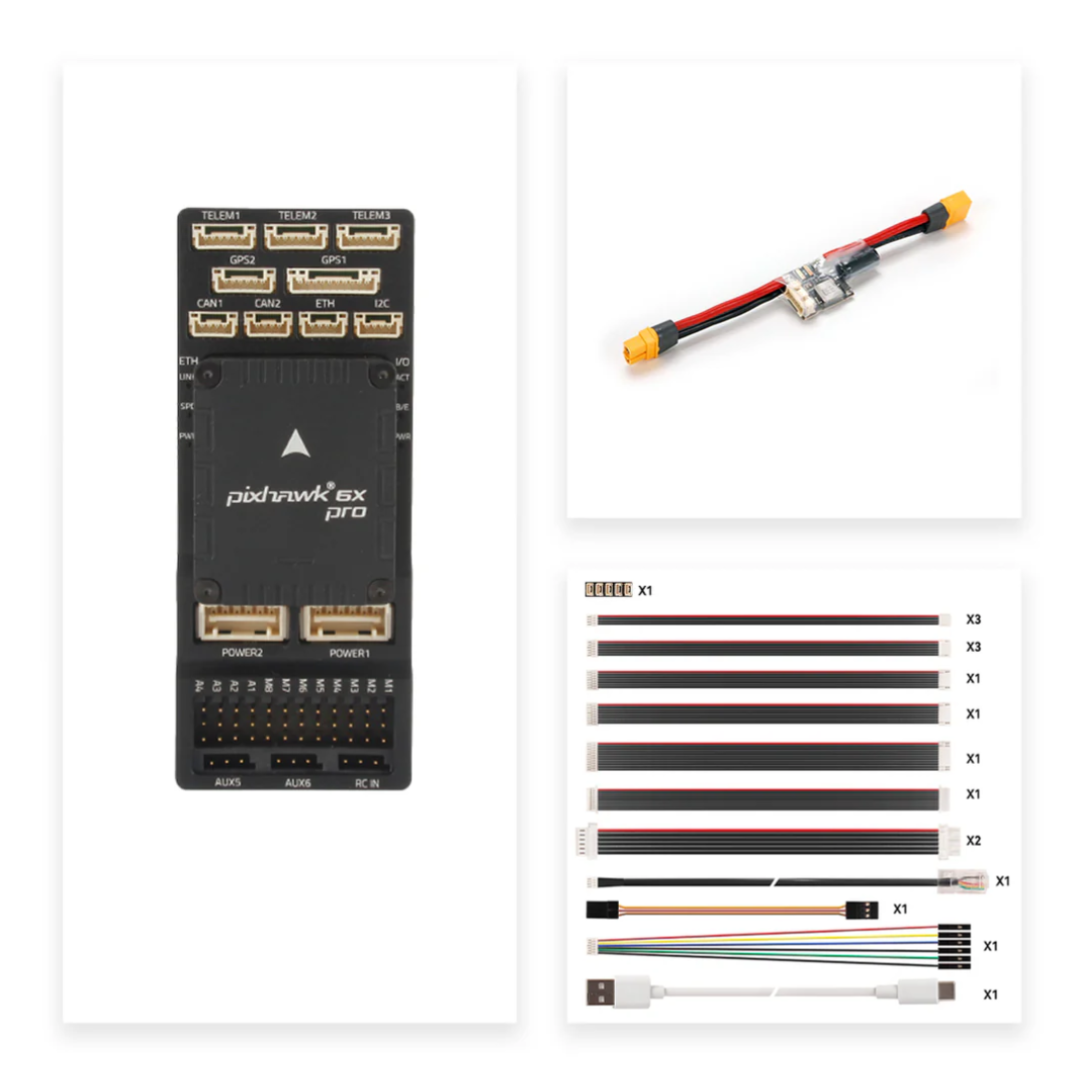

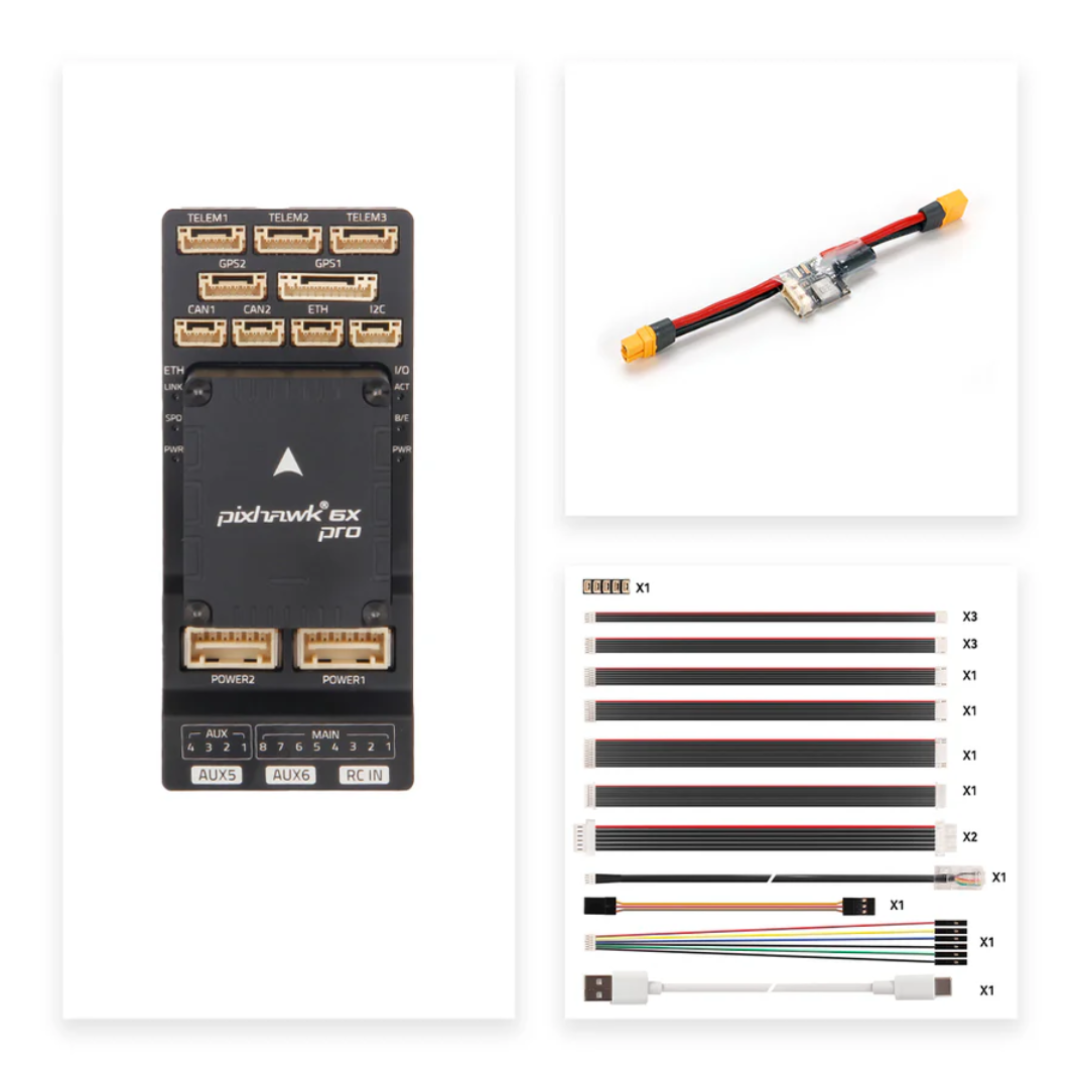

Standard v2A Standard v2A
Standard v2B Standard v2B

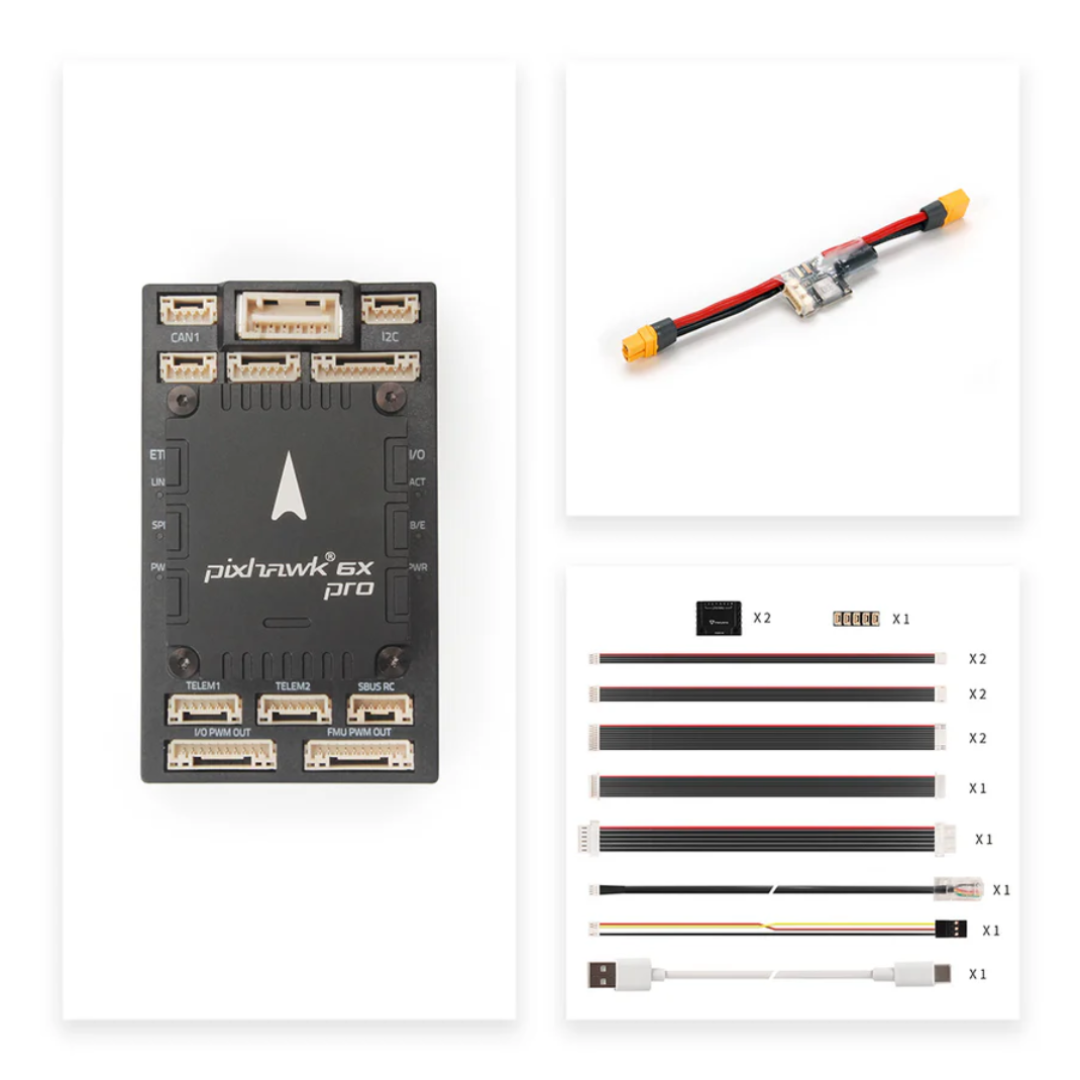

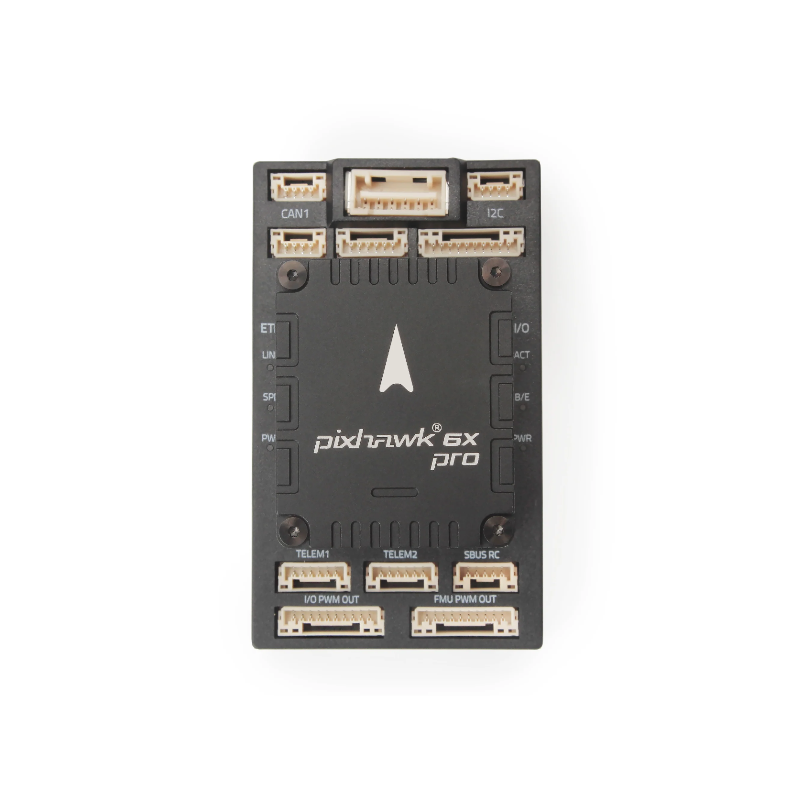

Mini Mini

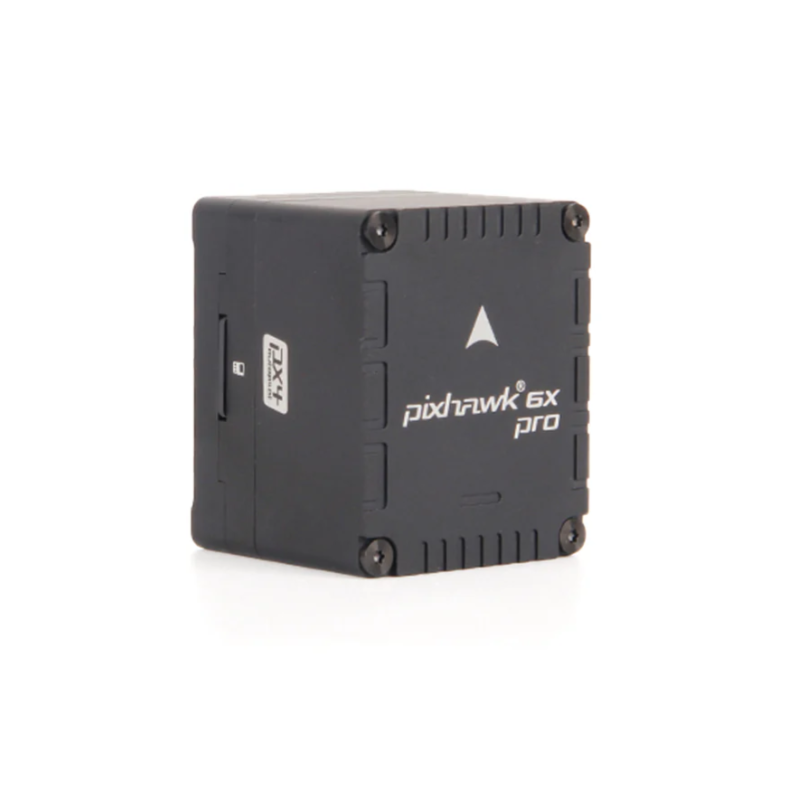

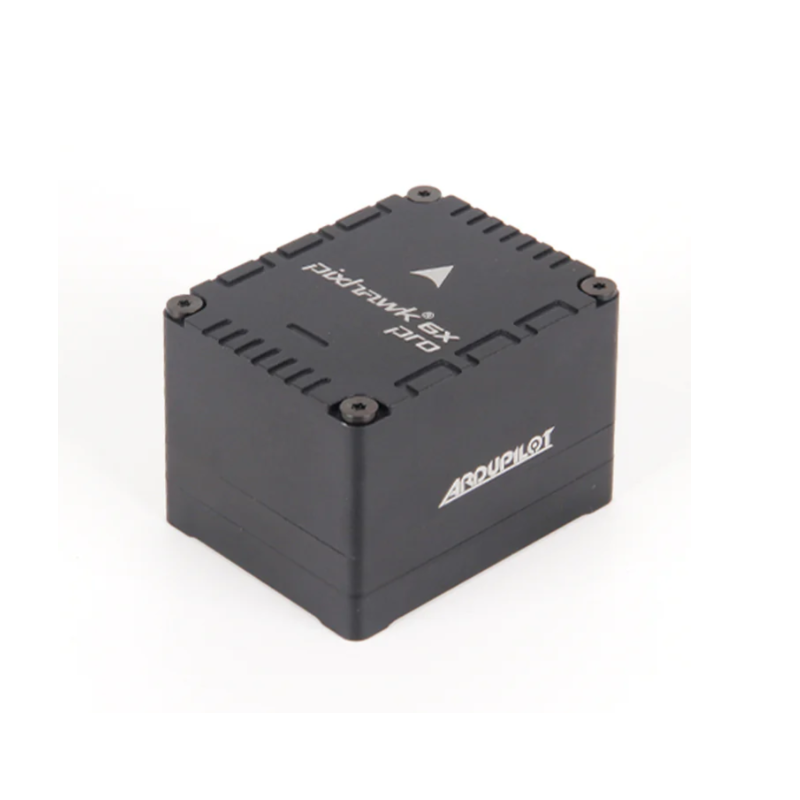

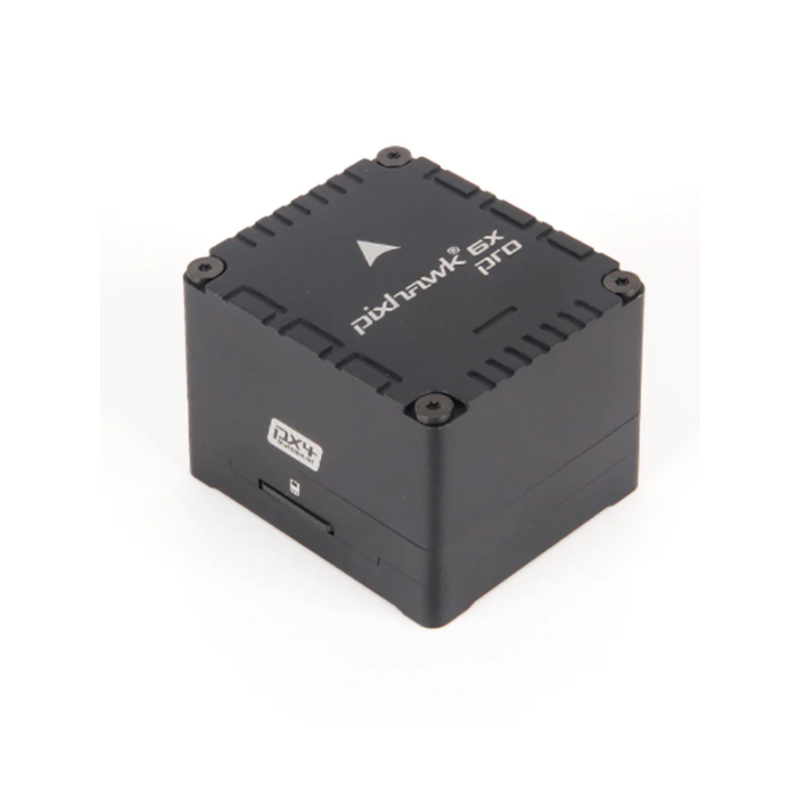

FC Module Only FC Module Only

Select power module

PM02D PM02D
FC Module Only FC Module Only

Product variants

Select quantity

Description

Key Design Point

High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect for accurate motion sensing in demanding UAV applications
All New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications
Triple redundant IMU & double redundant barometer on separate buses
High performance STM32H753 Processor
Modular flight controller: separated IMU, FMU, and Base system
The safety-driven design incorporates sensors from different manufacturers and model lineups
Independent LDO powers every sensor with independent power control.
Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination).
Temperature-controlled IMU board, allowing the optimum working temperature of IMUs
Hardware switchable 3.3V or 5V signal mode (requires baseboard modification)

All new Vibration Isolation Design

This new vibration isolation design uses a custom-formulated durable silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drone

Note:

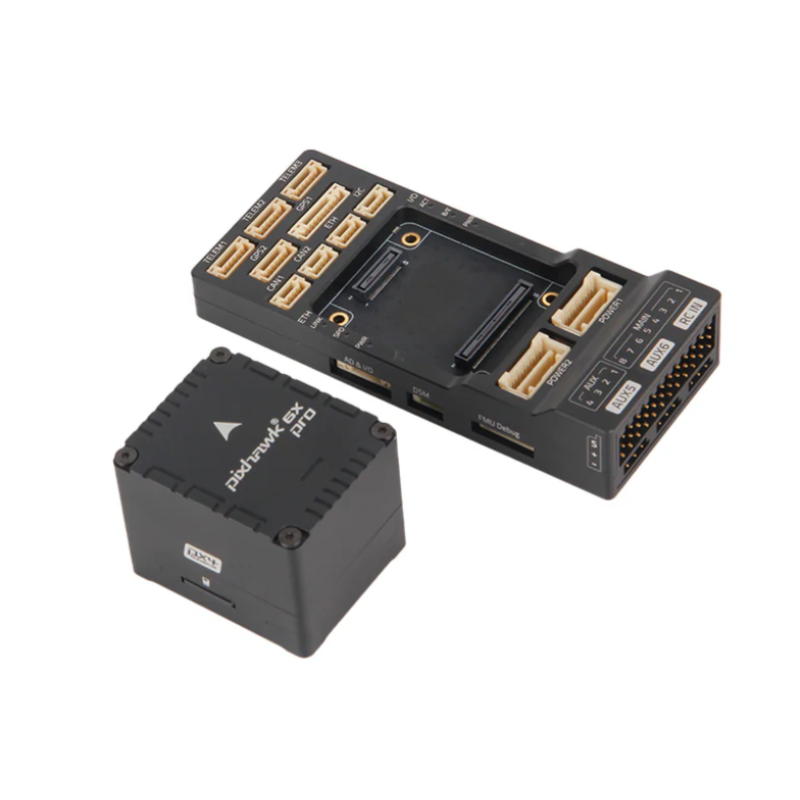

FC Module + a baseboard is required for this product to function. An FC Module or a Baseboard by itself will not function.

Specification

Processors & Sensors

FMU Processor: STM32H753
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
- Accel/Gyro: ADIS16470
  - ±40g, Vibration Isolated, Industrial IMU
- Accel/Gyro: IIM-42652
  - ±16g, Vibration Isolated, Industrial IMU
- Accel/Gyro: ICM-45686 with BalancedGyro™ Technology
  - ±32g, Hard Mounted
- Barometer: ICP20100
- Barometer: BMP388
- Mag: BMM150
NXP EdgeLock SE050 Plug & Trust hardware secure element
