H-RTK ZED-F9P Rover (IP66, RM3100 Compass)

$325.00

Tax included. Shipping calculated at checkout

Select version

UART 10-Pin (GPS1 Port) UART 10-Pin (GPS1 Port)
UART 6-Pin (GPS2 Port) UART 6-Pin (GPS2 Port)
DroneCAN 4-Pin (CAN Port) DroneCAN 4-Pin (CAN Port)

Product variants

Select quantity

Description

Overview

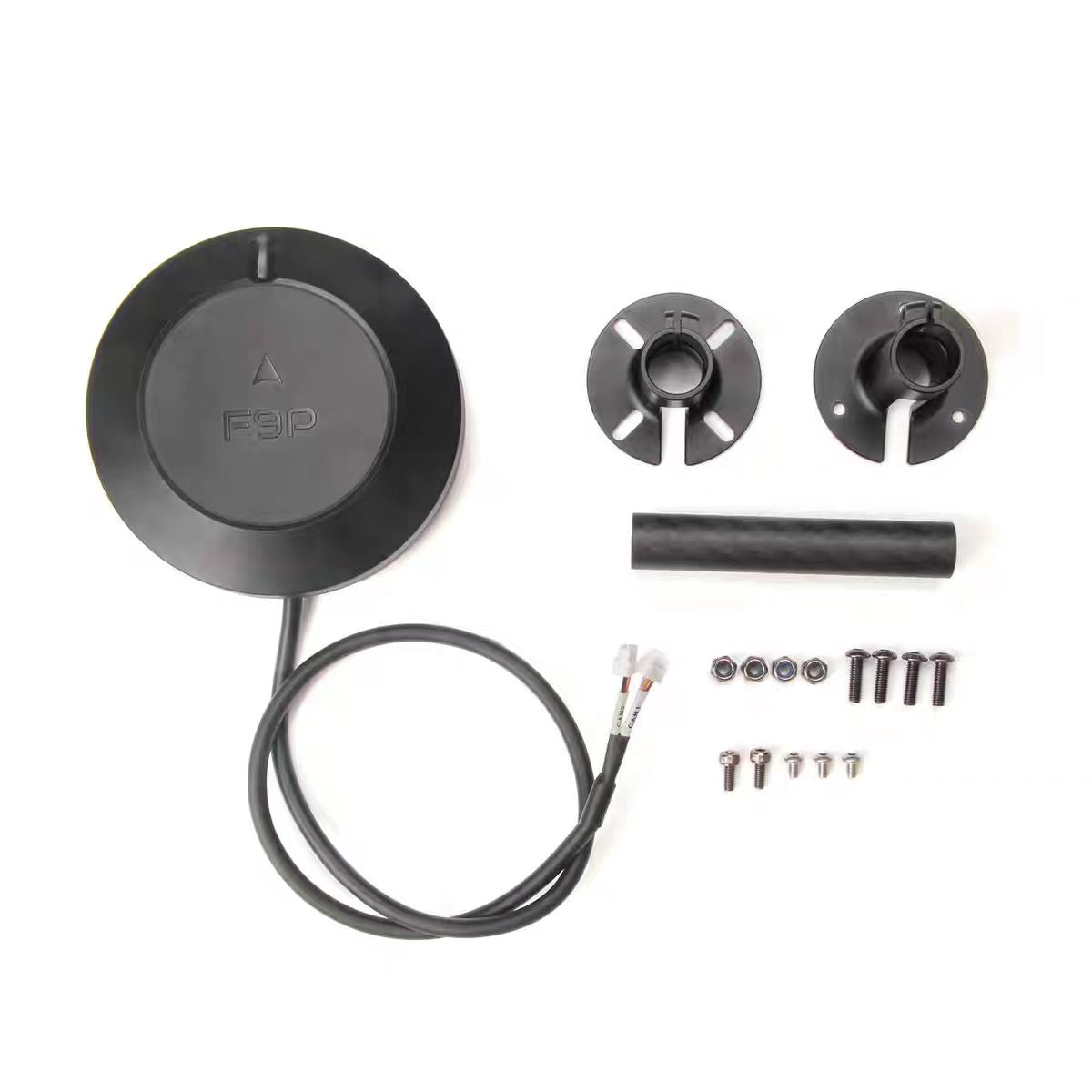

The H-RTK ZED-F9P Rover is an upgraded version of the original H-RTK F9P Rover. This RTK GPS features the u-blox ZED-F9P GNSS receiver, RM3100 Compass, and a tri-colored LED indicator, providing precise positioning and orientation data. It also boasts an IP66 rating, offering robust protection against dust and water, making it suitable for challenging environments.

This RTK GPS offers multi-band RTK capabilities with rapid convergence times and consistent performance. It supports concurrent reception of GPS (L1 & L2), GLONASS, Galileo, and BeiDou signals, ensuring reliable and precise positioning. This RTK GPS can delivers centimeter-level accuracy. Additionally, there is also a DroneCAN option that offers MCU, IMU, barometer, and robust communication and integration for advanced UAV systems.

The high-precision PNI RM3100 compass ensures accurate orientation and stability, offering exceptional reliability, making it ideal for demanding UAV applications. It provides high resolution, low power consumption, large signal noise immunity, a large dynamic range, and high sampling rates. Its measurements are stable over temperature and inherently free from offset drift.

Features

Advanced GNSS Receiver: Equipped with the high precision u-blox ZED-F9P GNSS receiver.
Integrated RM3100 Compass: Accurate orientation accuracy and stability.
High-Gain Antenna: Integrated large high-gain dual-band stacked patch antenna for enhanced signal reception across GNSS frequencies.
Durable Design: IP66-rated for protection against dust and water, suitable for harsh environments.
Advanced Filtering & Amplification: Utilized Hybrid Coupler + SAW + LNA + Hybrid Coupler architecture, ensuring superior signal clarity and interference rejection.
Robust EMI Shielding: Ensures consistent signal integrity by minimizing the impact of electromagnetic interference.
Versatile Installation: Easily mount this GPS on a flat surface or with an elevated mount for optimal positioning.
DroneCAN Option: Offers MCU, IMU, barometer, and robust communication for advanced UAV systems.
