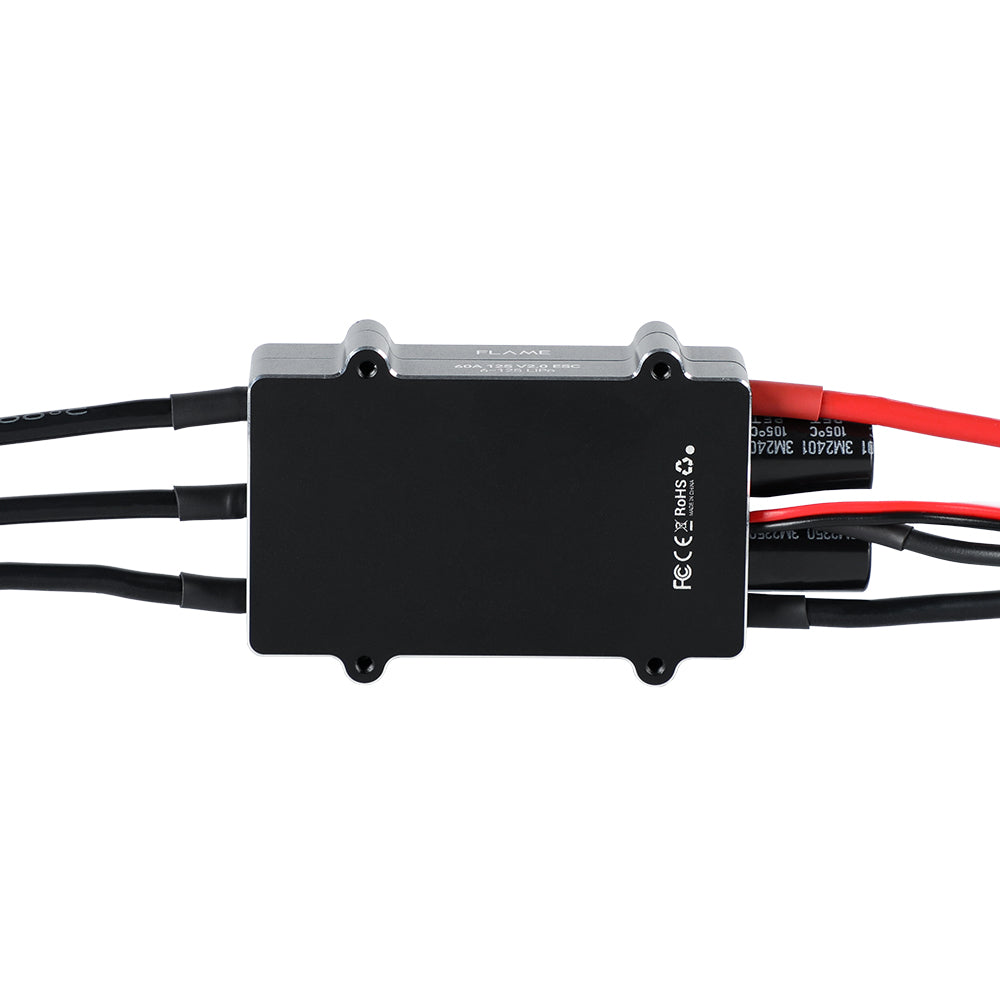

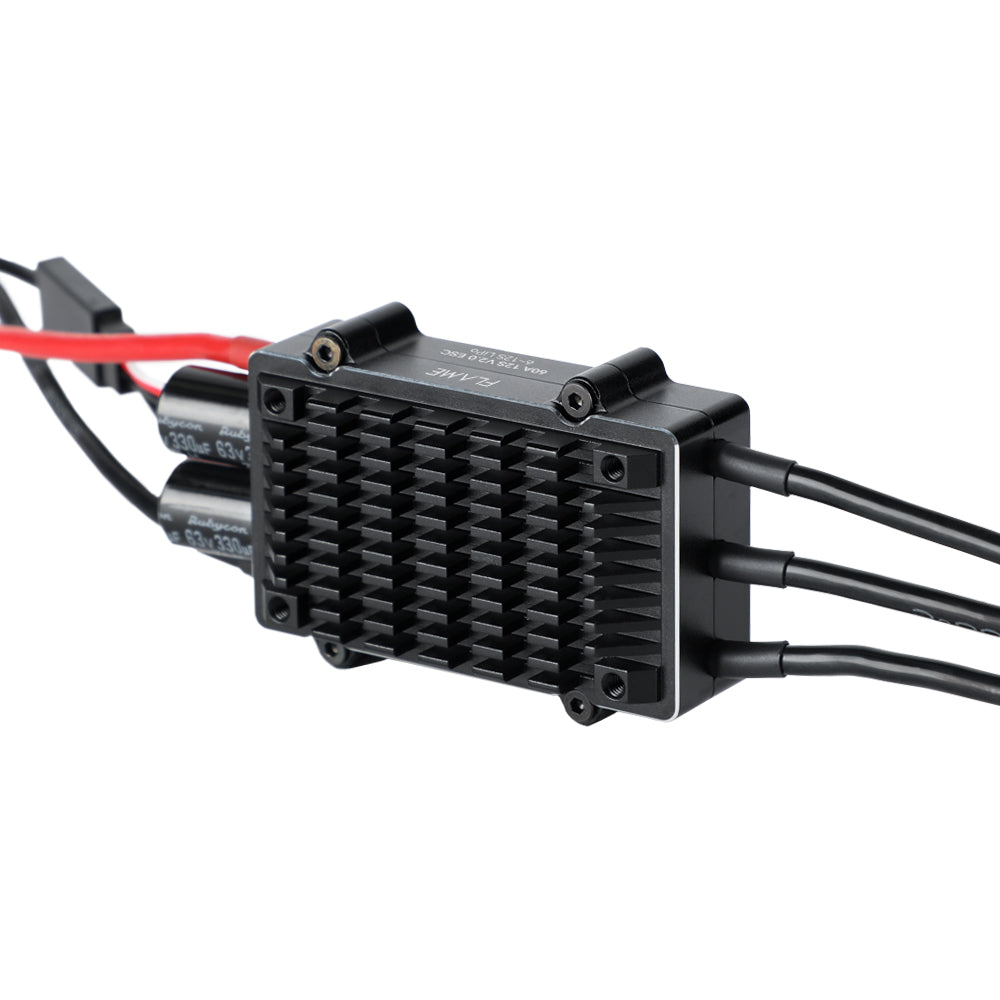

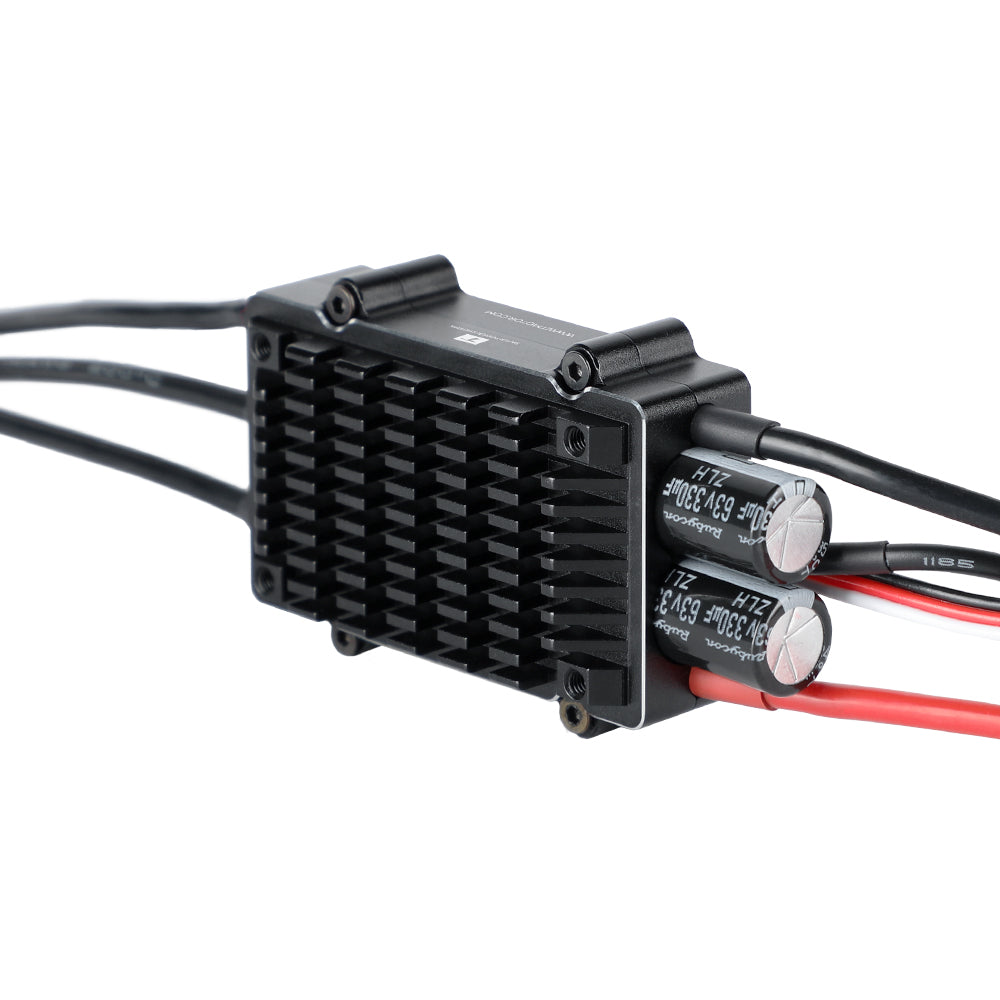

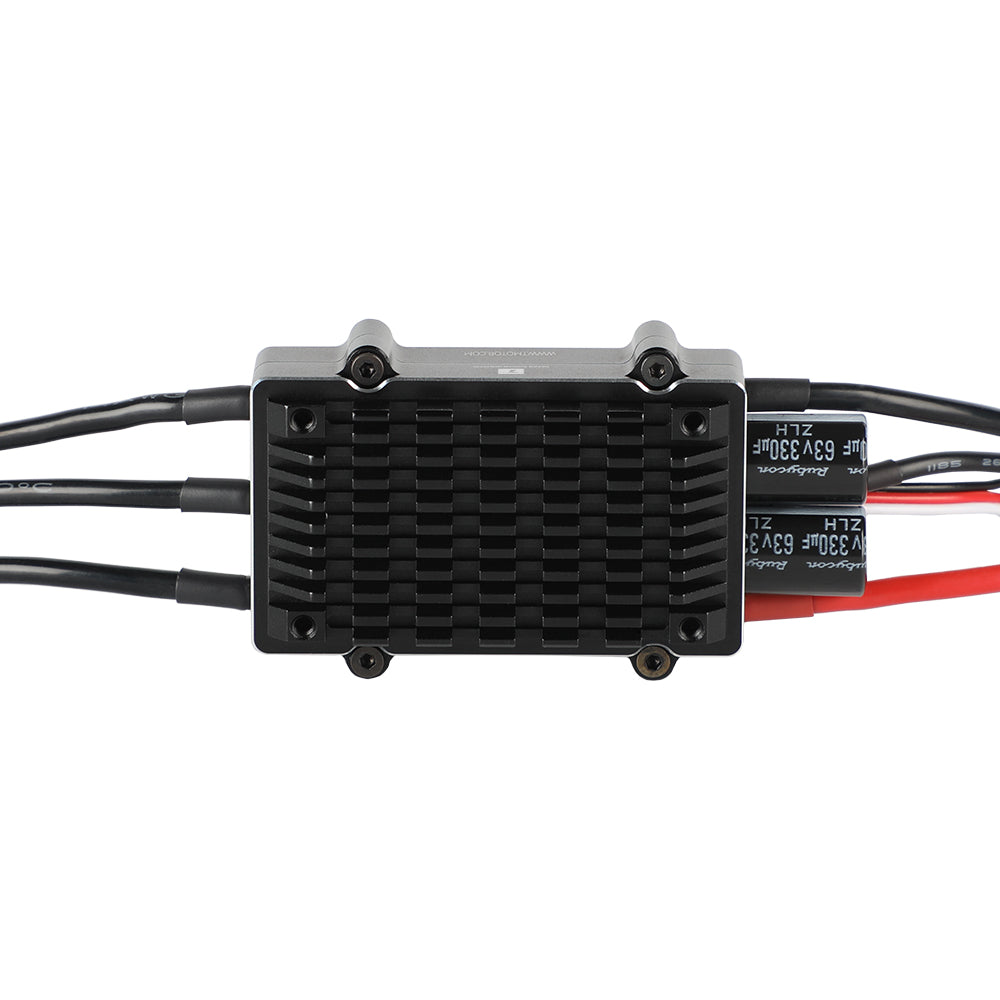

T-MOTOR FLAME 60A 12S V2.0 Multi-Rotor UAVs ESC
Couldn't load pickup availability
• LiPo：6-12S
• layered structure
• Efficient and reasonable dissipation
About T-MOTOR FLAME 60A 12S V2.0 Multirotor UAVs ESC
T-MOTOR FLAME 60A 12S ESC delivers 60A continuous and 80A peak power (10s), designed for multi-rotors and compatible with U12 motors. Supporting 6-12S LiPo, it features efficient heat dissipation and protections against start-up failure, throttle signal loss, motor lock-up, and overload, ensuring reliable and safe performance.
FLAME 60A 12S V2.0 ESC Highlights:
-
Power Output: Delivers 60A continuous and 80A peak current (10 seconds), designed for high-performance multi-rotor UAVs.
-
Compatibility: Specifically compatible with U12 motors and supports 6-12S LiPo batteries.
-
Efficient Design: Features a layered structure for better heat dissipation and stable performance.
-
Advanced Protections: Includes start-up protection, throttle signal loss protection, motor lock-up protection, and overload protection.
-
Smart Safety Feature: Automatically shuts down the motor if it fails to start within 2 seconds, allowing easy troubleshooting.
-
Professional Use: Designed for demanding applications in professional UAV operations.
Packing List Includes:
1x T-Motor FLAME 60A 12S V2.0 ESC
1x Hardware Kit
