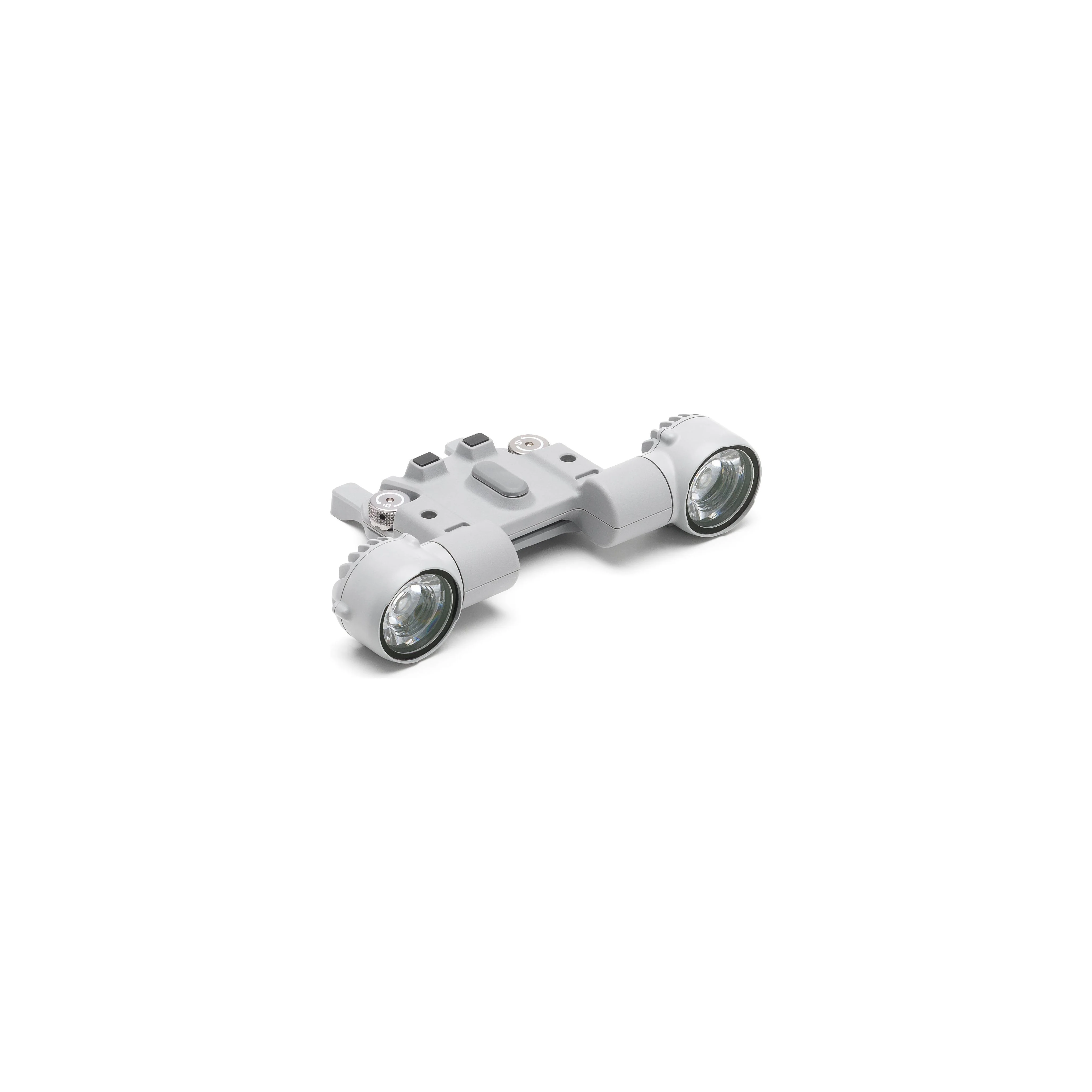

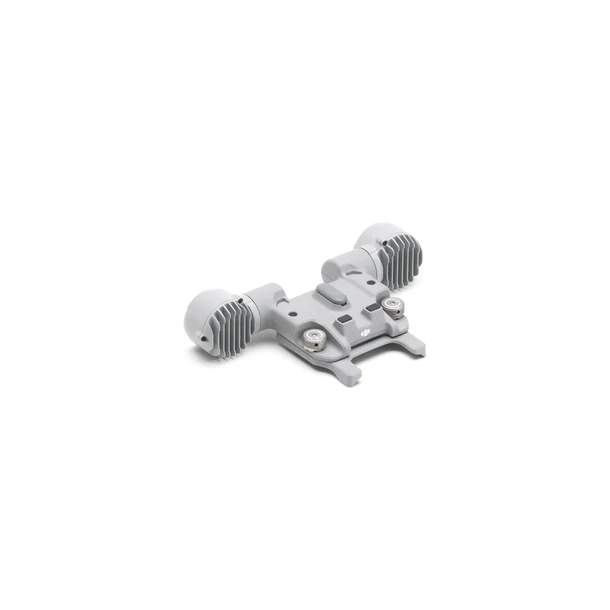

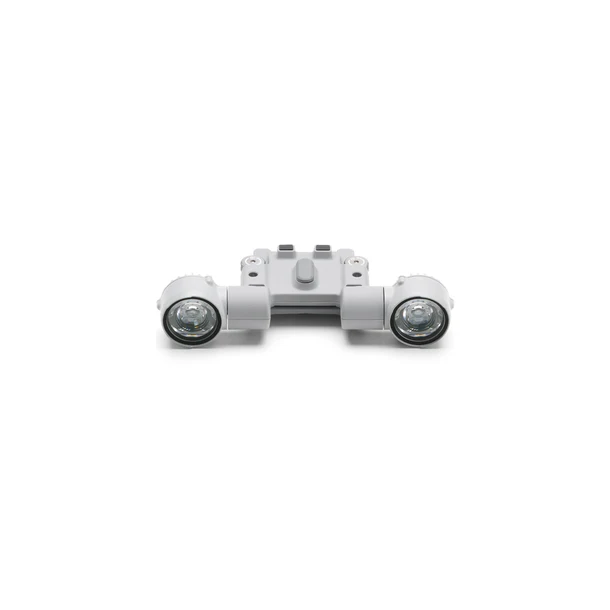

DJI AL1 Spotlight

The DJI AL1 Spotlight provides powerful, versatile illumination with two operating modes: always-on and strobe. Capable of illuminating subjects from up to 100 meters away, it ensures clear visuals in low-light environments, enhancing the effectiveness of search, rescue, and inspection missions.

Key Features

• Dual Modes: Switch between always-on for continuous illumination and strobe for signaling or enhanced visibility.
• Intelligent Gimbal Link: Automatically follows the gimbal's movements, ensuring the spotlight stays aligned with the camera’s view.
• Wide FOV Lighting Mode: Illuminate broader areas when in wide-angle mode, perfect for expansive operational scenarios.
• Independent or Combined Use: Can be used alone or paired with the DJI AS1 speaker to meet diverse mission needs.

Specifications

• Weight: Approx. 99g (with bracket)
• Max Power: 32W
• Illuminance: 4.3±0.2 lux @ 100m, 17±0.2 lux @ 50m
• Effective Illumination Area:
  • 1,300m² @ 100m in Normal Mode
  • 2,200m² @ 100m in Wide FOV Mode
• Gimbal Mechanical Range (Tilt): -135° to 45°
• Max Control Speed: 120°/s
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Mounting Method: Quick-release hand-tightened screws

Tips for Safe and Optimal Use

1. Ensure screws are tightened securely during installation. Use the included hex key for long-term stability.
2. Follow app prompts for activation and check for firmware updates regularly.
3. Be cautious when flying with the spotlight mounted, as it may affect the propulsion and vision system of the Matrice 4 Series.
4. Do not point the spotlight directly at people’s eyes to avoid injury.
5. The spotlight may become hot during prolonged use—handle with care to avoid burns.

In the Box

• Spotlight × 1
• Spare Screws × 2
• Hex Key × 1

Versatile Applications
Whether you're conducting night inspections, coordinating search and rescue missions, or enhancing situational awareness, the DJI AL1 Spotlight delivers the reliable performance you need for critical operations.

Compatible Models
Designed for seamless integration with the DJI Matrice 4 and 4D Series drones.
