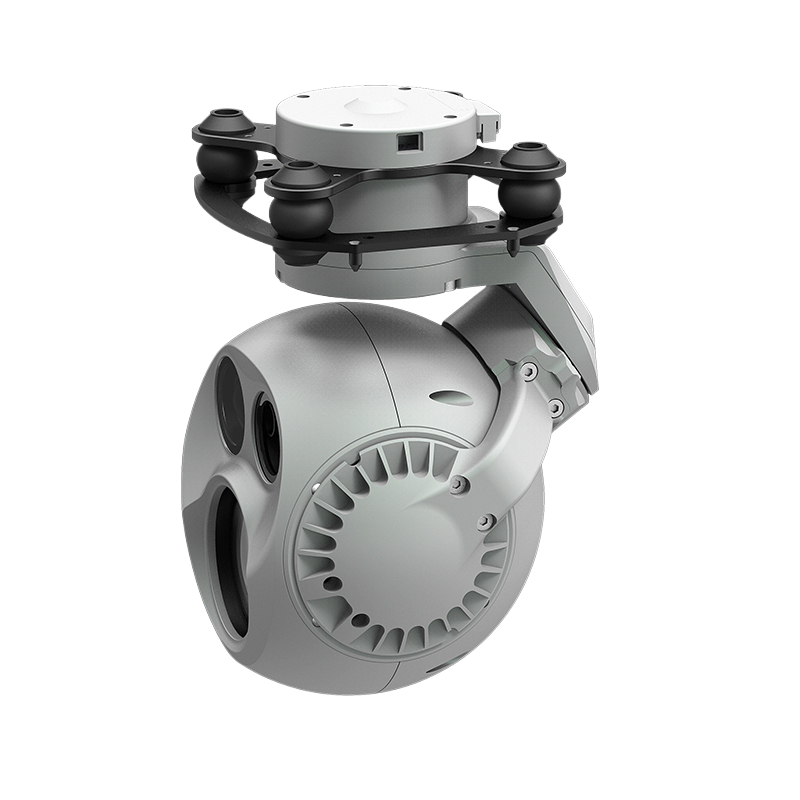

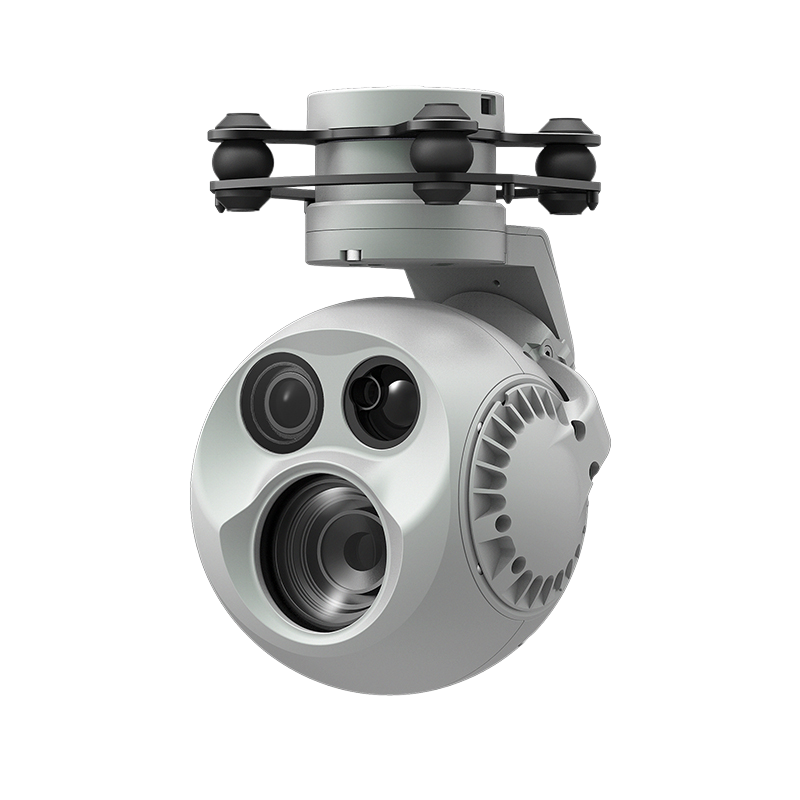

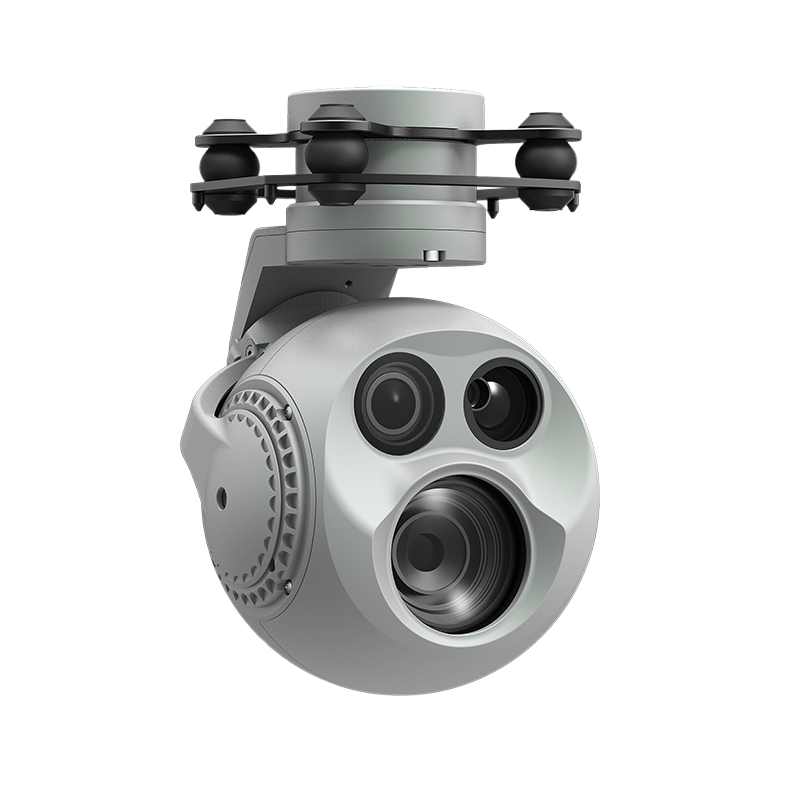

XF-D-90DE Intelligent Multi-Sensor Spherical Gimbal Camera

Characteristics

· Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.

· Combination of wide-angle camera and 30x hybrid zoom camera, which can quickly switch between overall and detailed view.

· Laser range finder provides the location of a target and the distance to it.

· Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the pod. The D-90DE is able to spin continually around its yaw axis.

· With the GCU, the D-90DE supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.

· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-90DE provides a stabilization accuracy at ±0.01°.

· Can be mounted onto multiple carriers, whether downward or upward.

· With the GCU and the Dragonfly software, user can watch the image and control the podwithout protocol ducking.

· With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.

· Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save. Video stream supports SEI stacking.

· 14~53 VDC wide voltage input.
