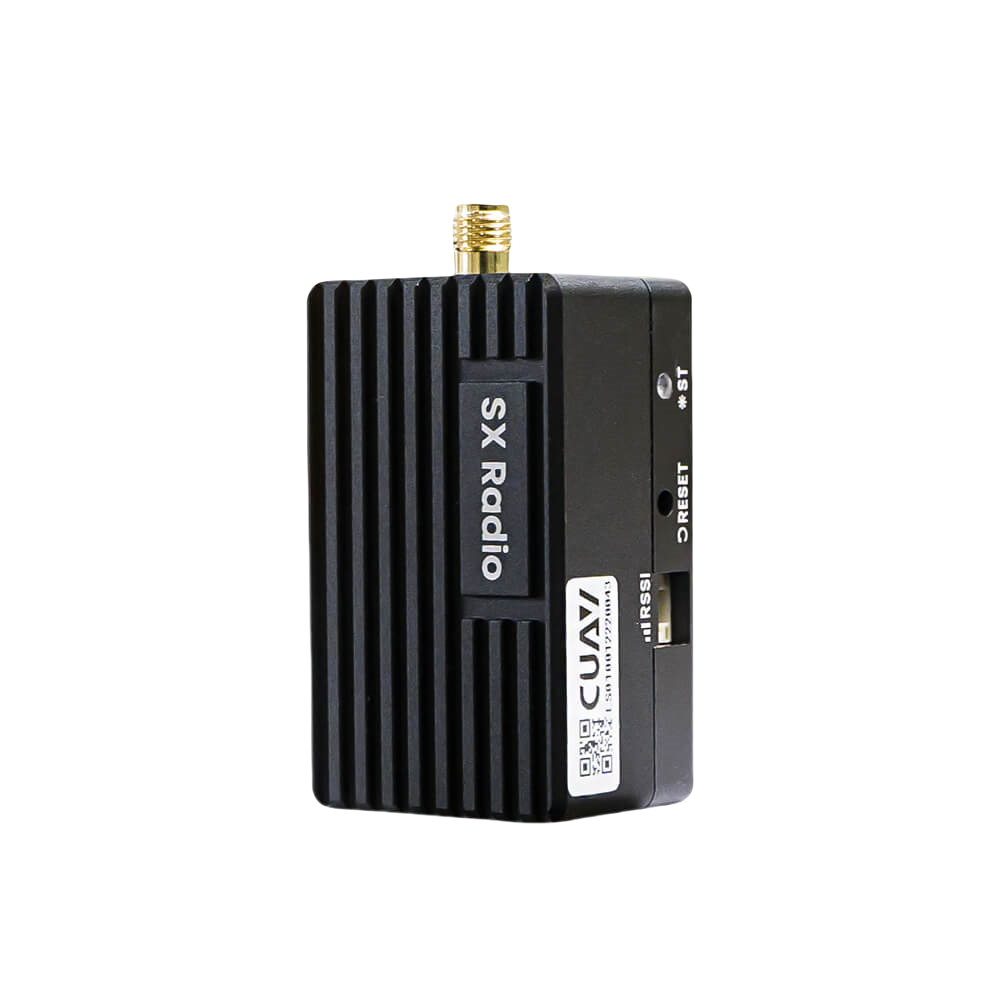

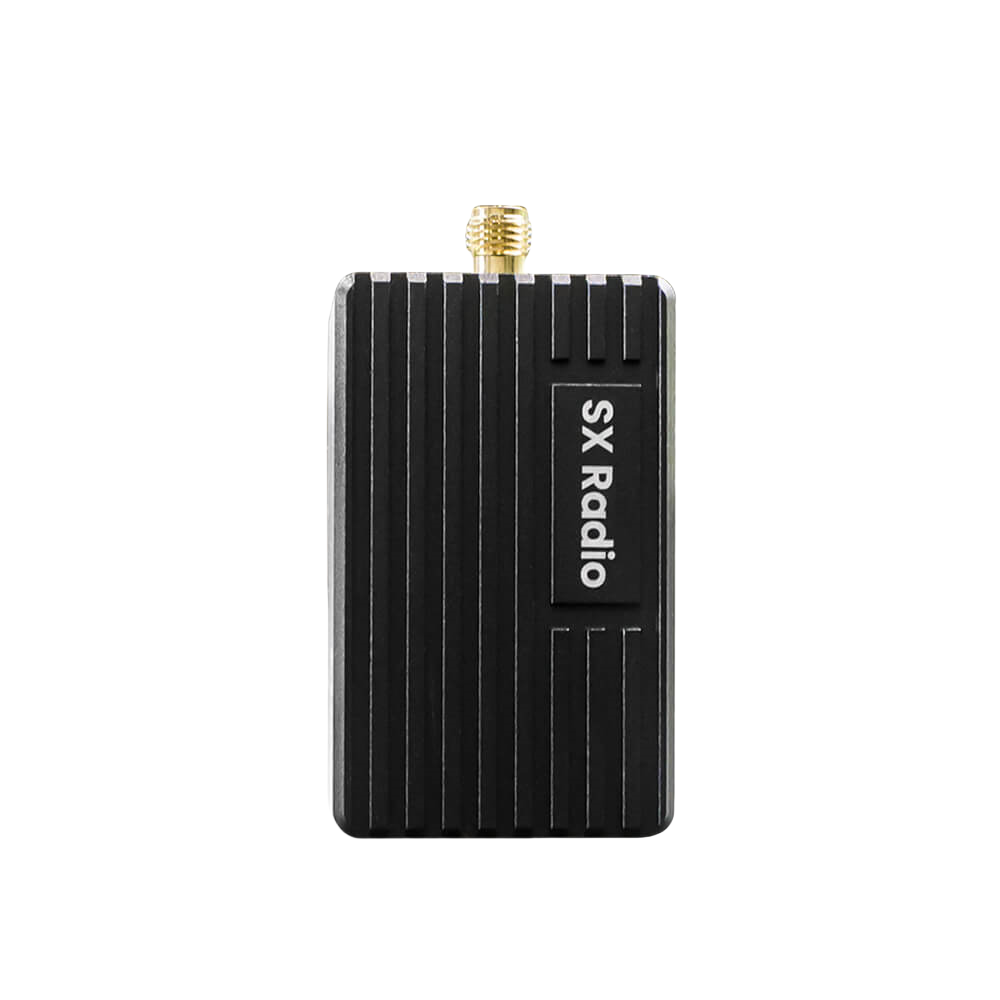

CUAV SX Radio is a data transmission module with high power, high speed and high sensitivity
CUAV SX 1000mw Radio Telemetry FPV Transmitter Module for Pixhawk Pixhack Flight Control FPV RC Drone Quadcopter free shipping
CUAV SX RADIO Over the horizon data transmission module
CUAV SX Radio module to solve the low cost wireless data solutions provides unprecedented scope. This module is simple and easy to use, especially suitable for unmanned units and point to point network transmission over the horizon, can provide the critical stable data transmission between UAV and equipment. Their size is small, saving valuable machine s
High power and modulates
Adjustable transmitting power from 1mw-1000mw
Ultra high sensitivity
In low bit rate mode, the receiver has the highest -113 DBM sensitivity
security and encryption
Support 256-bit AES encryption for secure data communications

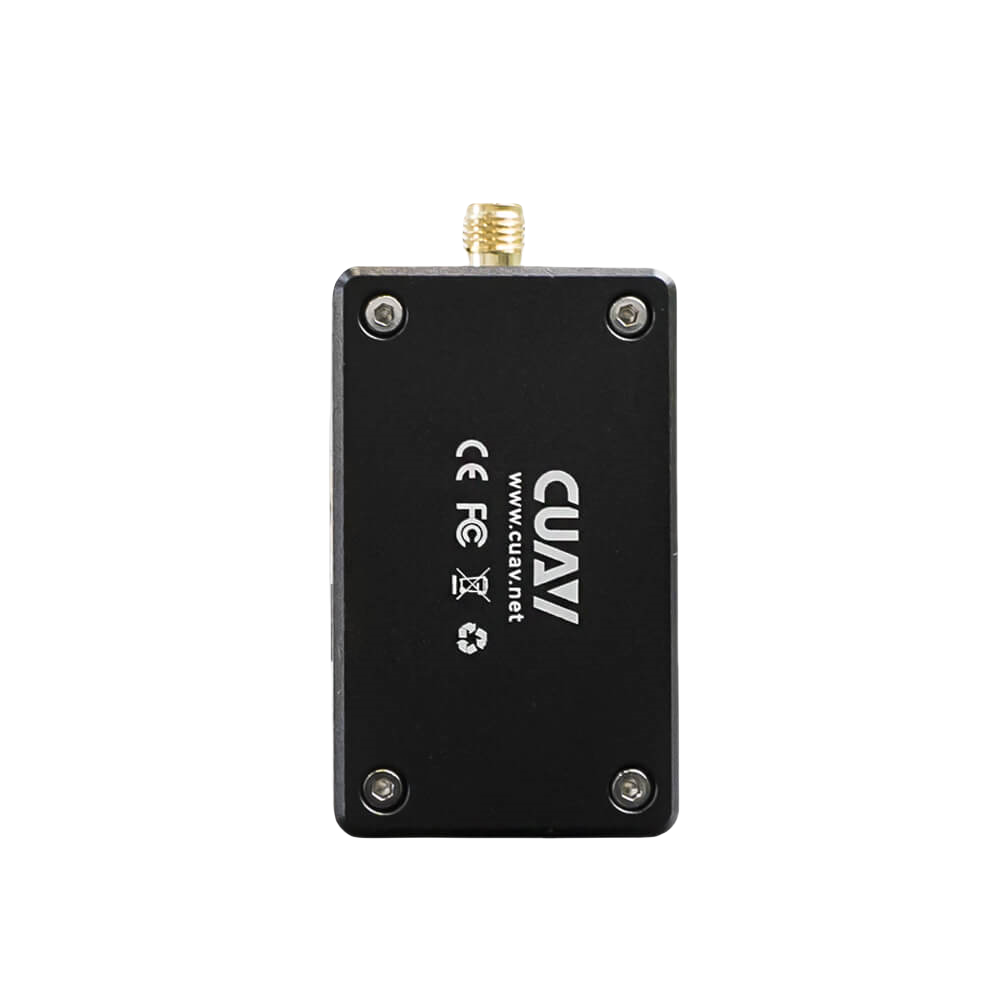

CNC Integral forming shell
CNC aluminum alloy shell, lightweight, strong, beautiful and anti interference
Parameter
| CUAV® SX RF | |
| PERFORMANCE | |
| FREQUENCY RANGE | ISM 902 to 928 MHz |
| TRANSMIT POWER (SOFTWARE SELECTABLE) | Up to 30 dBm* |
| CHANNELS | 10 hopping sequences share 50 frequencies |
| Low data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s | |
| MAXIMUM DATA THROUGHPUT |
High data rate: 120 kb/s |
| AVAILABLE CHANNEL FREQUENCIES | Low and middle data rate: 101**; High data rate: 50 |
| Low data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm | |
| Low data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB | |
| RECEIVER RF SELECTIVITY | Below 900 MHz and above 930 MHz; > 50 dB |
| URBAN RANGE LINE OF SIGHT**** | Low data rate: Up to 18 km (11 mi) |
| INDOOR RANGE | Low data rate: Up to 300 m (1,000 feet) |
| NETWORKING AND SECURITY | |
| MODULATION | Gaussian Frequency Shift Keying |
| SPREADING TECHNOLOGY | Frequency Hopping Spread Spectrum (FHSS) |
| Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh | |
| Optional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command. | |
| GENERAL | |
| DIMENSIONS 尺寸 | |
| WEIGHT |
40g |
| ROHS | Compliant |
| MANUFACTURING | ISO 9001:2000 registered standards |

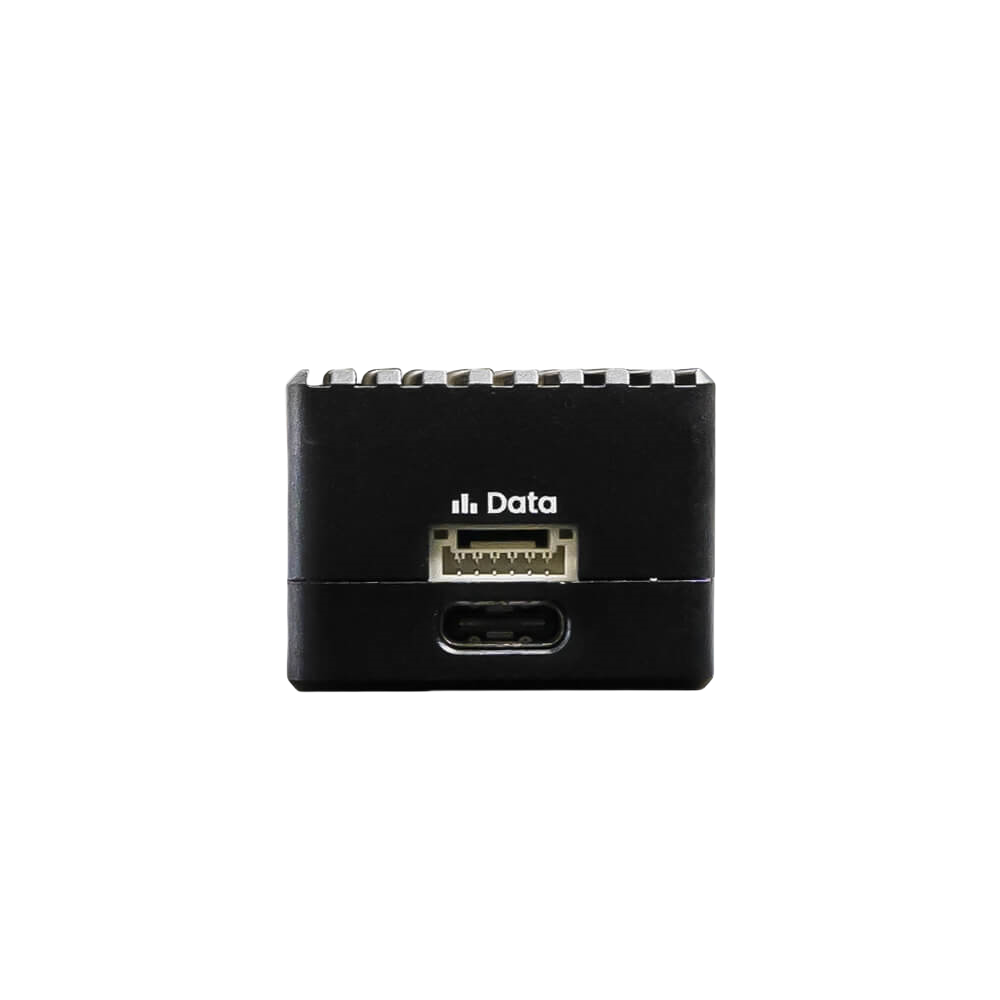

| HOST INTERFACE CONNECTOR | 37 castellated SMT pads |
| ANTENNA CONNECTOR OPTIONS | SMA |
| ANTENNA IMPEDANCE | 50 ohms unbalanced |
| MAXIMUM INPUT RF LEVEL AT ANTENNA PORT | 6 dBm |
| OPERATING TEMPERATURE | -40° C to 85° C |
| POWER REQUIREMENTS | power |
| SUPPLY VOLTAGE | 5 V typical |
| RECEIVE CURRENT (VCC = 5 V) | 40 mA |
| TRANSMIT CURRENT (VCC = 5 V) | 900 mA @ 30 dBm; 640 mA @ 27 dBm; 330 mA @ 20 dBm |
| SLEEP CURRENT (VCC = 5 V) | 2.5 uA |
| REGULATORY APPROVALS 认证 | |
| UNITED STATES | FCC ID: MCQ-XBPSX |
| CANADA | IC: 1846A-XBPSX |
| AUSTRALIA | RCM |
– 2 x SX 1000mw Radio date transmission
– 2 x SX-PIXHAWK date transmission wire
– 1 x micro USB wire
– 2 x 900MHZ Date transmission antenna
