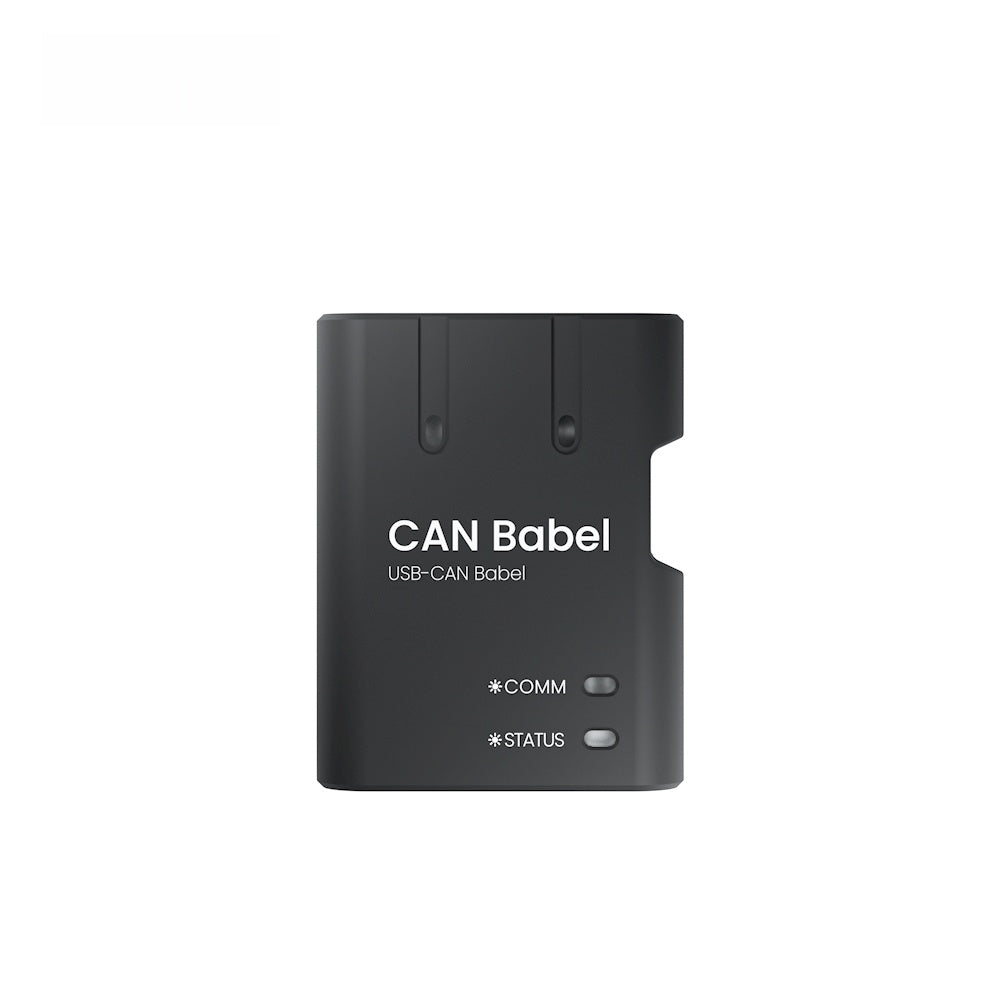

CAN Babel USB Bus Adapter Brief
CUAV CAN Babel is a dual-function USB bus adapter integrating CAN and UART. Featuring USB virtual dual serial ports technology and SLCAN protocol support, it meets USB-UART debugging needs. This single device covers the entire process of development, debugging, and maintenance, catering to diverse scenario requirements
CAN Babel USB Bus Adapter Feature:
- USB Virtual Dual Serial Ports Technology Simplifies Complexity
- Supports SLCAN Protocol, Debugging Efficiency Up
- Supports USB-UART Debugging, No Additional Hardware Needed
- Compact, Lightweight, and Portable
CAN Babel USB Bus Adapter Specification:
Parameters |
|
| Processor | STM32F373CCT6 |
| UART Baud Rate | 2400bps～921600bps |
Port Type |
|

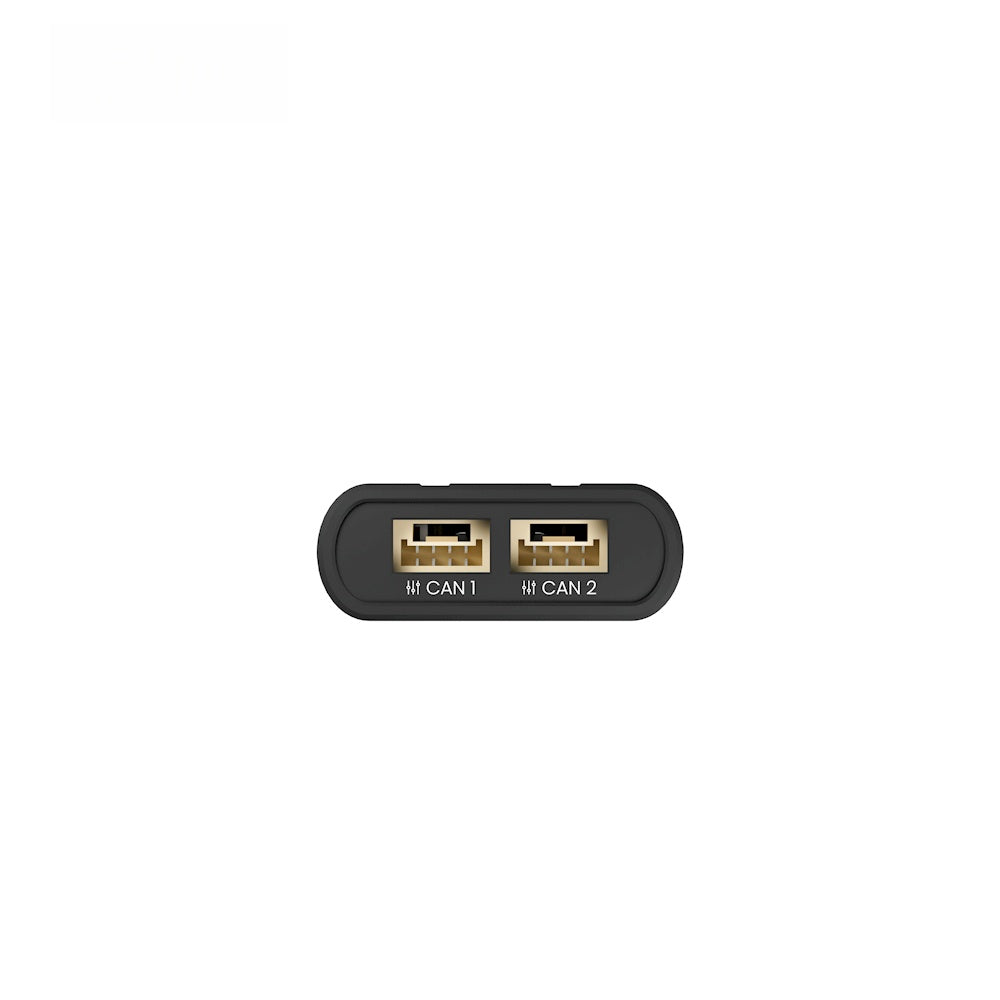

| CAN | 2 |

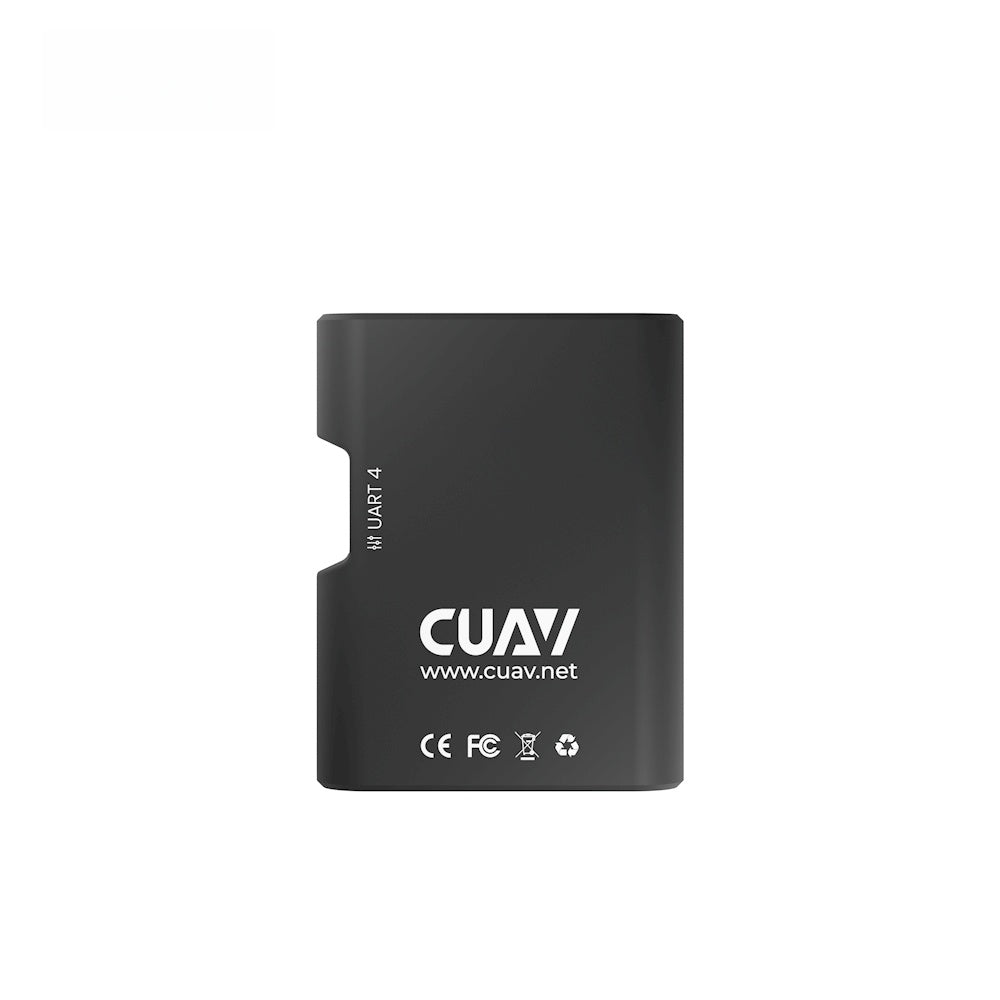

| USART | 1 |
Hardware Parameter |
|
| Operating Voltage | 4.75V～5.25V |
| Operating Temperature | -40℃~+85℃ |
| Size | 36mm×28mm×10.5mm |
| Weight | 7.7g |
CAN Babel USB Bus Adapter Description:
