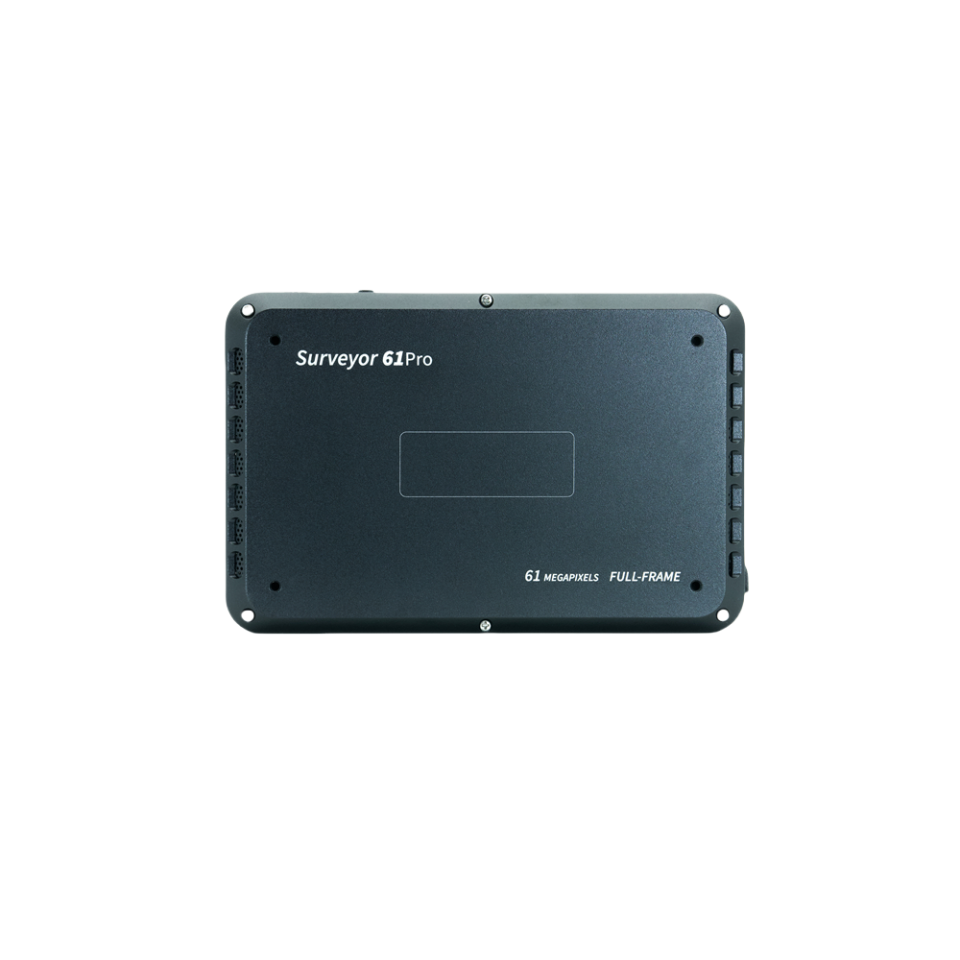

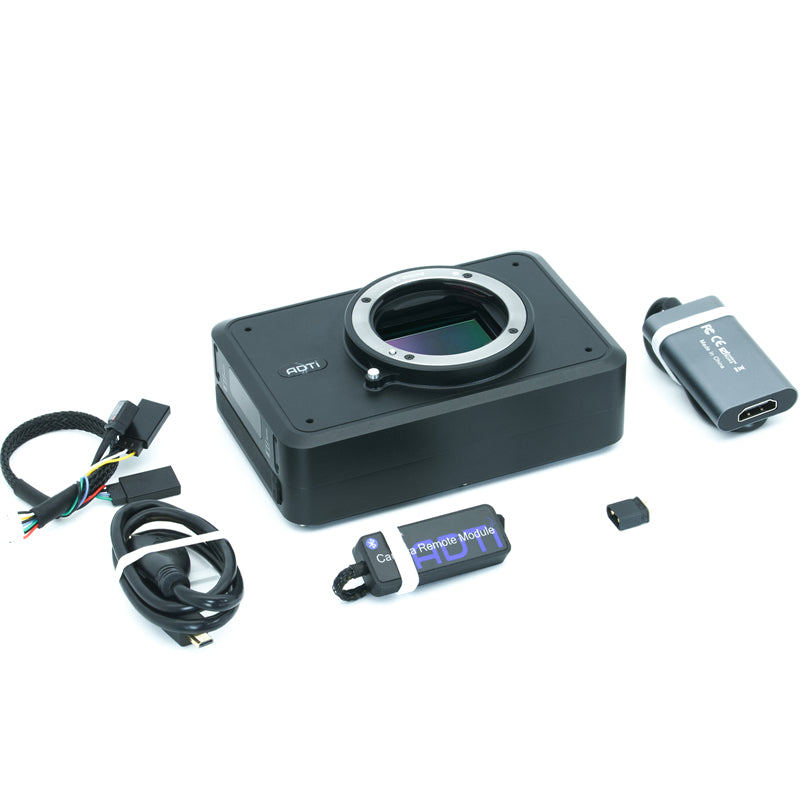

ADTi 61MP 61PRO Surveyor Drone Mapping Cameras

The ADTi 61MP FULL FRAME mapping camera Surveyor 61PRO is an ultimate high resolution and top quality drone mapping and utility inspection camera, it features:

• 61 megapixel full-frame Sony CMOS sensor.
• Compatible with any Emount full frame lenses
• Bionz X image processor.
• Built-in Multi-Interface hot shoe output for PPK
• top dynamic range and very low noise
• 10 frames per second
• 4K Video
• 276g weight

61PRO is compatible with Airpixel R3.

It works with ADTi lightweight FF lenses including:18MM FF, 50MM FF, and 56MM FF. Also works with any Emount FF lenses.

It is compatible with Gremsy Pixy S 3-axis camer gimbal.

It also works with ADTI 2-Axis nadir fixed wing gimbal as well.

Image Sensor

Sensor Type:CMOS
Sensor Manufacturer:Sony
Effective Megapixels:61
Sensor Format:full frame
Sensor size:849.6mm2 (35.7×23.8mm)
Approximate Pixel Pitch:3.76 microns
Focal Length Multiplier:1.0x
Aspect Ratio:3:2
Color Filter Type:RGBG
Anti Aliasing Filter:None
Color Depth （bits):26
Maximum Effective ISO:3,344

Image Capture

Image Resolution:
9504 x 6336 (60.2 MP, 3:2),
6240 x 4160 (26.0 MP, 3:2),
4752 x 3168 (15.1 MP, 3:2),
8448 x 6336 (53.5 MP, 4:3),
5552 x 4160 (23.1 MP, 4:3),
4224 x 3168 (13.4 MP, 4:3),
9504 x 5344 (50.8 MP, 16:9),
6240 x 3512 (21.9 MP, 16:9),
4752 x 2672 (12.7 MP, 16:9),
6336 x 6336 (40.1 MP, 1:1),
4160 x 4160 (17.3 MP, 1:1),
3168 x 3168 (10.0 MP, 1:1)
Image File Format:JPEG, RAW (14-bit ARW 2.3), RAW+JPEG
Continuous-mode frames/second:10.0

Video Capture

Video Resolution:
3840x2160 (30p/​25p/​24p)
1920x1080 (120p/​100p/​60p/​60i/​50p/​50i/​30p/​25p/​24p)
Video File Format:XAVC S / AVCHD 2.0 / MP4; Audio: LPCM / Dolby Digital (AC-3) / MPEG-4 AAC-LC, stereo
HD Video Out:Yes
HD Video Connection:HDMI

Lens & Optics

Lens Mount:Sony E
Auto Focus: Yes
Manual Focus: Yes

Shutter Type:Mechanical shutter
Speed:1/8000-30sec

Camera

Camera Size:  12*8*4.2 cm
Camera Weight (body): 276 g
Package Size: 50*50*25 cm
Package Weight: 800 g
Power: 12-28V DC Lipo or Liion
Operating Temperature: -10 to 40°C

Please Click Here for User Manual
