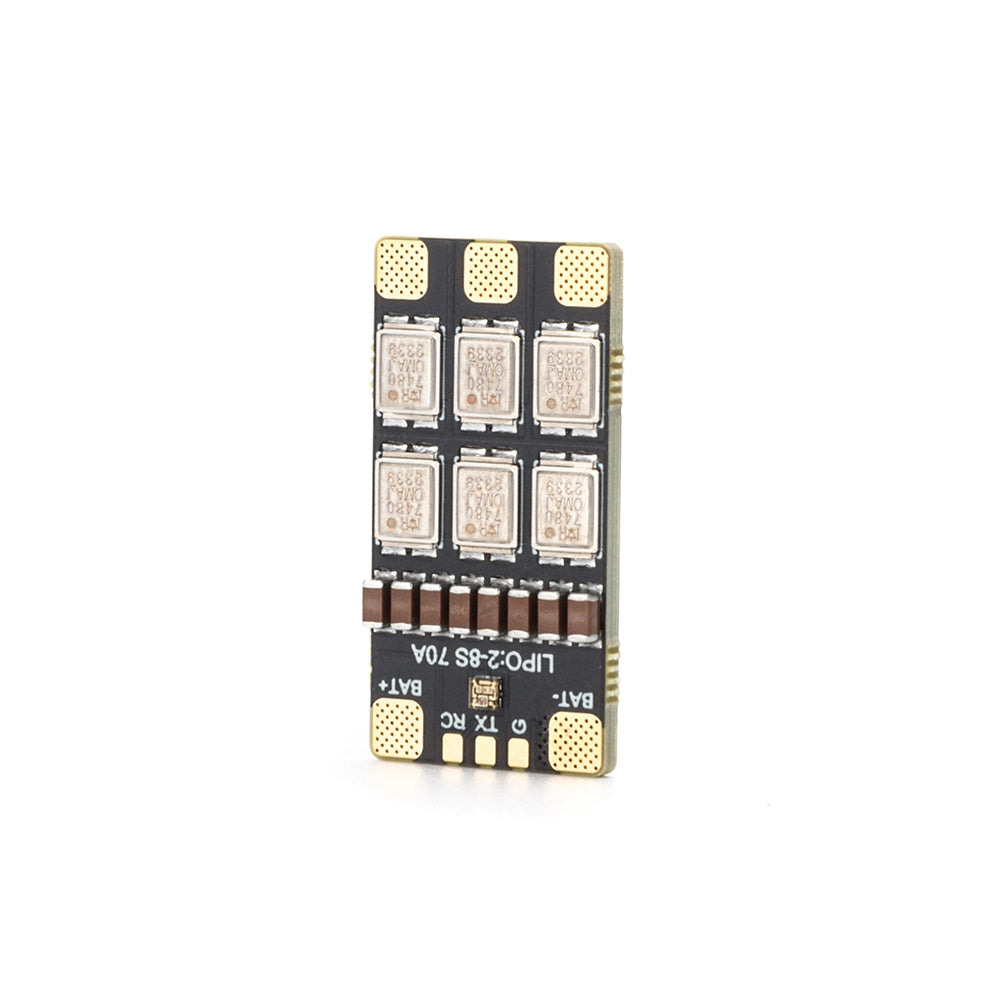

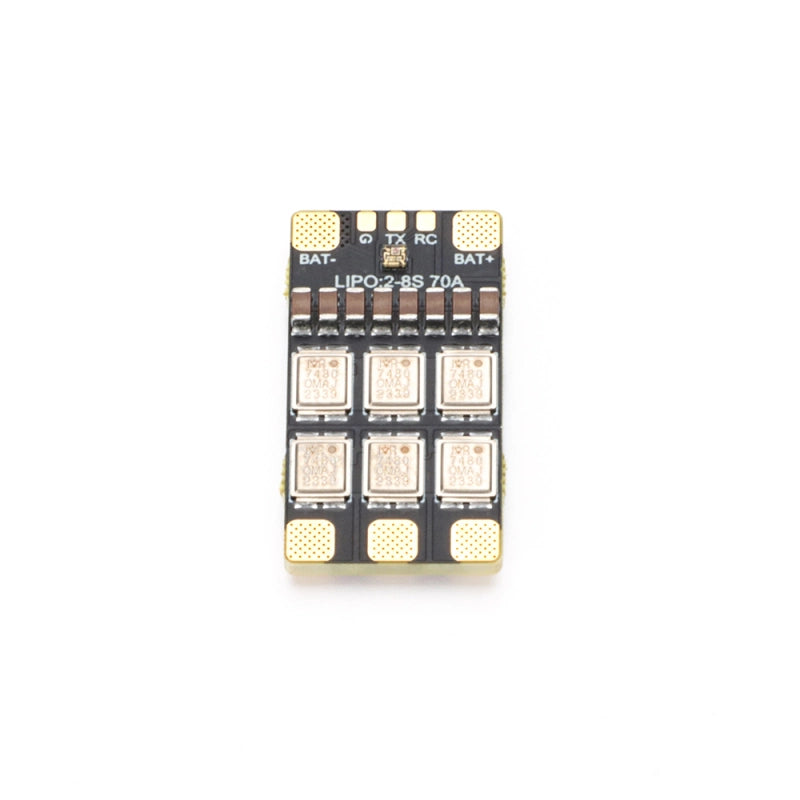

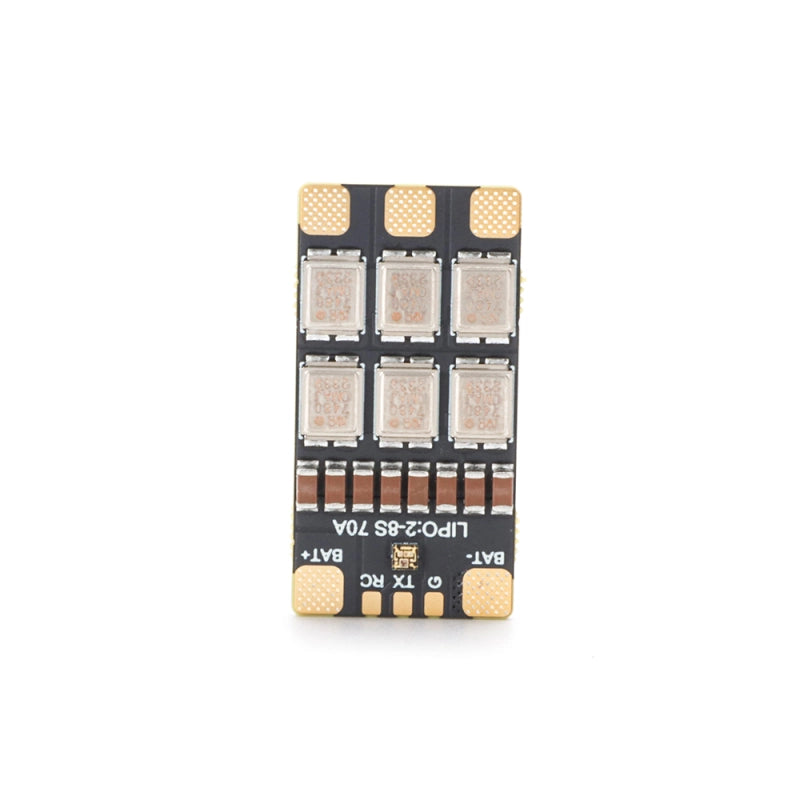

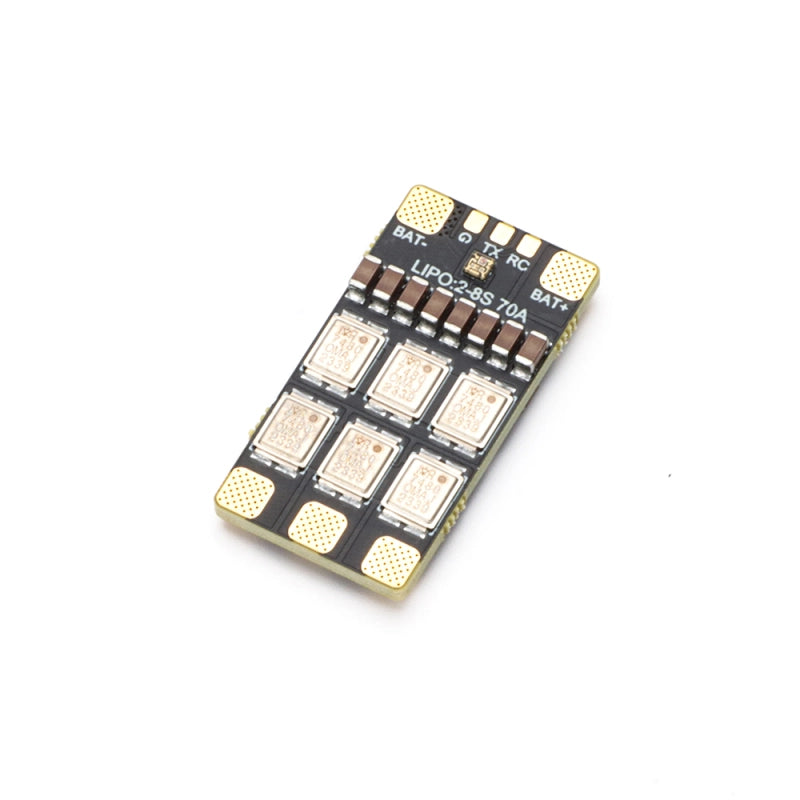

MAD AM32 70A 2-8S ESC

In stock
Usually ships within 24 hours
Regular price $79.00
Product details
  • Vendor Unmanned RC

Core Specifications

  • Current: 70A continuous / ~90A burst (5s)

  • Voltage: 3-8S LiPo (11.1V-33.6V)

  • Firmware: AM32 (open-source)

  • Protocols: DShot (300-1200), Multishot, PWM

  • Special Features:

    • Bidirectional DShot (RPM telemetry)

    • Active Freewheeling (reduces heat)

    • Customizable PWM frequency (up to 48kHz)

      . Optimal Use Cases

      Application Recommended Setup Notes
      5" Freestyle 2306 1950kV + 6S Cap at 48kHz for silky throttle
      7" Long Range 2507 1200kV + 8S Monitor ESC temps closely
      Cinewhoop 1404 3800kV + 4S Lower timing to 12°
