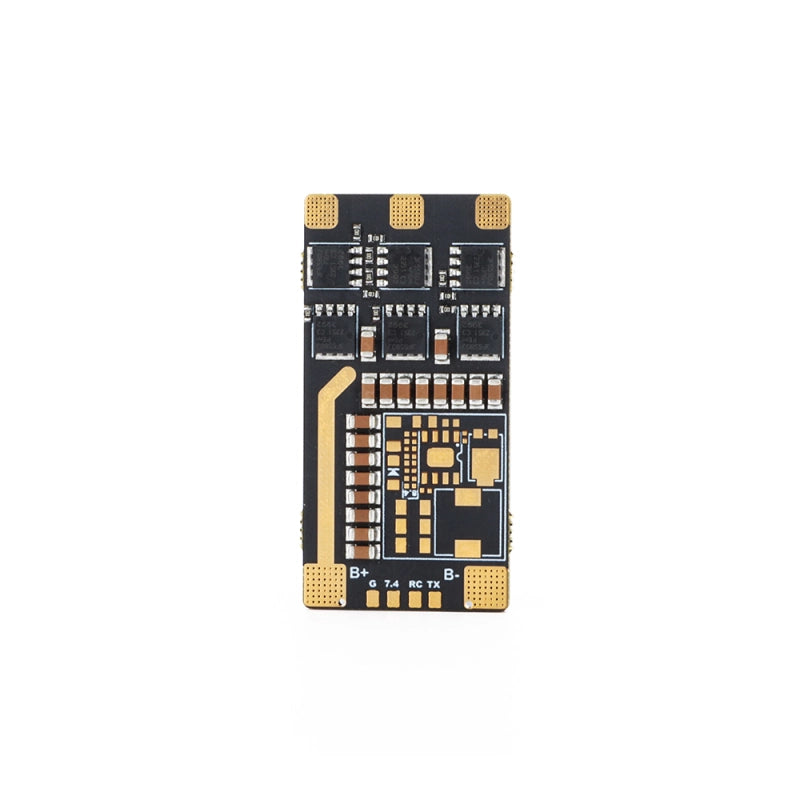

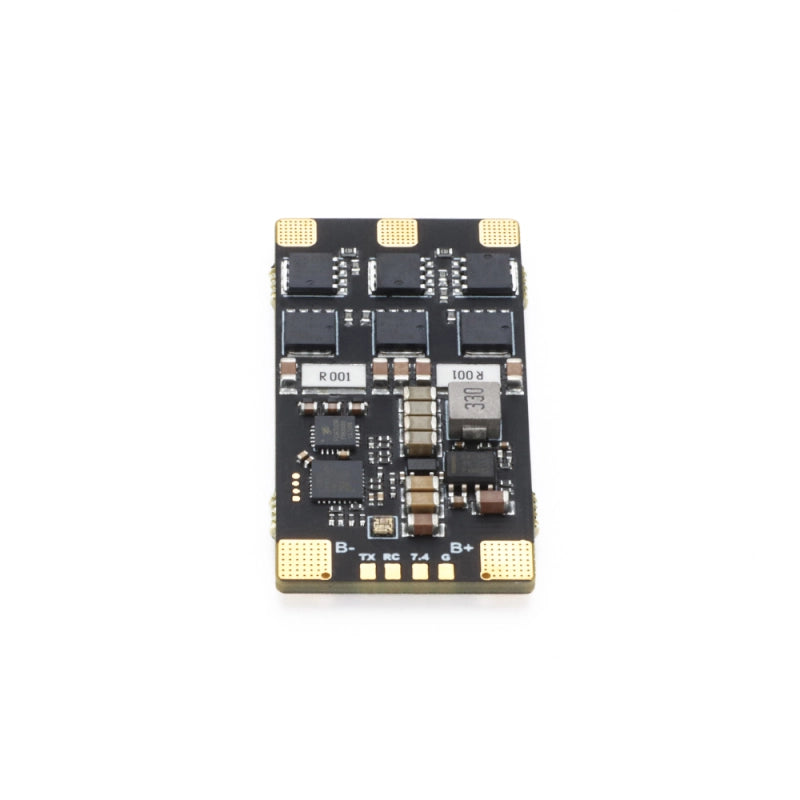

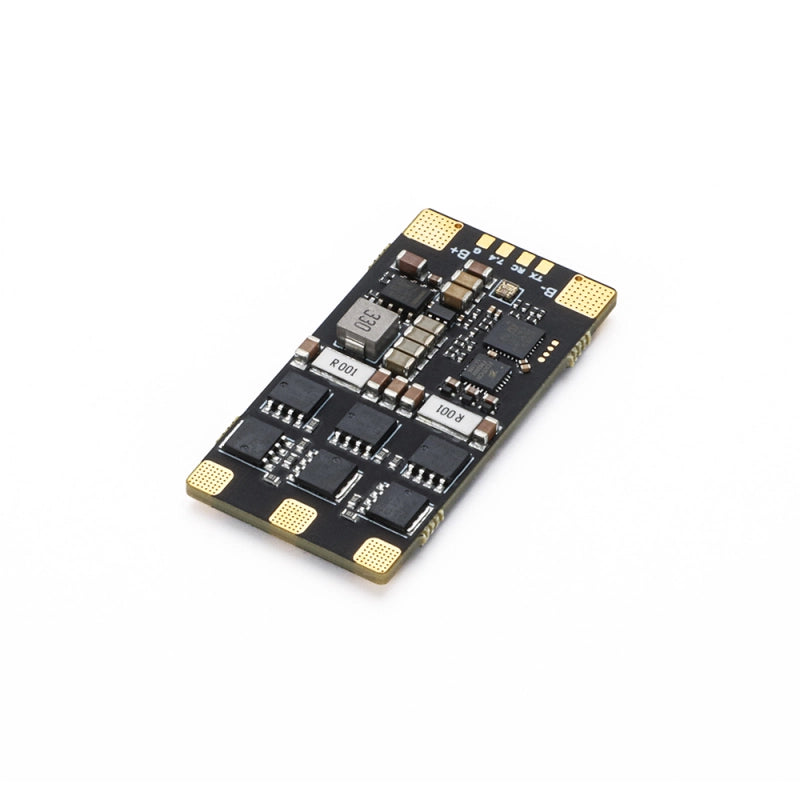

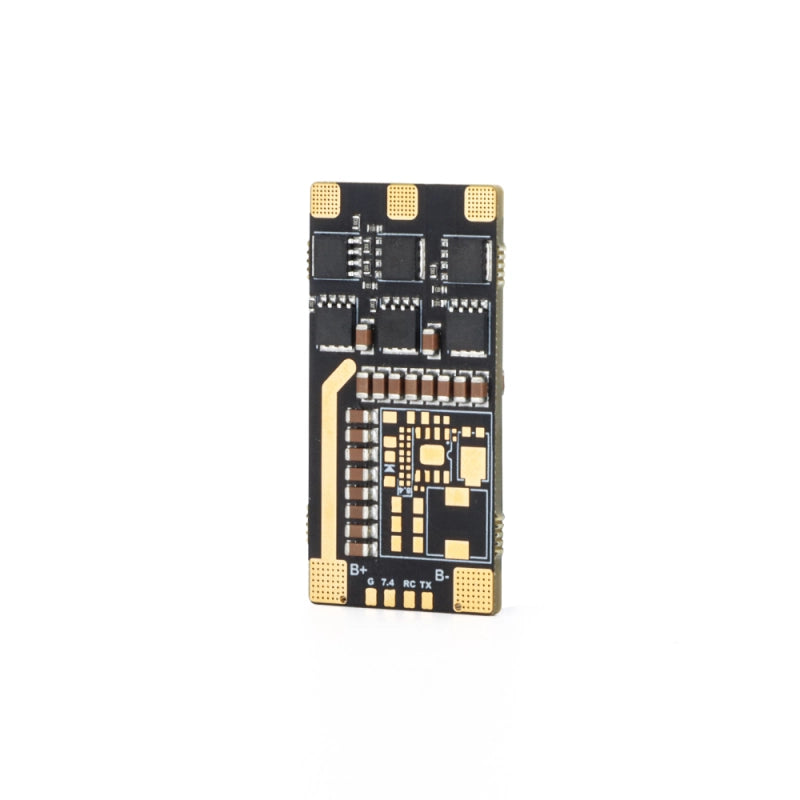

MAD AM32 100A 12S ESC
Usually ships within 24 hours
Regular price
$89.00
Couldn't load pickup availability
1. Hardcore Specifications
-
Current Handling:
-
Continuous: 100A (real-world sustained)
-
Burst (5s): 150A+ (with proper cooling)
-
-
Voltage Range: 3-12S LiPo (11.1V-50.4V)
-
Firmware: AM32 (supports BLHeli_32 parity features)
-
Key Upgrades:
-
600MHz ARM Cortex processor (vs 480MHz in typical BLHeli_32)
-
96kHz PWM capability (ultra-smooth operation)
-
Dual-wire current sensing (±1% accuracy)
Nuclear-Grade Setup
Wiring:
-

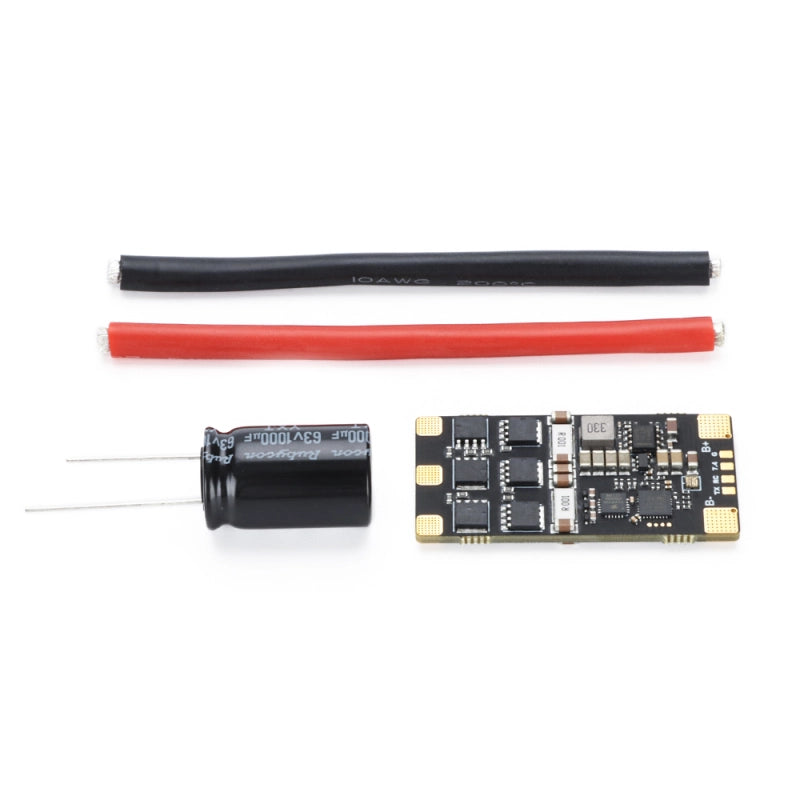

Battery Input: XT90H + 2× 1000μF 63V capacitors (mandatory for 12S)
-
Signal Lines:
-
Double-shielded 28AWG for DShot1200
-
Optical isolation recommended for >10S builds
-
Thermal Management:
-
Minimum Cooling:
-
4mm copper baseplate + 30×30mm heatsink
-
12V 40mm fan (≥7CFM) for sustained >80A
-
-
Extreme Cooling:
-
Vapor chamber + liquid cooling loop (for 150A bursts)
-
-
-
