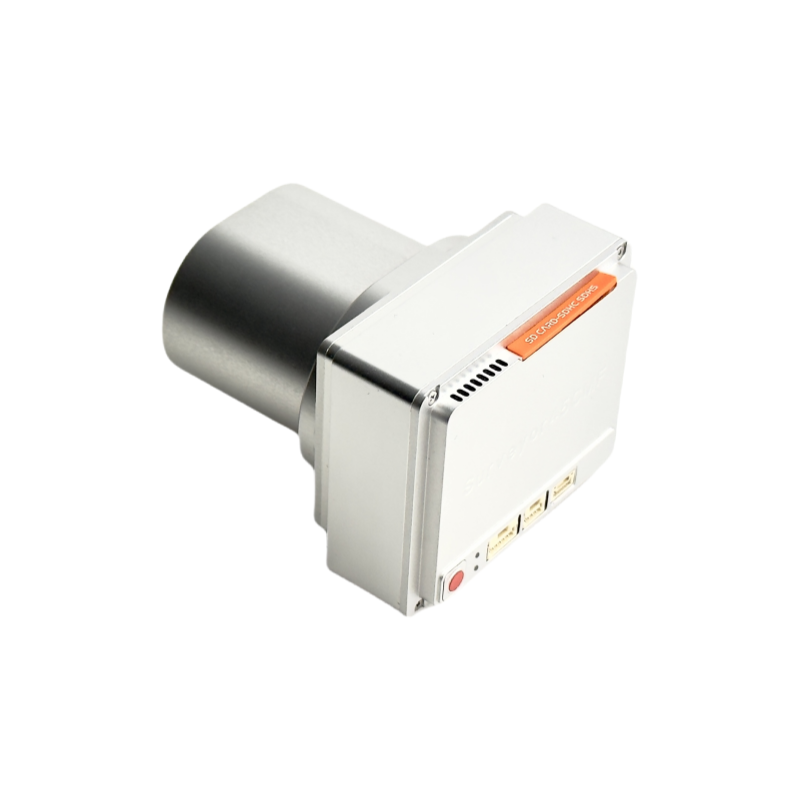

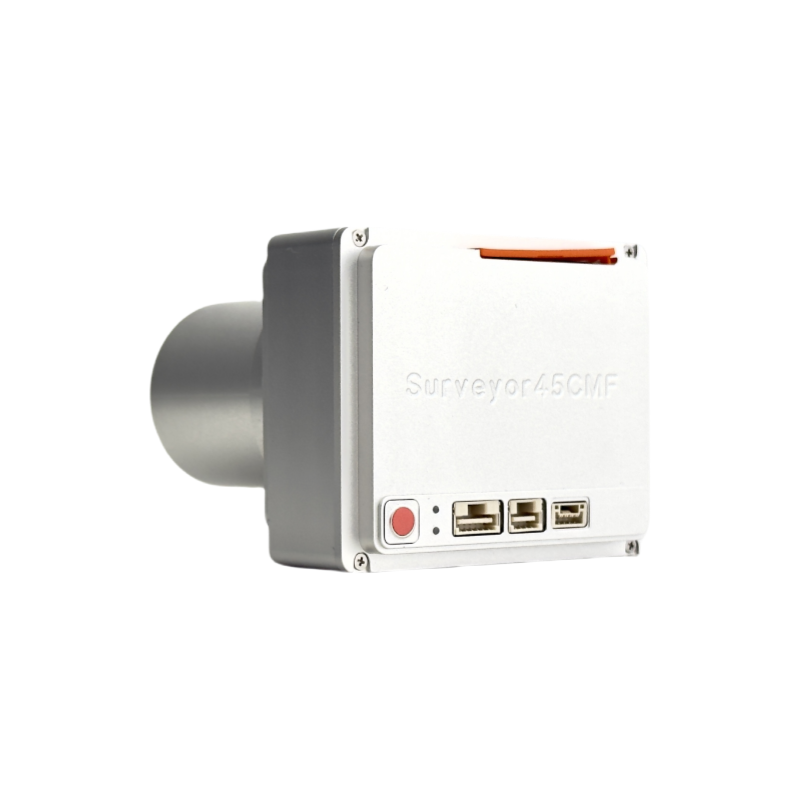

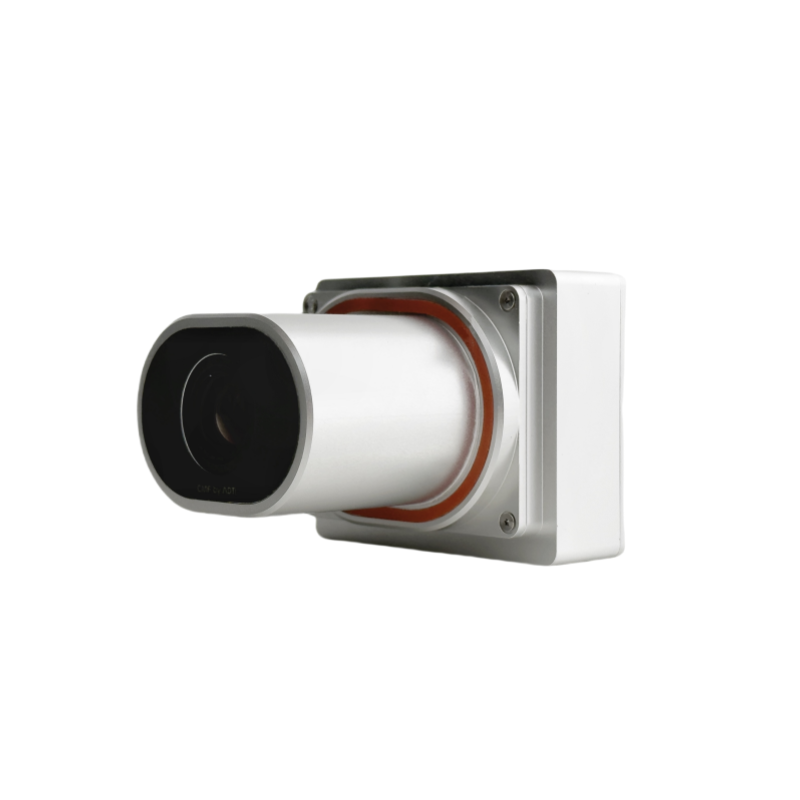

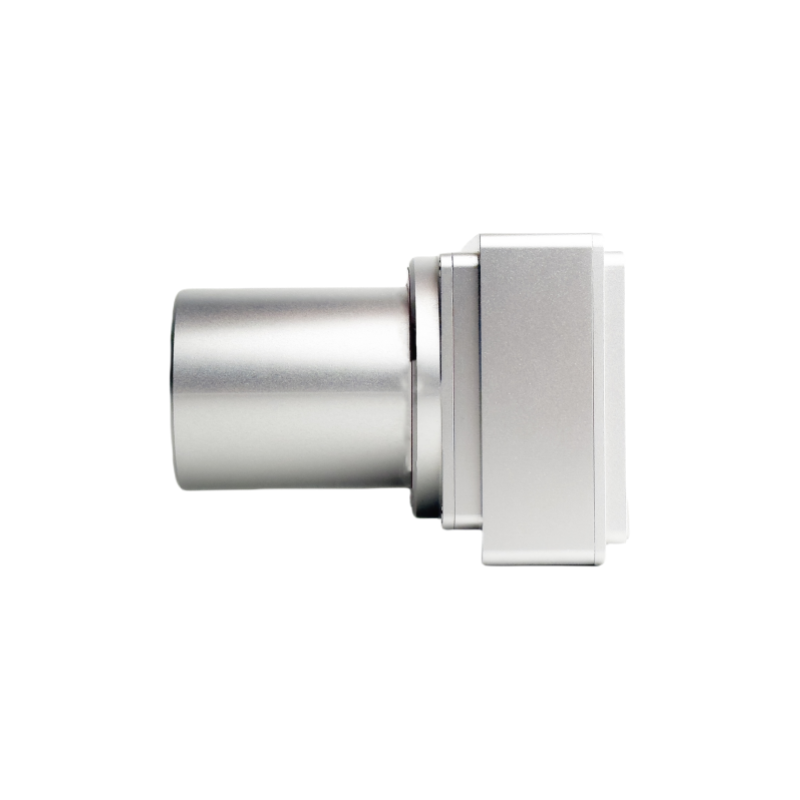

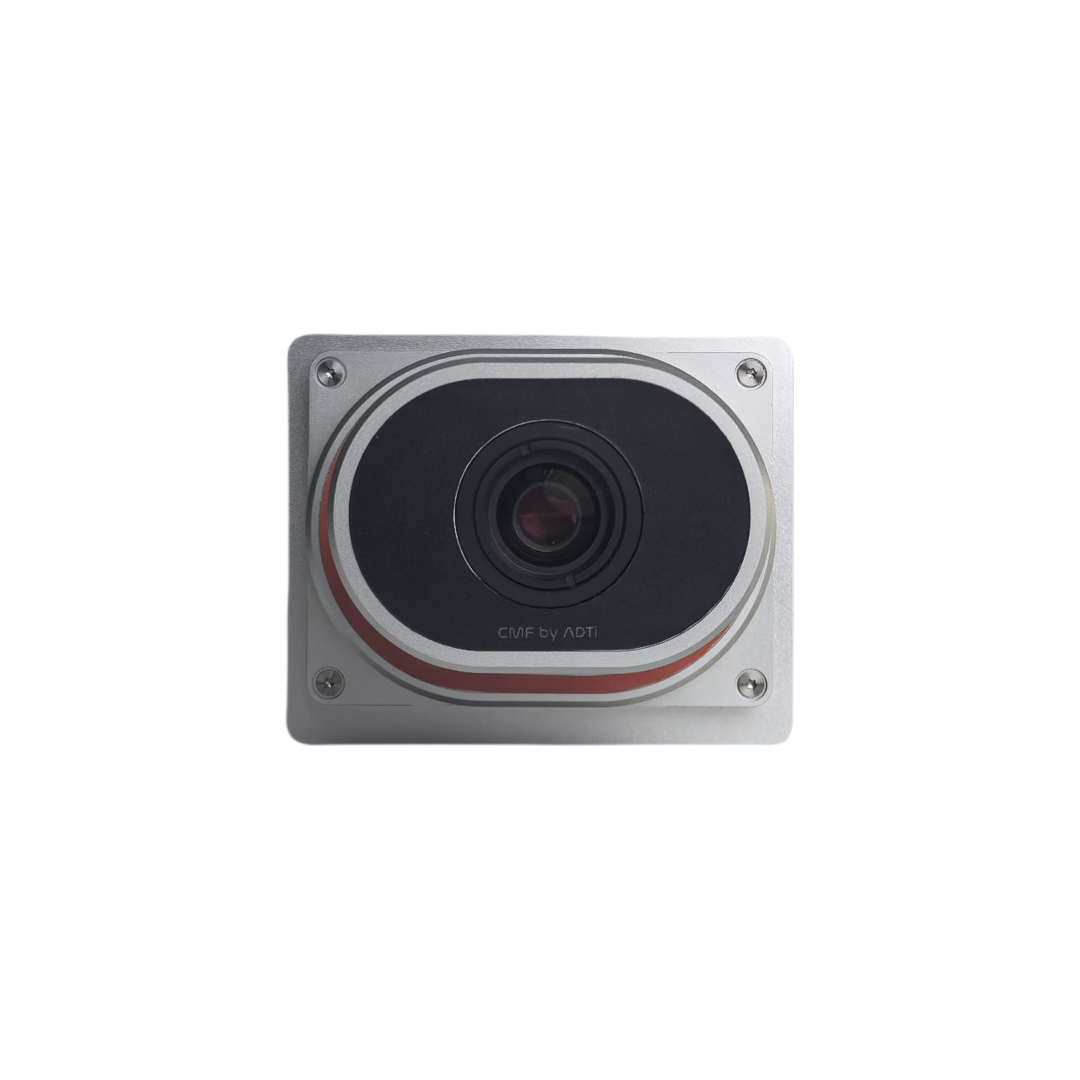

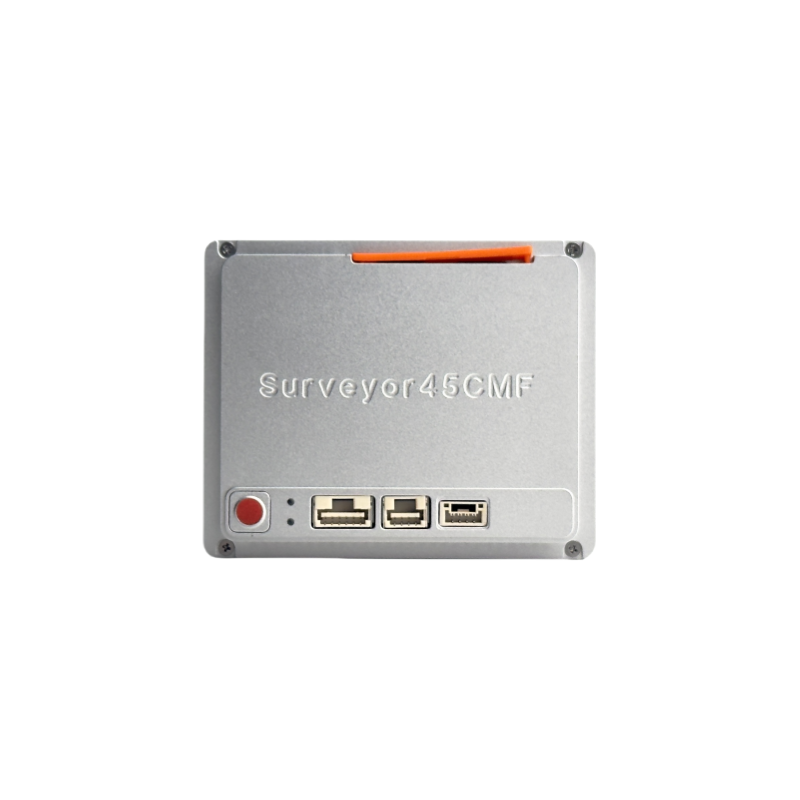

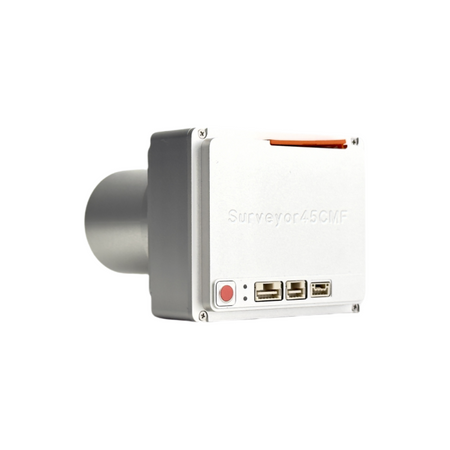

ADTi 45MP 45CMF Surveyor Drone Mapping Cameras

Introducing ADTI latest 45MP full frame camera with Sony IMX 366 image sensor-the ADTi 45CMF camera module, which is an ADTI self-developed 45MP full frame camera module, it adopts CMF design that focuses on the chromatic, tactile and decorative identity of industrial camera product. What's more, our engineers considered the product's application in the drone environment, so this product has extremely light weight, extremely small size, and all-aluminum heat dissipation performance.

It also drive control circuit and image processing algorithm. It can open the SDK control protocol to users. ADTi customize and develop surveying and mapping lenses of various focal lengths, and customized the mechanical global intermirror shutter with higher reliability. also features:

• Full frame Sony CMOS back-illuminated sensor.
• mechanical shutter combined with fixed focus lenses.
• Built-in Multi-Interface hot shoe output for PPK
• Directly Geo-tagging function with Pixhawk (need ADTI POS
• &CTRL unit)
• full aluminum structure
• Ethernet Port for live video stream
• lightweight!-only 179g with lens

45CMF Camera consists of Sony IMX366 sensor with Socionext Imaging processor-Milbeaut®, which capture high quality images, with low heatup.

For directly getagging from Pixhawk flight controller, you will need to purchase the ADTI POS&CTRL unit separately.

Image Sensor

Sensor Type:CMOS
Sensor Manufacturer:Sony
Sensor model: Sony IMX 366 back-illuminated
Effective Megapixels:44.7
Sensor Format:full frame
Sensor size:876mm2 (36.5*24mm) , 8192 x 5460
Pixel Type:4.4 μm (H) × 4.4 μm (V)
Aspect Ratio:3:2
Expo interval: ≥0.5s

Image Capture

Image Resolution:
8192 x 5460(45 MP, 3:2)

Image File Format:JPEG

Shutter:

Shutter Type: Lightweight inter-mirror mechanical, replaceable
Shutter speed: 1/100 to 1/10000
Continuous-mode frames/second:2.0
Expo interval: ≥0.5s


Video Capture

Video Resolution:
1920x1080 (60p(28Mbps)
640x480 (30p(3Mbps))
Video File Format: MP4
HD Video Out:Yes
HD Video Connection:HDMI

Lens & Optics

21mm fixed lens:
Manual fixed focus (ortho)NON-interchangeable
FOV: D 92° H 81° V 60°
distortion<0.3%
Auto Focus No
Manual Focus Yes
Focusing range: 50 meters to infinity
Aperture fixed F5.6

35mm fixed lens:
Manual fixed focus (ortho)NON-interchangeable
52mm equivalent Focal Length
FOV: D 57° H 48.6° V 33.4°
distortion<0.037%
Auto Focus No
Manual Focus Yes
Focusing range: 50 meters to infinity
Aperture fixed F5.6

50mm fixed lens:
Manual fixed focus (ortho)NON-interchangeable
24.5mm equivalent Focal Length
FOV: D 42.2° H 35.6° V 24.3°
distortion<0.3%
Auto Focus No
Manual Focus Yes
Focusing range: 50 meters to infinity
Aperture fixed F5.6

Camera

Camera Size:  7.0*5.7*8.0 cm
Weight with lens: 190 g (21MM lens), 179g (40MM or 56MM lens)
Package Size: 14.5*10*6 cm
Package Weight: 800 g
Power: 12-28V DC Lipo or Liion
Operating Temperature: -10 to 40°C
