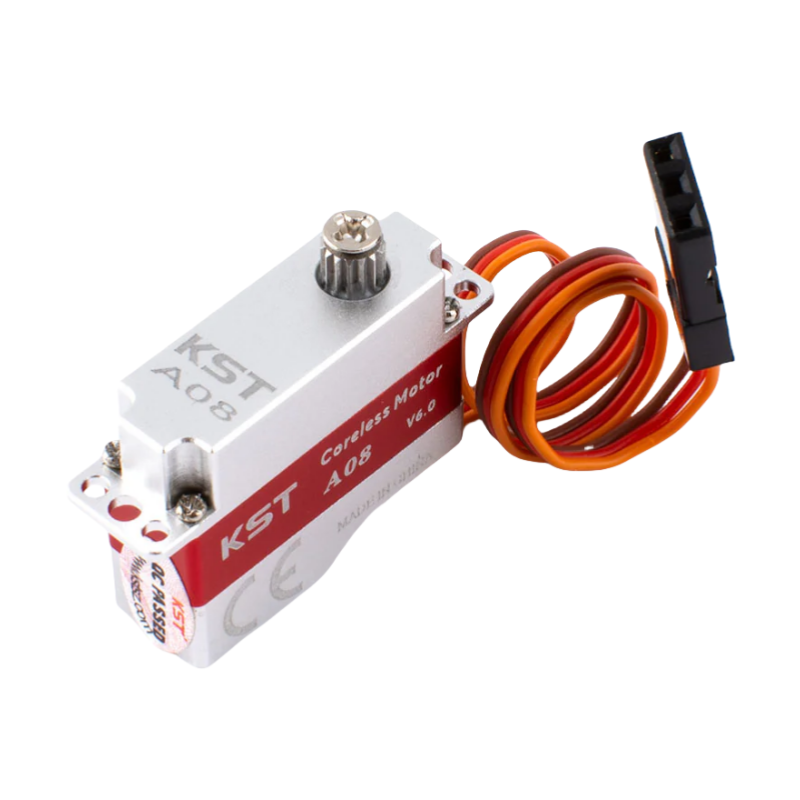

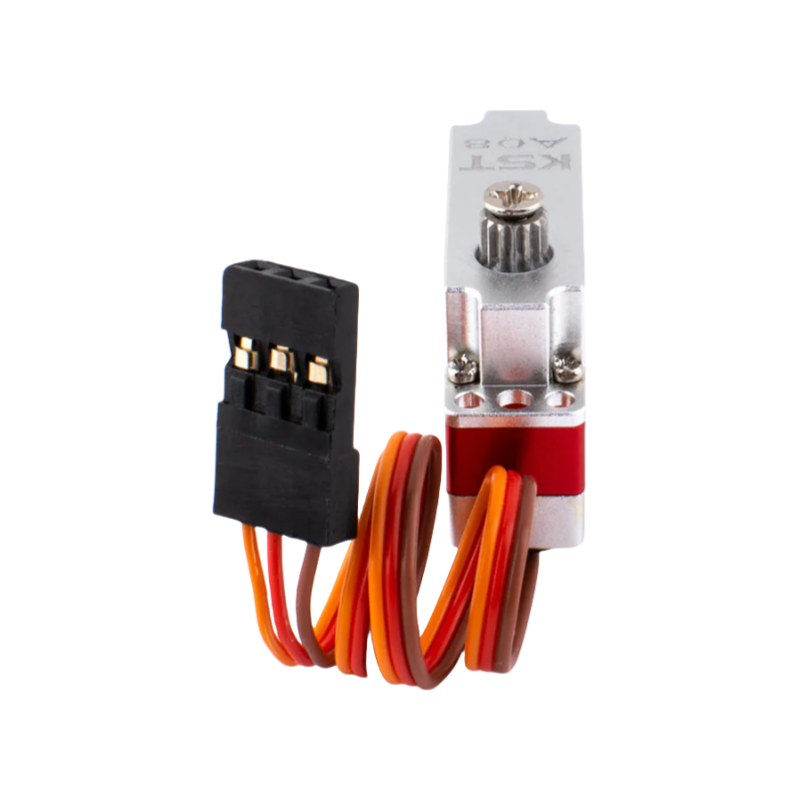

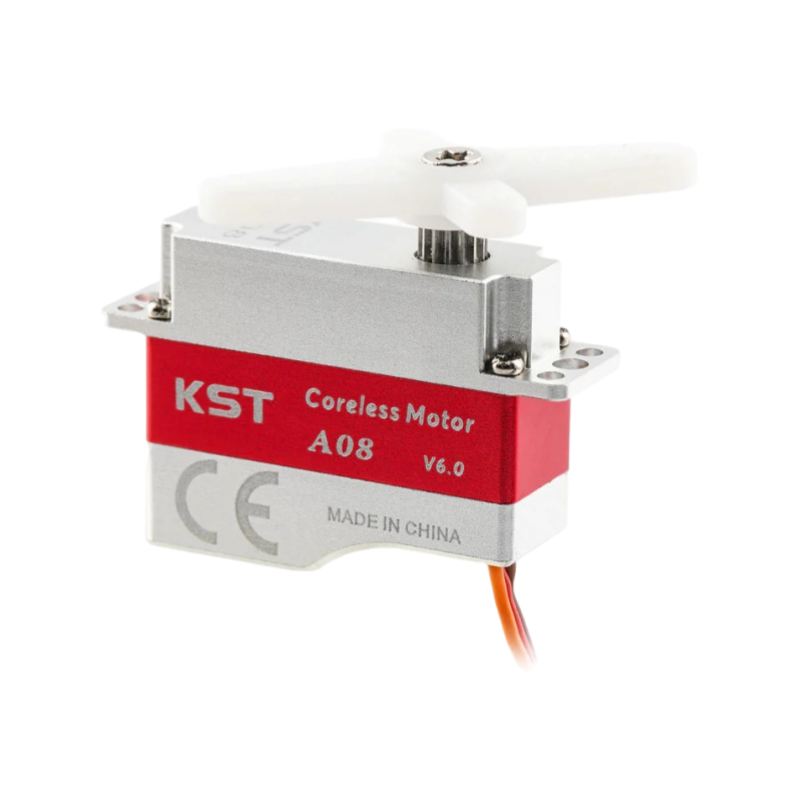

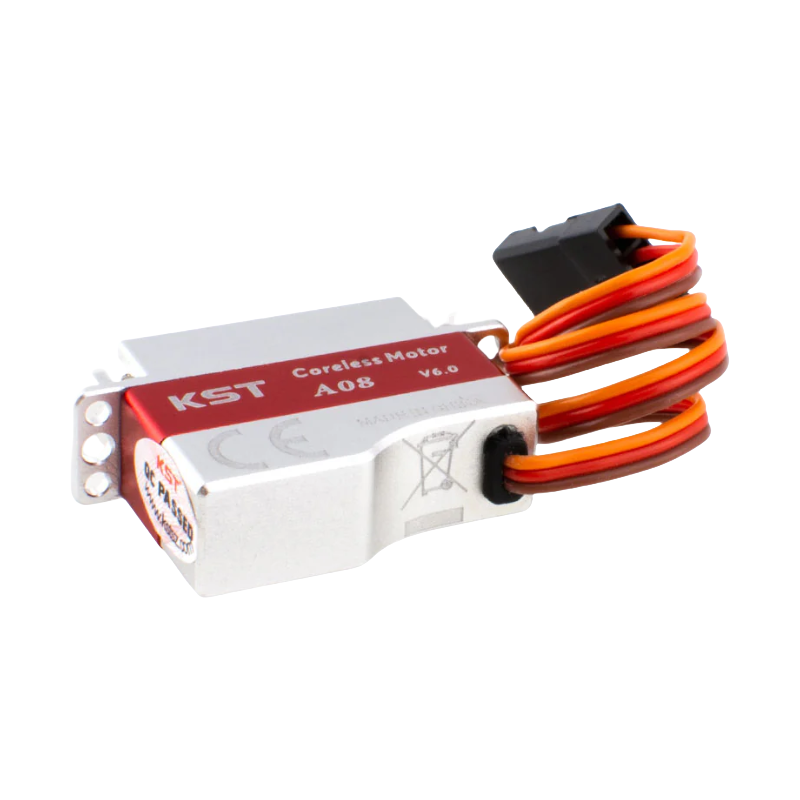

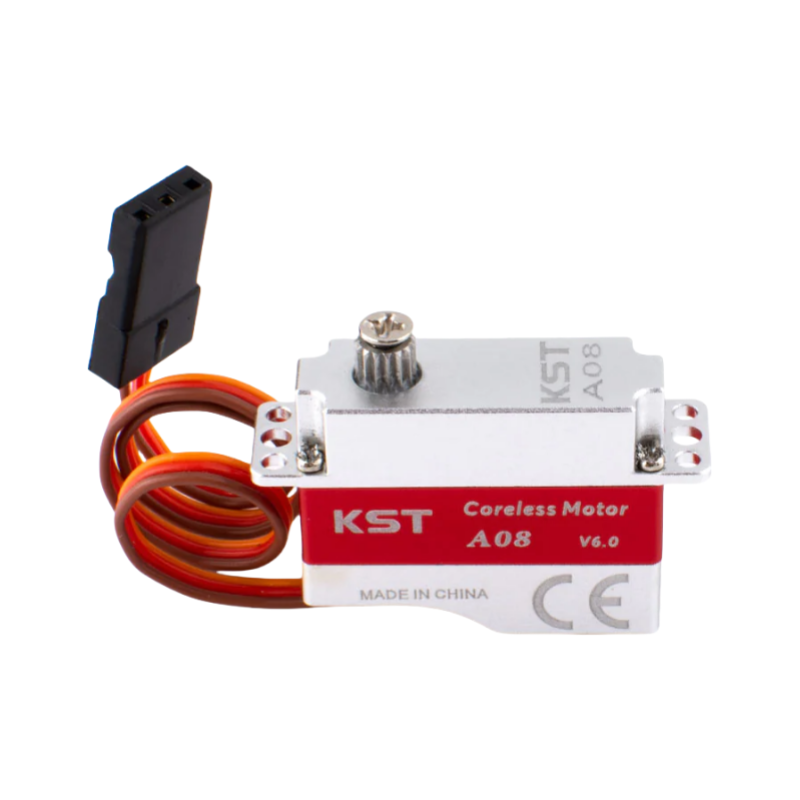

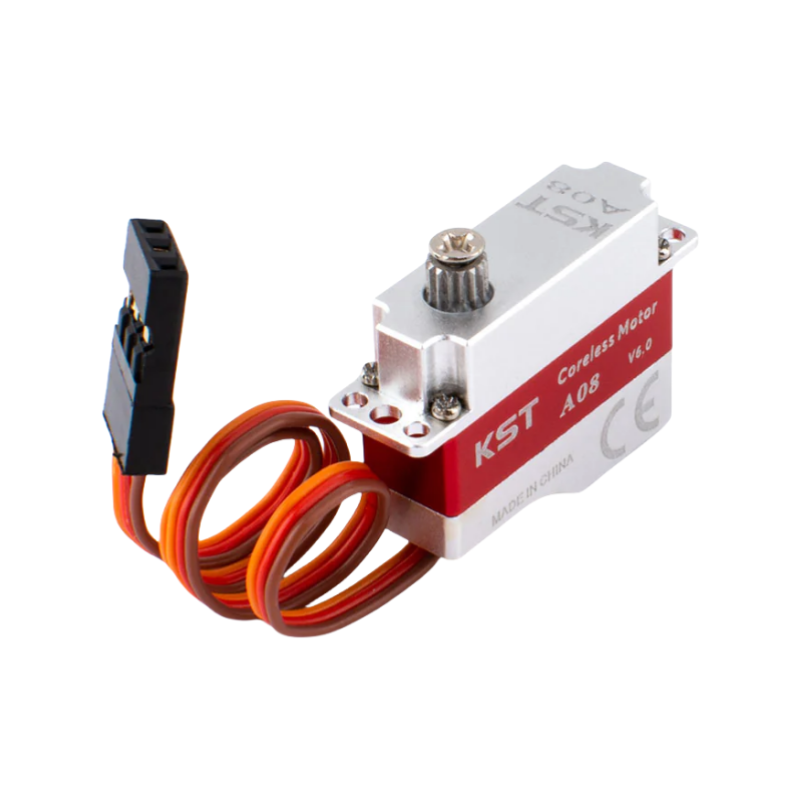

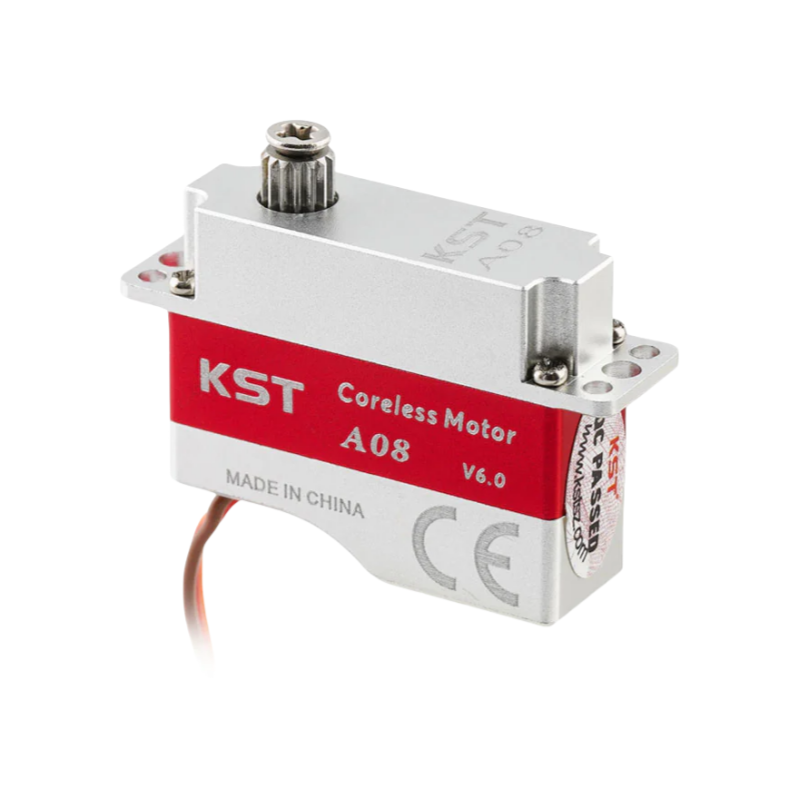

KST A08 V6.0 Coreless Metal Gear HV Micro Servo 3.2Kgf.cm 0.09sec for Glider DLG

If you're looking for the best high-performance servo for your DLG, F5K glider, or any other demanding model that demands a reliable, precise, and high-torque servo, the A08 V6 is for you.

The brand new A08 V6 series servos are the next step up in KST's high-performance micro servo range. Even though it looks similar to the X08 servos at first glance, is high-voltage capable, and is also 8mm thick, the similarities end there. The A08 V6 is an all-around upgrade.

The A08 V6 uses a brand new gearset, designed for higher precision and more resistance to damage. The motor is completely encased to prevent accidental damage to the wiring and motor. Even though the A08 V6 is shorter than the X08 servos, the torque remains the same high-torque output to properly hold the center and prevent flutter.

For advanced users, the A08 V6.0 is programmable via the KST Tool Card #1/ KST Tool Card #5 to adjust the servo's endpoints, center, and direction for perfect installations.

Features

• Compact and lightweight design
• Excellent torque and speed
• Programmable
• Designed for high-performance RC Gliders
• Excellent heat dissipation

Specification

• Item: A08 V6.0 Micro Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC3.8V-7.4V
• Torque: 1.4Kgf.cm@3.8V / 2.2Kgf.cm@6.0V / 2.8Kgf.cm@7.4V / 3.2Kgf.cm@8.4V
• Speed: 0.20sec/60°@3.8V / 0.13sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V
• Working Frequency: 1520μs/333Hz

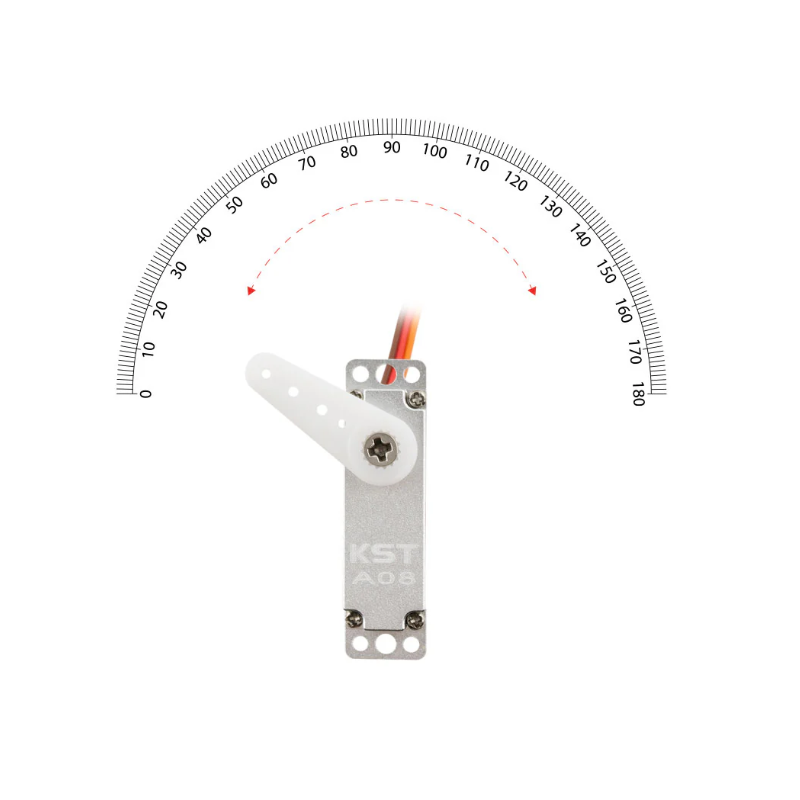

• Default Travel Angle: ±60° =120° Total
• Temperature Range: -10℃.......+65℃
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB

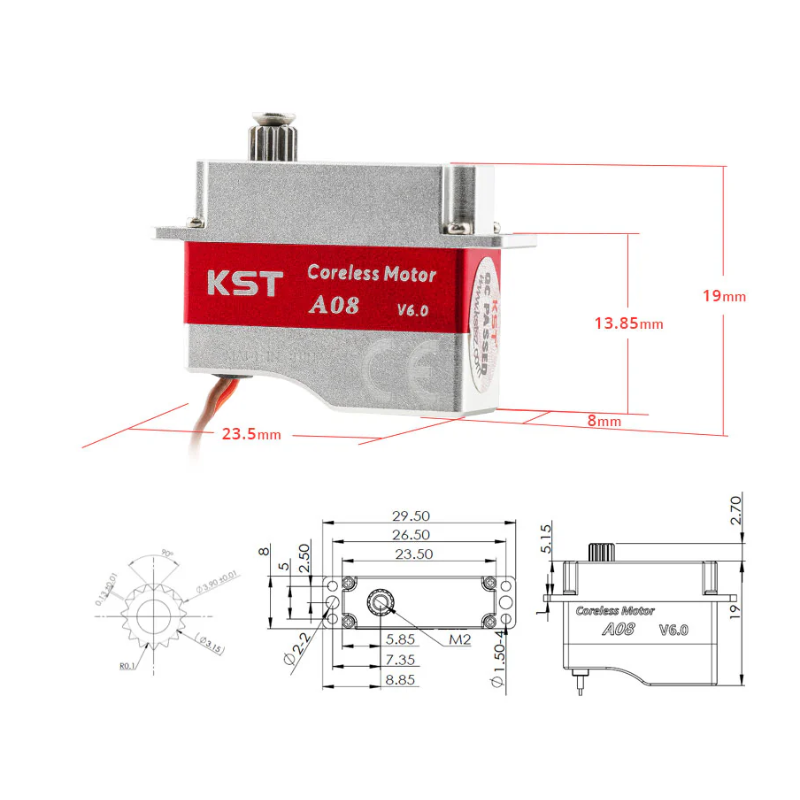

• Case Dimensions: 23.5mm*8mm*19mm±0.2mm
• Weight: 7g±10%

Size

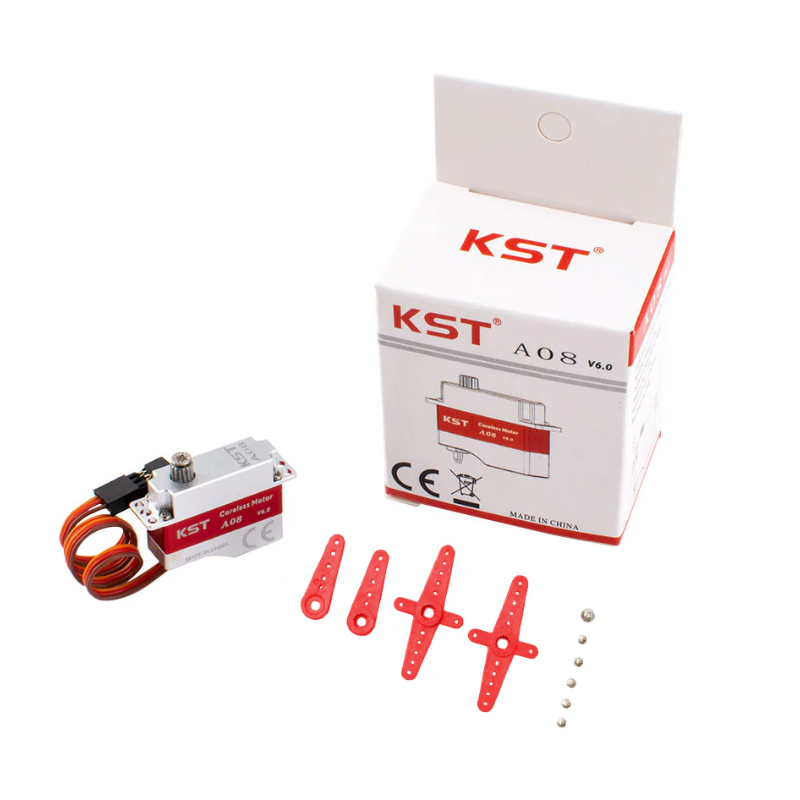

Package Includes

• 1 * A08 V6.0 Micro Servo
• 4 * Plastic Servo Horn
• 4 * Mounting Screw
• 1 * Servo Horn Screw
