MAD 8112 IPE Silver Drone Motor
Couldn't load pickup availability
About 8112 IPE Drone Motor
Positioning:
• Optimized for industrial drones and professional mapping applications.
• Built for 12S voltage systems with an emphasis on longevity and lightweight structure.
• 5% lighter than typical 81-series motors, ideal for extended flight time and efficiency.
• Silver housing offers improved heat dissipation in high-temperature environments.
Key Features:
✔ Built-in cooling fan accelerates airflow and enhances thermal performance.
✔ 36N40P multi-slot multipole design delivers strong torque and responsiveness.
✔ High-grade bearings ensure smooth, stable operation over extended use.
Perfect for:
• Precision aerial mapping and survey drones.
• Industrial UAVs operating in hot climates or under prolonged workloads.

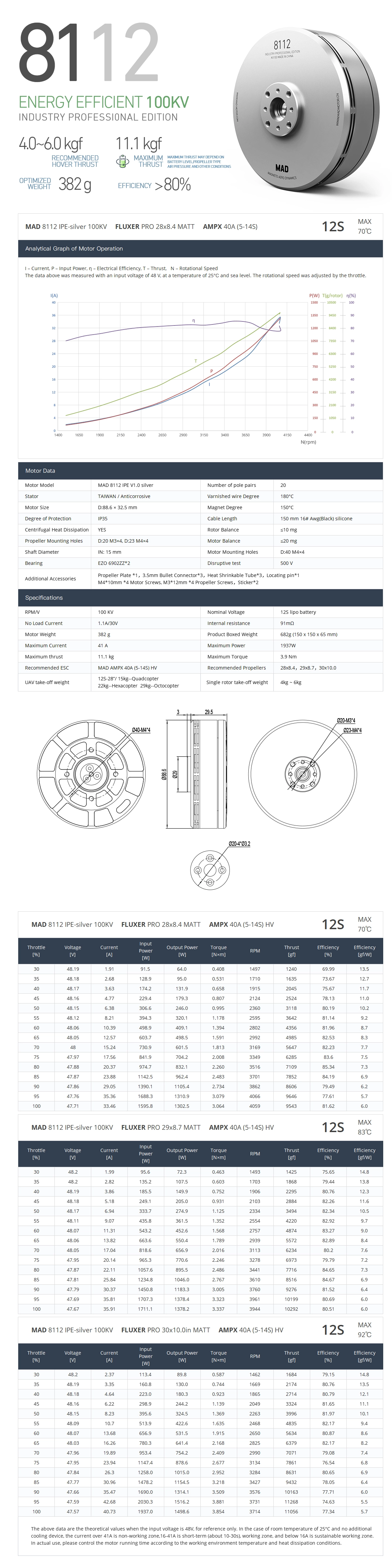

Motor Data |
|||
| Motor Model | MAD 8112 IPE V1.0 silver | Number of pole pairs | 20 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.6 × 32.5 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:40 M4×4 |
| Bearing | 6902ZZ*2 | Disruptive test | 500 V |
