MAD 5010 IPE V3.0 Drone Motor
Usually ships within 24 hours
Regular price
$88.00
Couldn't load pickup availability
| Sustained thrust: | 1.5-2kg |
| Max thrust: | 5.2kg |
| Support voltage: | 200KV/12S; 240KV/6S; 310KV/6S; 310KV/6S; |
| Weight: | 181g; 177g; 176g |
| Specification |
|||||||||
| Motor Model |
MAD 5010 IPE V3.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 31.3 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4, D:15 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4 | ||||||
| Bearing | 696ZZ*2 |
Disruptive test |
500 V |
||||||

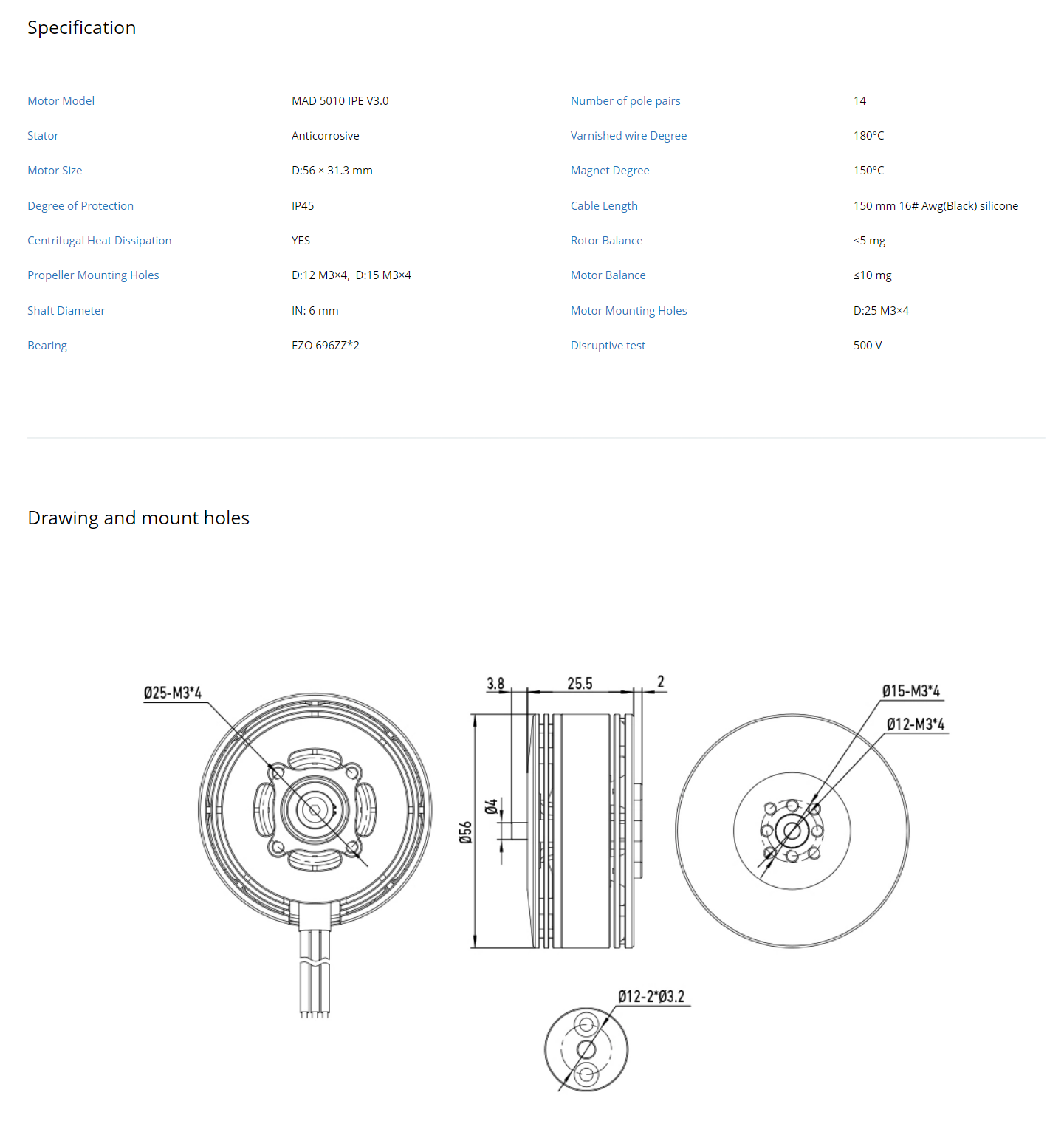

| Drawing and mount holes | |||||||||
