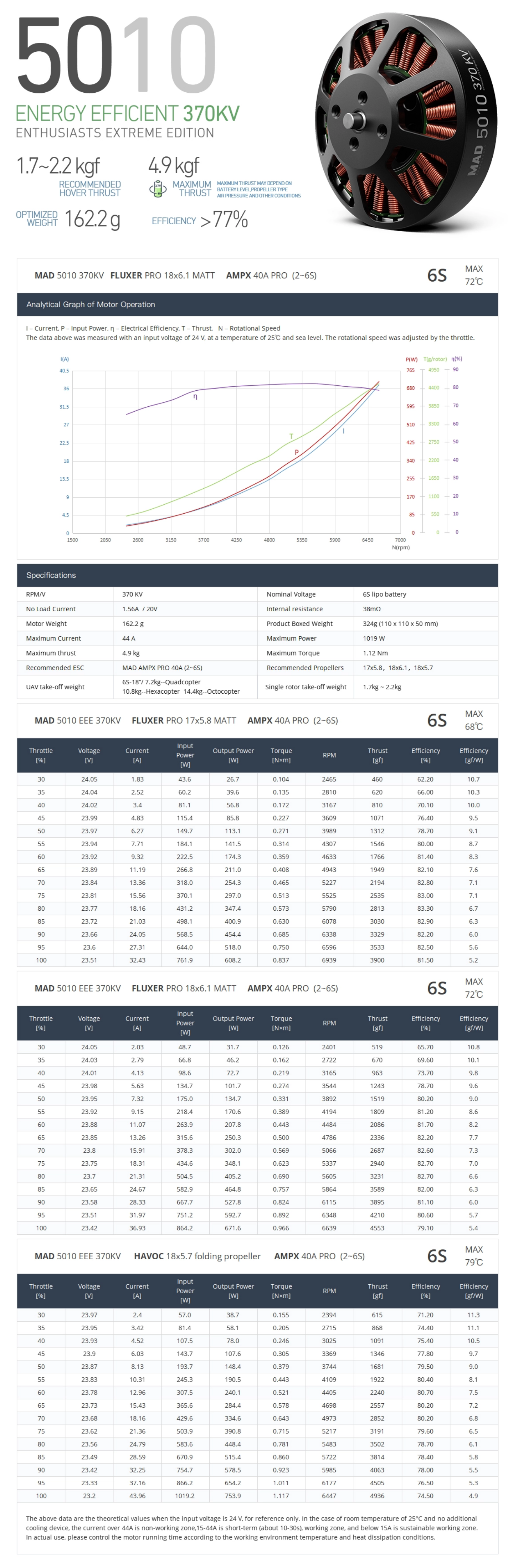

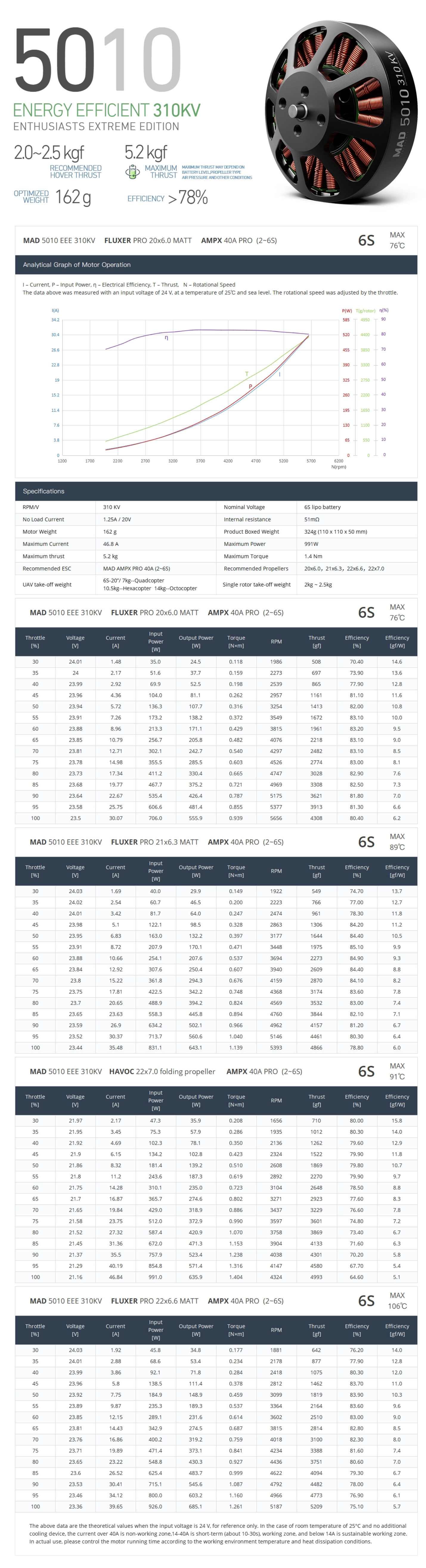

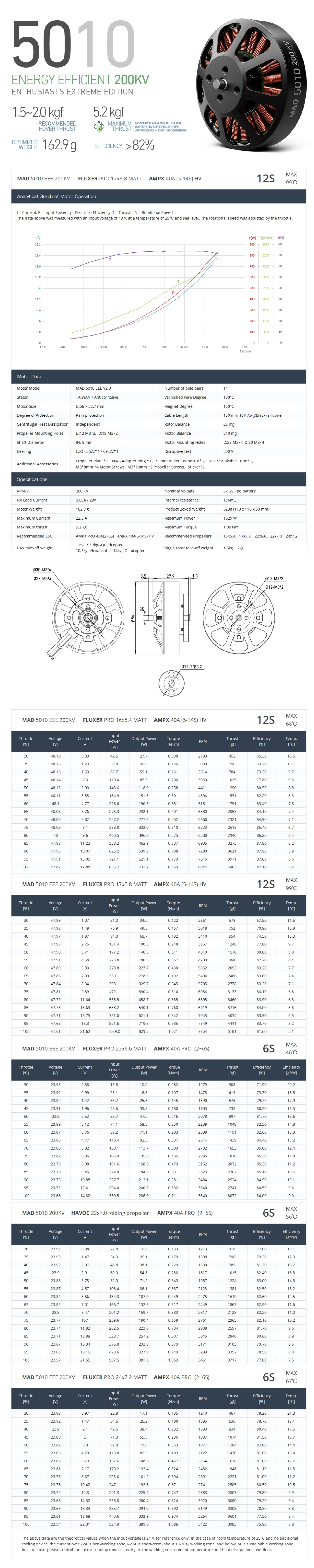

MAD 5010 EEE V2.0 brushless drone motor

Key Specifications & Advantages

⚡ Thrust-Optimized Performance

• Continuous Thrust: 1300–2500g per motor (Ideal for stable, efficient operation)

• Peak Burst Thrust: 5200g per rotor (For critical maneuvers or emergency recovery)

• Propeller Range: 16–24" carbon fiber

  • 24" Props: Max efficiency for heavy lifting

  • 16" Props: Agile response for high-speed applications

🛡️ Built for Industrial Durability

• Ultralight Design: Just 162g/motor (Reduces dead weight without sacrificing power)

• Aerospace-Grade Materials: Precision bearings, reinforced alloy housing

• Thermal Resilience: Optimized for sustained high-load operation

Design Considerations
- Thrust-to-Weight Ratio:
  - For a quadcopter: Total max thrust = 4 × 5200g = 20,800g.
  - Aim for a **total drone weight** (including payload) ≤ 10,400g (2:1 ratio) for agility or ≤ 14,560g (1.43:1) for heavy lift.
  - Example: A 10kg drone could achieve 2:1 thrust-to-weight, enabling aggressive maneuvers.
Power System:
 ESC: Likely requires 40–60A ESCs (check motor specs for exact current draw at max thrust).
Battery: High-voltage (6S–12S LiPo) to balance RPM and efficiency. A 6S 10,000–20,000mAh pack is typical for endurance.
Thermal Management:
  - Ensure adequate cooling (e.g., airflow, heat sinks) if operating near max thrust intermittently.
Use Cases
Cinematography: Stable payload capacity for cameras/gimbals.
Agriculture: Spraying systems or sensor payloads.
Delivery Drones: Capable of lifting packages up to ~8–10kg (depending on frame/battery weight).

Optimization Tips
Propeller Selection: Test 18–22" props to balance thrust and efficiency for your specific payload.
Battery Choice: Higher capacity (mAh) increases flight time but adds weight—simulate trade-offs.
Frame Design: Ensure rigidity to handle 24" props and motor vibrations.
By aligning the MAD5010 EEE's capabilities with these considerations, you can build a robust UAV tailored to demanding applications.
