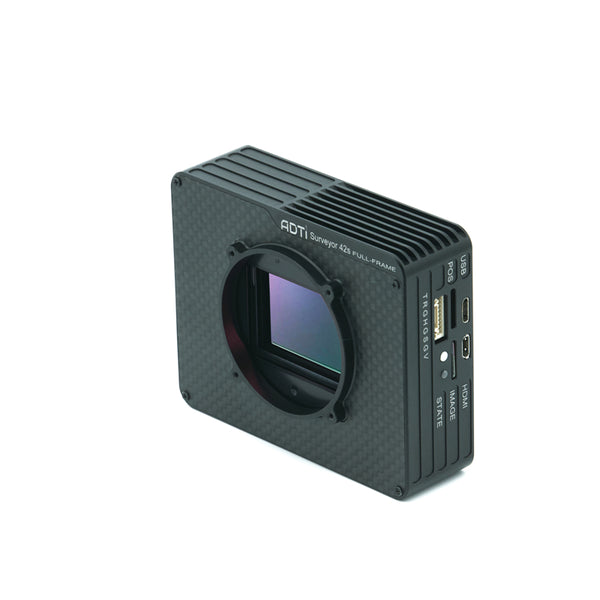

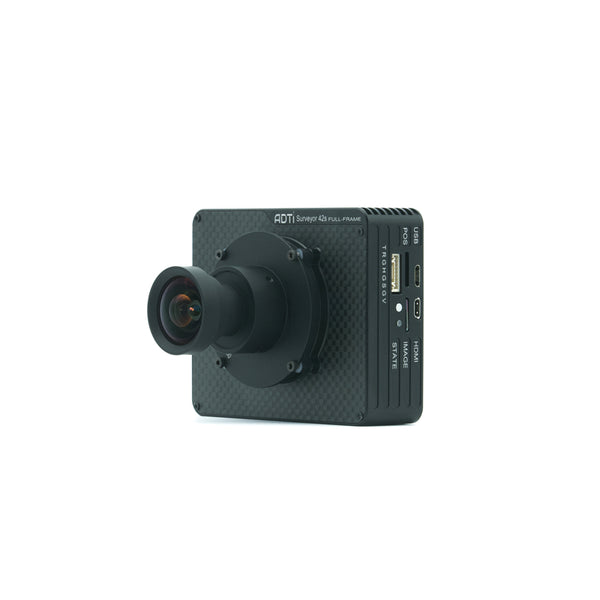

ADTi 42MP 42L Surveyor Drone Mapping Cameras

ADTi 42MP FULL FRAME mapping camera Surveyor 42L is a high resolution and light-weight full frame mapping camera, it is also lighest full frame drone mapping camera, and it features:

• 42 megapixel full-frame Sony CMOS sensor.
• compatible with ADTI 18mm, 40mm, 50mm, and 56mm full frame lenses
• Bionz X image processor.
• Built-in Multi-Interface hot shoe output for PPK
• Top dynamic range and very low noise
• Industrial aluminum + carbon fiber design
• compatible with Airpixel Entire for MAVlink
• 152g weight

Image Sensor

Sensor Type:CMOS
Sensor Manufacturer:Sony
Effective Megapixels:42.4
Sensor Format:full frame
Sensor size:861.6mm2 (35.90mm x 24.00mm)
Approximate Pixel Pitch:4.51 microns
Focal Length Multiplier:1.0x
Aspect Ratio:3:2
Color Filter Type:RGBG
Anti Aliasing Filter:None
Color Depth （bits):26
Maximum Effective ISO:3,434

42L is compatible with Airpixel R3 for geotagging and MAVlink.

It only works with ADTi lightweight FF lenses including:18MM FF, 50MM FF, and 56MM FF. Please note it is not Emount lens compatible.

It is compatible with Gremsy Pixy S 3-axis camer gimbal.

It also works with ADTI 2-Axis nadir fixed wing gimbal as well.

Image Capture

Image Resolution:
7952 x 5304 (42.2 MP, 3:2),
5168 x 3448 (17.8 MP, 3:2),
3984 x 2656 (10.6 MP, 3:2),
7952 x 4472 (35.6 MP, 16:9),
5168 x 2912 (15.0 MP, Other),
3984 x 2240 (8.9 MP, 16:9),
5168 x 3448 (17.8 MP, 3:2),
3984 x 2656 (10.6 MP, 3:2),
2592 x 1728 (4.5 MP, 3:2),
5168 x 2912 (15.0 MP, Other),
3984 x 2240 (8.9 MP, 16:9),
2592 x 1456 (3.8 MP, 16:9),
12416 x 1856 (23.0 MP, Other),
5536 x 2160 (12.0 MP, Other),
8192 x 1856 (15.2 MP, Other),
3872 x 2160 (8.4 MP, Other)
Image File Format:JPEG, RAW (14-bit ARW 2.3), RAW+JPEG
Continuous-mode frames/second:5.0

Video Capture

Video Resolution:
3840x2160 (30p/​25p/​24p)
1920x1080 (60p/​60i/​50p/​50i/​24p)
1280x720 (30p/​25p)
1280x720 (120p)
Video File Format:XAVC S / AVCHD 2.0 / MP4; Audio: LPCM / Dolby Digital (AC-3) / MPEG-4 AAC-LC, stereo
HD Video Out:Yes
HD Video Connection:HDMI

Lens & Optics

Lens Mount:Sony E
Auto Focus: Yes
Manual Focus: Yes

Shutter Type:Mechanical shutter
Speed:1/8000-30sec

Camera

Camera Size:  9.2*7.4*3.1 cm
Camera Weight (body): 152 g
Package Size: 50*50*25 cm
Package Weight: 800 g
Power: 10-25V DC Lipo or Liion
Operating Temperature: -10 to 40°C

Please note: 42L is not E-mounted camera, so it is only compatible with ADTI full frame lenses:

ADTI 18MM full frame lens

ADTI 40MM full frame lens

ADTI 50MM full frame lens

ADTI 56MM full frame lens

 Please Click Here for User Manual
