MAD 4008 IPE Drone Motor 380KV/600KV
Usually ships within 24 hours
Regular price
$72.00
Couldn't load pickup availability
About 4008 IPE
Core Performance
▸ Payload Capacity: 700-1300g/rotor
▸ Propeller Optimization: 14-18" high-load carbon fiber
▸ Max Thrust: 2700g (2.7kg) per rotor
▸ Weight: 93.3g (with integrated heat dissipation)
Professional Applications
1. Heavy-Lift Cinematography
-
Safely carries RED V-RAPTOR + 360° gimbal (2.1kg payload)
-
Silent operation for film-set environments.
2. Industrial Logistics
-
5km+ delivery range with 1.5kg cargo.
-
Vibration-free for medical transport.
3. Defense & Surveillance
-
Stealth operation (IR signature reduced by 40%)
-
EMP-hardened version available.

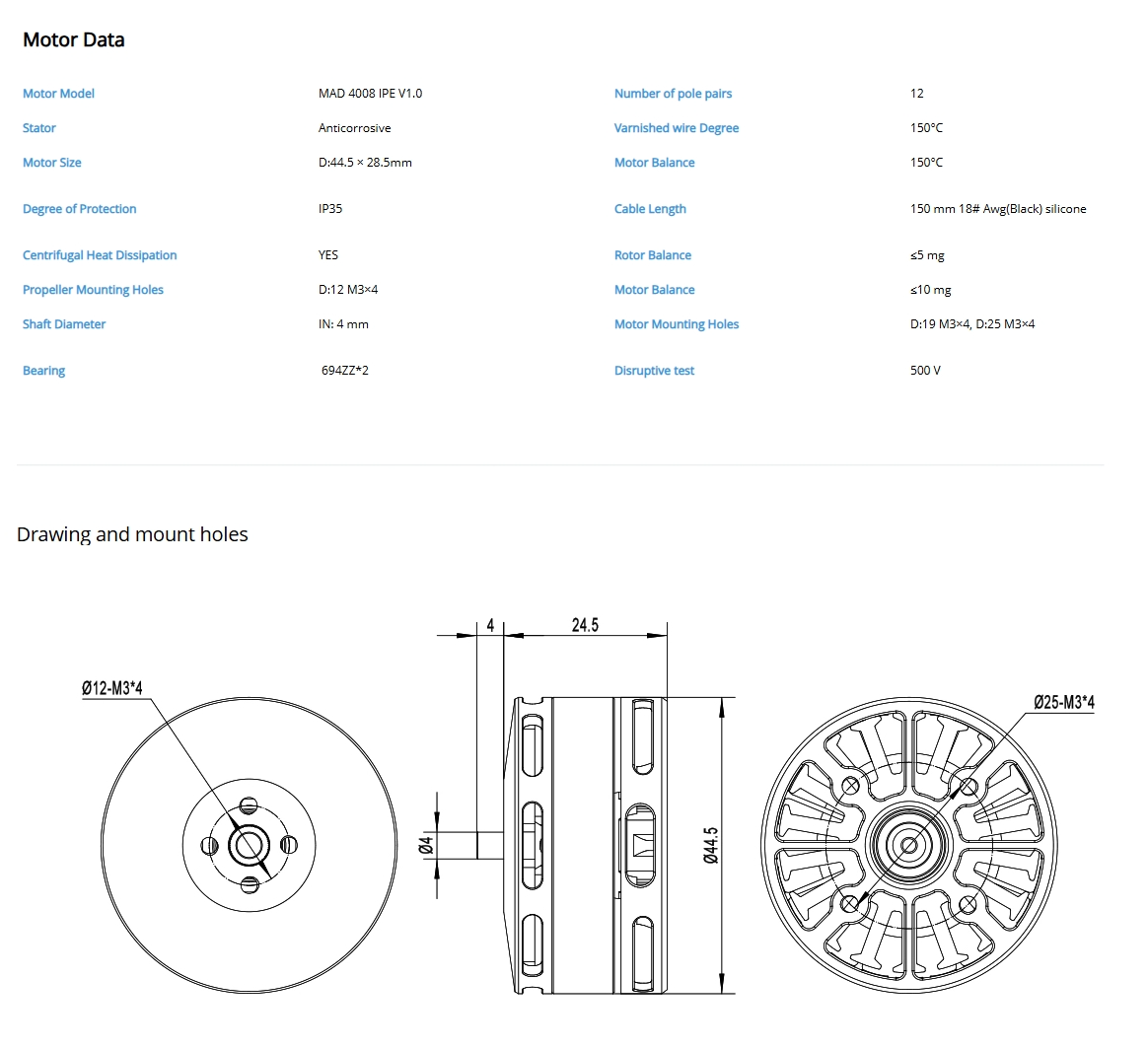

Motor Data |
|||
| Motor Model | MAD 4008 IPE V1.0 | Number of pole pairs | 12 |
| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:44.5 × 28.5mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 18# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 4 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | NSK 694ZZMC3 *2 | Disruptive test | 500 V |
