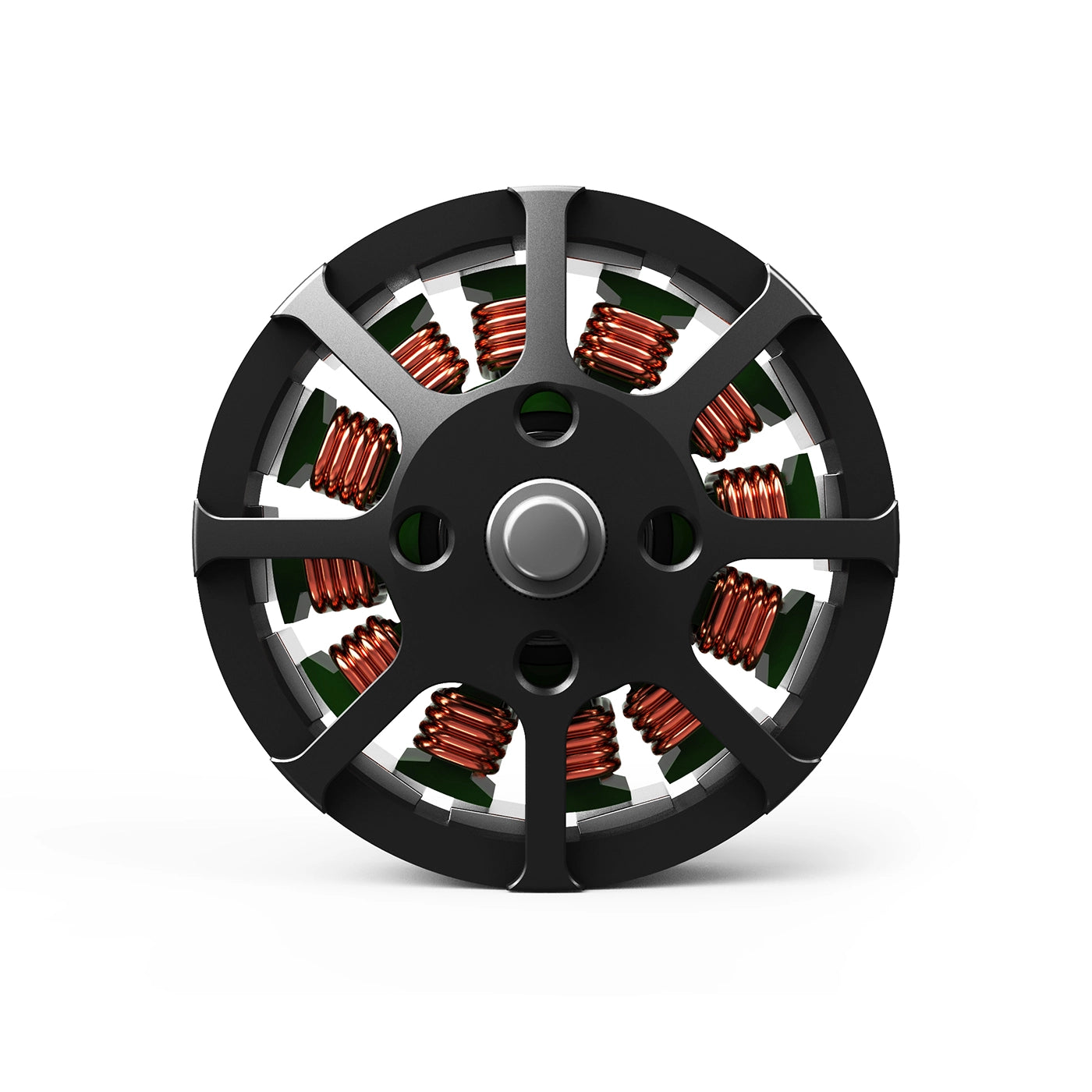

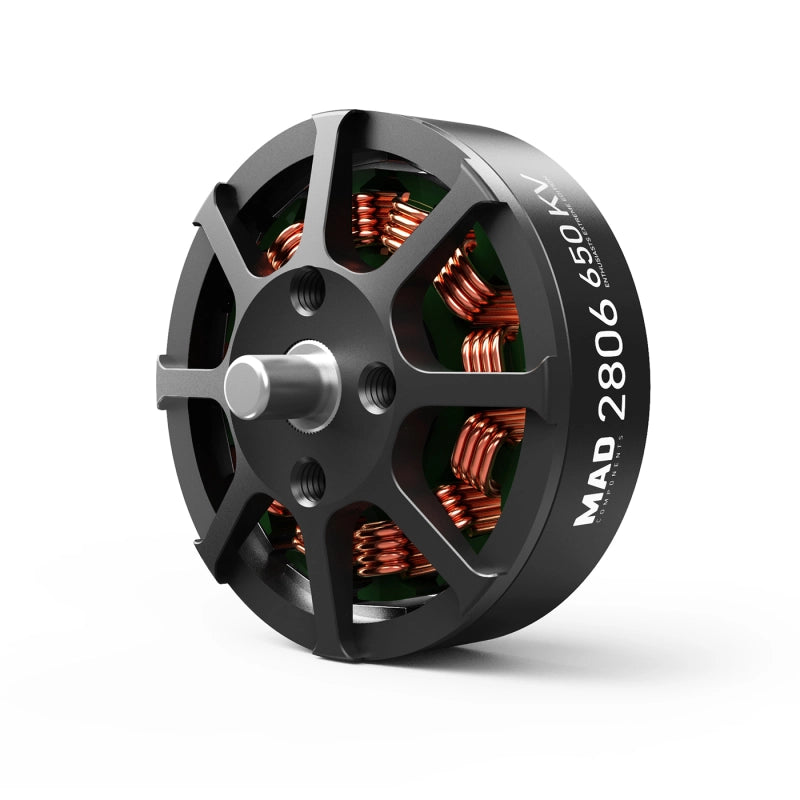

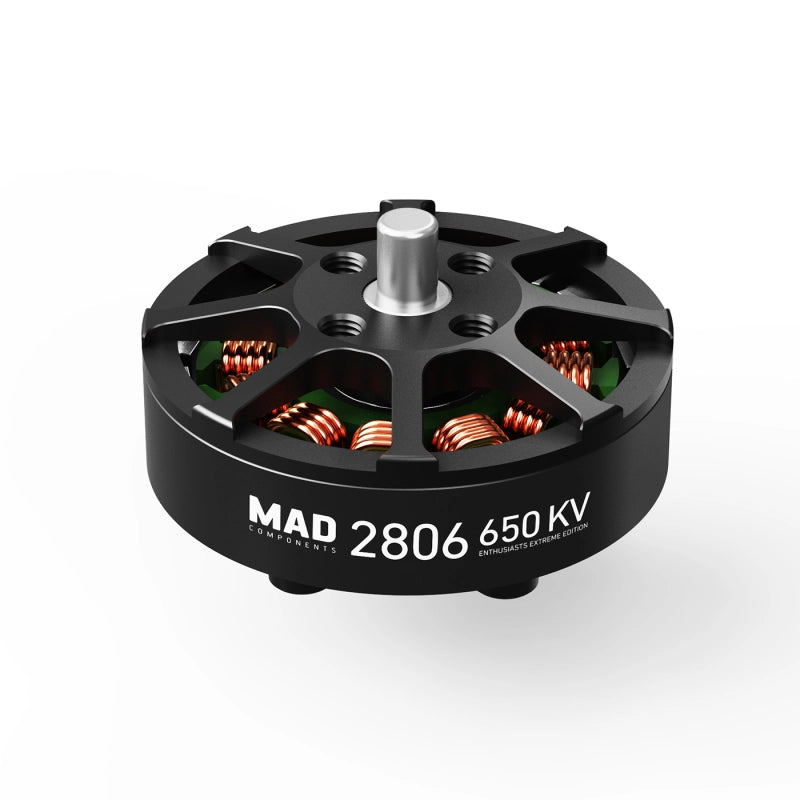

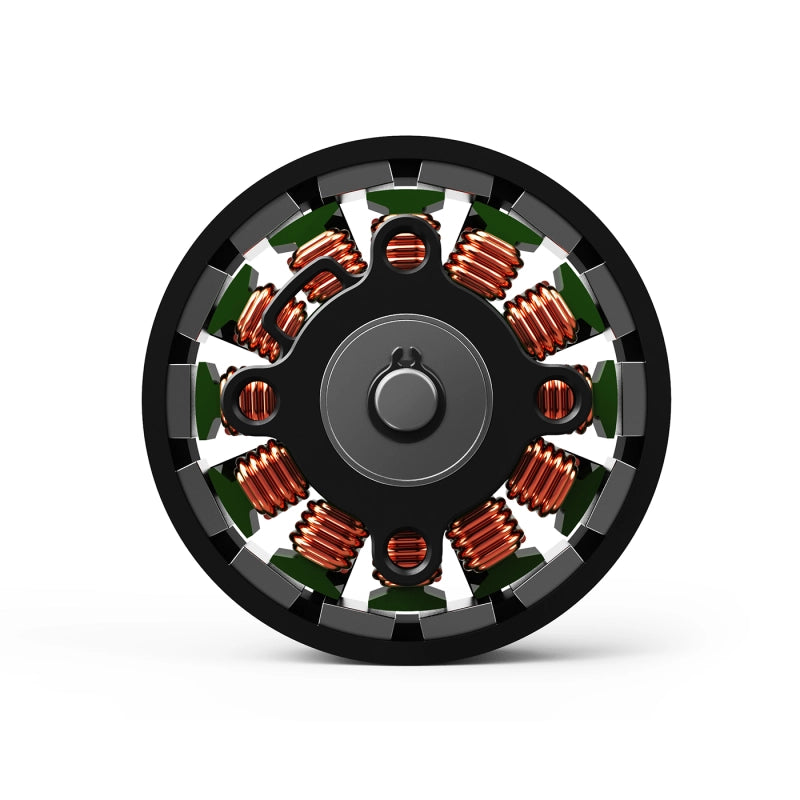

MAD 2806 EEE Drone Motor 400KV/650KV
Usually ships within 24 hours
Regular price
$44.00
Regular price
$55.00
Sale
Sale price
$44.00
Couldn't load pickup availability
About MAD 2806 EEE V1.0
High-Endurance Motor for Aerial Survey & Mapping
✔ 6S Voltage – Optimized for long-endurance flights
✔ Ultra-Lightweight – Advanced hollow design for weight reduction & fast heat dissipation
✔ Precision Stator – 12N14P multi-slot design for smooth torque & high efficiency
✔ Aerospace-Grade Material – 6061-T6 aluminum alloy for superior strength & safety
✔ Optimized Magnetic Circuit – Simulated flux density & magnetic containment for low power loss
✔ Premium EZO Bearings – Imported high-durability bearings for stable rotation & impact resistance
Ideal for:
-
Professional aerial photography & surveying
-
Long-range mapping & exploration
-
training quadcopters.
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD 2806 EEE V1.0 | Number of pole pairs | 7 |
| Stator Size | High-quality Silicon steel sheets/Hight-temperature coating resistant to 180℃ | Varnished wire Degree | 180°C |
| Motor Size | D:35 × 19.8mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 50 mm (extended Enameled wires) |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤3 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 4mm | Motor Mounting Holes | D:19 M3×4 |
| Bearing | NSK 694ZZMC3*1 | Disruptive test | 500 V |
| Additional Accessories | Propeller Plate *2, Prop Adaper *1, 04-6Adapter Ring *1, M3*omm *4 Motor Screws, M3*8mm *4 Prop Adaper Screws, M3*8mm *2 Propeller Screws, Sticker*1 |
||
