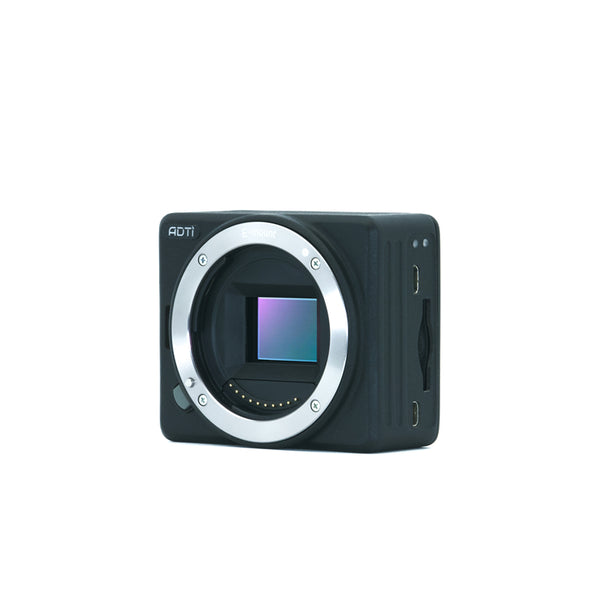

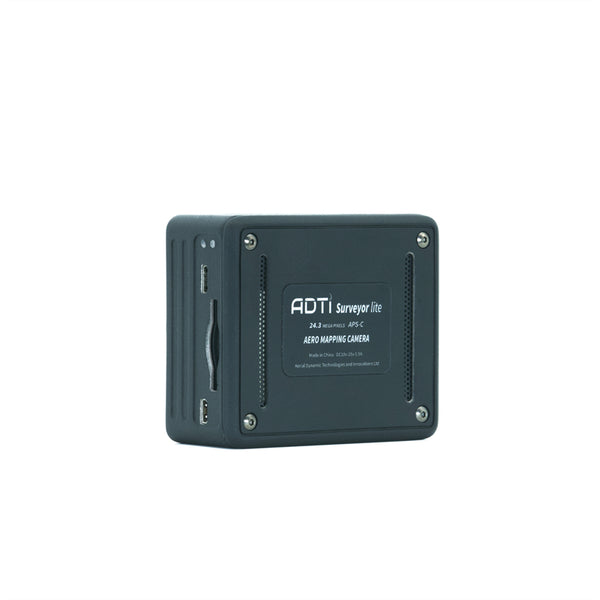

24L V1 Surveyor Lite Mapping Camera is ADTi's first generation of the 24MP APS-C Drone/UAV Mapping Cameras,it is easy to use (plug and play control pannel), and active cooling fan system.
it works with most flight controllers, and compatible with PPK/RTK GNSS modules such as Emlid Reach for accurate mapping solution.
it features:
1. light in weight (camera body 120 g)
2. compact in size (73*62*33.5 mm)
3. activated cooling fan to prevent the camera from overheating
4. 24MP APS-C
Sensor Type:CMOS
Sensor Manufacturer:Sony
Effective Megapixels:24.3
Sensor Format:APS-C
Sensor size:366.6mm2 (23.50mm x 15.60mm)
Approximate Pixel Pitch:3.92 microns
Focal Length Multiplier:1.5x
Aspect Ratio:3:2
Color Filter Type:RGBG
Anti Aliasing Filter:Fixed
Color Depth （bits):23.8
Maximum Effective ISO:1,347
Image Capture
Image Resolution:
6000 x 4000 (24.0 MP, 3:2),
6000 x 3376 (20.3 MP, 16:9),
4240 x 2832 (12.0 MP, 3:2),
4240 x 2400 (10.2 MP, Other),
3008 x 2000 (6.0 MP, 3:2),
3008 x 1688 (5.1 MP, 16:9),
12416 x 1856 (23.0 MP, Other),
8192 x 1856 (15.2 MP, Other),
2160 x 5536 (12.0 MP, Other),
2160 x 3872 (8.4 MP, Other)
Image File Format:JPEG, RAW, RAW+JPEG
Continuous-mode frames/second:4.0
Video Capture
Video Resolution:
1920x1080 (60p/60i/30p/24p)
1440x1080 (30p)
640x480 (30p)
Video File Format:XAVC S/AVCHD 2.0 / MP4
HD Video Out:Yes
HD Video Connection:HDMI
Lens & Optics
Lens Mount:Sony E
Normal Focus Range:25 cm to Infinity
Auto Focus: Yes
Manual Focus: Yes
Display (detached)
Power: 5V DC
Buttons: Yes
Screen Size: 5 inch
Camera
Camera Size: 7.3*6.2*3.6 cm
Camera Weight: 120 g
Package Size: 30*20*15 cm
Package Weight: 500 g
Power: 10-25V DC Lipo or Liion
Operating Temperature: -10 to 40°C
