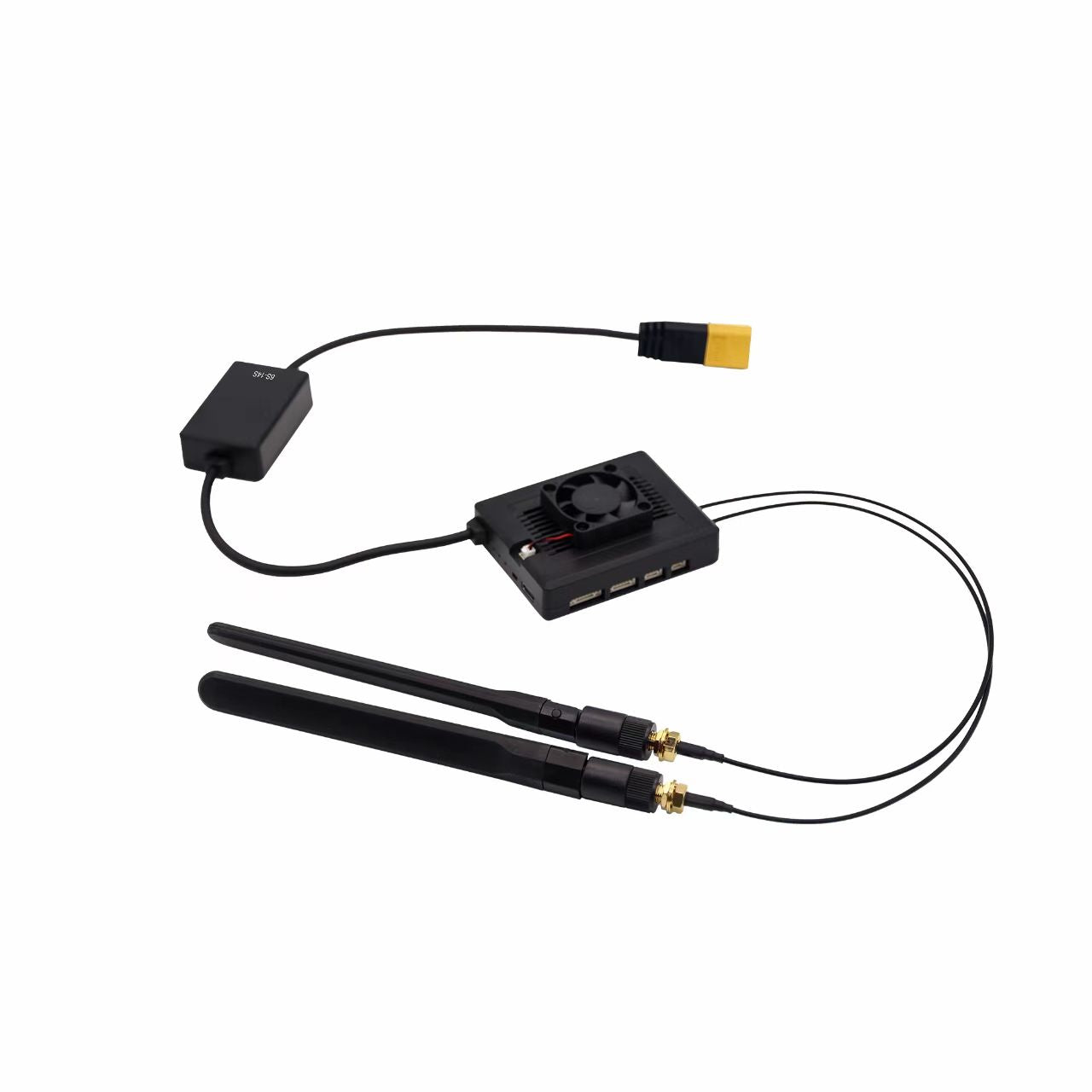

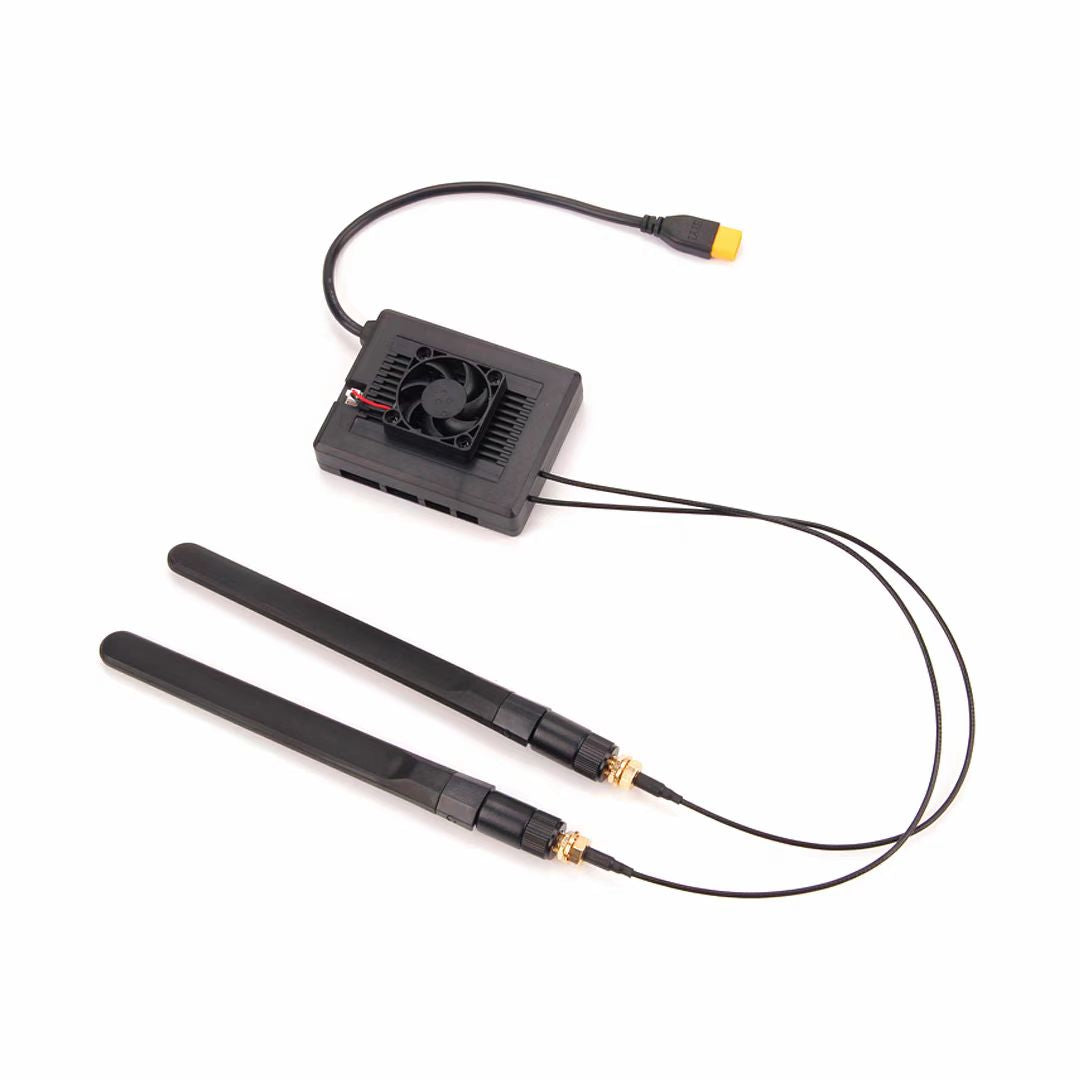

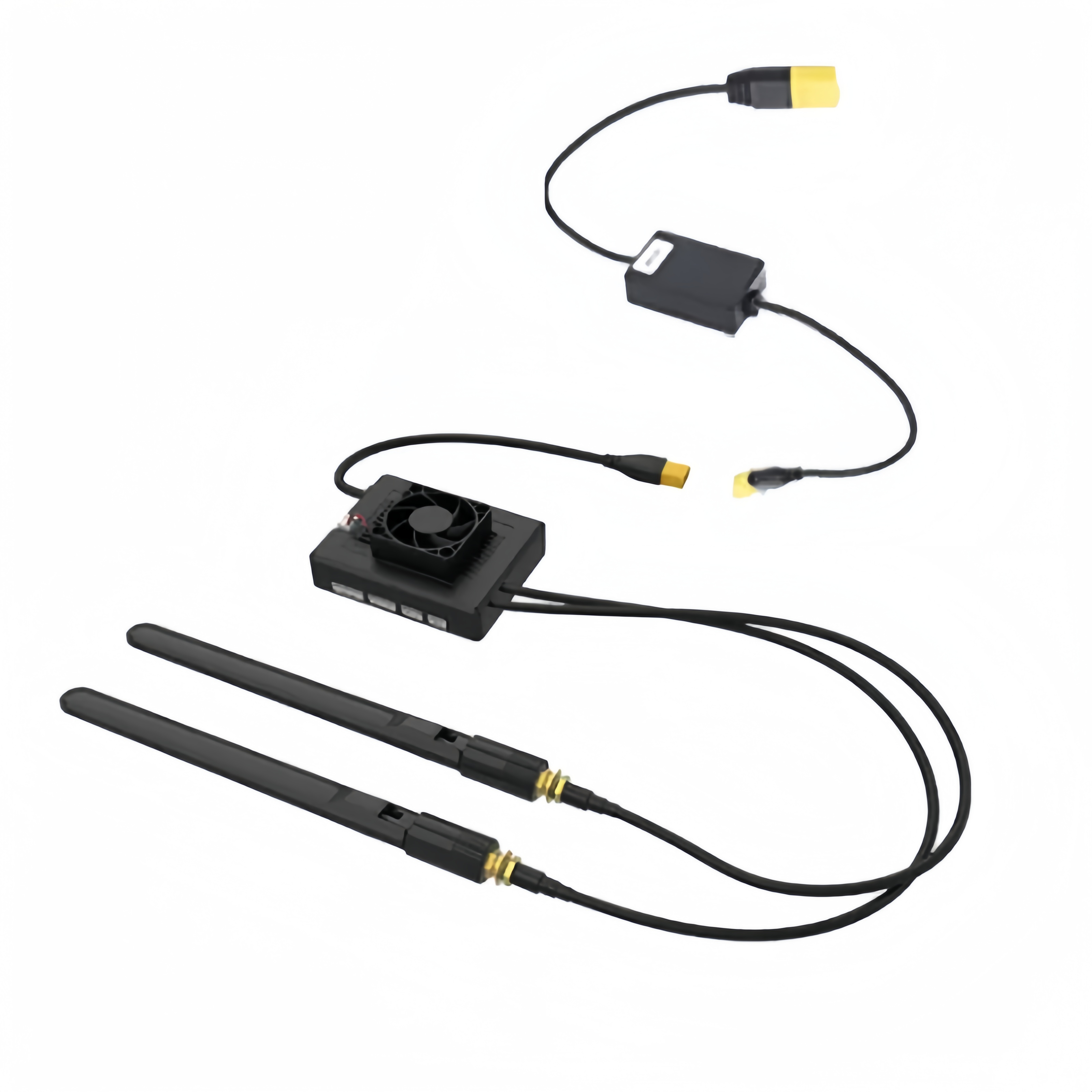

Unité aérienne SIYI MK32 HM30 MK15 avec longue portée Full HD
Spécifications techniques
Unité aérienne MK32 / HM30
Sortie de signal : 16 canaux S.BUS, 5 canaux PWM
Interface et ports :
- SBUS : 3 broches
- Liaison de données (vers FC) : UART 4 broches
- Canaux PWM 1 à 5 : 6 broches
- Entrée vidéo : Ethernet 8 broches
- Mise à niveau du micrologiciel : Type-C
Dimensions (antenne exclue, ventilateur inclus) : 70 x 55 x 16 mm
Poids (antenne exclue) : 74 g
Gain d'antenne (omni standard) : 5 dBi
Entrée d'alimentation : 11 à 16,8 V (extensible de 4S à 18S avec BEC)
Température de fonctionnement : -10 à 50℃
Unité aérienne MK15
Sortie de signal : 16 canaux S.BUS, 5 canaux PWM
Interface et ports :
- SBUS : 3 broches
- Liaison de données (vers FC) : UART 4 broches
- Canaux PWM 1 à 5 : 6 broches
- Entrée vidéo : Ethernet 8 broches
- Mise à niveau du micrologiciel : Type-C
Dimensions (antenne exclue) : 70 x 55 x 16 mm
Poids (antenne exclue) : 100 g
Gain d'antenne (omni standard) : 5 dBi
Entrée d'alimentation : 14,8 à 58,8 V (4S à 14S)
Température de fonctionnement : -10 à 55℃
