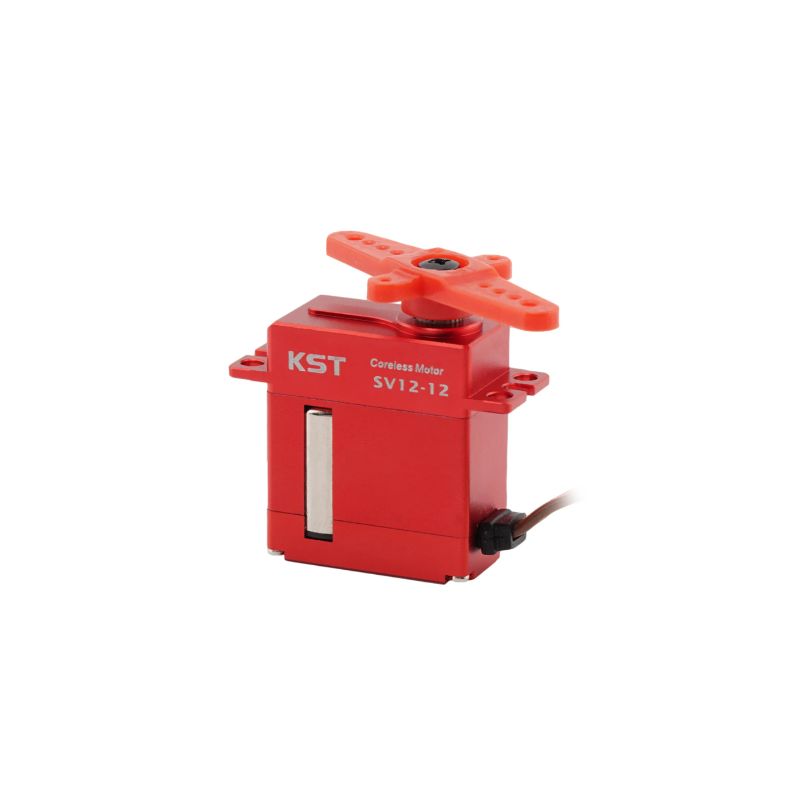

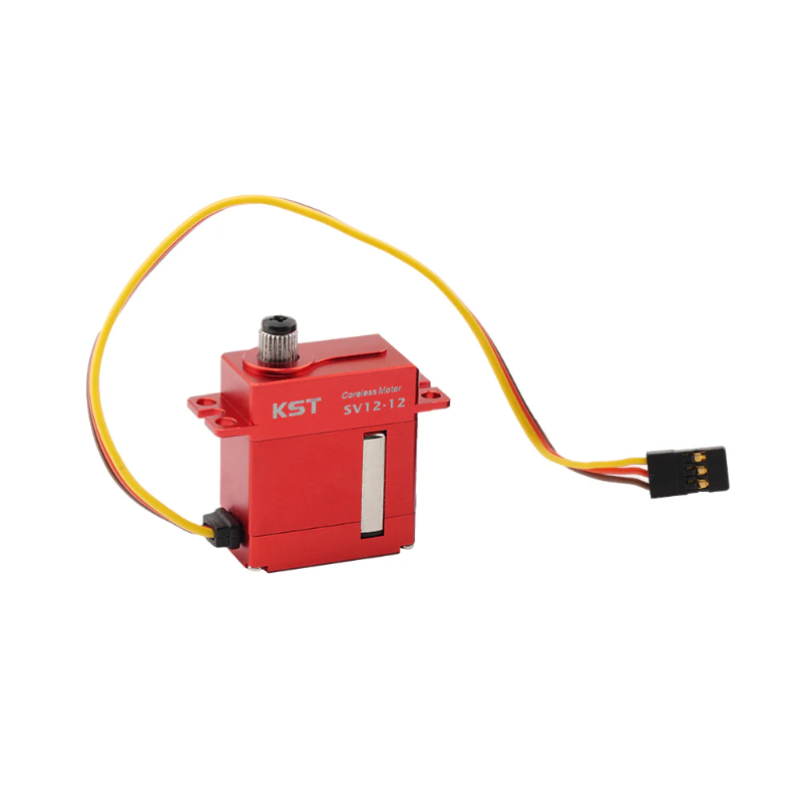

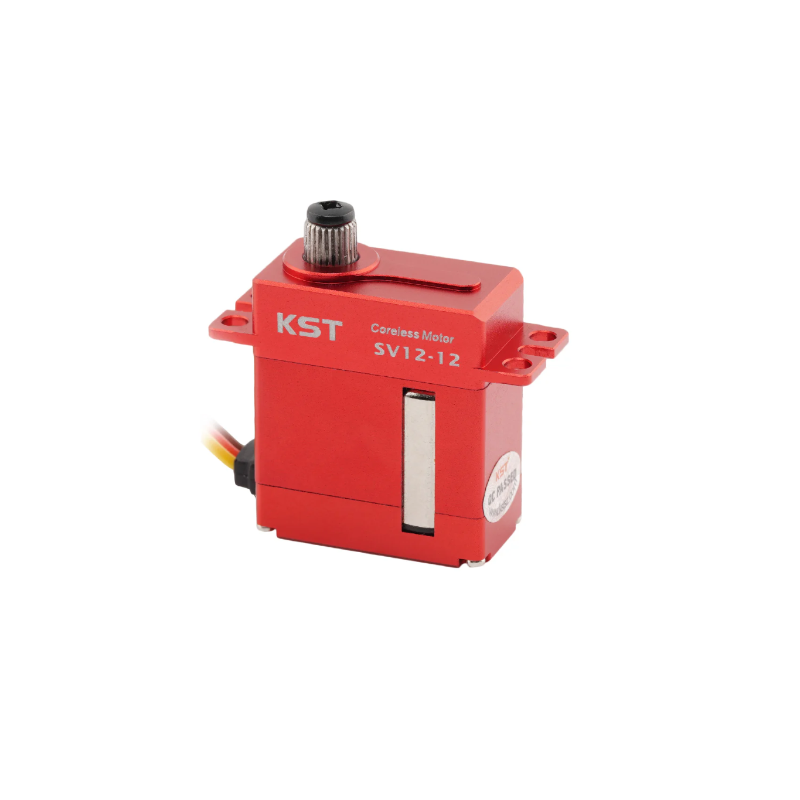

Le micro-servo Super High Voltage (SHV) SV12-12 est conçu pour les applications exigeantes, ce qui le rend idéal pour les hélicoptères RC, la robotique et d'autres scénarios haute performance. Ses caractéristiques remarquables incluent la prise en charge de l'entraînement direct LiPo 3S et le fonctionnement haute tension de 8,4 V à 12 V, offrant un couple puissant de 9,0 Kgf.cm à 13,0 V et une vitesse à vide rapide de 0,10 sec/60°. Cela garantit des temps de réponse rapides et des performances robustes sur une large plage de tension.
Le SV12-12 prend en charge les fonctions de démarrage progressif et d'angle de déplacement programmable, avec un angle de déplacement par défaut accru de ±70° (140° au total). Que ce soit pour les hélicoptères RC, les articulations robotiques ou d'autres applications de précision, le SV12-12 offre des performances et une fiabilité exceptionnelles, ce qui en fait le choix ultime pour le contrôle de mouvement haute performance.
Fonctionnalités
,["span",{"data-type":"text"},["span",{"bold":true,"data-type":"leaf"},"Caractéristiques"]]],["p",{"uuid":"m82hk8898bp2hczdxxq","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"SHV (très haute tension) 12 V CC ou entraînement direct LiPo jusqu'à 3S"]]],["p",{"uuid":"lzmiwf2s3g843x64wf2","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Prend en charge les hautes tensions de 8,4 à 13,0 V"]]],["p",{"uuid":"m0gft5c49x3pgsd3fv","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Couple élevé et vitesse exceptionnelle"]]],["p",{"uuid":"lzmir8xusknqxkrl6v","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Programmable"]]],["p",{"uuid":"m0gfsrqm4q59q1cqwc7","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Grand angle de débattement par défaut (programmable)"]]],["p",{"uuid":"lmr33gof3fz99oqw8dr","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Moteur CC sans balais haute performance"]]],["p",{"uuid":"m0gftgtvnuy9yspgayf","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Engrenage en acier trempé"]]],["p",{"uuid":"m0gftljfod19q55pa","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Deux roulements à billes"]]],["p",{"uuid":"lma0p8415dasrmbimwf","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Idéal pour les hélicoptères RC et la robotique"]]],["p",{"uuid":"lma03ikkrycja8fbrs","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},""]]],["p",{"uuid":"l6x5o86v5e190rh05ox","spacing":{}},["span",{"data-type":"text"},["span",{"bold":true,"color":"","data-type":"leaf"},"Spécifications"]]],["p",{"uuid":"lk3fht67g1xydr3aay","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Article : servo SV12-12"]]],["p",{"uuid":"m82hku9lxvjkgsry2b","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Tension nominale : 12,0 V CC"]]],["p",{"uuid":"lk3fht679lznd2mf5nl","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Plage de tension : 8,4 V-13,0 V CC"]]],["p",{"uuid":"lk3fht684gybd0e657f","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Couple : 6,5 Kgf.cm@8,4V / 8,0 Kgf.cm@12,0V / 9,0 Kgf.cm@13,0V"]]],["p",{"uuid":"lk3fht68dlxcsahz1vq","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Vitesse : 0,15 s/60°@8,4V / 0,11 s/60°@12,0V / 0,10 s/60°@13,0V"]]],["p",{"uuid":"lk3fht68fjbu16zievq","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Fréquence de fonctionnement : 1520 μs/333Hz"]]],["p",{"uuid":"lmr399jve8bj4jjwyh","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Angle de débattement par défaut : ±70° = 140° au total"]]],["p",{"uuid":"lk3fht69ocv85g2ndcq","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Plage de température : -10℃.......+65℃"]]],["p",{"uuid":"lzmiq4y6uceeae1uvzr","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Démarrage progressif : programmable"]]],["p",{"uuid":"lzmiqd9n6727wbxwvne","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Programmable : oui"]]],["p",{"uuid":"llnkkjflls4svpi7fa","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Matériau du boîtier : alliage d'aluminium"]]],["p",{"uuid":"llnkkvnv3zmx3jmqm1p","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Type de moteur : moteur CC sans balais"]]],["p",{"uuid":"lkc0zj9jzg7chtin14d","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Matériau du jeu d'engrenages : acier trempé"]]],["p",{"uuid":"llnkm1y6fwztwevmn6","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Capteur de position : potentiomètre"]]],["p",{"uuid":"lk3fht6ckn5z4ri4y8","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Dimensions du boîtier : 23 mm*12 mm*27 mm±0,2 mm"]]],["p",{"uuid":"lk3fht6e5e10qgjn5dy","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Poids : 20 g±10 %"]]],["p",{"uuid":"m82eotstmazv5ht76q","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},""]]],["p",{"uuid":"m82eounlpo1qek51f2o","spacing":{}},["span",{"data-type":"text"},["span",{"bold":true,"data-type":"leaf"},"Produit associé"]]],["p",{"uuid":"lletlh4wnbu7bgtuc1","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"Micro servo "],["span",{"color":"","data-type":"leaf"},"SV12-12"]]],["p",{"uuid":"m82epjof5wbl4c4h02","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Mini servo SV12T-12"]]],["p",{"uuid":"m82epc34o6ey6jbuuvo","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},"Mini servo SV12S-12"]]],["p",{"uuid":"m82epabkb9mwp0s27la","spacing":{}},["span",{"data-type":"text"},["span",{"color":"","data-type":"leaf"},""]]],["p",{"uuid":"le3p8six9dh11hdaiuu","spacing":{}},["span",{"data-type":"text"},["span",{"bold":true,"data-type":"leaf"},"Le paquet comprend"]]],["p",{"uuid":"le3p8skh3v59ev75vco","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"1 * servo SV12-12"]]],["p",{"uuid":"lnwtc4v7u0pd3a3p5x","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"5 * Palonniers de servo en plastique\r"]]],["p",{"uuid":"loxyq2vrwydmsk1fwbh","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"1 * Vis de palonnier de servo\r"]]],["p",{"uuid":"loxyq2vs9kfndn22jkc","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},"4 * Vis de montage"]]],["p",{"uuid":"m7v9jfbsd9k4yas2yci","spacing":{}},["span",{"data-type":"text"},["span",{"data-type":"leaf"},""]]]]' class="4ever-article">
- SHV (très haute tension) 12 V CC ou entraînement direct LiPo jusqu'à 3S
- Prend en charge la haute tension 8,4-13,0 V
- Couple élevé et vitesse exceptionnelle
- Programmable
- Grand angle de déplacement par défaut (programmable)
- Moteur DC sans noyau haute performance
- Engrenage en acier trempé
- Roulements à billes doubles
- Idéal pour les hélicoptères RC et la robotique
Spécifications
- Article : Servo SV12-12
- Tension nominale : DC 12,0 V
- Plage de tension : DC8.4V-13.0V
- Couple : 6,5 Kgf.cm@8,4 V / 8,0 Kgf.cm@12,0 V / 9,0 Kgf.cm@13,0 V
- Vitesse : 0,15 sec/60°@8,4 V / 0,11 sec/60°@12,0 V / 0,10 sec/60°@13,0 V
- Fréquence de travail : 1520 μs/333 Hz

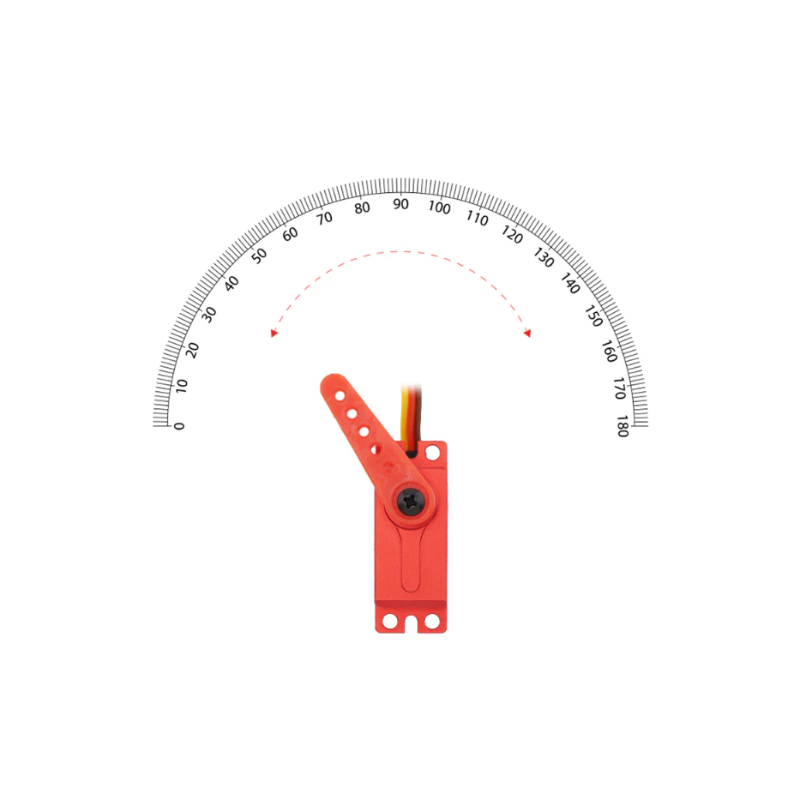

- Angle de déplacement par défaut : ±70° = 140° au total
- Plage de température : -10℃.......+65℃
- Démarrage progressif : Programmable
- Programmable : Oui
- Matériau du boîtier : Alliage d'aluminium
- Type de moteur : Moteur CC sans noyau
- Matériau de l'ensemble d'engrenages : Acier trempé
- Capteur de position : Potentiomètre
- Dimensions du boîtier : 23*12*27±0,2 mm
- Poids : 20g±10%
