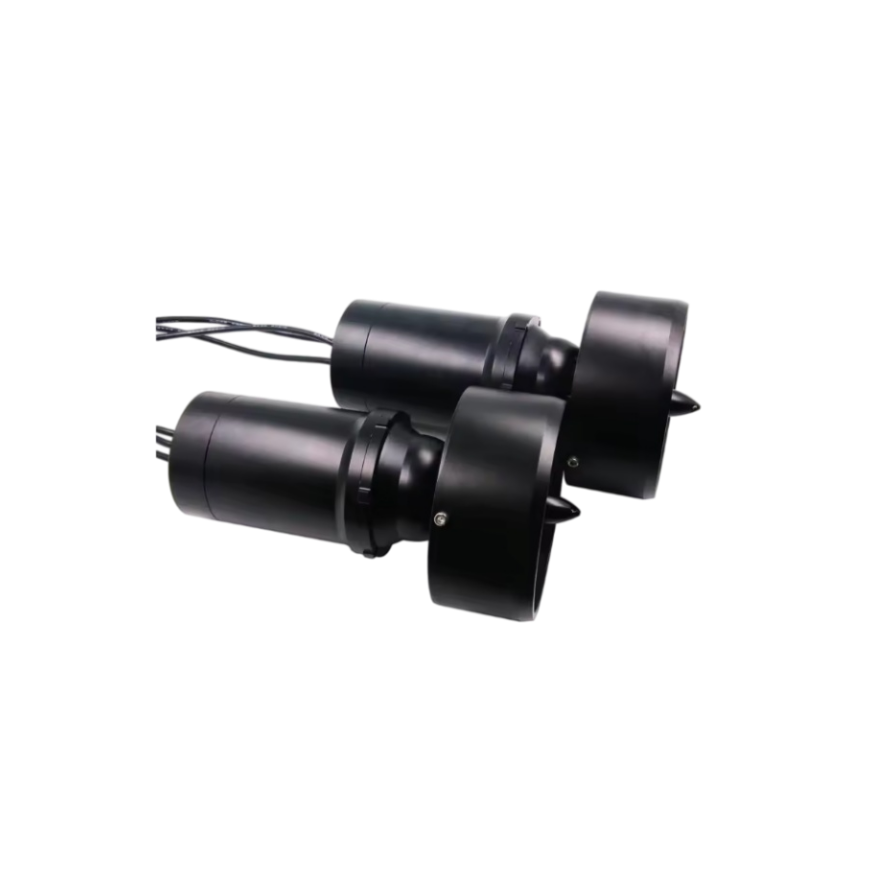

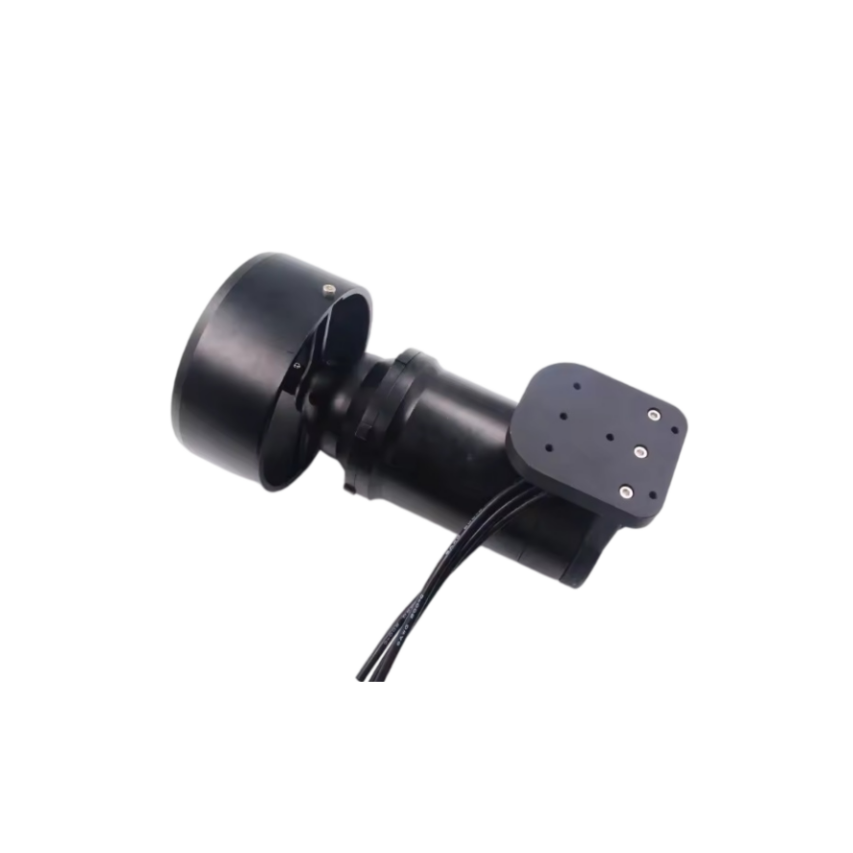

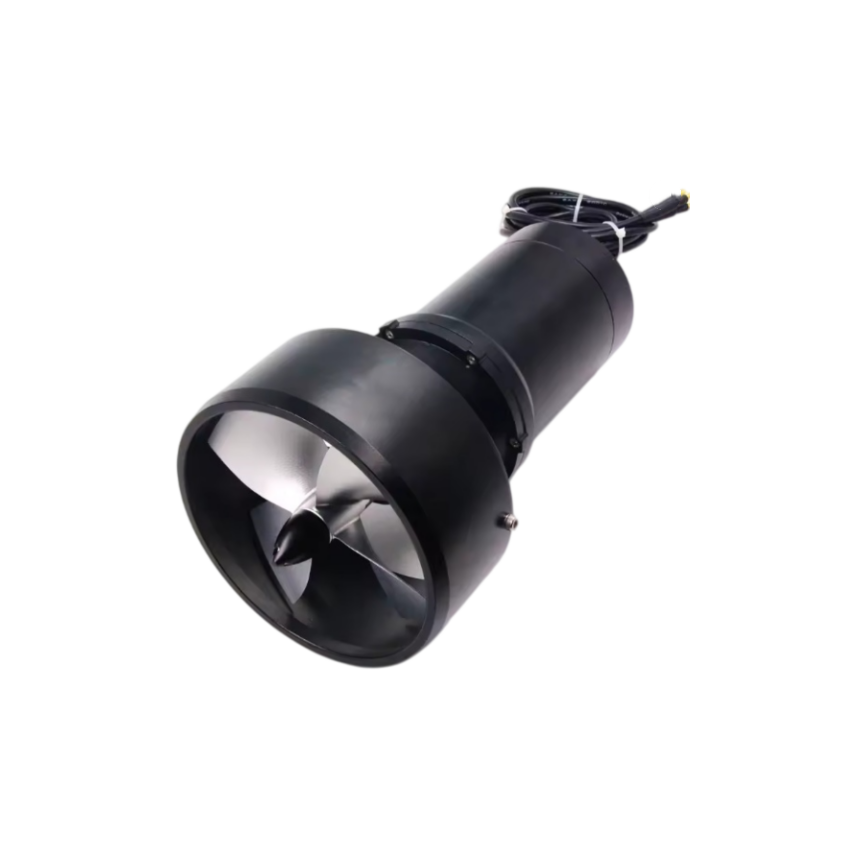

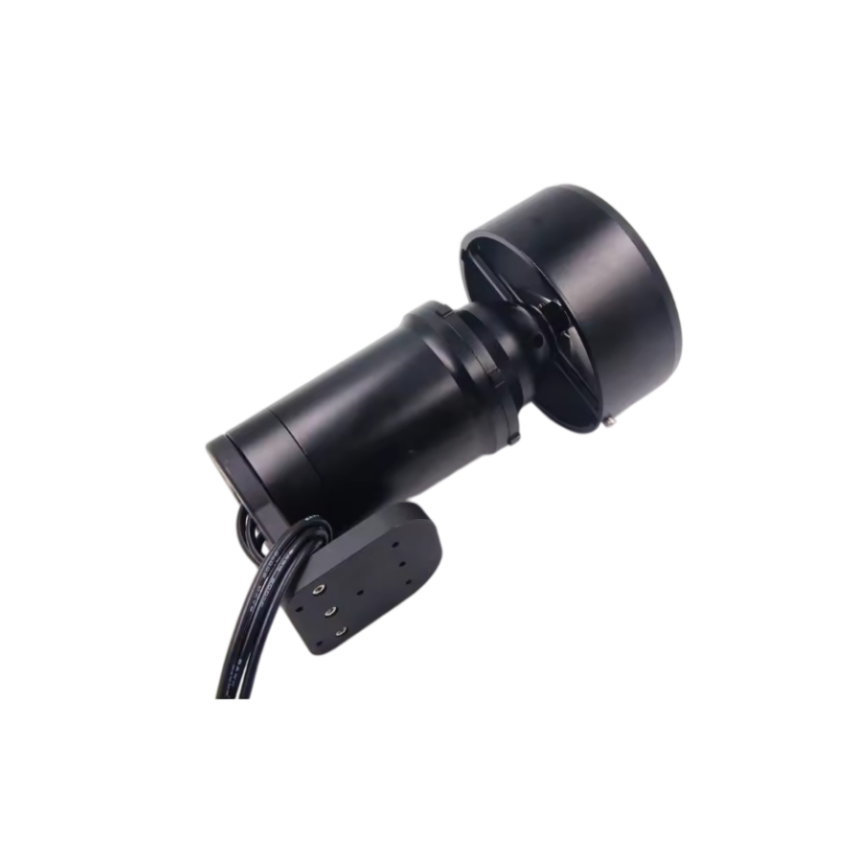

40T 48V 40KG Thrust Underwater Thruster for ROV USV and E-Skateboard

Specifications:

Voltage: 50.2V MAX

Max current: 55.6A

Nominal power: 2791W

Max thrust: 40kg

prop diameter：145mm

Weight:4990g

Test data: forward thrust

10.0V: current: 4.1A, thrust: 2.3kg;

12.0V: current: 5.3A, thrust: 3.7kg;

14.0V: current: 6.7A, thrust: 4.9kg;

16.0V: current: 8.4A, thrust: 6.0kg;

18.0V: current: 10.0A, thrust: 7.4kg;

20.0V: current: 11.6A, thrust: 9.2kg;

22.0V: current: 13.0A, thrust: 10.2kg;

24.0V: current: 15.2A, thrust: 11.8kg;

26.0V: current: 17.5A, thrust: 14.2kg;

28.0V: current: 19.6A, thrust: 15.3kg;

30.0V: current: 22.0A, thrust: 17.4kg;

32.0V: current: 24.0A, thrust: 18.8kg;

34.0V: current: 26.8A, thrust: 22.2kg;

36.0V: current: 30.7A, thrust: 24.3kg;

38.0V: current: 32.1A, thrust: 25.2kg;

40.0V: current: 34.7A, thrust: 28.4kg;

42.0V: current: 37.5A, thrust: 29.5kg;

44.0V: current: 40.4A, thrust: 31.7kg;

46.0V: current: 46.2A, thrust: 36.2kg;

48.0V: current: 50.5A, thrust: 38.0kg;

50.2V: current: 55.6A, thrust: 40.0kg;

Test data: reverse thrust

10.0V: current: 3.8A, thrust: 2.0kg;

12.0V: current: 5.0A, thrust: 2.8kg;

14.0V: current: 6.4A, thrust: 3.8kg;

16.0V: current: 7.8A, thrust: 4.5kg;

18.0V: current: 9.4A, thrust: 5.8kg;

20.0V: current: 11.0A, thrust: 6.8kg;

22.0V: current: 13.3A, thrust: 7.3kg;

24.0V: current: 14.6A, thrust: 9.2kg;

26.0V: current: 16.8A, thrust: 10.5kg;

28.0V: current: 18.2A, thrust: 11.2kg;

30.0V: current: 20.9A, thrust: 12.0kg;

32.0V: current: 22.5A, thrust: 13.4kg;

34.0V: current: 24.7A, thrust: 14.4kg;

36.0V: current: 26.7A, thrust: 15.5kg;

38.0V: current: 28.7A, thrust: 17.3kg;

40.0V: current: 32.4A, thrust: 19.3kg;

42.0V: current: 34.9A, thrust: 20.1kg;

44.0V: current: 37.5A, thrust: 21.2kg;

46.0V: current: 41.8A, thrust: 23.2kg;

48.0V: current: 43.2A, thrust: 24.7kg;

50.2V: current: 52.8A, thrust: 27.8kg;
