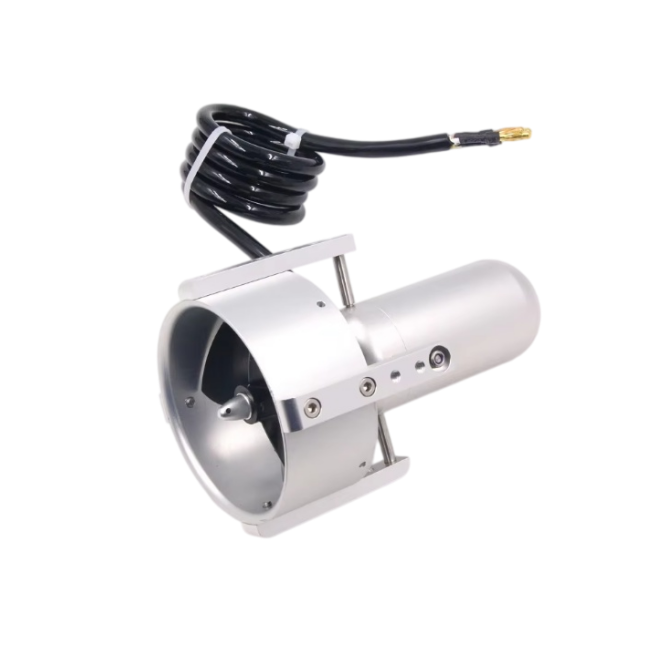

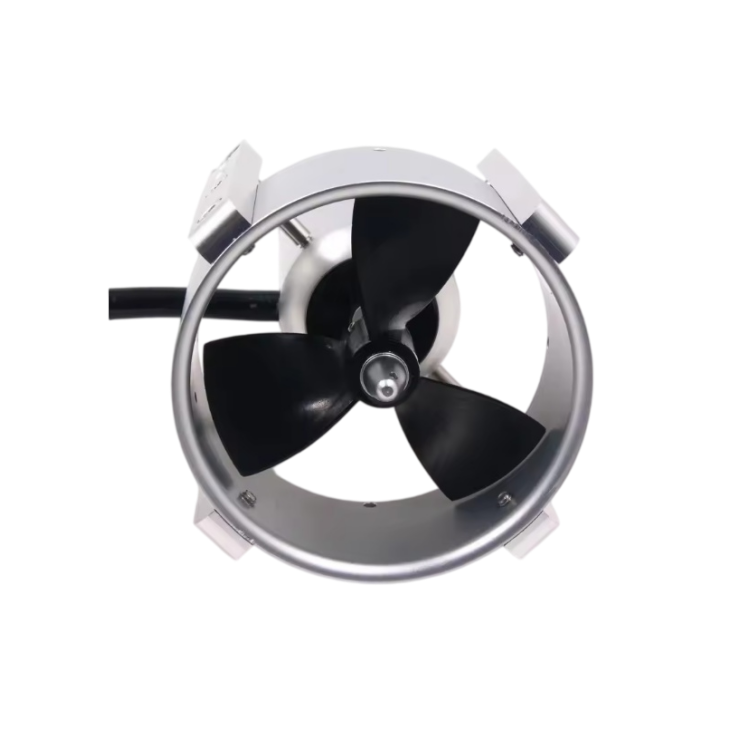

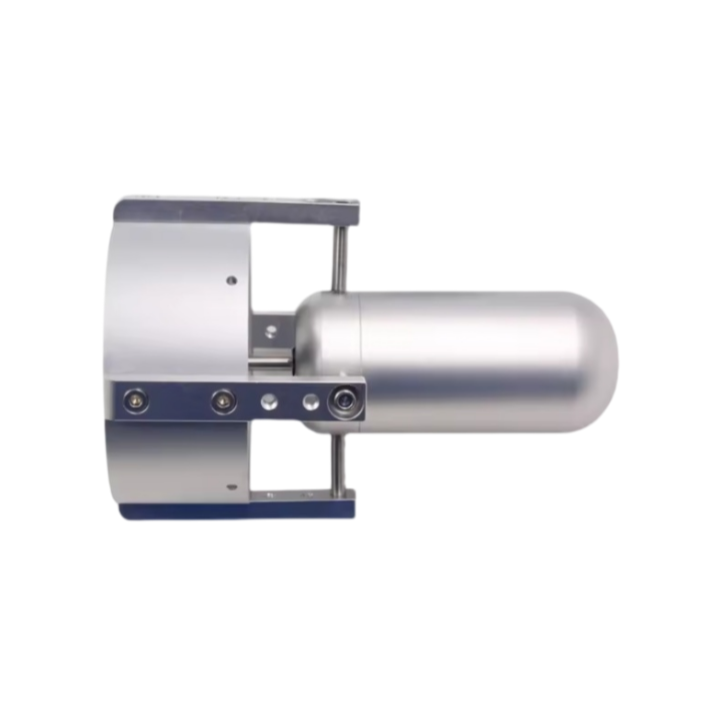

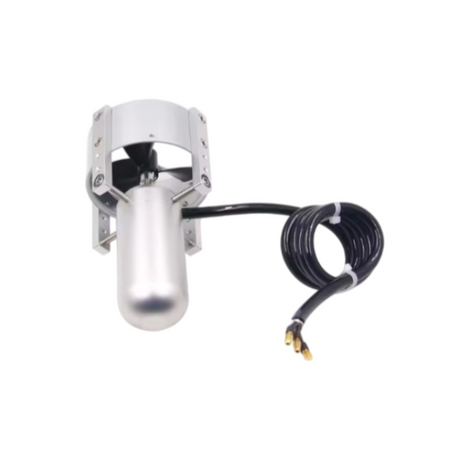

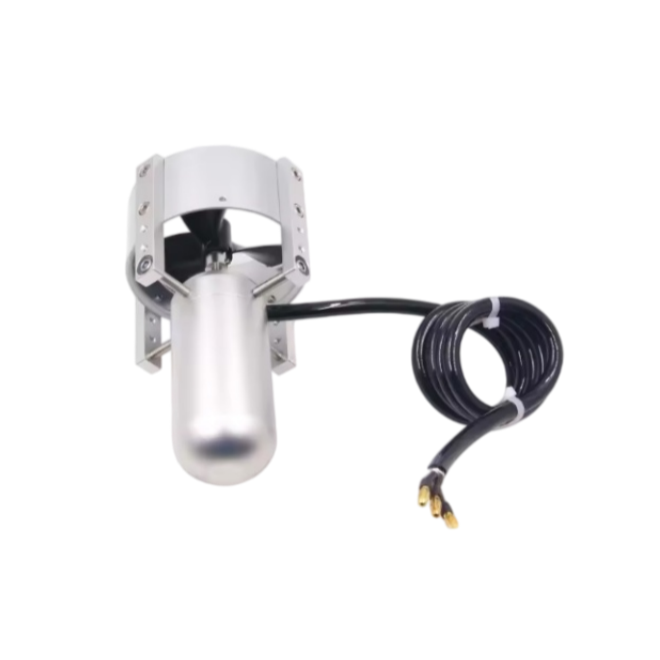

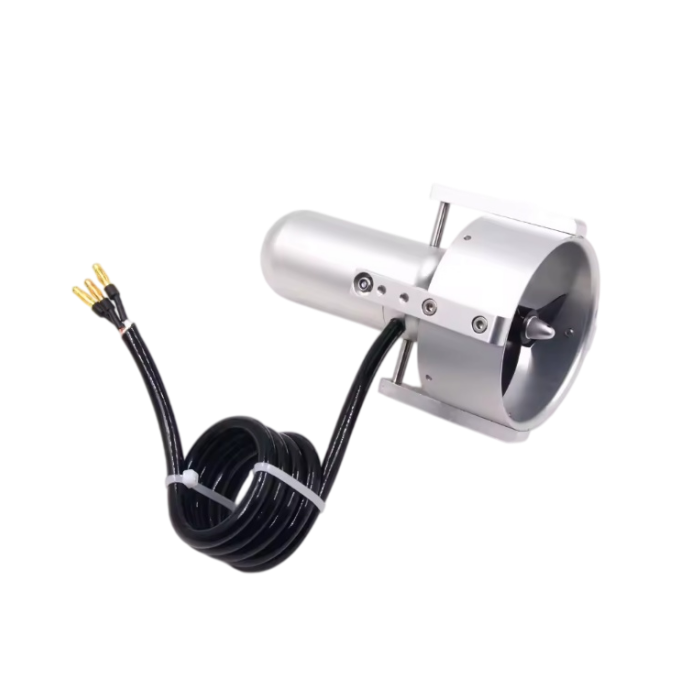

24V 33V 8KG 5T-3P Enclosed Thrust Underwater Thruster for ROV and USV

En stock
Aucun commentaire
Usually ships within 24 hours
$135.00
Direction
Product details
  • Vendeur UnmannedRC Online

Do you have questions about this product?

Ask an expert!

Description Shipping information Critiques (0)

Specifications:

Voltage: 34V MAX

Max current: 14.5A

Nominal power: 490W

Max thrust: 8.5kg

prop diameter：60mm

Weight:756g




Test data: forward thrust

10V: current: 2.7A, thrust: 1.0kg;

12V: current: 3.5A, thrust: 1.5kg;

14V: current: 4.3A, thrust: 1.9kg;

16V: current: 5.2A, thrust: 2.4kg;

18V: current: 6.1A, thrust: 3.0kg;

20V: current: 7.0A, thrust: 3.6kg;

22V: current: 8.0A, thrust: 4.2kg;

24V: current: 9.3A, thrust: 5.1kg;

26V: current: 10.2A, thrust: 5.6kg;

28V: current: 11.4A, thrust: 6.3kg;

30V: current: 12.2A, thrust: 7.0kg;

32V: current: 13.4A, thrust: 7.8kg;

33V: current: 13.7A, thrust: 8.1kg;

34V: current: 14.5A, thrust: 8.5kg;


Test data: reverse thrust

10V: current: 2.4A, thrust: 0.8kg;

12V: current: 3.0A, thrust: 1.2kg;

14V: current: 3.7A, thrust: 15.0kg;

16V: current: 4.5A, thrust: 2.1kg;

18V: current: 5.3A, thrust: 2.5kg;

20V: current: 6.2A, thrust: 3.1kg;

22V: current: 7.0A, thrust: 3.7kg;

24V: current: 7.9A, thrust: 4.2kg;

26V: current: 8.6A, thrust: 4.9kg;

28V: current: 9.6A, thrust: 5.6kg;

30V: current: 10.3A, thrust: 5.8kg;

32V: current: 11.3A, thrust: 6.6kg;

33V: current: 11.7A, thrust: 7.0kg;

34V: current: 12.3A, thrust: 7.6kg;
