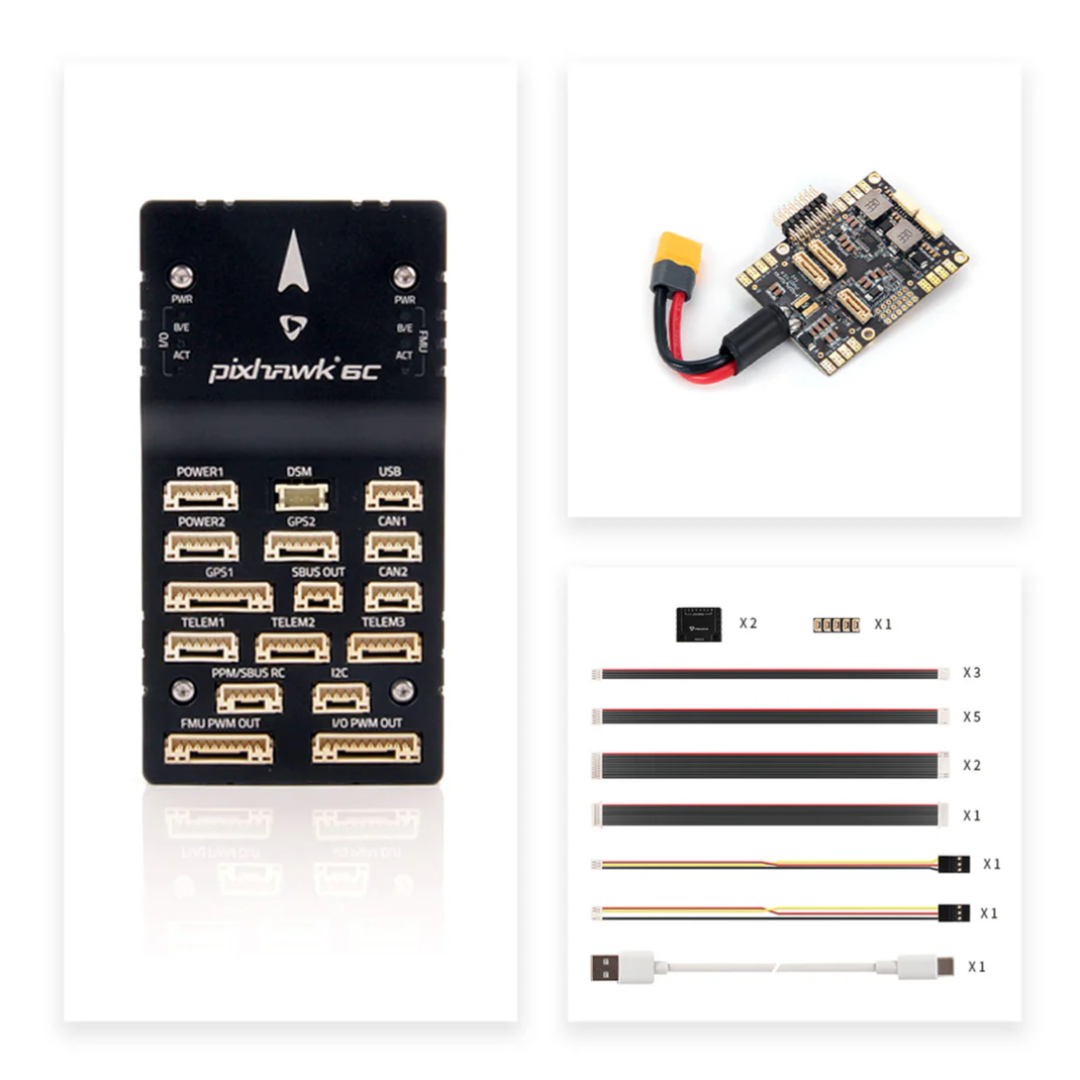

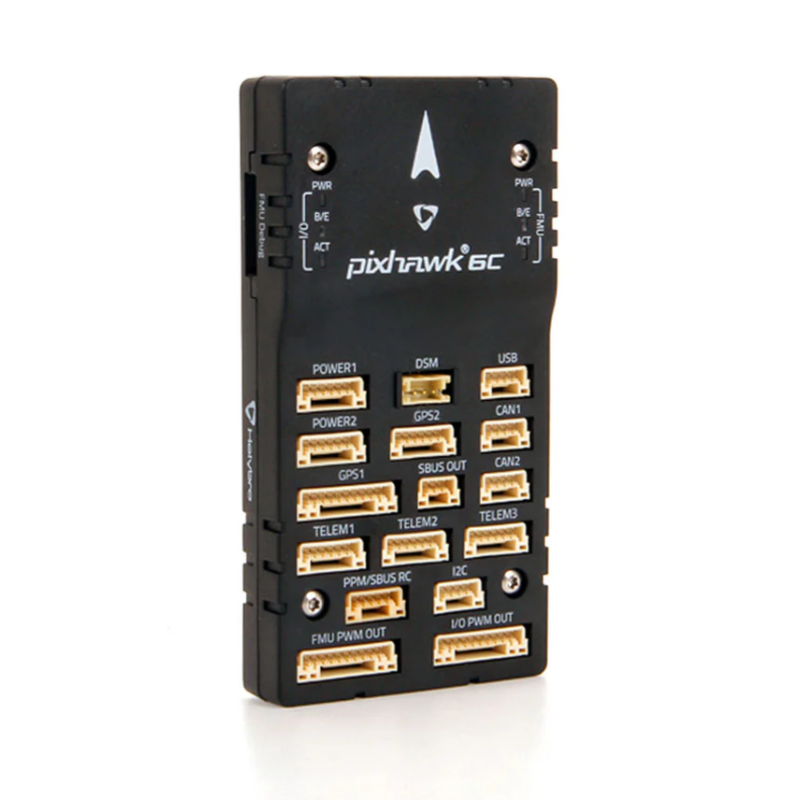

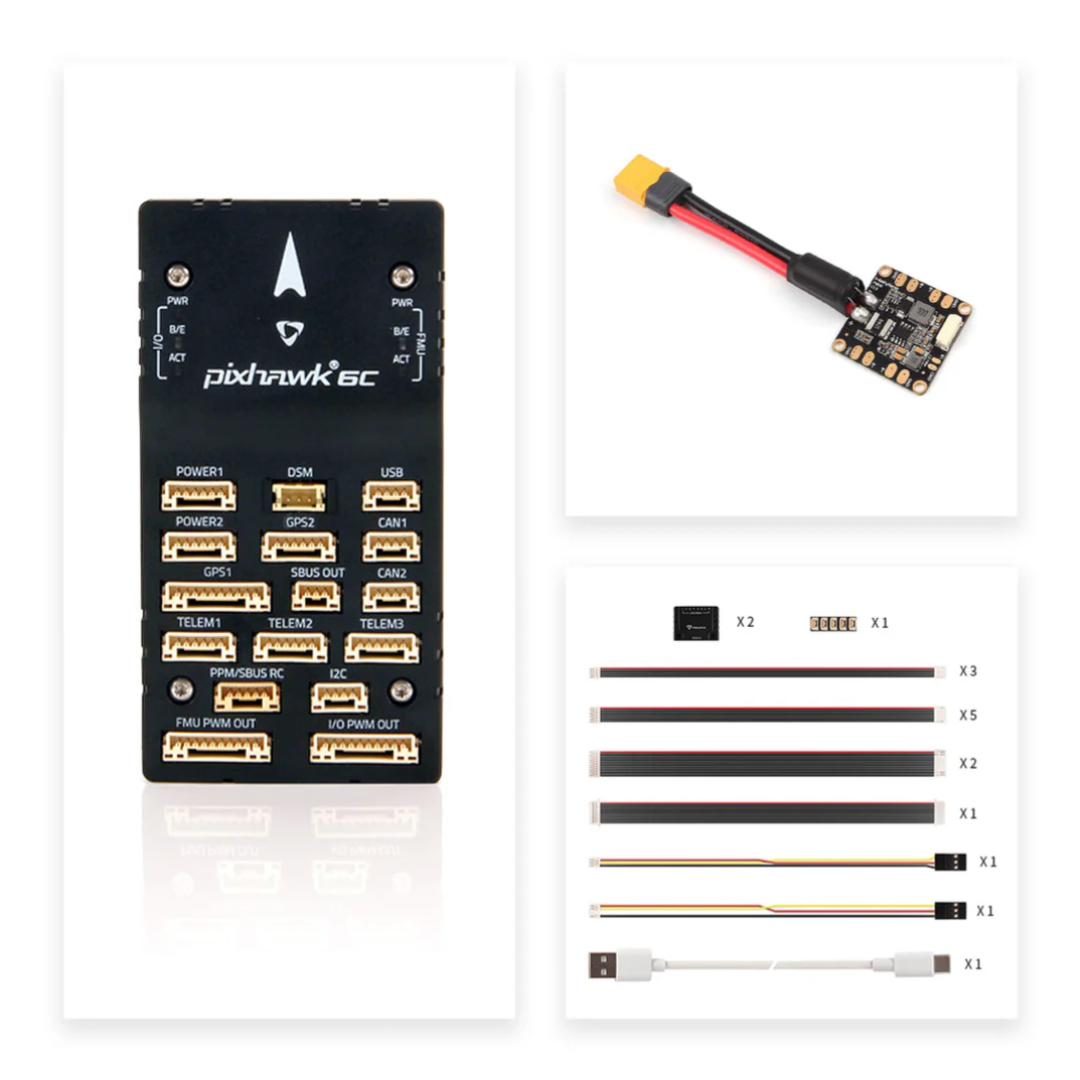

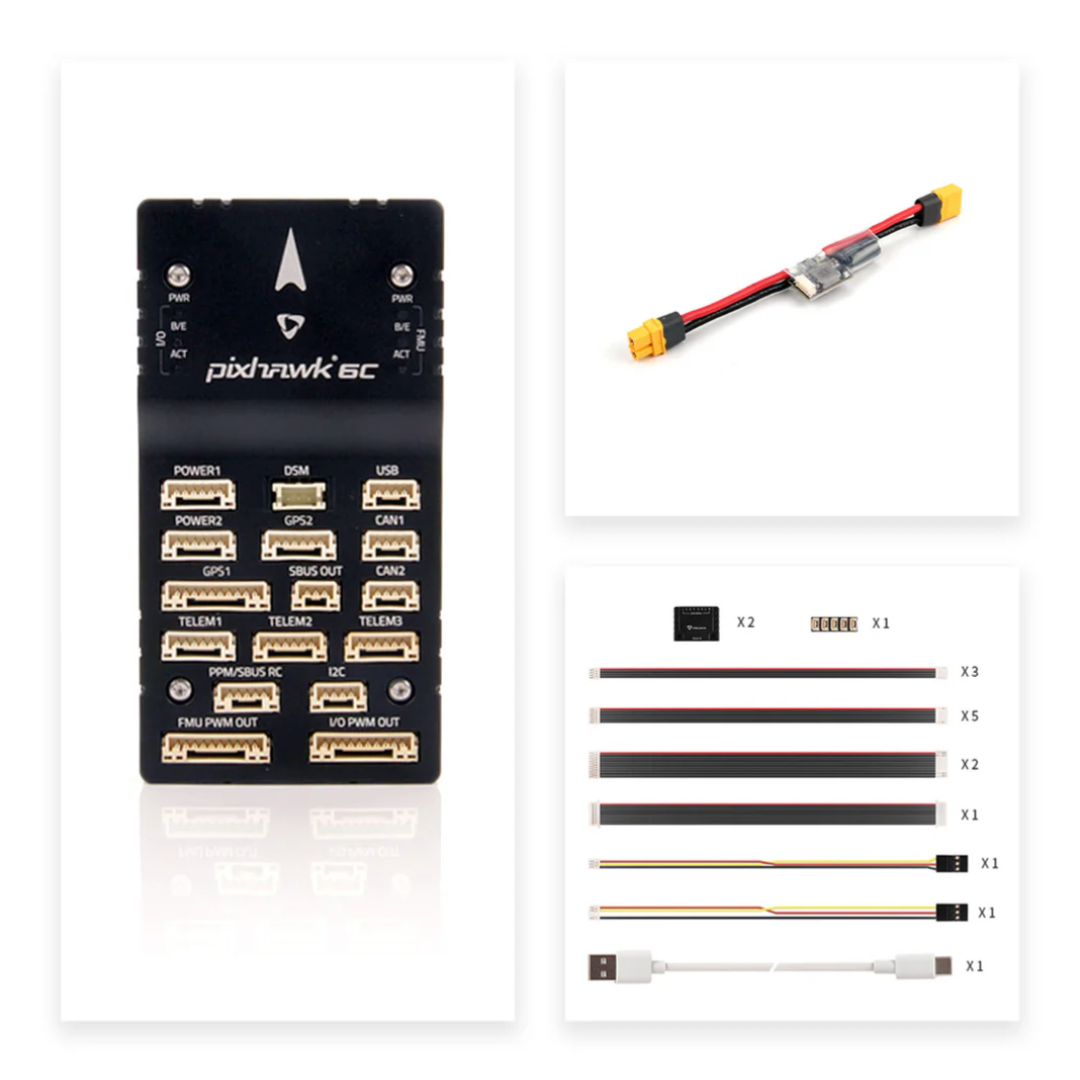

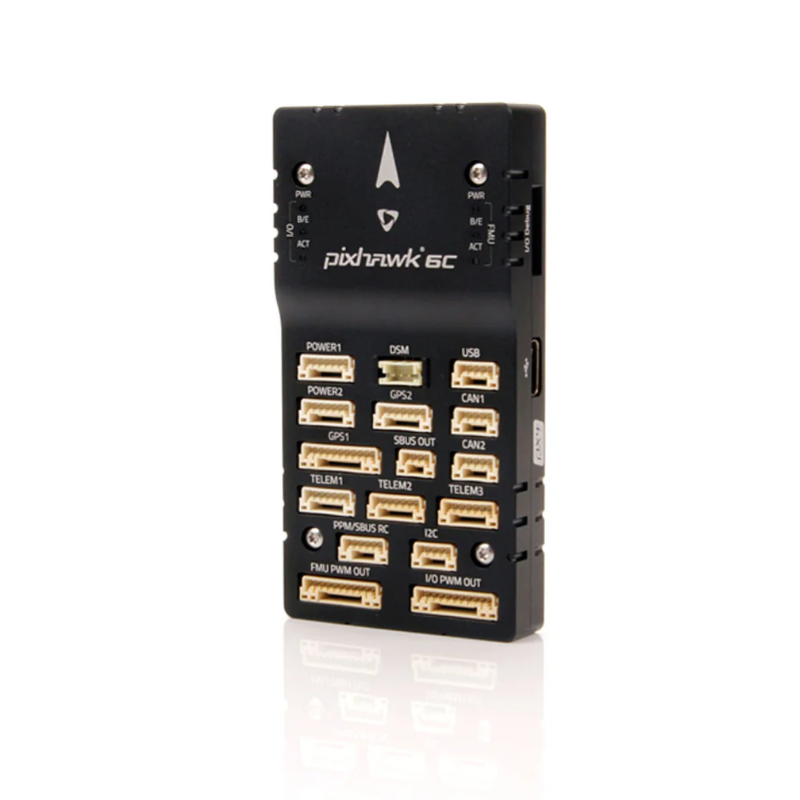

Holybro Autopilot Flight Controllers -Pixhawk 6C

$167.99

Tax included. Shipping calculated at checkout

Select housing

Aluminum Aluminum
Plastic Plastic

Select gps

NONE NONE

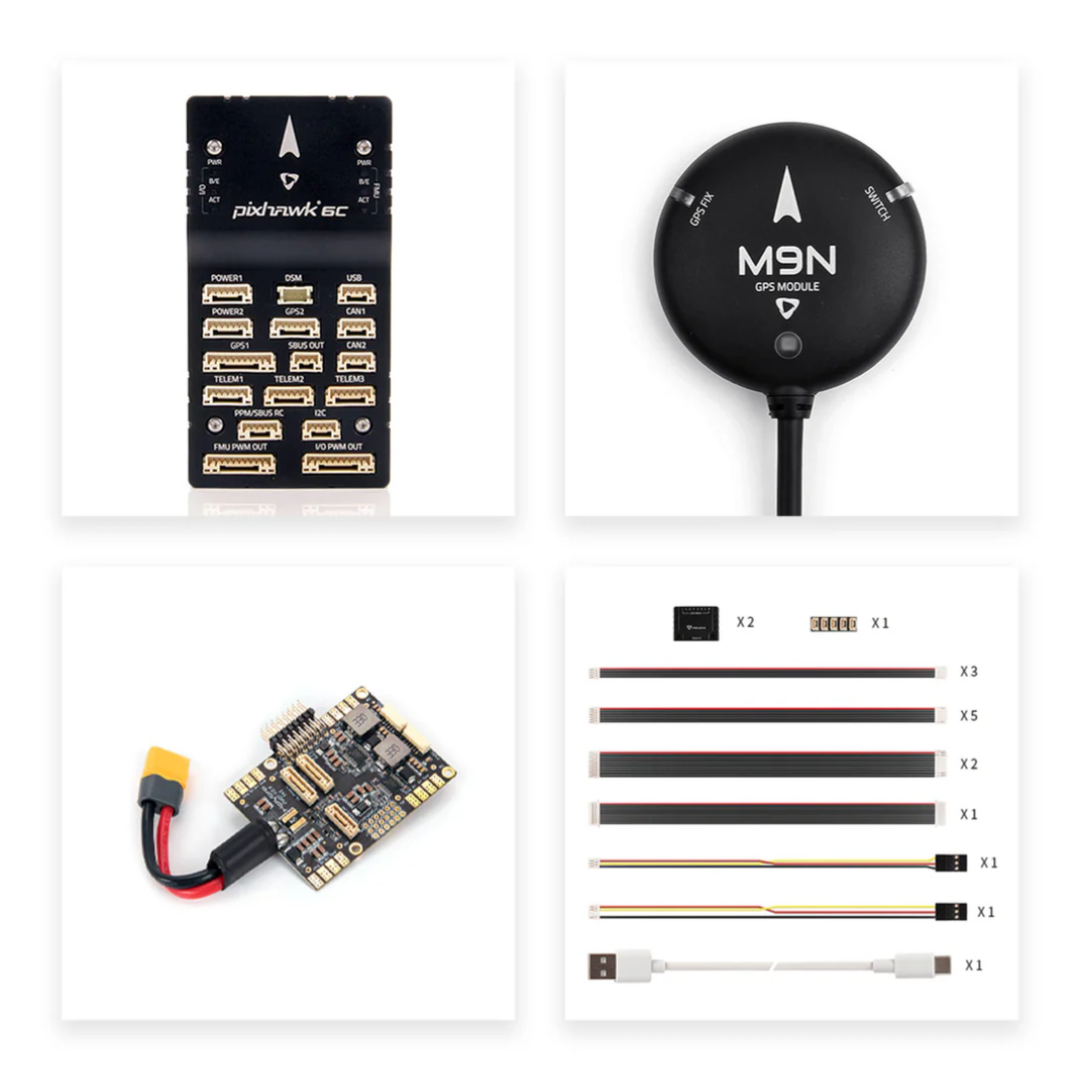

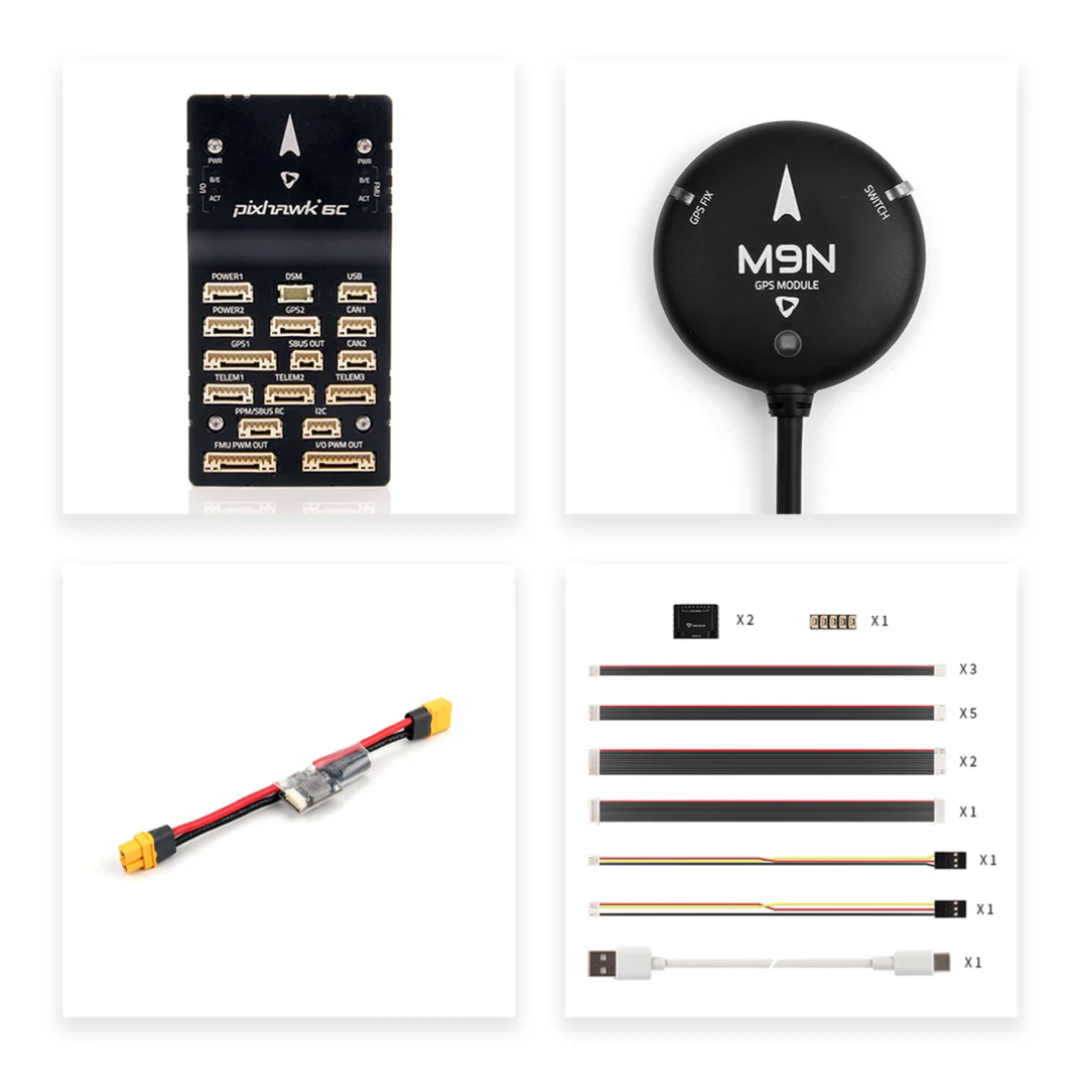

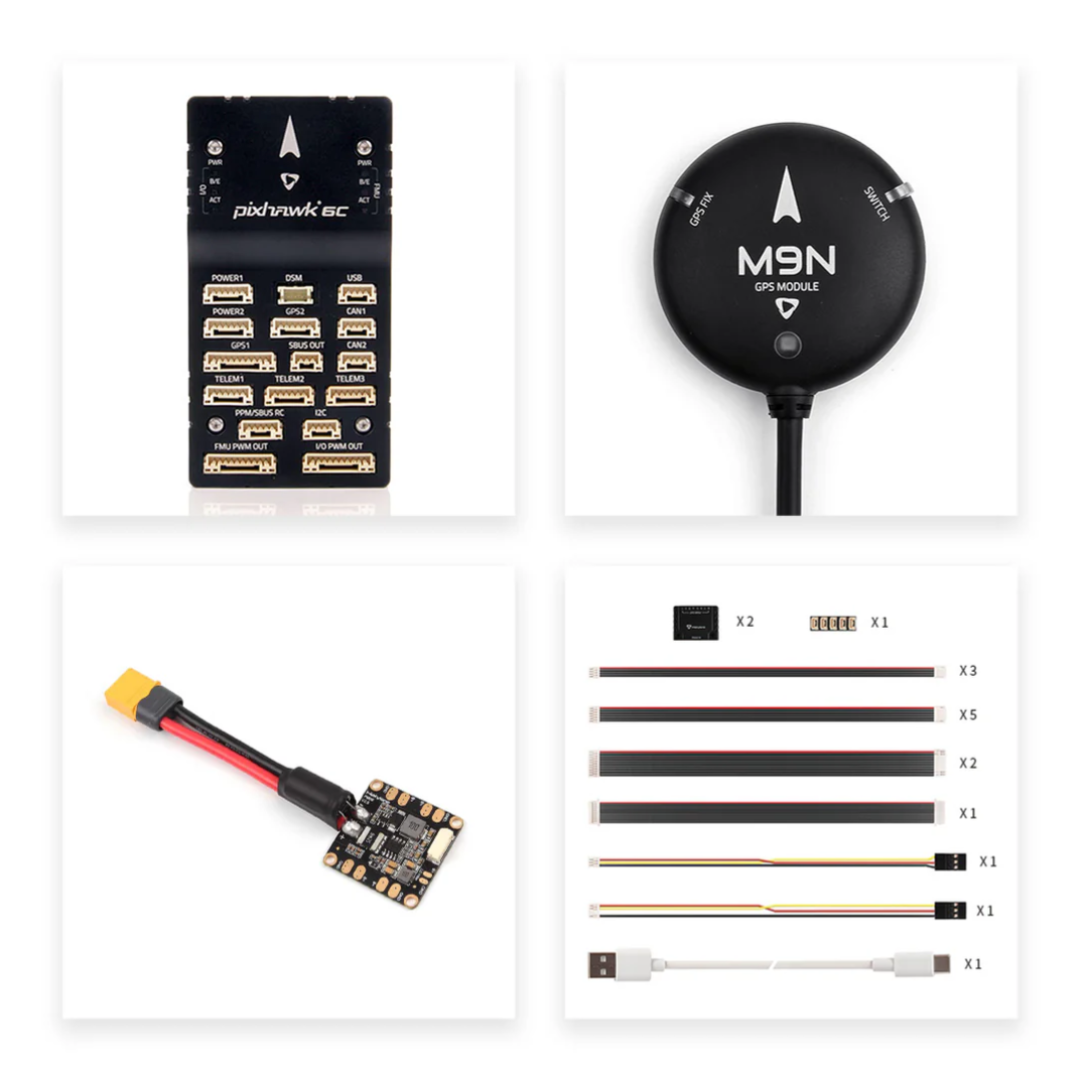

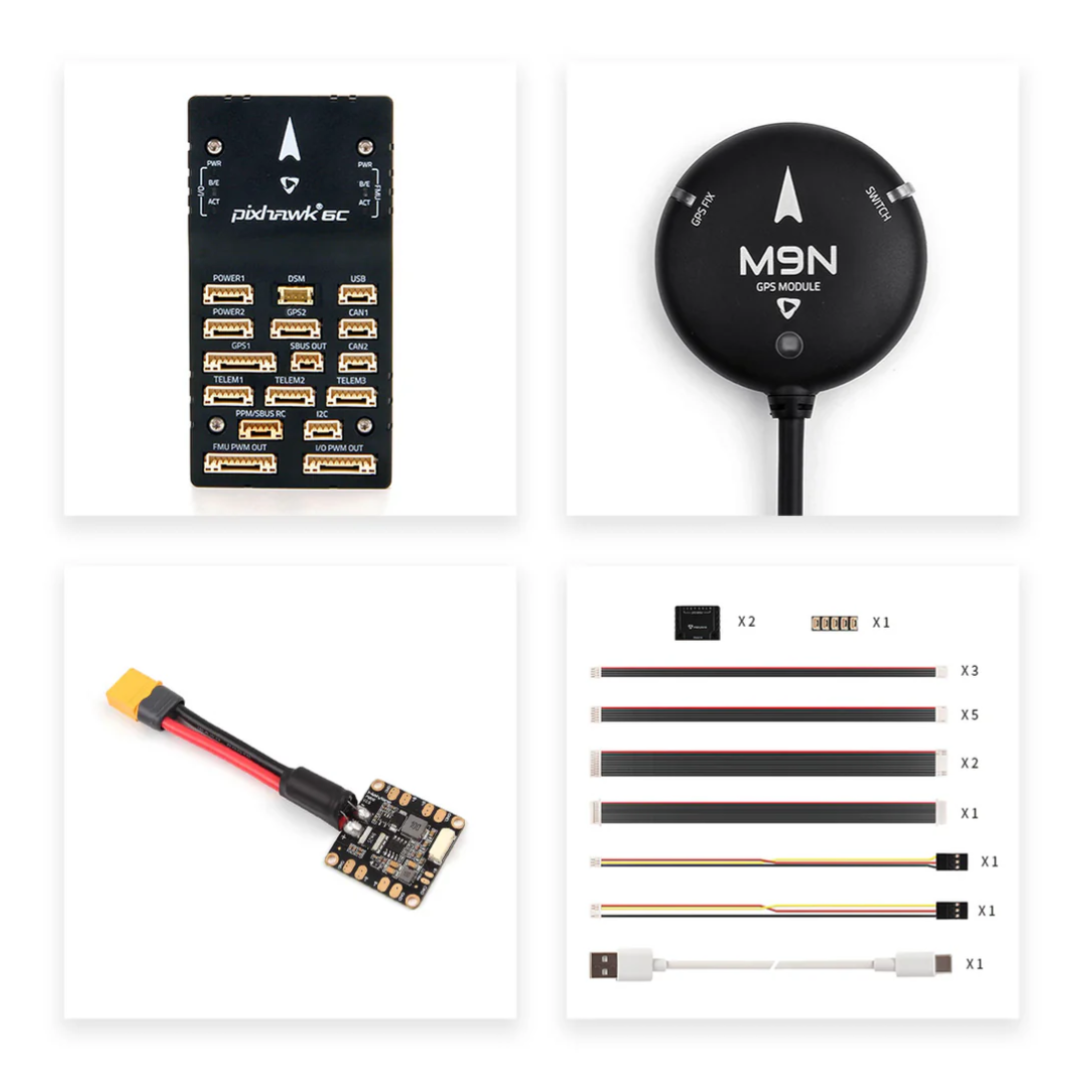

M9N M9N

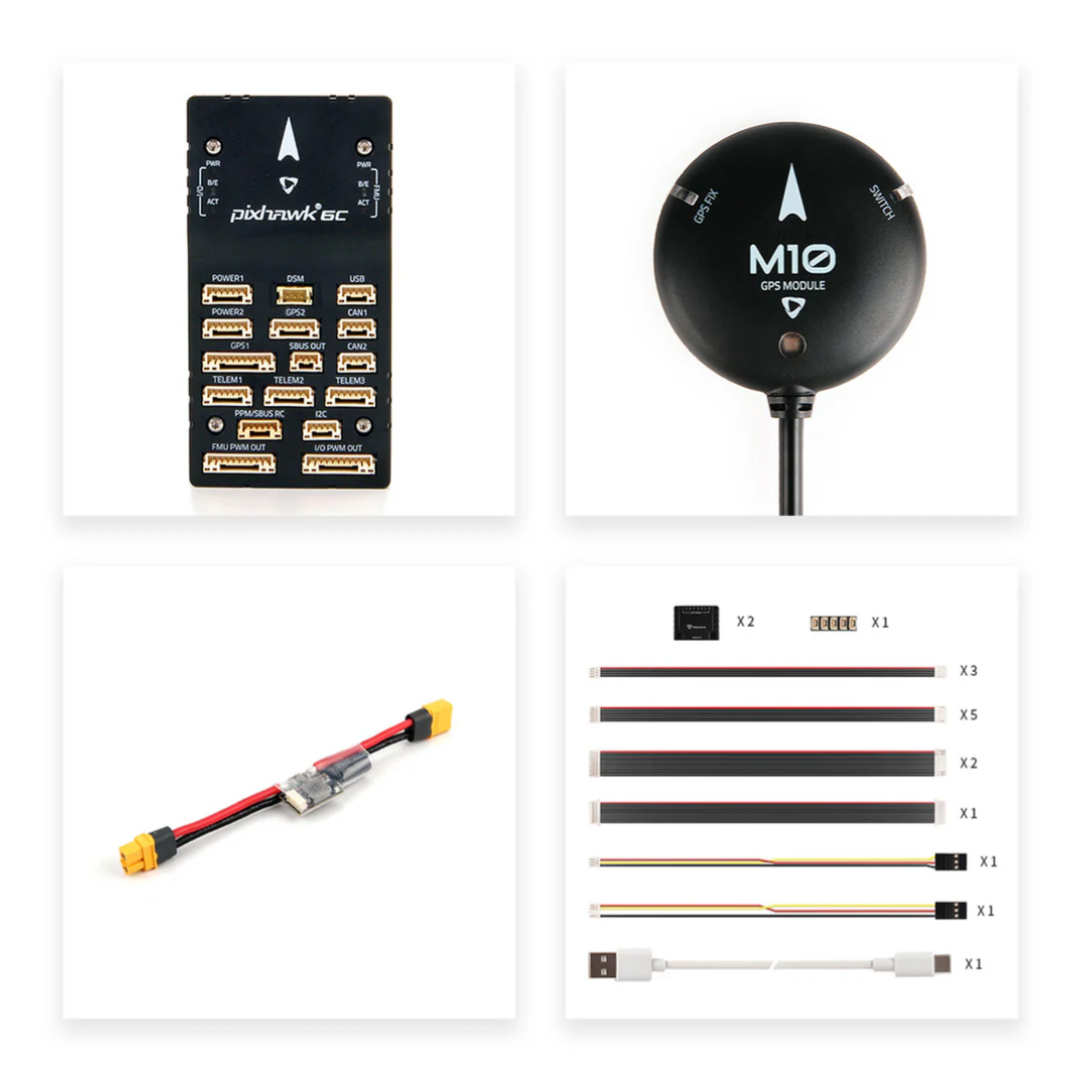

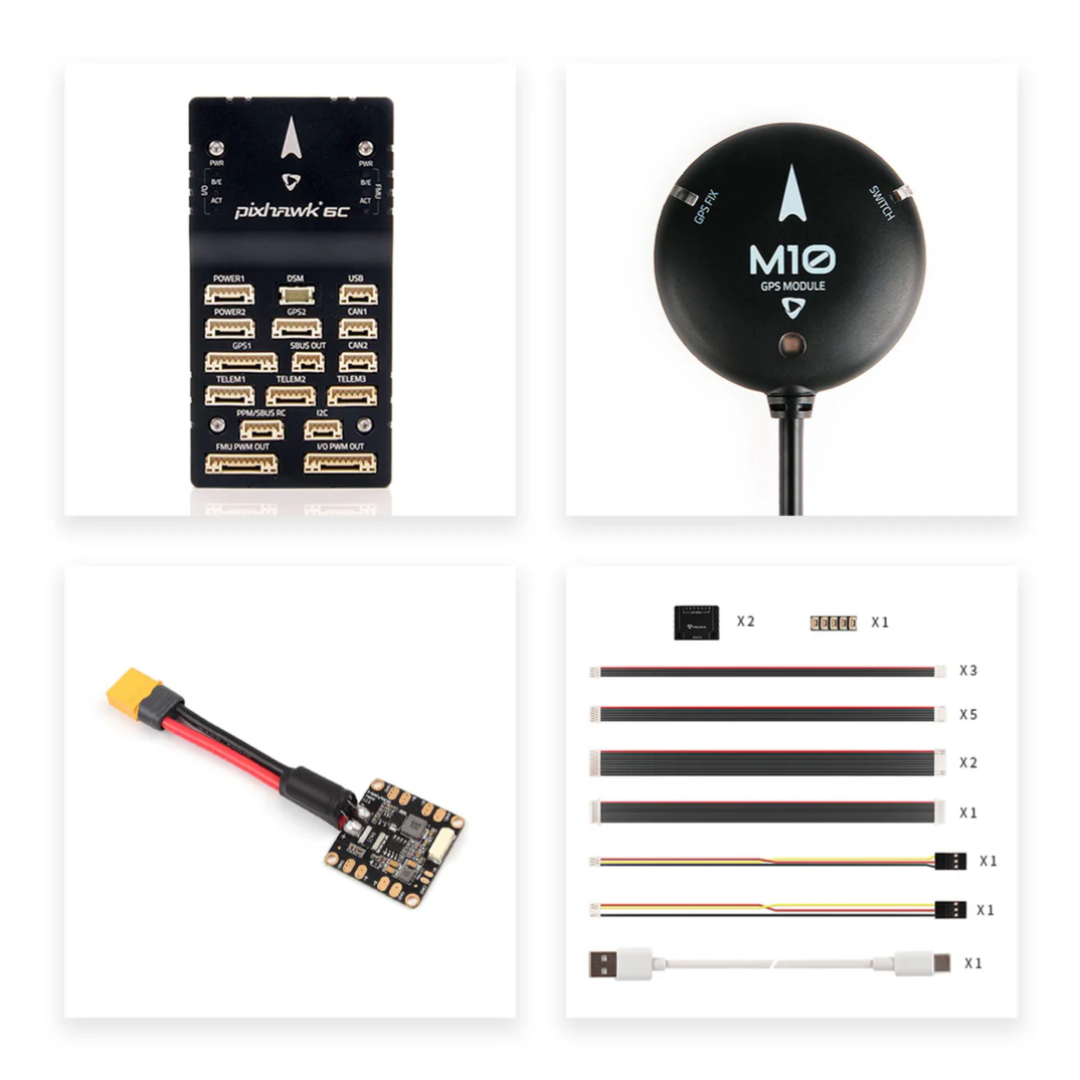

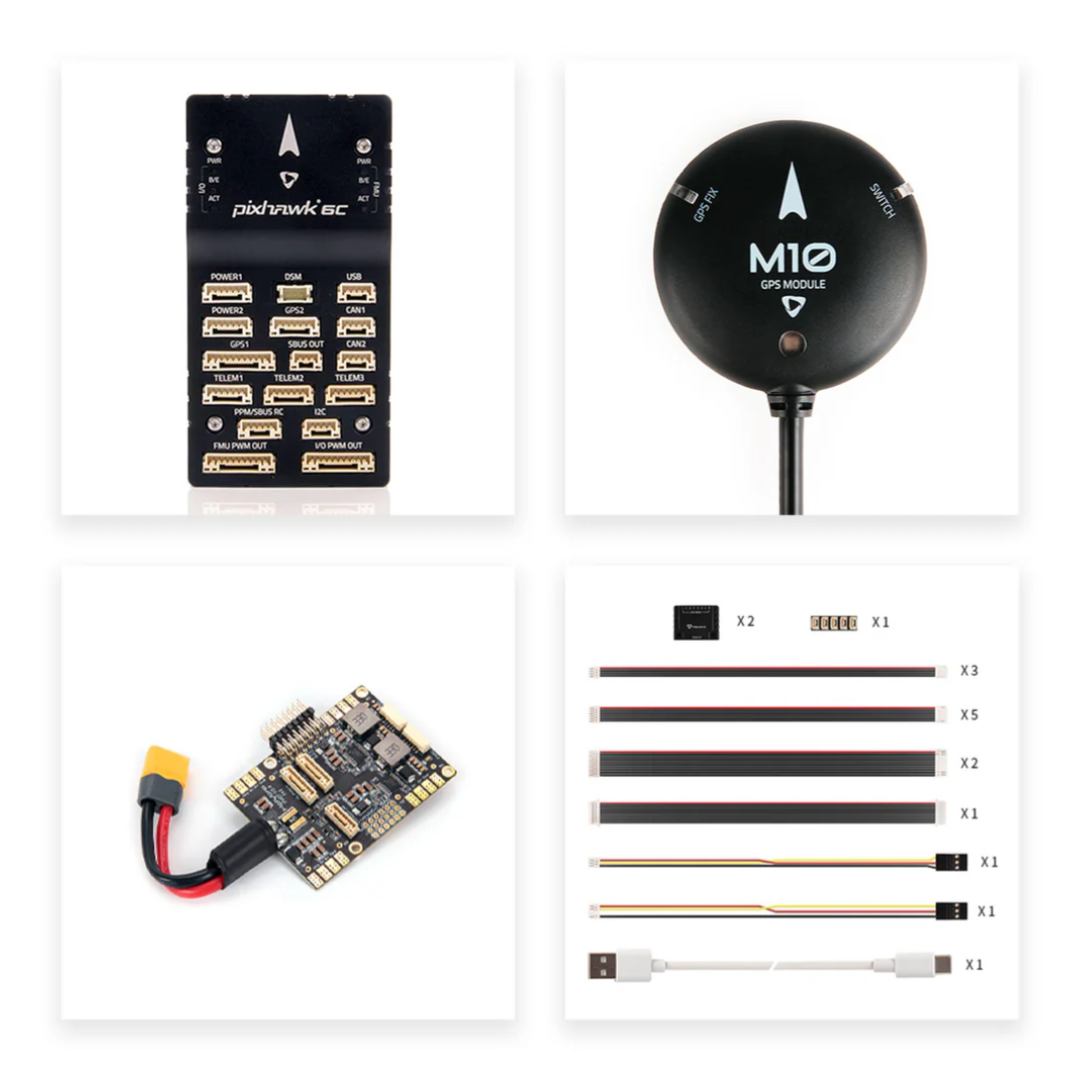

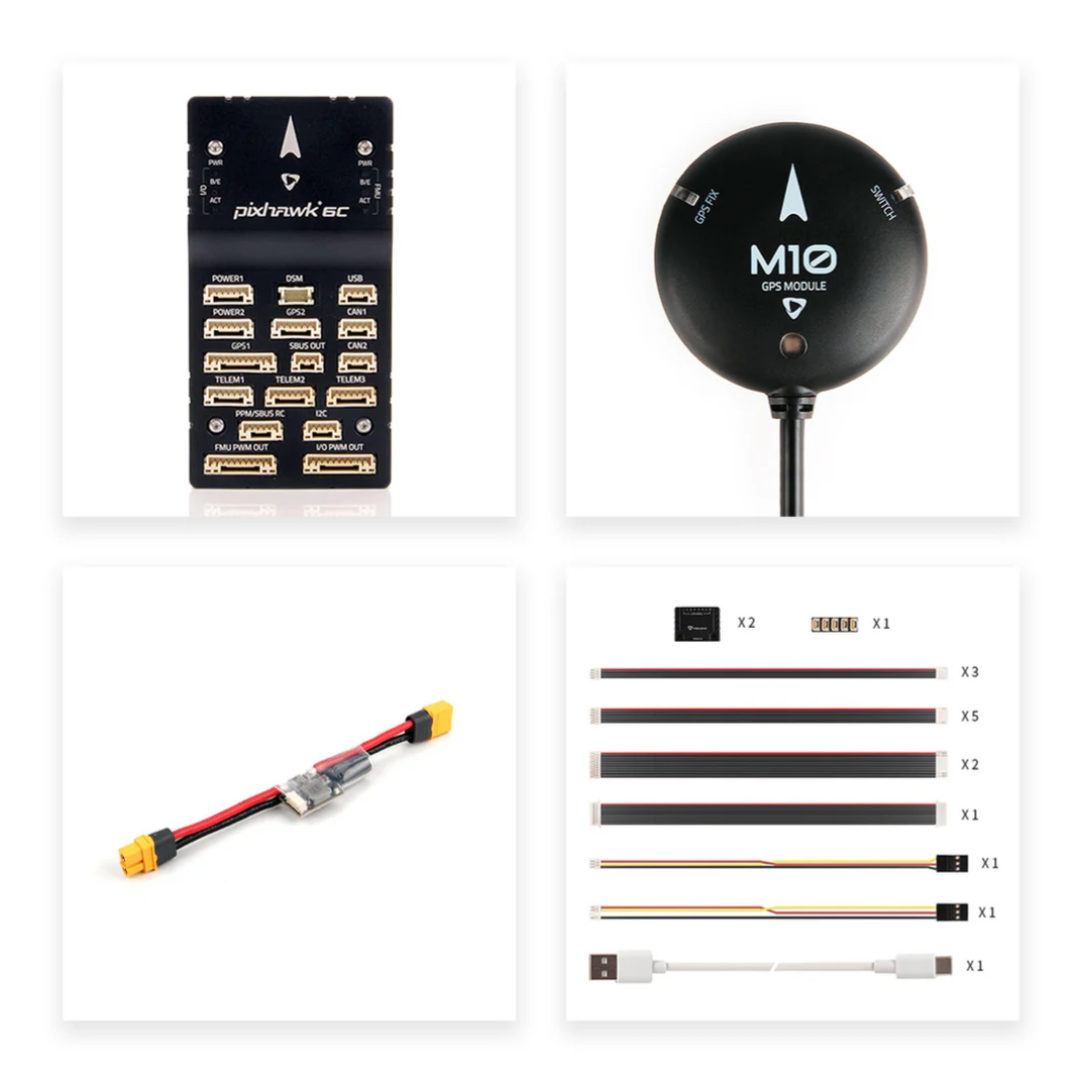

M10 M10

Select power module

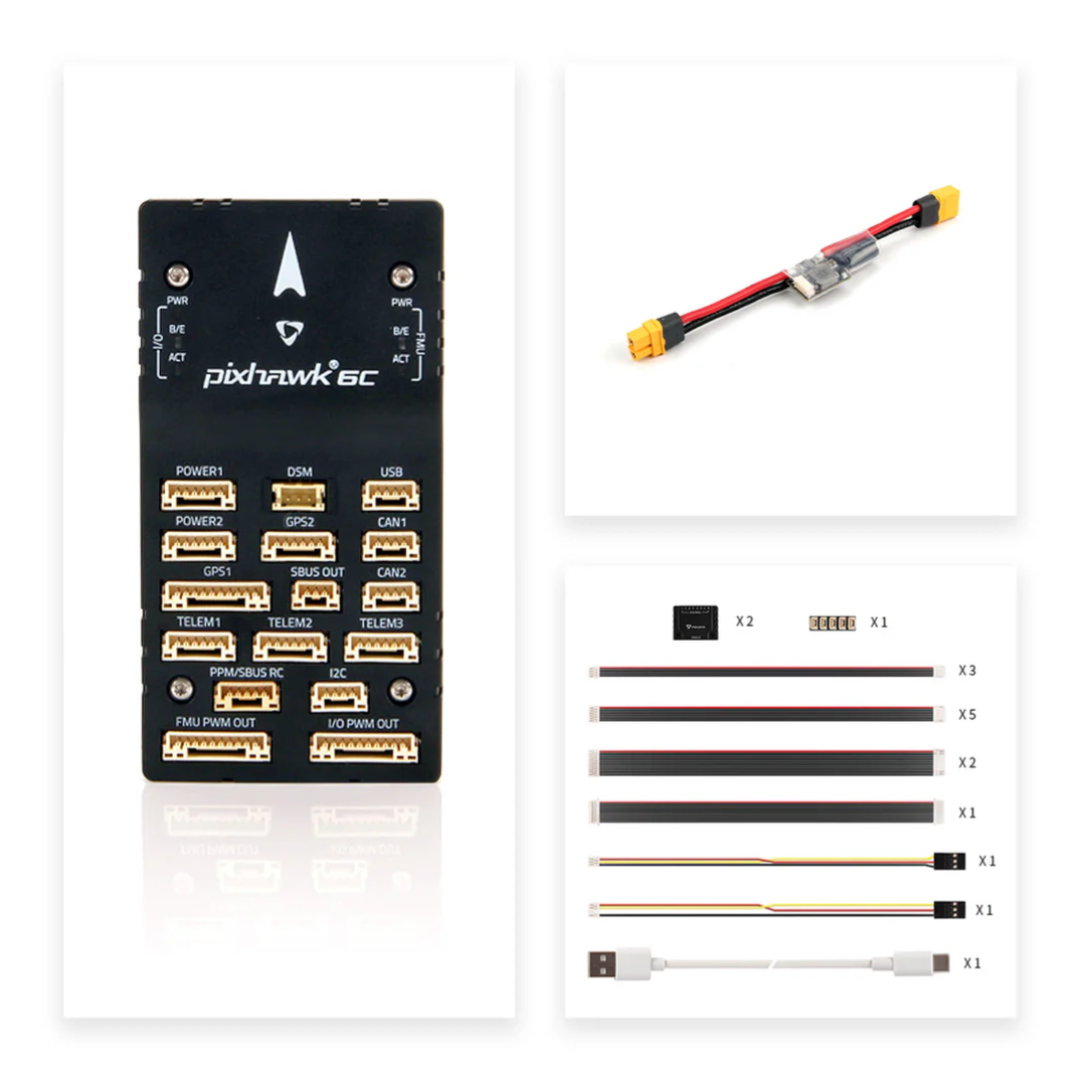

PM02 PM02

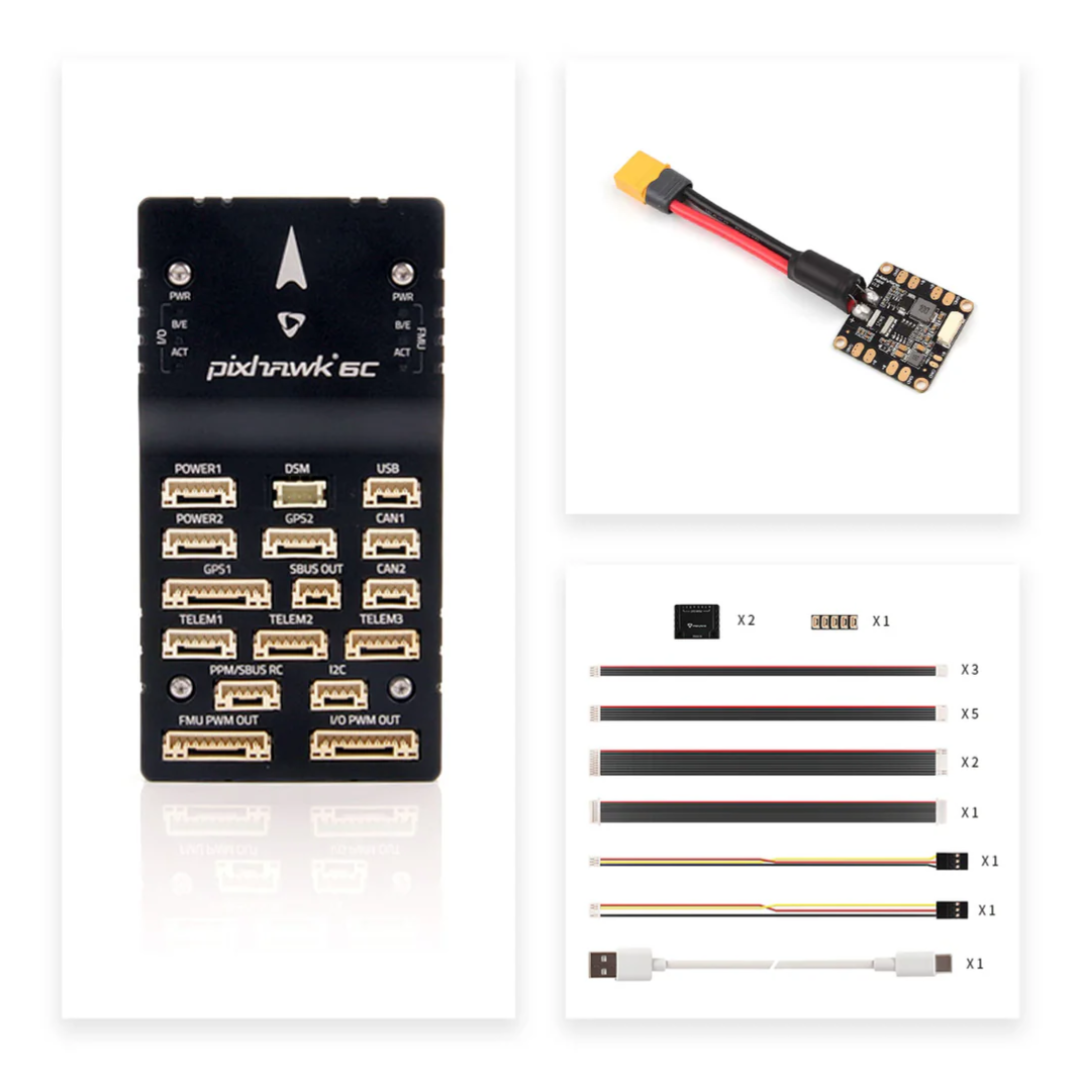

PM07 PM07

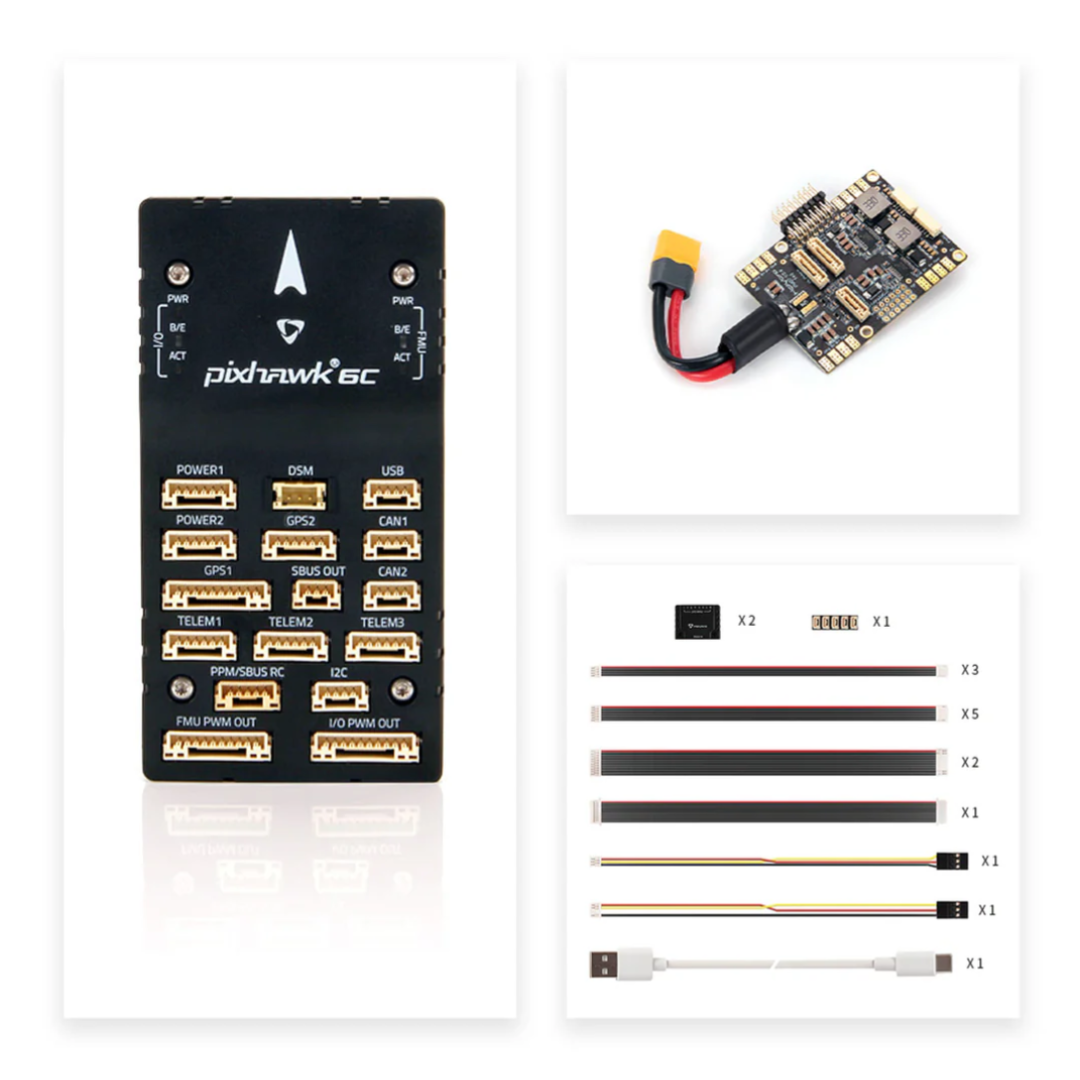

PM06 PM06
NONE NONE

Product variants

Select quantity

Description

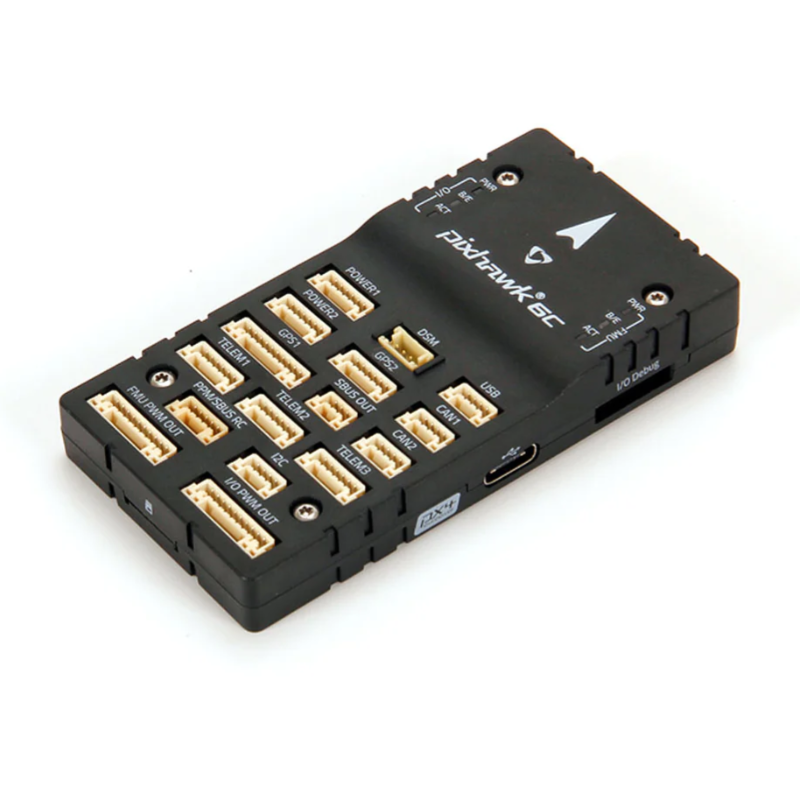

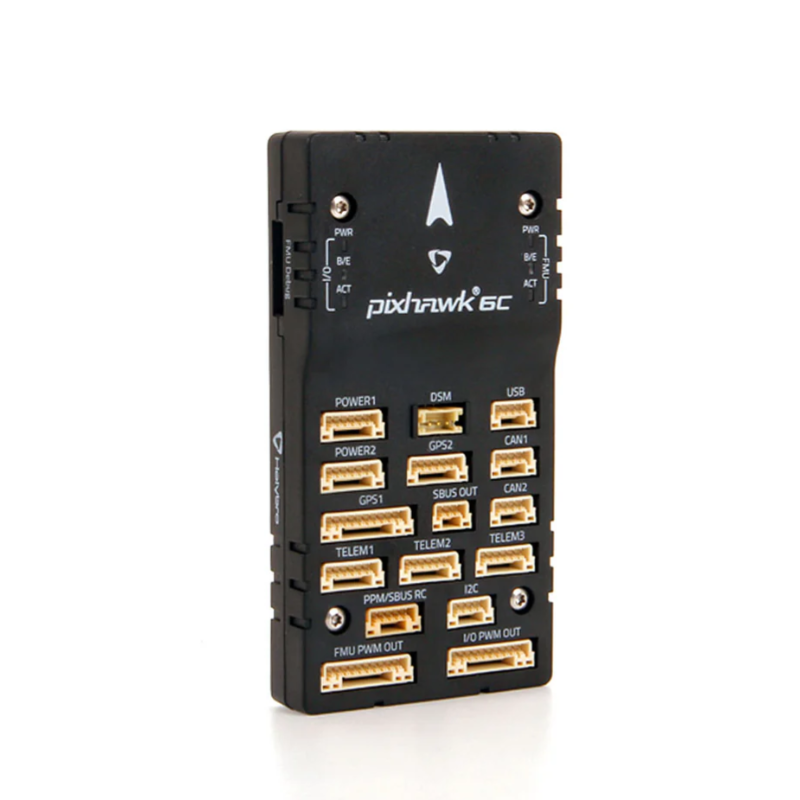

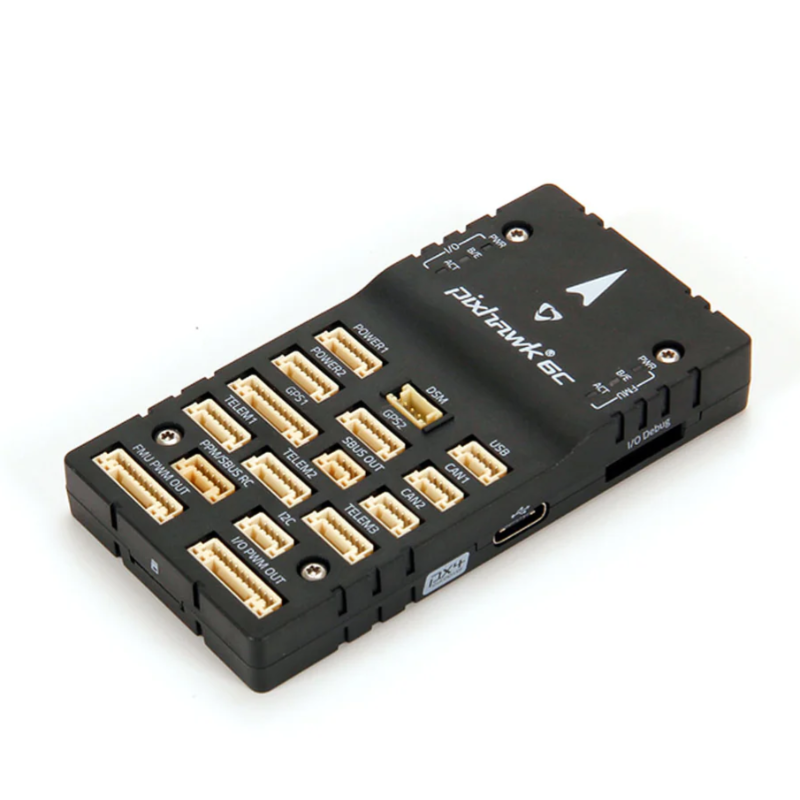

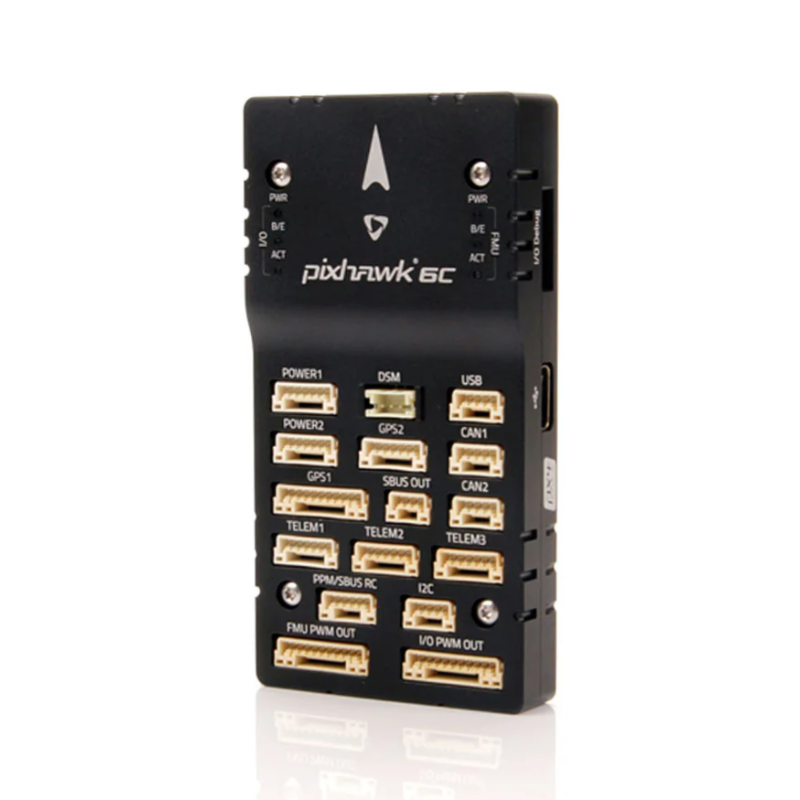

The Pixhawk® 6C is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6C, you can find an STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. The Pixhawk® 6C is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points:

High performance H7 Processor with clock speed up to 480 MHz
New cost-effective design with low-profile form factor
Redundant inertial measurement unit (IMU) from Bosch® & InvenSense®
Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Hardware switchable 3.3V or 5V PWM signal mode (requires opening the casing)

Note:

M10 GPS Requires PX4 1.14 & ArduPilot 4.3 or newer.
Power module comparison chart

Specification

Processors & Sensors

FMU Processor: STM32H743
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: BMI055
- Mag: IST8310
- Barometer: MS5611

Electrical data

Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
Current Ratings:
- Telem1 & GPS2 combined current limit: 1.5A
- All other ports combined current limit: 1.5A
Operating Temperature: -25-85°C
