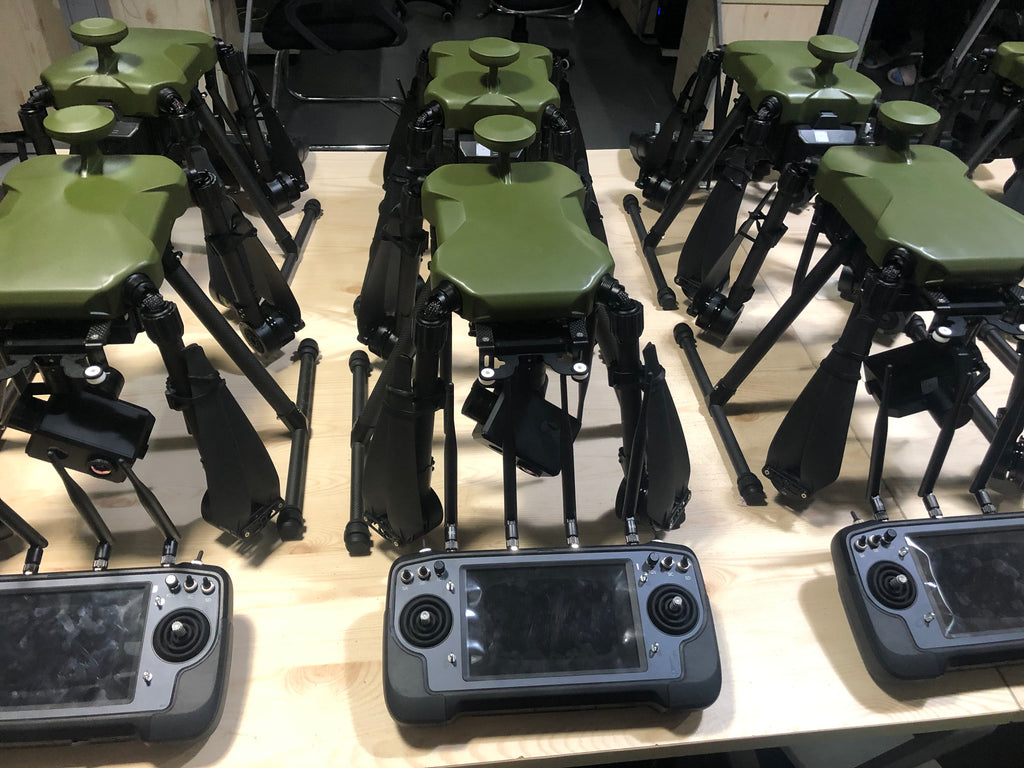

UnmannedRC X800 Quadcopter for Long Endurance Inspection and Mapping PNP
Couldn't load pickup availability
UnmannedRC X800 is a lightweight 800mm size quadcopter that features 50 mins flight time.with1kg payload ( dual sensor gimbal camera, oblique camera, 3-axis gimbal 61MP camera).
it can carry dual sensor gimbal camera ( 10X RGB zoom, 1080P video with 640*480px thermal sensor), with skydroid H16 PRO it can reach over 30km data/video range, also it can carry ADTi mapping camera for photogrammetric mapping, with our adti 26MP Ultra lightweight camera, it can reach over one hour endurance, with ADTi 61MP full frame mapping camera with 40mm full frame lens, it can fly over 20 mins.
For high accurate mapping mission, it can use either Emlid Reach M2 or RS2, or CUAV C-RTK2 for RTK/PPK mapping.
UnmannedRC X800 works with Solid State Lipo Battery 6S 22000-30000mAh.
Specifications:
Dimension: Unfolded, propellers and landing gears included,933*933*469mm Folded, propellers and landing gears included,378*326*363mm
Diagonal Wheelbase: 800mm
Weight: 6kg with 16Ah 6S battery
Max takeoff weight: 10kg
Max Payload: 2kg
Operating Frequency: 2.4000-2.4835 GHz; 5.725-5.850 GHz
Hovering Accuracy (Loiter ): ± 0.5m
Max Angular Velocity: Pitch: 300°/s, Yaw: 120°/s
Max Pitch Angle: 40°
Max Ascent Speed: 16.4 ft/s (5 m/s)
Max Descent Speed (vertical): 9.8 ft/s (3 m/s)
9.8 ft/s (3 m/s): 81 kph (50.3 mph)
Max Wind Resistance: 39.4 ft/s (12 m/s)
Max Service Ceiling Above Sea Level: 9842 feet (3000 m)
Max Flight Time: 20 min (full payload)
Ingress Protection Rating: IP43
GNSS: GPS+GLONASS
Operational Temperature: -4° to 122° F (-20° to 50° C)
Package includes:
X800 Quadcopter PNP *1
Skydroid H16 (2-5km) all-in-one handhold GCS controller*1
backpack with custom foam cutting
your optional mapping camera 24LV2 with 25MM lens (Nadir mount)
Package not includes:
6S 16000-22000Mah Lipo or solid state battery (each backpack can carry three batteris)
