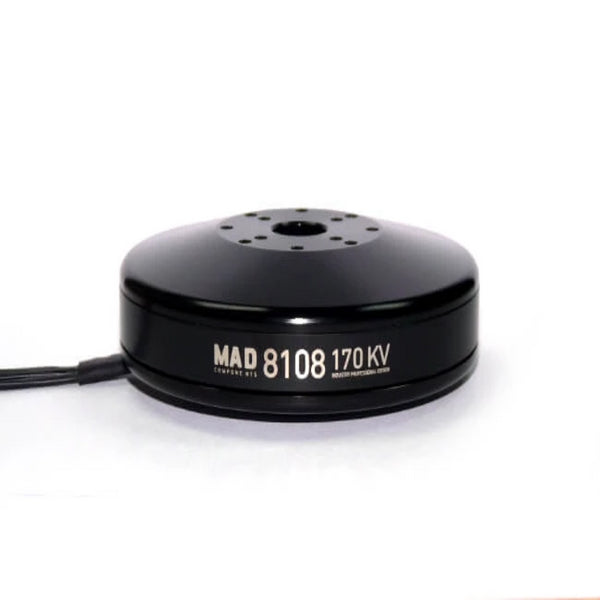

MAD8108 IPE Heavy Lifting Drones Motor

Regular price $225.00
Unit price  per
Tax included.

This package includes: 1x MAD8108 IPE Heavy Lifting Drone Motor

AD 8108 IPE Quadrotor Motor
  • Designed for rigorous conditions
  • Over-sized durable bearings for increased life, durability
  • Water and dust resistant. IP35 degree of protection
  • Motor mounting holes standarization

MAD8108 IPE HEAVY LIFTING DRONE MOTOR

INDUSTRY PRO EDITION UAV motor is designed to achieve waterproof and dustproof IP35 degree of protection. Design compatibility of mounting holes for propeller and setup installation. High performance and low power consumption at high voltage applications.

DESIGNED FOR RIGOROUS CONDITIONS

  • Water and dust resistant
  • IP35 degree of protection
  • Internal fan for active heat dissipation

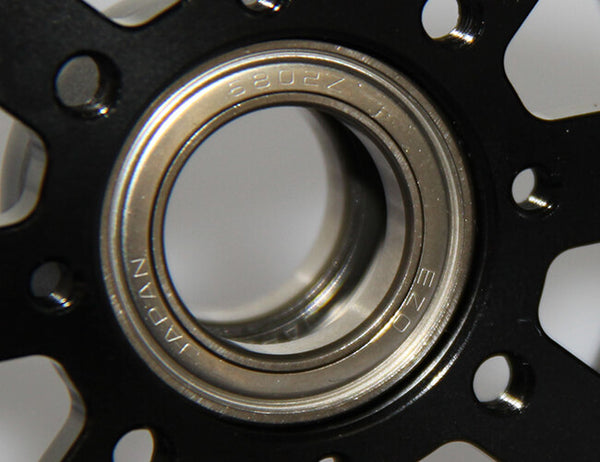

OVER-SIZED DURABLE BEARINGS

  • For increased life, durability
  • withstand the damage while occasionally hard Landing

PROPELLER INSTALLATION COMPATIBILITY

multiple propeller mounting options

2 x M3 Ø12 mm 2 x M3 Ø18 mm

DESIGNED FOR 6S-12S VOLTAGE

  • High performance and low power consumption at high voltage applications.

MOTOR SETUP COMPATIBILITY

  • Mounting holes standardization



SPECIFICATION

MAD8108 IPE IPE
Configuration 36N42P 36N42P
RPM/V 100KV 170KV
Stator Size 81 x 8 mm 81 x 8 mm
Motor Dimensions 86.8 x 27.7 mm IPE 86.8 x 27.7 mm IPE
Shaft Diameter OD: 15 mm, ID: 13 mm OD: 15 mm, ID: 13 mm
Continuous Power (60 mins) 350 W 600 W
Maximum Power (60 secs) 750 W 1300 W
Maximum Current (60 secs) 24 A 35 A
Idle Current at 16 V 0.7 A 1.4 A
Internal Resistance 186 mΩ 89 mΩ
Heat Dissipation Passive Passive
Rotor Balanced Yes Yes
Heavy Duty Design Yes Yes
Degree of Protection IP35 IP35
Motor Weight 265 g 265 g
Product Boxed Weight 540 g 540 g
Maximum Thrust 2000 g (6S) - 3300 g (12S) 3800 g (6S) - 6800 g (12S)
Efficiency at 1500g Thrust 17.0 g/W 15.0 g/W
Propeller Mounting Holes 4 x M3 Ø25 mm, 8 x M3 Ø35 mm 4 x M3 Ø25 mm, 8 x M3 Ø35 mm
Motor Mounting Holes 4 x M3 Ø30 mm, 4 x M4 Ø32 mm 4 x M3 Ø30 mm, 4 x M4 Ø32 mm
Wire Winding Extended 150 mm Winding Extended 150 mm
Propeller Adapter 2 pcs 2 pcs
Additional Accessories 3x Bullet Connector Set
3x Heat Shrink Tubes
2x M3 10mm
2x Carbon Prop Cover
1x MAD Stickers
1x Black Cover Foam with Hole

RECOMMENDATIONS

100KV Propeller size 27" - 34" 6S Takeoff Weight 700 - 1500 g/rotor
Propeller size 18" - 22" 12S Takeoff Weight 1300 - 2000 g/rotor
170KV Propeller size 27" - 29" 6S Takeoff Weight 1500 - 3000 g/rotor
Propeller size 20" - 22" 12S Takeoff Weight 2000 - 3500 g/rotor
