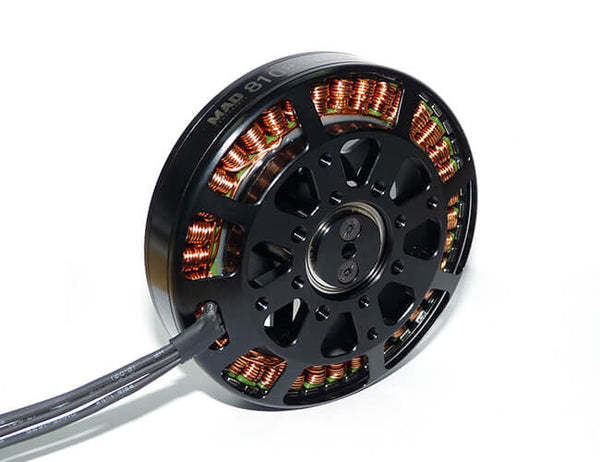

MAD8108 EEE Heavy Lifting drones Motor

Regular price $208.00
Unit price  per
Tax included.

This Package includes: 1xMAD8108 EEE Heavy Lifting Multicopter Motor

ENTHUSIASTS EXTREME EDITION for extreme weight reduction while maintaining the highest possible performance.

  • Open body design for better passive heat dissipation.
  • Propeller installation compatibility.
  • Reduced motor weight.
  • Motor mounting holes standarization.

MAD8108 EEE QUADCOPTER MOTOR

The heavy-lift multi-rotor quadcopter engine. This motor was designed for endurance flight.

EXTREMELY REDUCED WEIGHT

  • Airy case design
  • Passive heat dissapation
  • Lower power consumption & Maximized performance

HIGH VOLTAGE

  • Designed for 6-12S voltage
  • Increased torque

PROPELLER INSTALLATION COMPATIBILITY

multiple propeller mounting options

4 x M3 Ø12 mm



MOTOR SETUP COMPATIBILITY

  • Mounting holes standardization

4 x M3 Ø30 mm
4 x M3 Ø25 mm

SPECIFICATION

MAD8108 EEE EEE
Configuration 36N42P 36N42P
RPM/V 100KV 170KV
Stator Size 81 x 8 mm 81 x 8 mm
Motor Dimensions 86.8 x 27.5 mm EEE 86.8 x 27.5 mm EEE
Shaft Diameter OD: 15 mm, ID: 13 mm OD: 15 mm, ID: 13 mm
Continuous Power (60 mins) 350 W 600 W
Maximum Power (60 secs) 750 W 1300 W
Maximum Current (60 secs) 24 A 35 A
Idle Current at 16 V 0.7 A 1.4 A
Internal Resistance 186 mΩ 89 mΩ
Heat Dissipation Passive Passive
Rotor Balanced Yes Yes
Heavy Duty Design No No
Degree of Protection Rainproof Rainproof
Motor Weight 250 g 250 g
Product Boxed Weight 525 g 525 g
Maximum Thrust 2000 g (6S) - 3300 g (12S) 3800 g (6S) - 6800 g (12S)
Efficiency at 1500g Thrust 17.0 g/W 15.0 g/W
Propeller Mounting Holes 4 x M3 Ø25 mm, 8 x M3 Ø35 mm 4 x M3 Ø25 mm, 8 x M3 Ø35 mm
Motor Mounting Holes 4 x M3 Ø30 mm, 4 x M4 Ø32 mm 4 x M3 Ø30 mm, 4 x M4 Ø32 mm
Wire Winding Extended 150 mm Winding Extended 150 mm
Propeller Adapter 2 pcs 2 pcs
Additional Accessories 3x Bullet Connector Set
3x Heat Shrink Tubes
2x M3 10mm
2x Carbon Prop Cover
1x MAD Stickers
1x Black Foam with Hole

RECOMMENDATIONS

100KV Propeller size 27" - 34" 6S Takeoff Weight 700 - 1500 g/rotor
Propeller size 18" - 22" 12S Takeoff Weight 1300 - 2000 g/rotor
170KV Propeller size 27" - 29" 6S Takeoff Weight 1500 - 3000 g/rotor
Propeller size 20" - 22" 12S Takeoff Weight 2000 - 3500 g/rotor
