This package includes: 1x MAD M6 IPE Hexacopter Motor

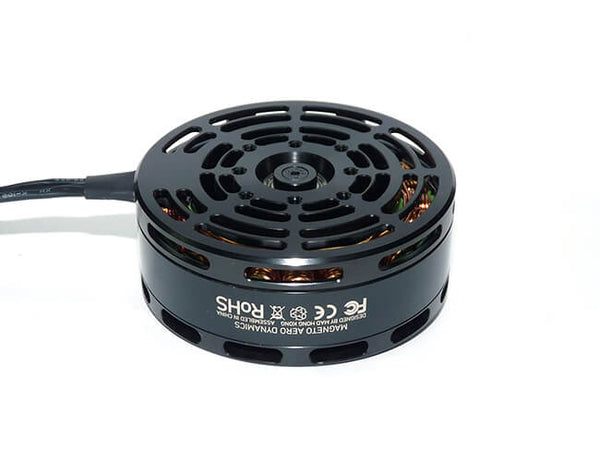

MAD M6 C12 IPE HEXACOPTER MOTORS
INDUSTRY PRO EDITION UAV motor is designed to achieve waterproof and dustproof IP35 degree of protection. Design compatibility of mounting holes for propeller and setup installation. High performance and low power consumption at high voltage applications.
DESIGNED FOR RIGOROUS CONDITIONS
- Water and dust resistant
- IP35 degree of protection
- Internal fan for active heat dissipation
OVER-SIZED DURABLE BEARINGS
- For increased life, durability
- withstand the damage while occasionally hard Landing
PROPELLER INSTALLATION COMPATIBILITY
multiple propeller mounting options
2 x M3 Ø12 mm 2 x M3 Ø18 mm
DESIGNED FOR 6S-12S VOLTAGE
- High performance and low power consumption at high voltage applications.
MOTOR SETUP COMPATIBILITY
- Mounting holes standardization
SPECIFICATION
| MAD M6 C12 | IPE | IPE | IPE |
|---|---|---|---|
| Configuration | 24N28P | 24N28P | 24N28P |
| RPM/V | 160KV | 280KV | 400KV |
| Motor Dimensions | 72 x 25.5 mm | 72 x 25.5 mm | 72 x 25.5 mm |
| Internal Resistance | 135 mΩ | 40 mΩ | 27 mΩ |
| Rotor Balanced | Yes | Yes | Yes |
| Heavy Duty Design | Yes | Yes | Yes |
| Degree of Protection | IP35 | IP35 | IP35 |
| Motor Weight | 260g | 250g | 250g |
| Product Boxed Weight | 365 g | 355 g | 355 g |
| Maximum Thrust | 8350 g (12S) - 22” | 7185 g (6S) - 24” | 6150 g (6S) - 20” |
| Efficiency at 4000g Thrust | 7.62 g/W | 8.5 g/W | 6.0 g/W |
| Propeller Mounting Holes | 4 x M3 Ø12 mm | 4 x M3 Ø12 mm | 4 x M3 Ø12 mm |
| Motor Mounting Holes | 4 x M3 Ø25 mm 4 x M3 Ø30 mm |
4 x M3 Ø25 mm 4 x M3 Ø30 mm |
4 x M3 Ø25 mm 4 x M3 Ø30 mm |
| Wire | Winding Extended 150 mm | Winding Extended 150 mm | Winding Extended 150 mm |
| Propeller Adapter | 1pc | 1pc | 1pc |
| Additional Accessories | 3x Bullet Connector Set | ||
| 3x Heat Shrink Tubes | |||
| 2x M3 10mm | |||
| 2x Carbon Prop Cover | |||
| 1x MAD Stickers | |||
| 2x Black Foam with Hole |
RECOMMENDATIONS
| KV150 | Propeller size 17" - 22" | Takeoff Weight 2700 - 6320 g/rotor 12S |
| KV280 | Propeller size 18" - 24" | Takeoff Weight 2300 - 5000 g/rotor 6S |
| KV400 | Propeller size 15" - 20" | Takeoff Weight 2000 - 4000 g/rotor 6S |
