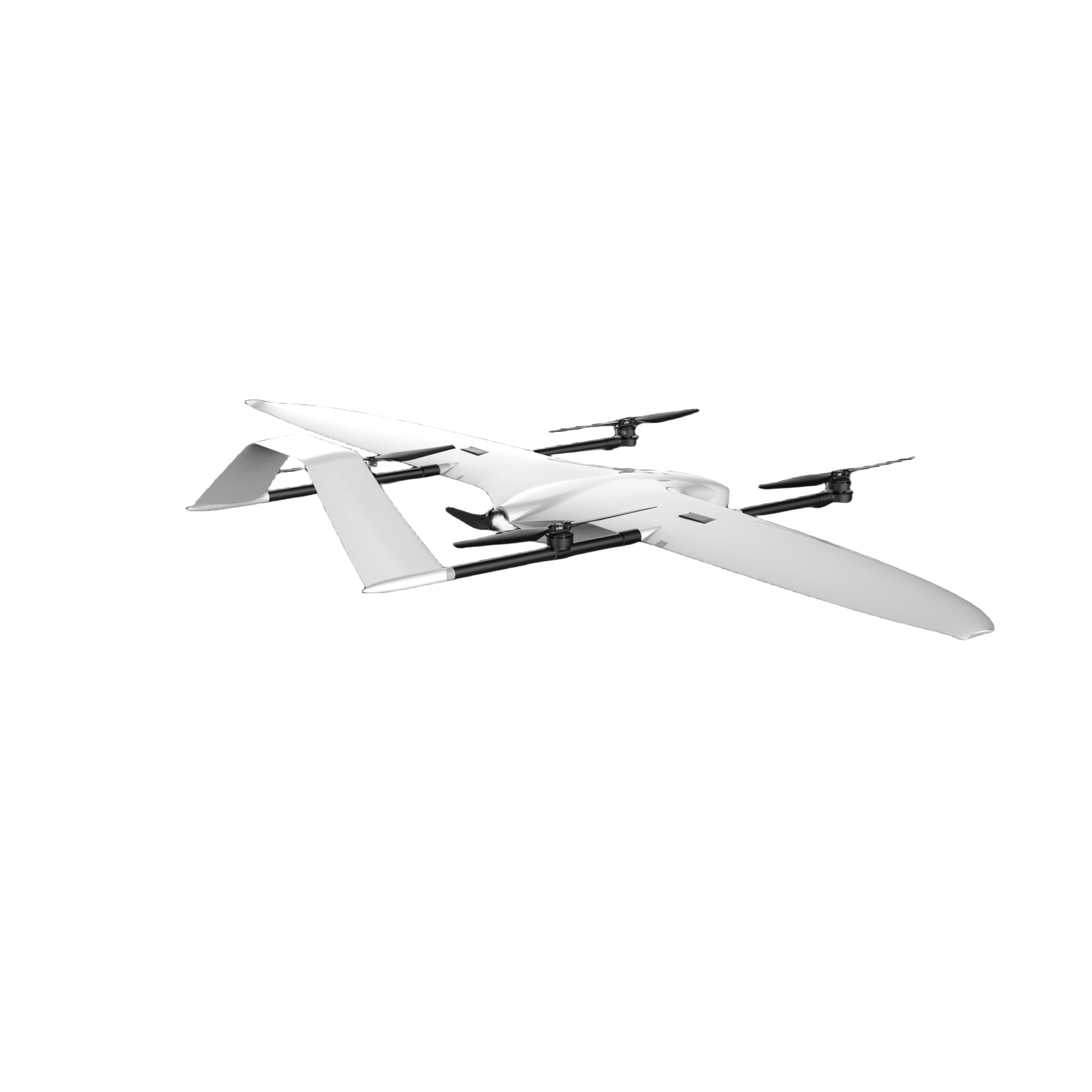

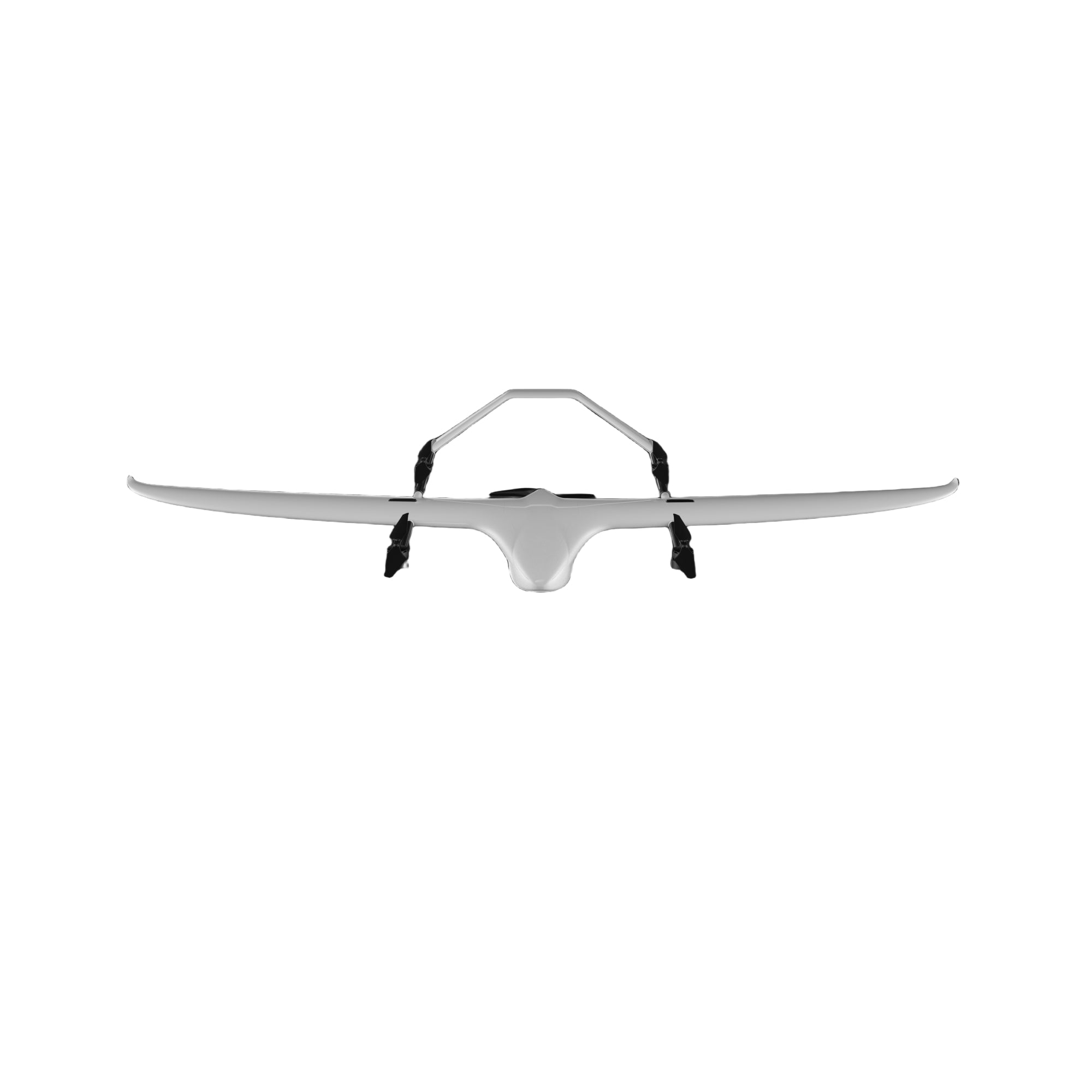

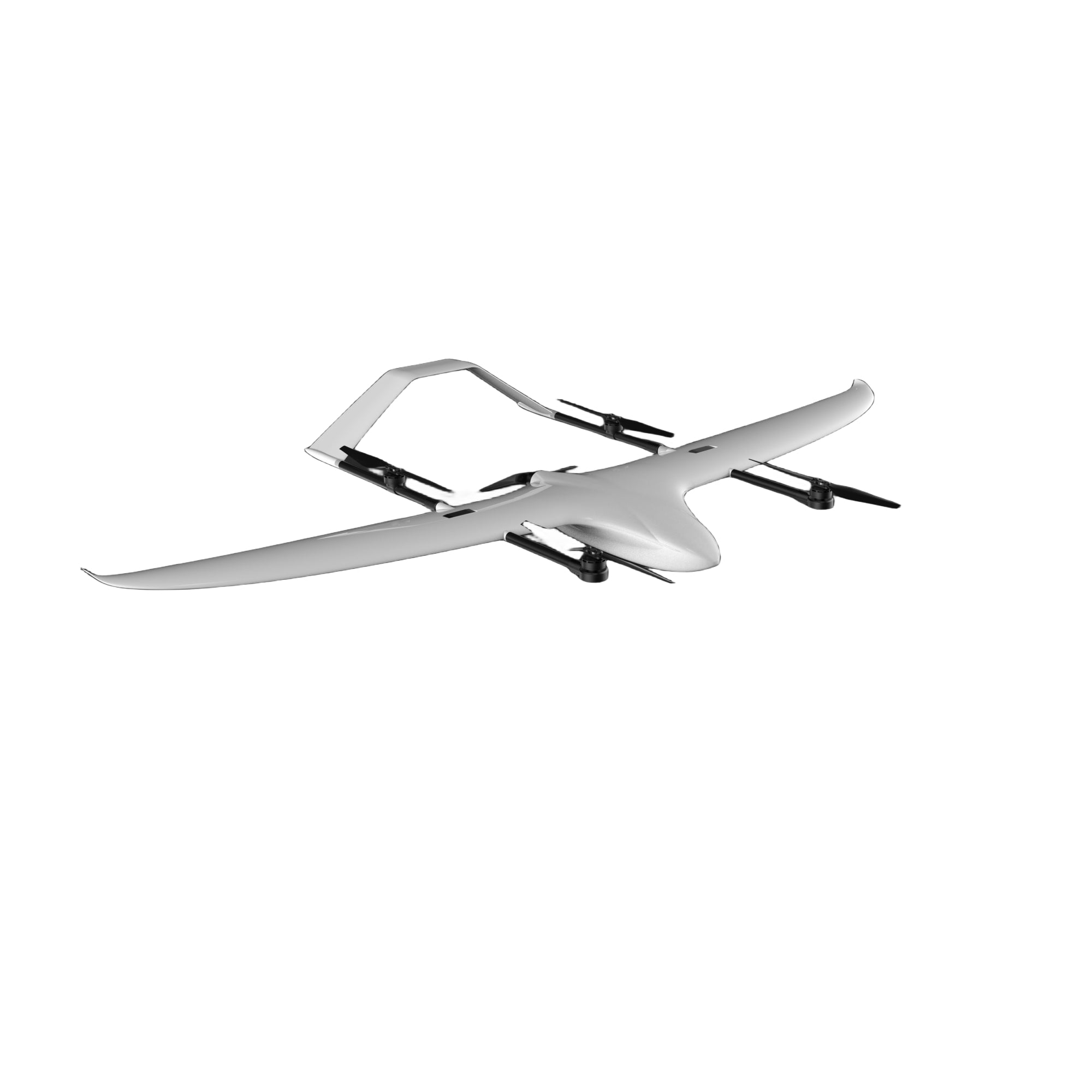

The Swift Composite Material VTOL Mapping UAV is a high quality Vertical takeoff and Landing fixed wing UAV with a very safe,more high reliable and effcient features. It can take off on ground less than 1 square meter, and had 1.5-2 hours duration depends on its payload. We have tested the aerodynamics both on simulation software and real field test.
it is designed so that the air provides the optimal upthrust with minimum resistance. It can takeoff with 6S batteries power instead of 12S, when it cruises, the current usage is

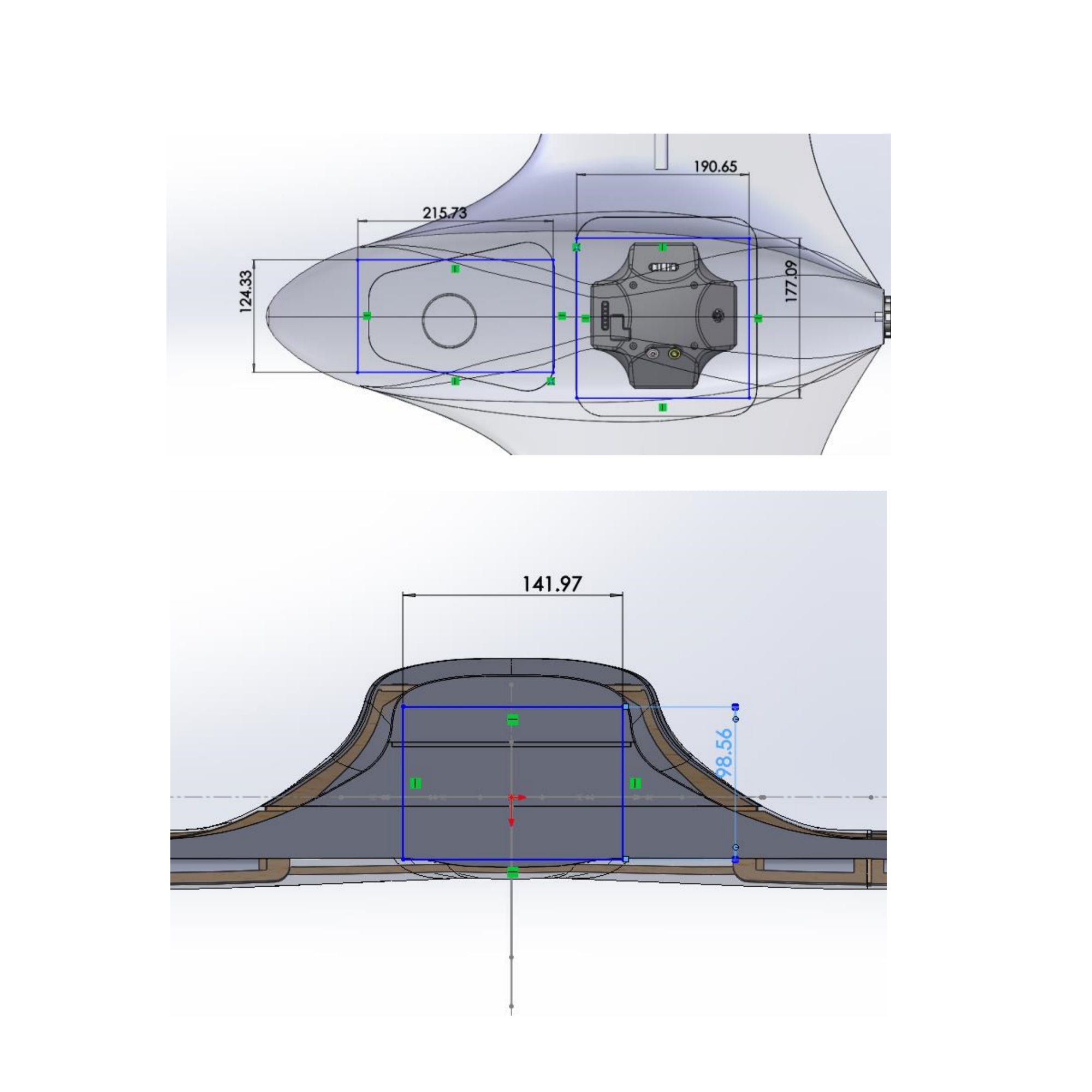

between 6-8A, the power consumption of this plane is 140mAh/1km, and futhermore, it has large interior fuselage space, so it can carry large size of payload or large size of 18650 li ion batteries pack.
Specifications:
Wingspan: 2600mm
Frame weight: 2.5kg
Max take-off weight: 7kg
Max speed: 118km/hr
Max payload: 0.5kg
Endurance: 2hours for MTOW 15kg
Max Wind speed resistance: 40 km/hr
Landing Area: 3x3m
Battery option: 6S batteries 15-30C (22000-30000mAh Lipo )

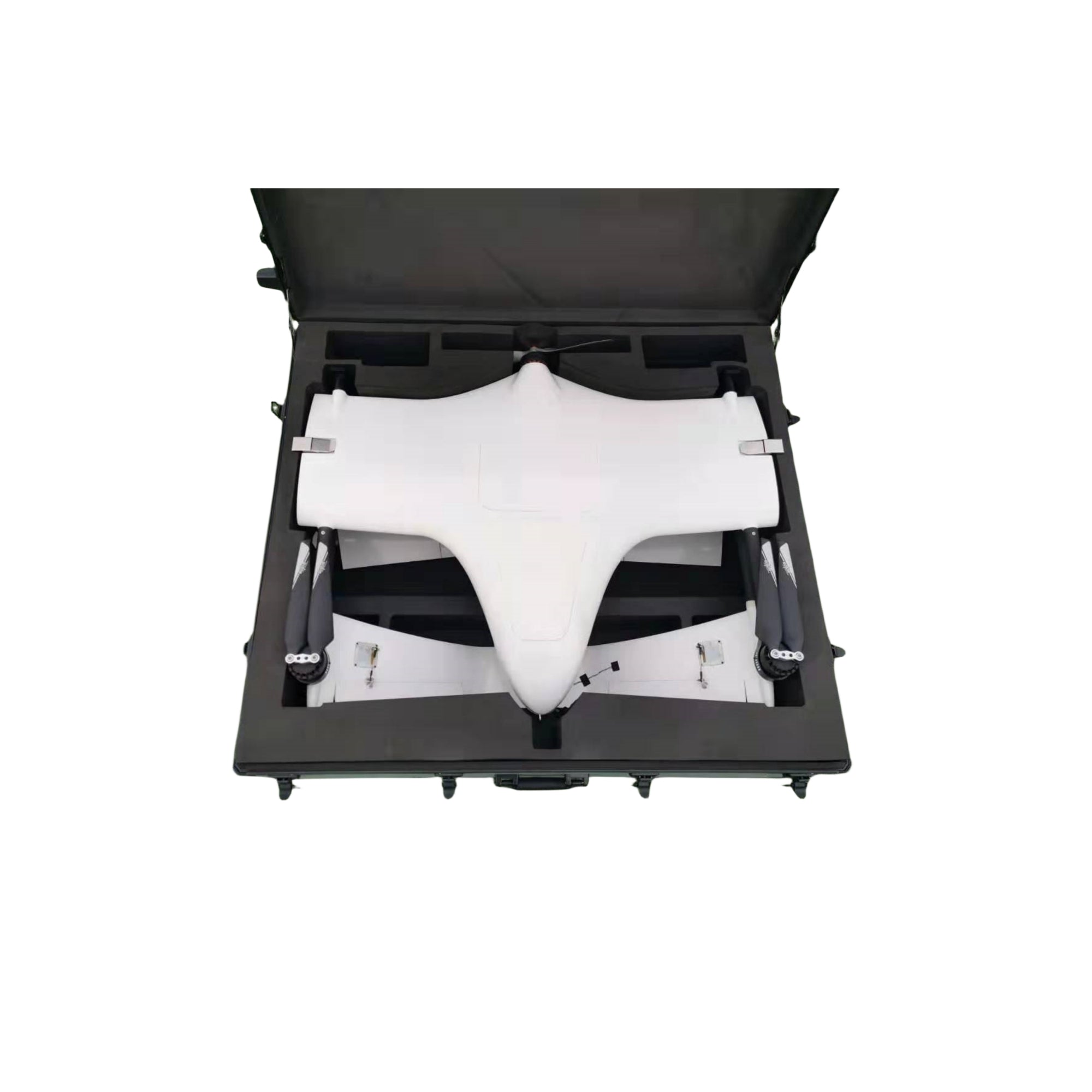

Packing: 106*109*40cm aluminum travel box
Package includes:
