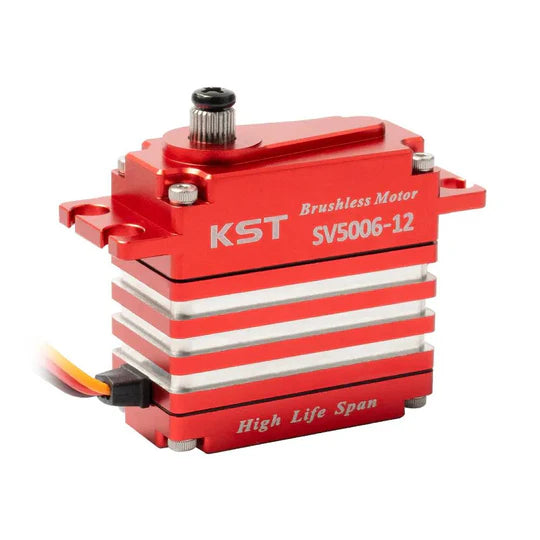

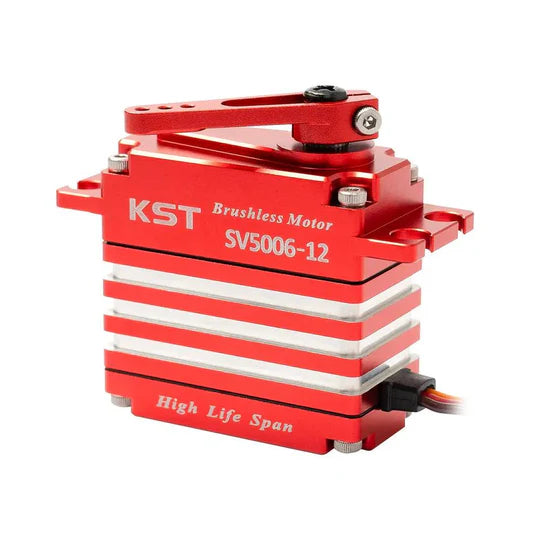

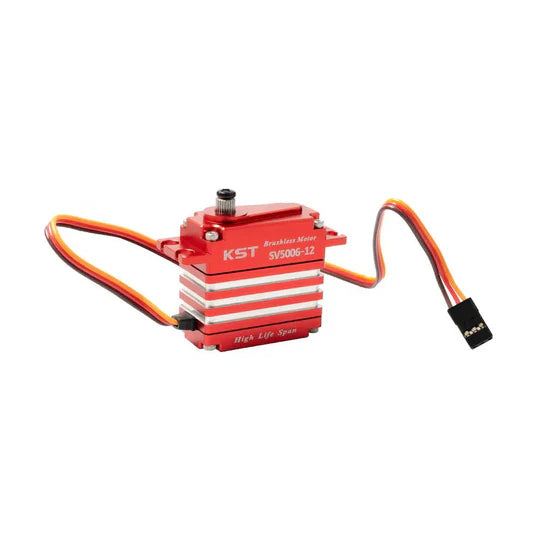

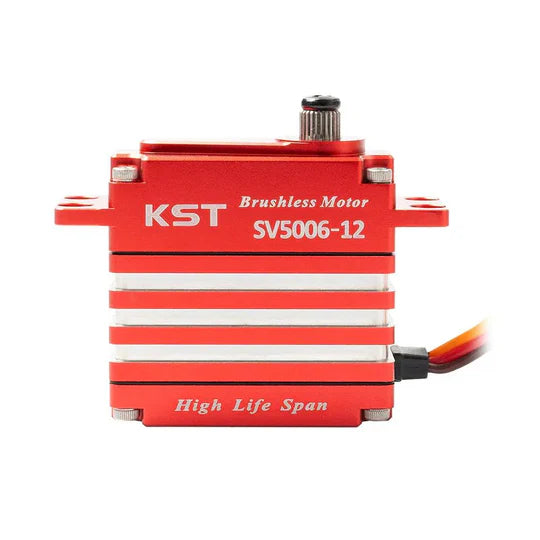

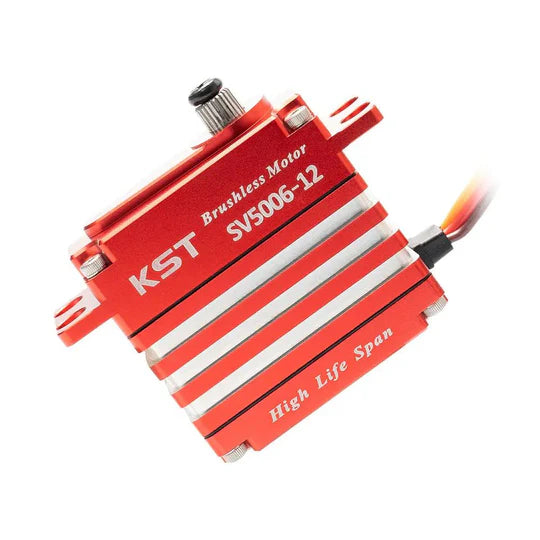

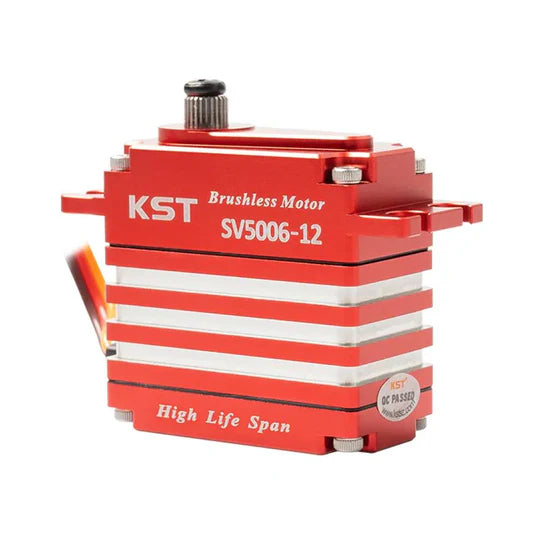

The SV5006-12 is a high-performance brushless digital servo engineered for RC Cars, Competition RC Planes & Robotics. It offers impressive torque up to 55 kgf.cm at 13V, combined with an ultra-fast response time of 0.063sec/60°, ensuring smooth, accurate movement even under heavy loads. Designed for reliability and speed, it delivers consistent performance where it matters most.
Features
- SHV (Super High Voltage) DC 12V or Up to 3S LiPo Battery Direct Drive
- Supports 8.4- 13.0V High Voltage
- High Torque & Exceptional Speed
- 4-Pole Brushless Motor
- Large Default Travel Angle (Programmable)
- 6 Ball Bearings
- Hardened Steel Gear
- Programmable
- Ideal for RC Cars, Competition RC Planes & Robotics
Specification
- Item: SV5006-12 Servo
- Rated Voltage: DC12.0V
- Voltage Range: DC8.4V-13.0V
- Stalling Torque: 40Kgf.cm@8.4V, 50Kgf.cm@12.0V, 55Kgf.cm@13.0V
- No-load Speed: 0.100sec/60°@8.4V, 0.068sec/60°@12.0V, 0.063sec/60°@13.0V
- Working Frequency: 1520μs/333Hz

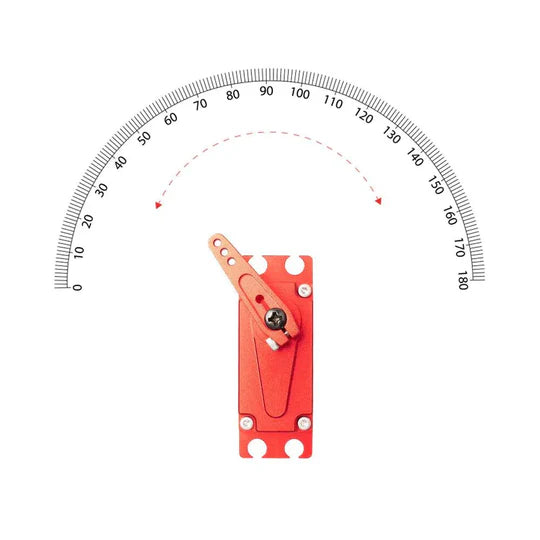

- Default Travel Angle: ±100°=200° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: 4-Pole Brushless Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 6BB
- Case Dimensions: 40*20*40mm±0.2mm
- Weight: 75g±10%

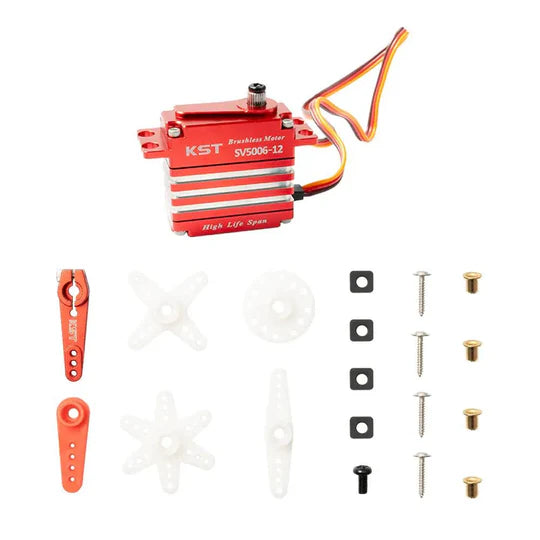

Package Includes
- 1 * SV5006-12 Servo
- 5 * Plastic Servo Horn
- 1 * CNC Servo Horn
- 1 * Servo Horn Screw
- 4 * Mounting Screw
- 4 * Rubber Grommet
- 4 * Eyelet
