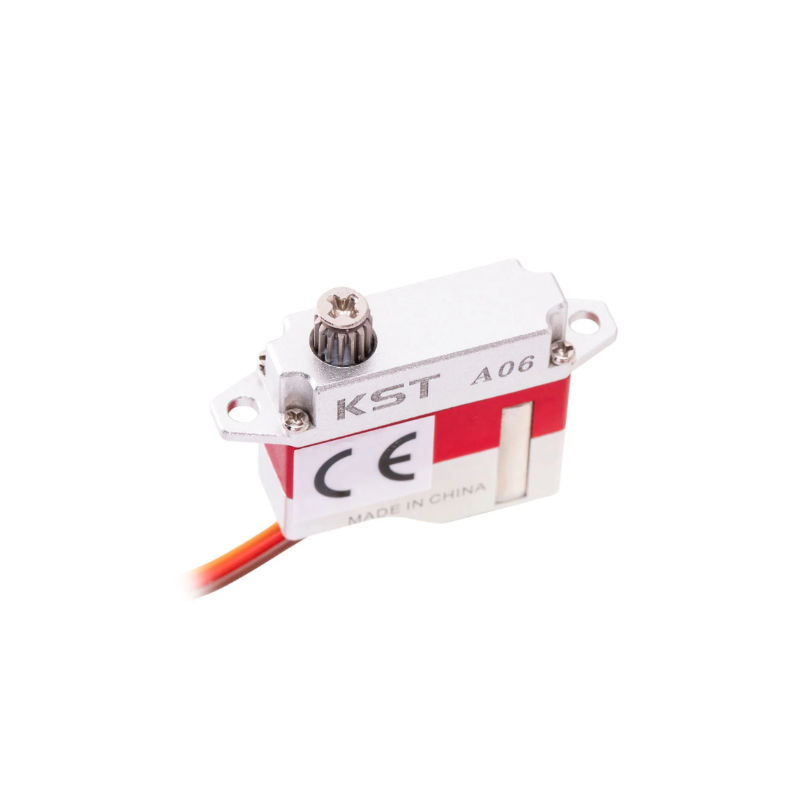

Experience the speed, torque, and precision of the KST A06 V6.0 Micro-coreless servo today! Designed specifically for competition F3K gliders, the A06 V6.0 boasts an ultra-fast 0.11 sec/60° speed and 1.4Kgf.cm of torque. Its high-speed response and robust torque output meet the demanding expectations of competitive gliders. Additionally, the A06 V6.0 excels in precision while maintaining lightweight construction. Available with various mounting tab options, there's an A06 V6.0 servo to perfectly suit your model's needs.

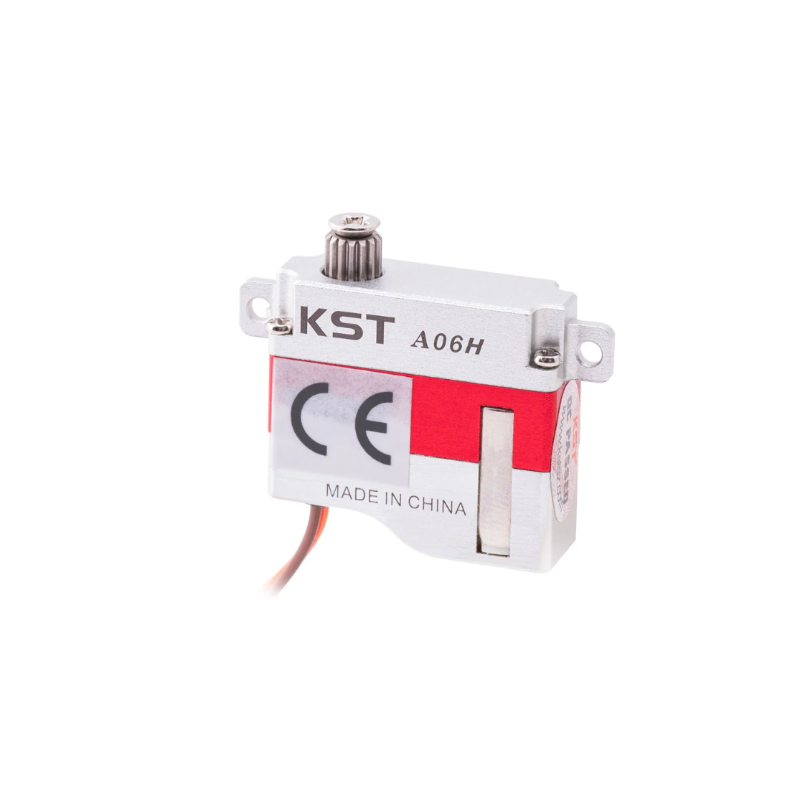

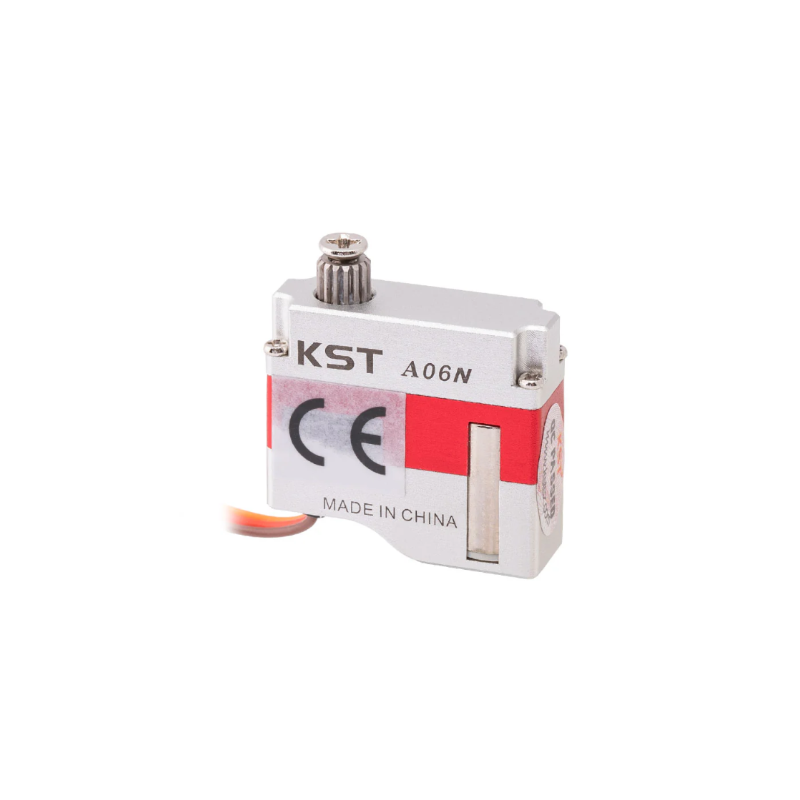

The A06 V6.0 servo offers 3 Different Mounting Tab Versions: A06 V6.0 Standard, A06H V6.0 Horizontal, and A06N V6.0 Lugless, catering to a variety of setup requirements and preferences.

Features

• High Torque & Exceptional Speed
• Compact and Lightweight
• Dual Ball Bearings
• Coreless DC Motor
• Ideal for F3K gliders

Specification

• Item: A06/A06H/A06N V6.0 Micro Servo
• Rated Voltage: DC4.2V
• Voltage Range: DC3.5V-4.2V
• Torque: 1.1Kgf.cm@3.5V / 1.4Kgf.cm@4.2V
• Speed: 0.14sec/60°@3.5V / 0.11sec/60°@4.2V
• Working Frequency: 1520μs/333Hz

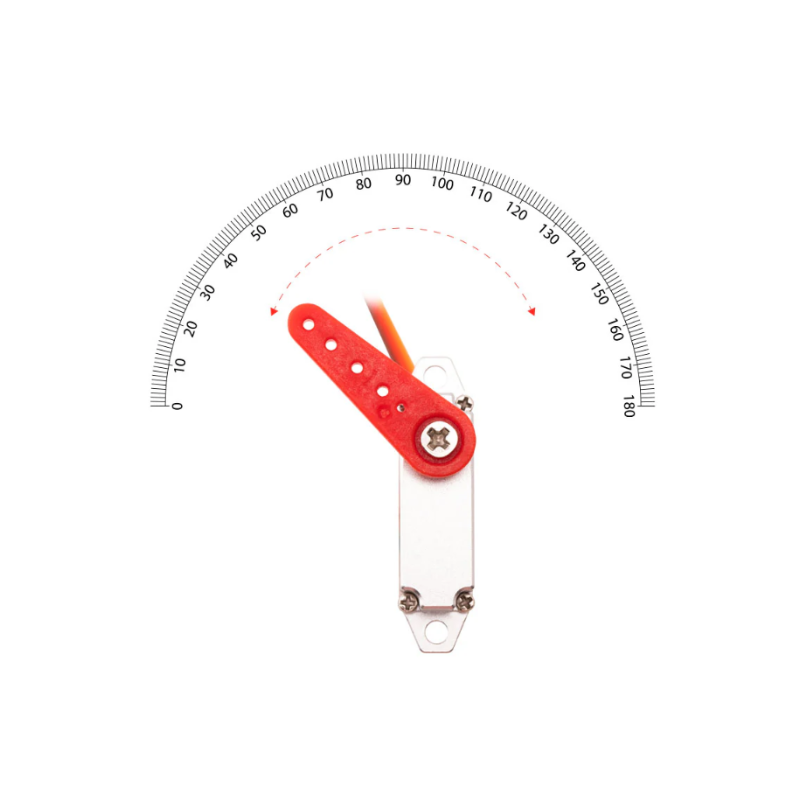

• Default Travel Angle: ±60° =120° Total
• Temperature Range: -10℃.......+65℃
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 20.5*7*18.8mm±0.2mm
• Weight: 7g±10%
