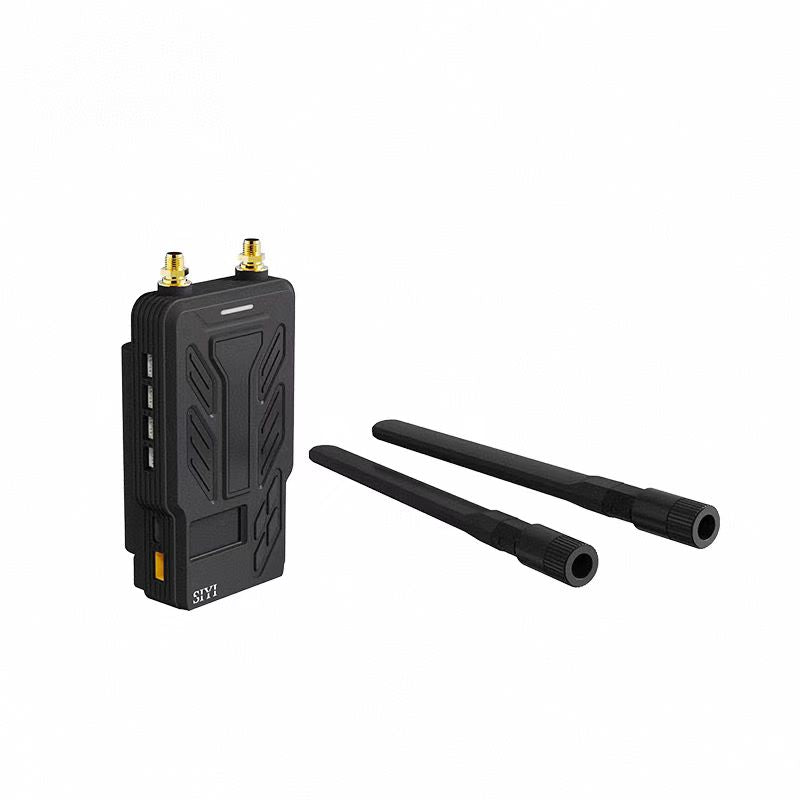

SIYI HM30 Long Range Full HD Digital Image Transmission FPV System 1080p 60fps 150ms SBUS PWM Mavlink Telemetry OSD 30KM CE FCC
| Max Transmission Range |
30 km (Unobstructed, free of interference) |
| Channels |
16 communication channels |
| Datalink Compatible Flight Controllers |
PX4 / ArduPilot Open-Source Flight Controllers: SIYI N7, etc. INAV Open-Source Flight Controllers |
| Video Stream Compatible GCS (Android) |
SIYI Factory Apps: SIYI FPV Open-Source GCS: QgroundControl Mission Planner |
| Video Stream Compatible GCS (Windows) |
Open-Source GCS: QGroundControl Mission Planner (H264 only) |
| Monitor |
0.96-inch OLED Display |
| Compatible Battery Type |
NP-F550 / F750 / F950 Series Quick Release Batteries (HM30 fly more combo comes with NP-750 quick release battery) |
| Fast Charging Protocol |
PD 30W |
| Antenna Gain |
Standard Omni Antenna: 5 dBi Standard Long Range Antenna: 11 dBi (Optional) Lollipop Antenna: 5 dBi |
| Interface & Ports |
S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin) Datalink Output: UART (GH1.25 4-pin) Ethernet Port: LAN (GH1.25 4-pin) Power Output: VCC (GH1.25 4-pin, without bucket) GCS Datalink Communication: Type-C Firmware Upgrade: Type-C Charge: Type-C Power Input: PWR (XT30) Tripod Connector: 1/4-inch Screw Hole |
| Product Dimensions (Battery and antennas excluded) |
109 x 61 x 28 mm |
| Product Dimensions (Battery and antennas excluded) |
132 g |
| Waterproof Level |
IP53 |
| Working Temperature |
-10 ~ 50℃ |
| Signal Output |
16 channels of S.Bus 5 channels of PWM |
| Interface & Ports |
S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin) Datalink (to FC): UART (GH1.25 4-Pin) PWM Channel 1 to 5: PWM (GH1.25 6-Pin) Video Input / Network Communication: LAN (GH1.25 8-Pin) Firmware Upgrade: Type-C |
| Antenna Gain |
Omni Antenna: 5 dBi (Standard) Lollipop Antenna: 5 dBi (Optional) |
| Working Voltage |
HM30 Air Unit: 3S ~ 6S / 12.6 ~ 25.2 V 4S to 18S Power Module (Optional): 16.8 ~ 75.6 V |
| Power Consumption |
HM30 Air Unit: - Average: 2.8 W - Summit: 12 W HM30 Air Unit + 4S to 18S Power Module: - Average: 3.2 W - Summit: 12 W |
| Dimensions (Antenna Excluded) |
70 x 55 x 16 mm (fan included) |
| Weight (Antenna Excluded) |
HM30 Air Unit: 74 g HM30 Air Unit + 4S to 18S Power Module: 109 g |
| Working Temperature |
-10 ~ 50℃ |
| Video Output Port |
Ethernet |
| Image Sensor |
1/2.9 Inch, 2 MP |
| FOV |
Diagonal: 90° Horizontal: 80° |
| Working Voltage |
12 V |
| Power Consumption |
2.5 W |
| Video Recording Resolution |
1080p (1920*1080) @ 30 fps 720p (1280*720) @ 30 fps |
| Recording Bitrate |
12 Mbps |
| Video Recording Format |
MP4 |
| Supported TF / SD Card Type |
MicroSD Class10 Less than 32GB |
| File Storage Format |
FAT32 |
| Dimensions |
42 x 42 x 25 mm |
| Weight |
23 g |
| Working Temperature |
-10℃ ~ 50℃ |
| Video Input |
Micro HDMI |
| Video Output |
Ethernet |
| Working Voltage |
12 V |
| Power Consumption |
3 W |
| Video Recording Resolution |
1080p (1920 × 1080) @ 30 fps 720p (1080 × 720) @ 30 fps |
| Video Storage Birate |
12 Mbps (H265 codec) |
| File Storage Format |
FAT32 |
| Video Recording Format |
H265 |
| Supported TF / SD Card Type |
MicroSD Class10, Less than 32GB |
| Dimensions |
42*41*11 mm |
| Weight |
26 g |
| Working Temperature |
-10℃ ~ 50℃ |
| Video Input Port |
Ethernet |
| Video Output Port |
Micro-HDMI |
| Working Voltage |
8.4 ~ 25.2 V |
| Power Consumption |
Average: 1.5 W Summit: 5 W |
| Video Recording Resolution |
1080p (1920*1080) @ 30 fps 720p (1280*720) @ 30 fps |
| Video Recording Bitrate |
12 Mbps |
| Supported File System |
FAT32 ExFAT |
| Video Format |
MP4 |
| Supported TF / SD Card Type |
Micro-SD Class10, max 128 GB |
| Product Dimensions |
42 x 37 x 13 mm |
| Product Weight |
25 g |
| Working Temperature |
-10 ~ 50℃ |
| Video Input Port |
Ethernet |
| Video Output Port |
Micro-HDMI |
| Working Voltage |
8.4 ~ 25.2 V |
| Power Consumption |
Average: 1.5 W Summit: 5 W |
| Video Recording Resolution |
1080p (1920*1080) @ 30 fps 720p (1280*720) @ 30 fps |
| Video Recording Bitrate |
12 Mbps (H265 codec) |
| Supported File System |
FAT32 ExFAT |
| Video Recording Format |
MP4 |
| Supported TF / SD Card Type |
MicroSD Class10, max 128 GB |
| Dimensions |
42 x 37 x 13 mm |
| Weight |
25 g |
| Working Temperature |
-10 ~ 55℃ |
