- Designed for EVTOL, AIRCRAFT, XCLASS to carry 8-10 kg, supports 12S voltage.
- Long shaft motors may be used to drive pusher propellers (the motor is located in the middle of the fuselage, transmitting power through an axle to the tail boom).
| Motor Data | |||
|---|---|---|---|

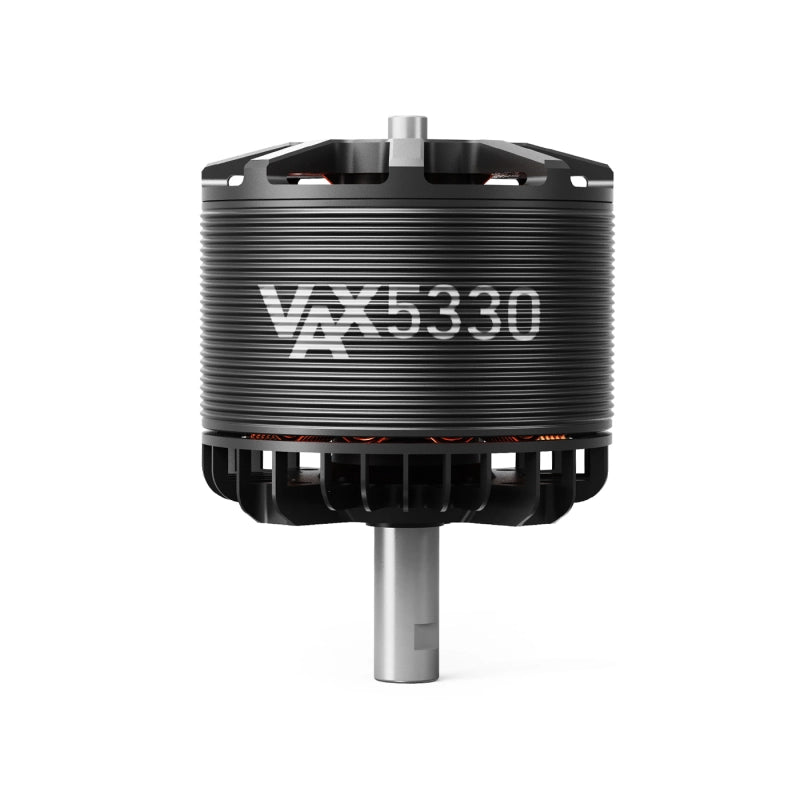

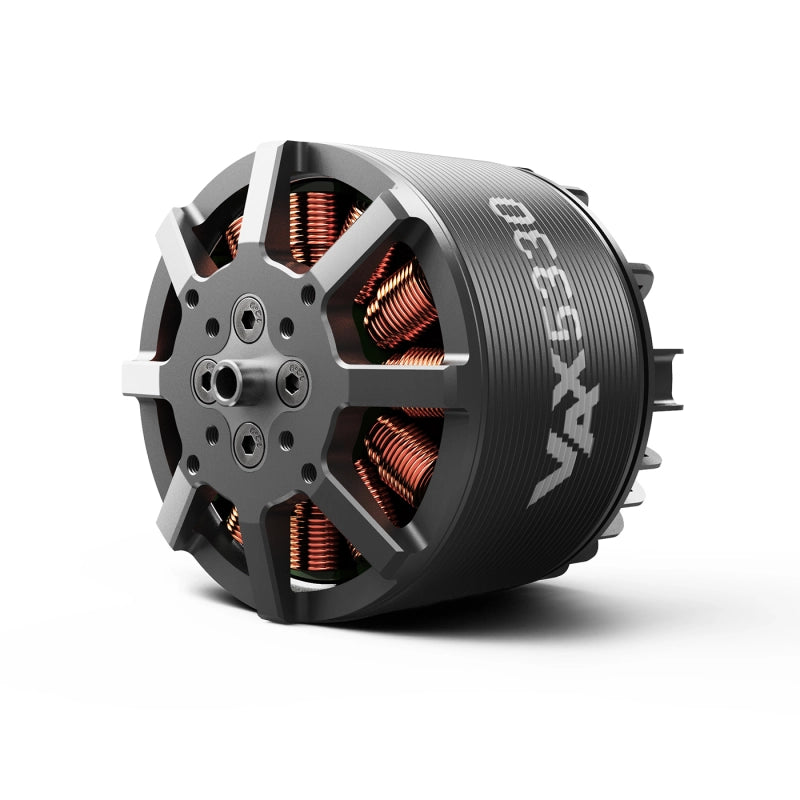

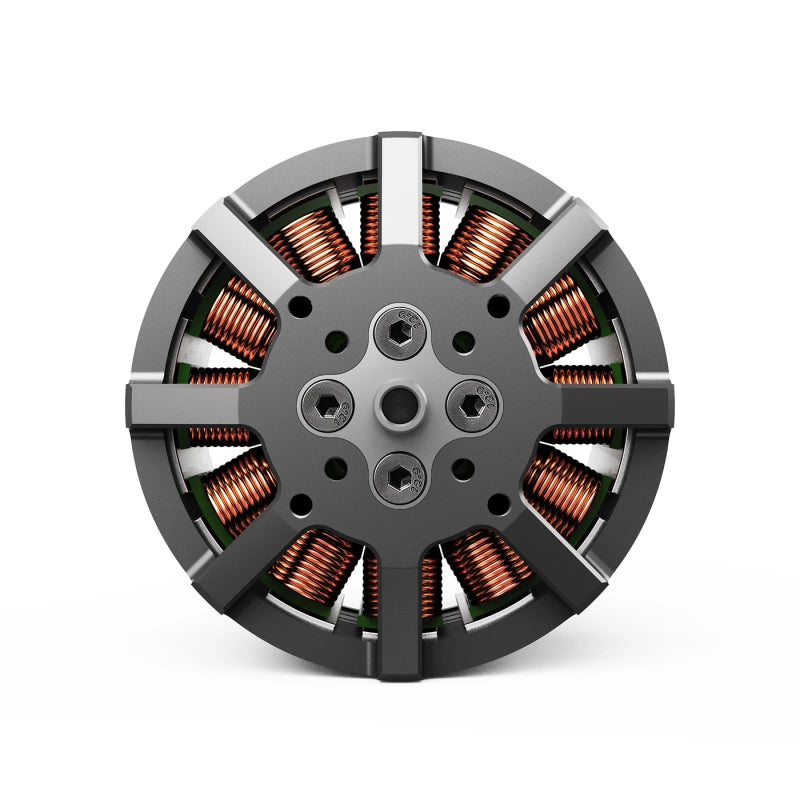

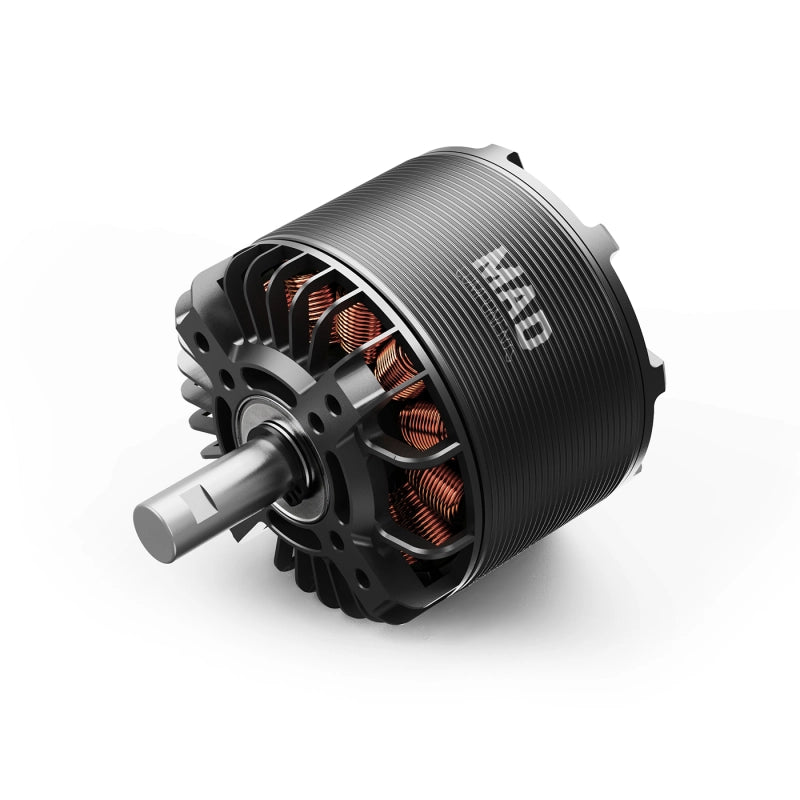

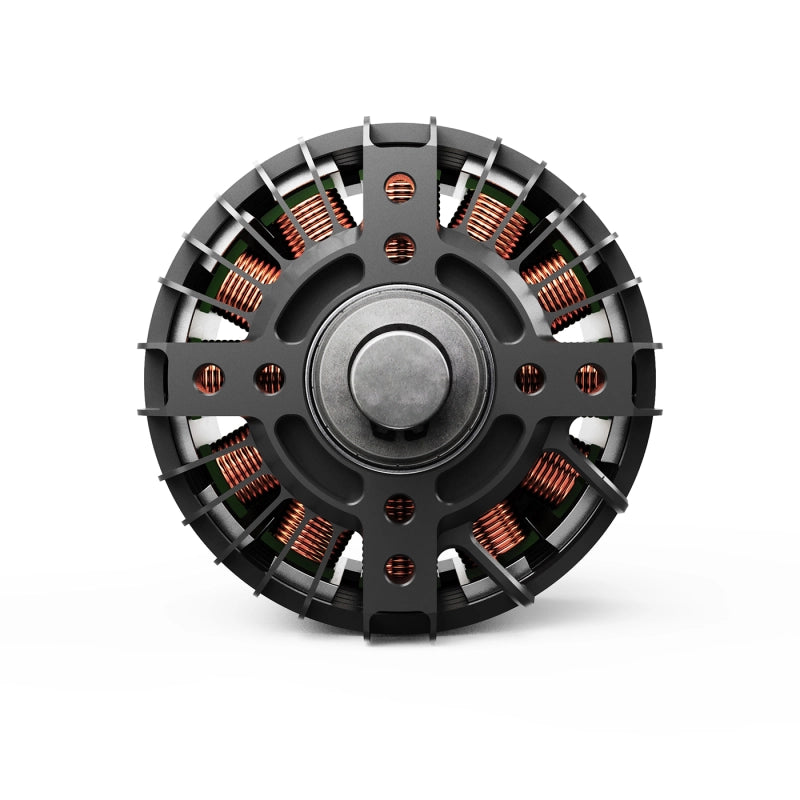

| Motor Model | MAD VAX 5330 EEE V2.0 Long Shaft | Number of pole pairs | 7 |
| Stator Size | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D: 62.5 × 67.6mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm (14# black silicone wire) |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:31 M3×4，D:20 M3*4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 10 mm | Motor Mounting Holes | D:30 M4×4, D:44 M4×4 |
| Bearing | EZO 6800ZZ*2 / EZO 6900ZZ*1 | Disruptive test | 500 V |

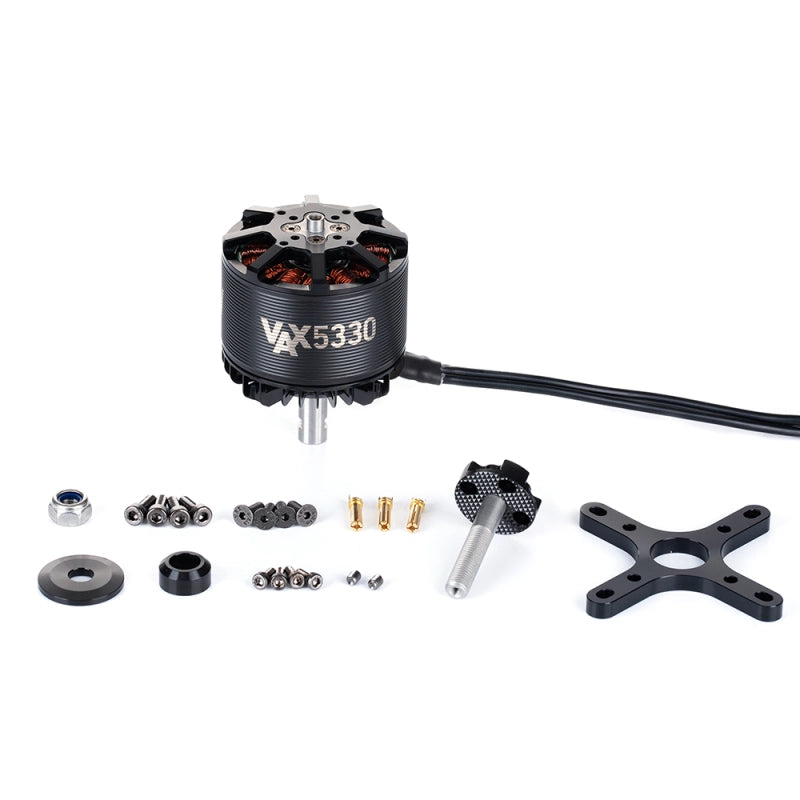

| Additional Accessories | Propeller Adapter*1, Propeller plate *1, 4.0mm Bullet connnector*3, Heat shrink tube *3, M4*12mm*4 motor screws, M3*8mm*4 prop adapter screws, Rotor propeller adapter *1, M3*18mm*4 propeller screws, M8 nut *1, Sticker *2 | ||
