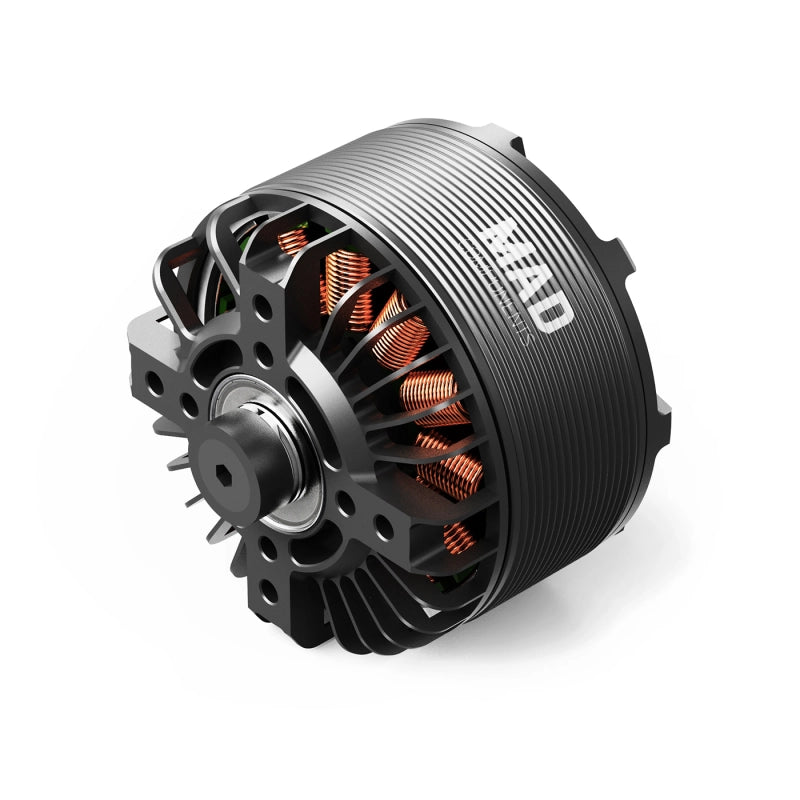

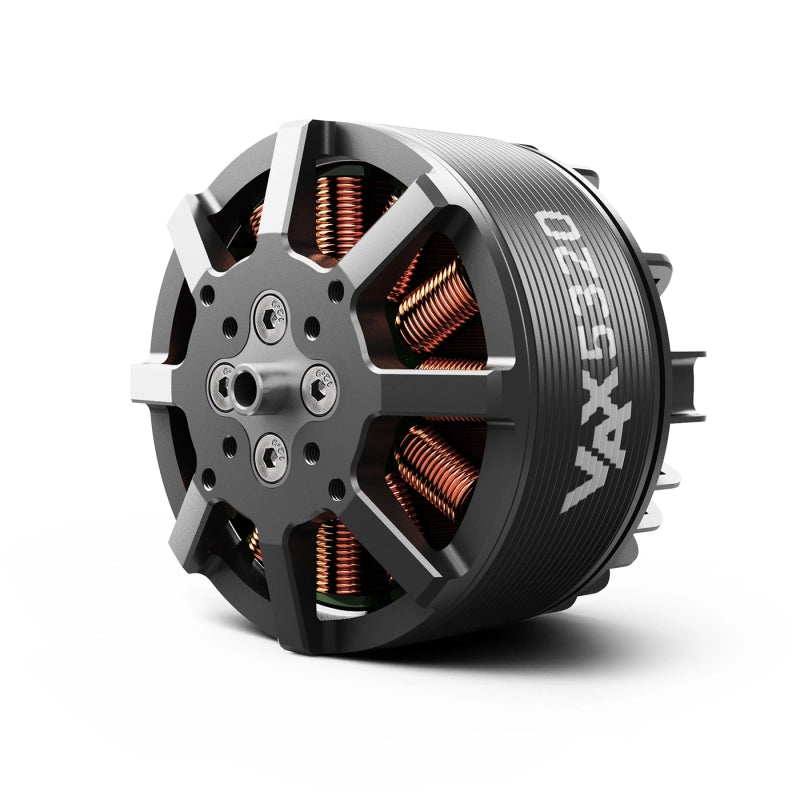

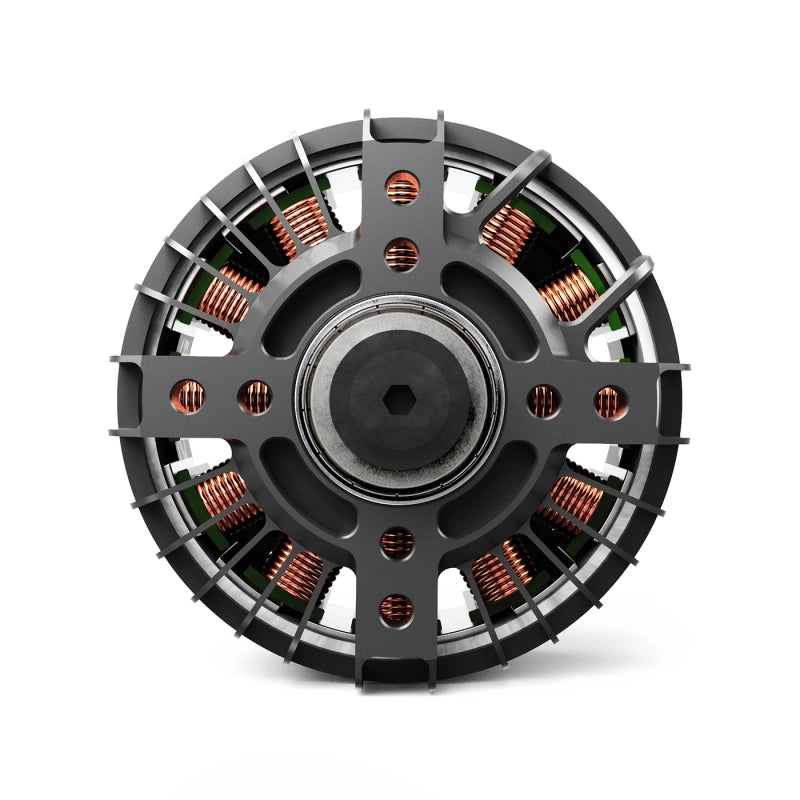

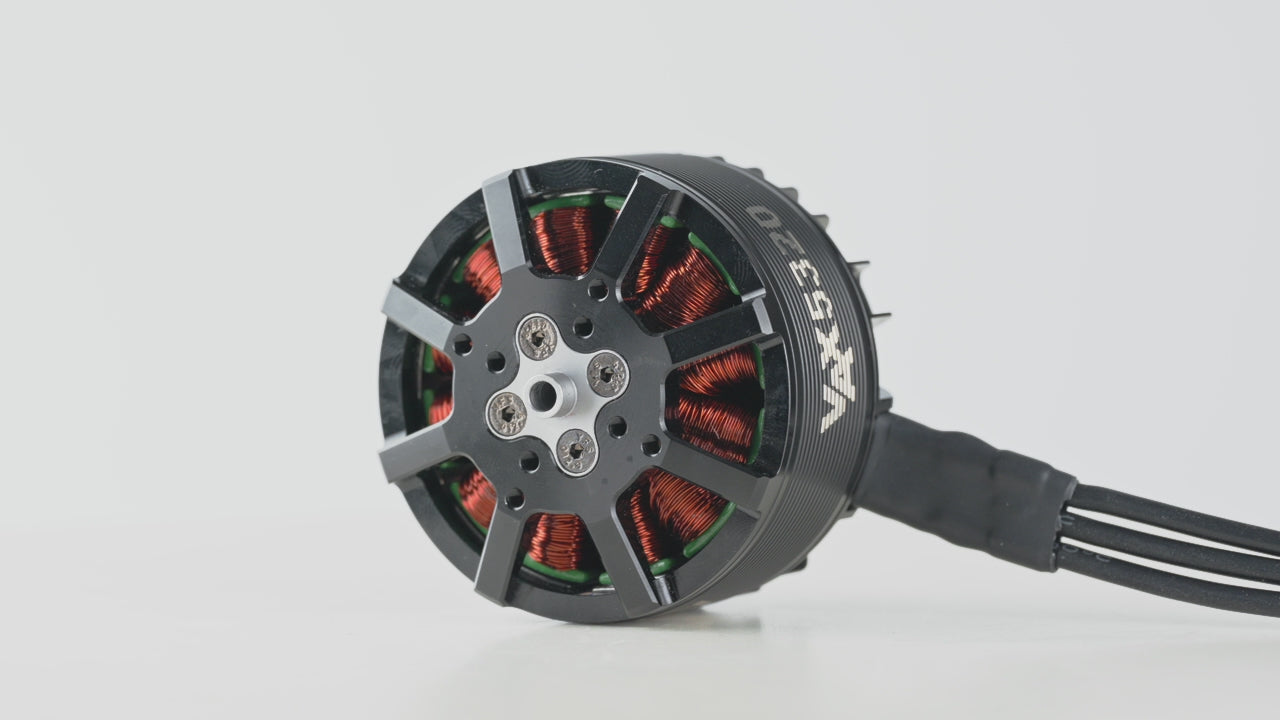

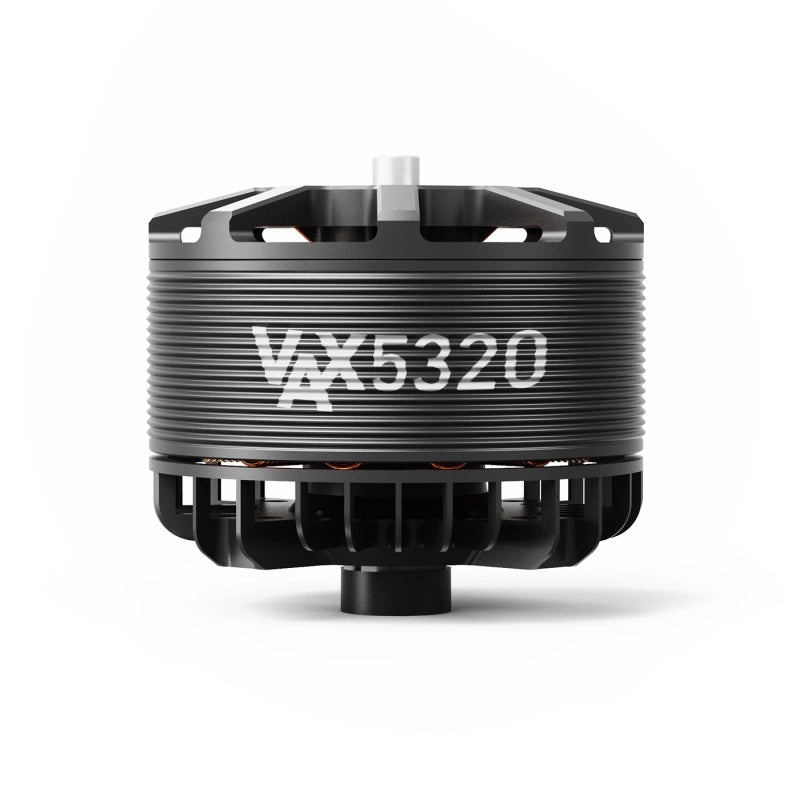

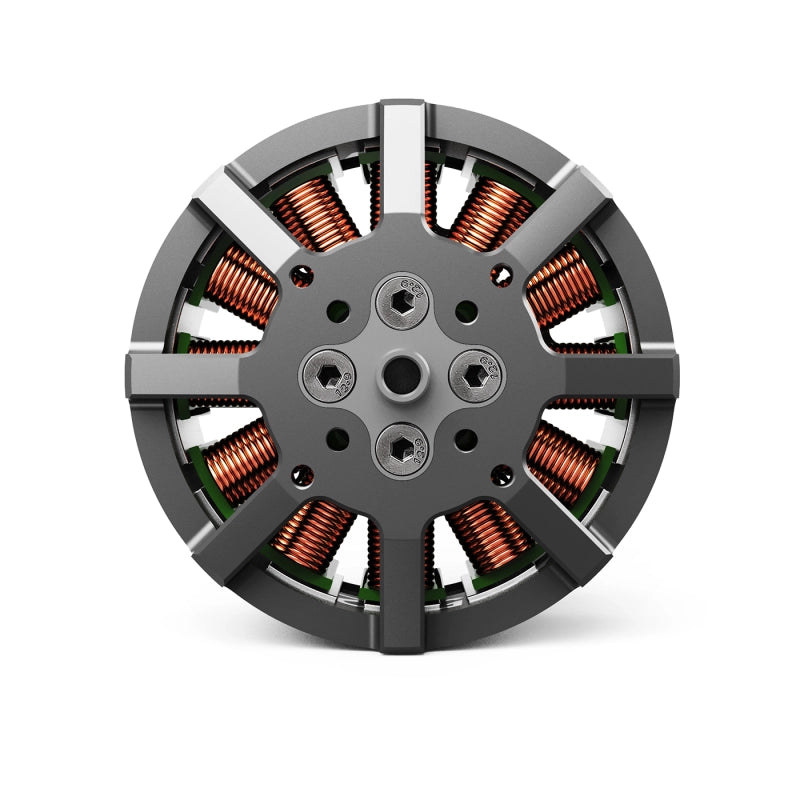

VAX 5320 with thrust bearing is designed for VTOL,AIRCRAFT,XCLASS to carry of 8-10 kg, supports 12S voltage.
VAX 5320 is improved to get higher reliability and stability for long range flight. It also maintains the excellent properties and characteristics of the previous generation and enhances motor safety and service life that fully meets the demanding requirements of various industries.
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD VAX 5320 EEE V3.0 | Number of pole pairs | 7 |
| Stator Size | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:35 × 40.1mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm (extended Enameled wires) |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:31 M3×4，D:20 M3*4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 10 mm | Motor Mounting Holes | D:30 M4×4, D:44 M4×4 |
| Bearing | EZO 6800ZZ*2 / EZO 6900ZZ*1 | Disruptive test | 500 V |
| Additional Accessories | Propeller Adapter*1, Propeller plate *1, 4.0mm Bullet connnector*3, Heat shrink tube *3, M4*12mm*4 motor screws, M3*8mm*4 prop adapter screws, Rotor propeller adapter *1, M3*18mm*4 propeller screws, M8 nut *1, Sticker *2 | ||
